Fermion v2.0 - Pulse Oximeter and Heart Rate Monitor - MAX30102 - I2C - DFRobot SEN0344

Index: DFR-19196 EAN: 5904422361648
Sensor module with integrated MAX30102 chip from DFRobot. This is an integrated pulse oximetry biosensor module that allows you to measure heart rate and monitor saturation, or SpO2. The module is based on PPG (Photo Plethysmo Graphy). Its small size means that it can be placed on the finger (as a finger pulse oximeter) or worn on the wrist for data acquisition.
Fermion v2.0 - Pulse Oximeter and Heart Rate Monitor - MAX30102 - I2C - DFRobot SEN0344
€17.25
€14.03 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Product description: Fermion - pulse oximeter and heart rate sensor - MAX30102 - I2C - DFRobot SEN0344

Sensor module with integrated MAX30102 chip from DFRobot. This is an integrated pulse oximetry biosensor module that allows you to measure your heart rate and monitor your saturation level, or SpO2. The module is based on PPG (Photo Plethysmo Graphy). Its small size means that it can be placed on your finger (as a finger pulse oximeter) or worn on your wrist for data.

Arduino compatible product
The manufacturer has prepared a detailed user guide that includes connection instructions and sample program code. There is also a diagram explaining how to read the pulse oximeter results.

Fermion: pulsoksymetr i czujnik tętna - MAX30102 - I2C - DFRobot.

Fermion v2.0 : pulse oximeter and heart rate sensor - MAX30102 - I2C - DFRobot.

Schemat połączenia czujnika z wykorzystaniem płytki DFRduino UNO R3 - odpowiednika Arduino. Płytka nie jest częścią zestawu, można ją kupić osobno w naszym sklepie.

Sensor connection diagram. The board is not part of the kit.

Sensor pins description and connection scheme

Leads of the sensor are soldering fields, to which you should solder included goldpin connectors - 2,54 mm raster. Module is compatible with Arduino and related boards (to be purchased separately). It is necessary to connect the leads with the controller board according to the following dependencies:

  • 3V3 - power supply
  • GND - system ground
  • SCL - I2C communication interface clock line
  • SDA - data line of I2C communication interface
  • RST - Reset pin
  • NC - empty pin
  • 3V3 - power supply
  • GND - system ground
  • RX - serial port line
  • TX - pin transmitted through the serial port
  • INT - interrupt pin (Pulse during pulse and blood oxygen update)
  • NC - empty pin

Notes during use

  • It is recommended to mount the sensor on the finger (as a finger pulse oximeter) during measurement to avoid the influence of pressure change on the data output
  • Fix the sensor on your finger with a rubber band
  • The product is not a professional medical device - it should not be used as an accessory in medical diagnosis and treatment of diseases

Technical Specifications Pulse oximeter from DFRobot

  • Module: pulse oximeter and heart rate sensor
  • Version 2.0
  • Embedded chip: MAX30102
  • Compatible with most controllers
  • Internally integrated 18-bit ADC
  • High SNR
  • High sampling rate
  • Low standby current
  • Supply voltage: 3,3 V
  • Operating current: < 50 mA
  • Power supply current for RED / IR LEDs: 0 mA to 50 mA
  • Communication interface: I2C bus
  • Interface address: 0x57
  • Operating temperature: from -40°C to 85°C
  • Module dimensions: 18 x 14 mm

The sensor has an integrated MAX30102 chip.

Zestaw zawiera także dedykowane złącze goldpin - przeznaczone do samodzielnego przylutowania.

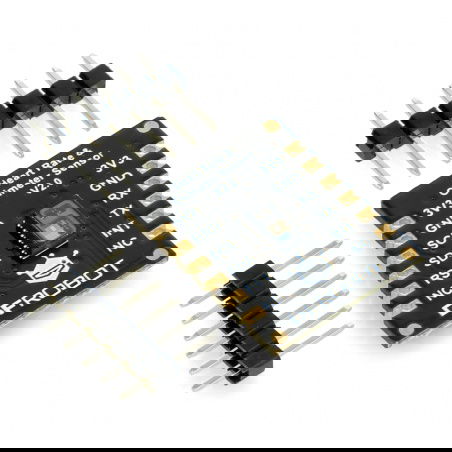

The kit also includes dedicated goldpin connectors - designed to be soldered by yourself.

Suggested use

  • Heart rate measurement
  • SpO2 saturation detection

Contents of the kit

  • Fermion v2.0 : pulse oximeter and heart rate monitor
  • 2x goldpin connector 1x6 - 2.54 mm
