Oscilloscope Hantek 6022BE USB PC 20MHz 2 channels

Index: UPM-06716 EAN: 5904422359867

Digital oscilloscope, dual channel, operating in the band up to 20 MHz. Provides a sampling rate of 48 MS/s, is connected to the computer via the USB port, has no LCD display. The set has also two probes, USB cable and user's manual.

€87.78
€71.37 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Hantek

Description

Digital oscilloscope, dual channel, operating in the band up to 20 MHz. Provides a sampling rate of 48 MS/s, is connected to the computer via the USB port, has no LCD display. The set has also two probes, USB cable and user's manual.



Oscyloskop Hantek 6022BE USB

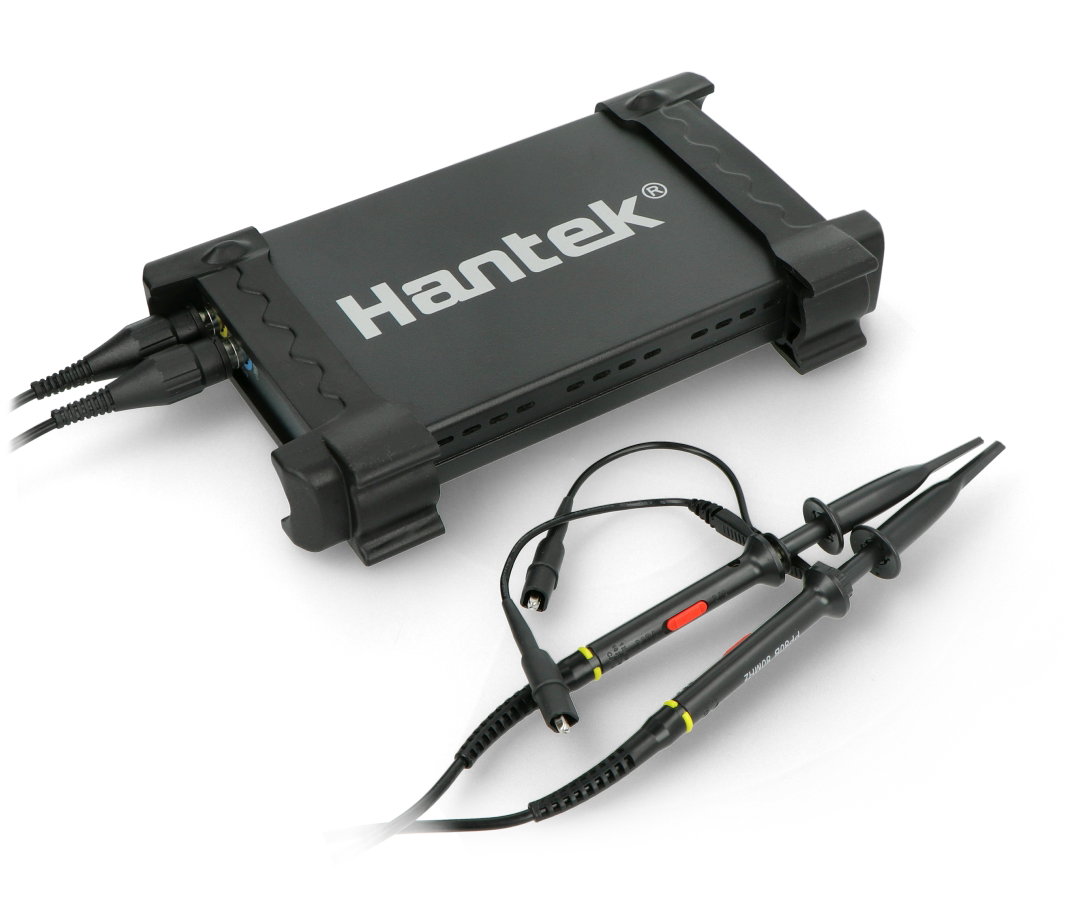

Included: oscilloscope, two measuring probes and a USB cable for connecting to computer.

Includes

  • Oscilloscope
  • Two measurement probes with pitch 1x and 10x
  • The user manual
  • USB cable
  • Communication PC software

Oscyloskop Hantek 6022BE USBThe software for the oscilloscope.

Works with operating systems Windows NT / 2000 / XP / Vista / 7 / 8.

Specification

  • Number of channels: 2
  • Band: 20 MHz
  • Communication with computer: USB 2.0
  • Powered by USB
  • Time of sampling: 48 MS/s
  • Input impedance: 1 25pF
  • Resolution of transducer: 8 bits
  • Input's sensitivity: 10 mV to 5 V (9 steps)
  • Accuracy DC: +/- 3%
  • Maximum input voltage: 35 Vpp
  • 23 measurement functions
  • The ability to perform mathematical functions (addition, subtraction, multiplication, division, FFT analysis)
  • Saving files (text, image, jpg/bmp, word, excel, csv)
  • Compatible with LabVIEW
  • Has no display
  • Weight: 380 g
  • Dimensions: 205 x 120 x 35 mm

Channels 2
Frequency to 20 MHz
Oscilloscope - Type PC
Oscilloscope - Sampling 48 MS/s
