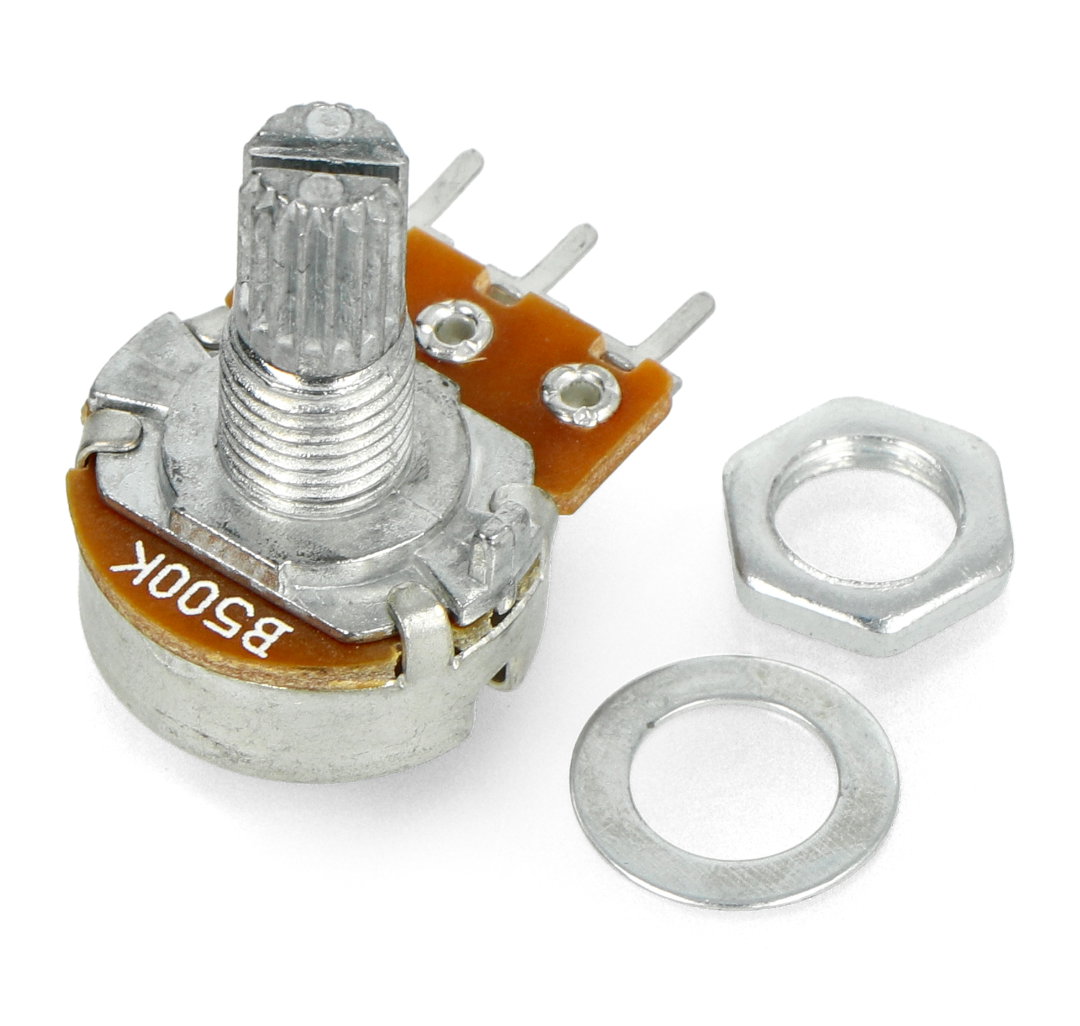

Product description: 500 kΩ linear 1/8 W rotary potentiometer - 5 pieces.
Rotary potentiometer with linear scale has outputs that match thecontact plates. Connected to an analogue-to-digital converter ofa microcontroller (e.g. Arduinoanalogue inputs) can serve as a knob-knob in the user interface.
Elements sold in a package of 5 pieces.
Specification of 500kΩ linear 1/8W rotary potentiometer
- Resistance: 500 kΩ
- Power: 0.125 mW
- Characteristics: linear
- Axle length: 15 mm
- Axle diameter: 6 mm
- Raster of exits: 5 mm (fits the contact plates)
- Linearity tolerance: ± 20 %
- Operating temperature: -10 °C to +70 °C
Detailed dimensions can be found in the documentation.
