Arducam Pan Tilt Platform - 2 DOF platform for Raspberry Pi camera - Arducam B0227

Index: ACM-18768 EAN: 5904422358310
Kit with 2 DOF control platform for Raspberry Pi camera. The platform is based on two digital servos which allow to change the camera position in two planes: vertical 145° and horizontal 180°. The servos are controlled by a PWM board with a PCA9685 12-bit PWM controller. This allows to observe places and objects that should be monitored from different angles by several cameras at the same time.
Arducam Pan Tilt Platform - 2 DOF platform for Raspberry Pi camera - Arducam B0227
€19.50
€15.85 tax excl.
Manufacturer: ArduCam
Compatibility: Raspberry Pi

Attention!

The product has been discontinued. Check other products in category.

Product description: Arducam Pan Tilt Platform - 2 DOF platform for Raspberry Pi camera - Arducam B0227

Set with 2 DOF control platform for Raspberry Pi camera. The platform is based on two digital servos which allow to change position of the camera in two planes:vertical 145°andhorizontal 180°. The servos are controlled by a PWM board with a PCA9685 12-bit PWM controller. This makes it possible to observe places and objects that should be monitored from different angles by several cameras at once.

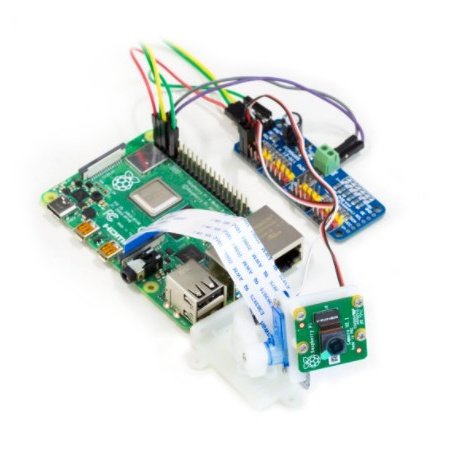

Schemat połączenia platformy z Raspberry Pi i kamerą.

Connection diagram of the platform with Raspberry Pi and camera.

Technical specifications

  • Servo: digital
  • Angle of rotation:
    • vertical: 145°
    • horizontal: 180°
  • Torque:
    • 0.6 kg*cm at 3.6 V
    • 0.8 kg*cm at 4.8 V
  • Working speed:
    • 0.13 s/60° at 3.6 V
    • 0.09 s/60° at 4.8 V
  • Operating voltage: 3.6 V to 4.8 V
  • Operating current: <350 mA
  • Dead Band: 3 usec
  • Dimensions: 20 x 8.75 x 22 mm
  • PWM control board

  • PWM Controller: PCA9685
  • PWM resolution: 12 bits
  • Ambient light sensor: TSL2581FN
  • Ambient light resolution: 16 bits
  • Communication interface: I2C
  • Operating voltage: 3.3 V / 5 V
  • Dimensions: 25 x 61 mm

Application

  • IoT cameras
  • Robot cameras
  • Security and surveillance projects
  • Projects using Raspberry Pi

Set contents

  • Digital servo - 2 pcs.
  • Bracket kit with screws
  • PWM control board
  • Female to female interconnect cables - 4 pcs.
  • Male-female connection wires - 2 pcs.
Zestaw zawiera niezbędne przewody połączeniowe.The kit includes the necessary connection wires.
Package width 9.5 cm
Package height 3.5 cm
Package depth 8 cm
Package weight 0.058 kg
