M23272M14 Wide angle lens M12 2,72mm with adapter for Raspberry Pi HQ camera - ArduCam LN056

Index: ACM-19354 EAN: 5904422358372

A wide angle lens manufactured by Arducam for Raspberry Pi camera. The M23272M14 lens with a 140° angle of view has been created for Raspberry Pi HQ camera, it also comes with a suitable adapter to properly mount the lens on the camera module. The camera has 1/2.3" format, 2.72mm focal length, F2.5 aperture, and 3.01mm rear focal length.

€24.84
€20.19 tax excl.
Goods pending acceptance - available within a few days
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: ArduCam
Compatibility: Raspberry Pi

Description: M23272M14 M12 2.72mm wide angle lens with adapter for Raspberry Pi HQ camera - ArduCam LN056

Wide angle lens manufactured by Arducam forRaspberry Picamera. LensM23272M14with140°angle of view is made forRaspberry Pi HQcamera, it comes withadapterfor correct mounting of the lens on the camera module. The camera has 1/2.3" format, focal length of 2.72mm, F2.5 aperture and 3.01mm rear focal length.

We also offer otherlensesfor Raspberry Pi cameras.

Obiektyw szerokokątny dla Raspberry Pi HQ

Wide angle lens for Raspberry Pi HQ.

Obiektyw Arducam dla Raspberry Pi HQArducam M12 lens for Raspberry Pi HQ.

Why S-mount lenses are ideal for the Raspberry Pi HQ camera

  • Light weight: lighter and smaller than official lenses
  • Good price/quality ratio
  • Suitable for all kinds of projects that require differentiated lenses with specific fields of view
  • Unlike C/CS mount lenses, the M12 lens can be customized in terms of product design

Lens specifications

  • Model: M23272M14
  • Format: 1/2.3"
  • Focal length: 2.72 mm
  • Aperture: F2.5
  • Field of view: 140° (H)
  • Mounting: M12
  • Rear focal length: 3.01 mm
  • MOD: 0.2 m
  • IR Sensitivity: Visible light sensitive, with 650nm IR filter
  • Dimensions: Φ17.20 x 17 mm
  • Weight: 8 g

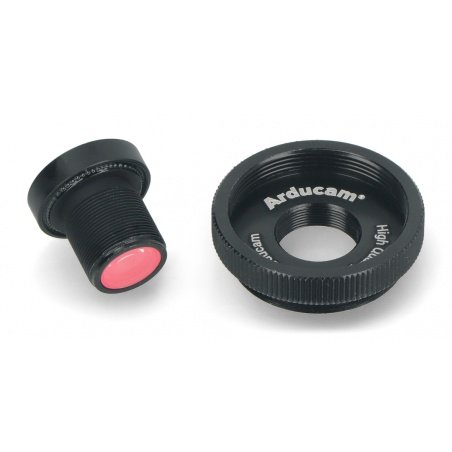

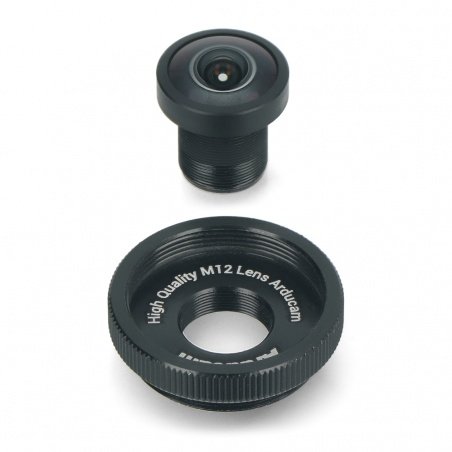

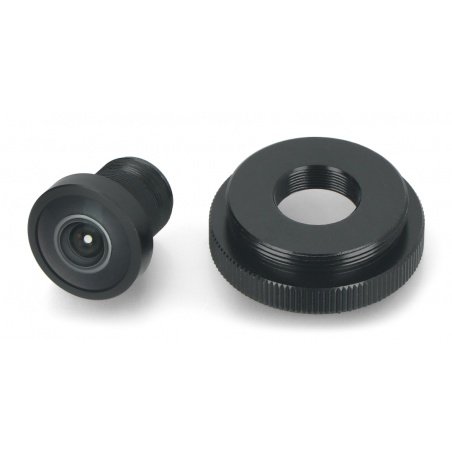

Set contains

  • 1x Lens M12 140°
  • 1x Lens Adapter M12
Obiektyw do Raspberry PiLens M12 140° for Raspberry Pi.
