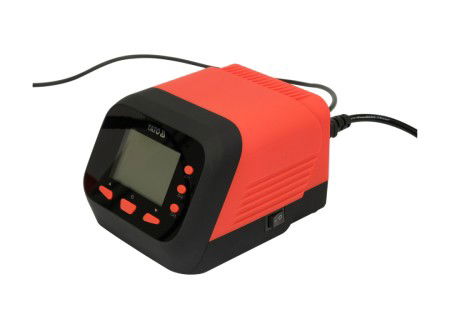

Product description: Soldering station YT-82462 - Yato 75 W
The YT-82462 soldering station was designed with professionals and advanced hobbyists in mind. Thanks to the support of T12 tips , integrated with a heater and temperature sensor, the device achieves high work efficiency and exceptional precision. The LCD display informs about current operating parameters, such as tip temperature, power consumption and auto sleep function status. Three memory channels allow for quick selection of favorite settings. The iron with low thermal resistance and ergonomic shape allows for comfortable work with precise SMD or THT connections.

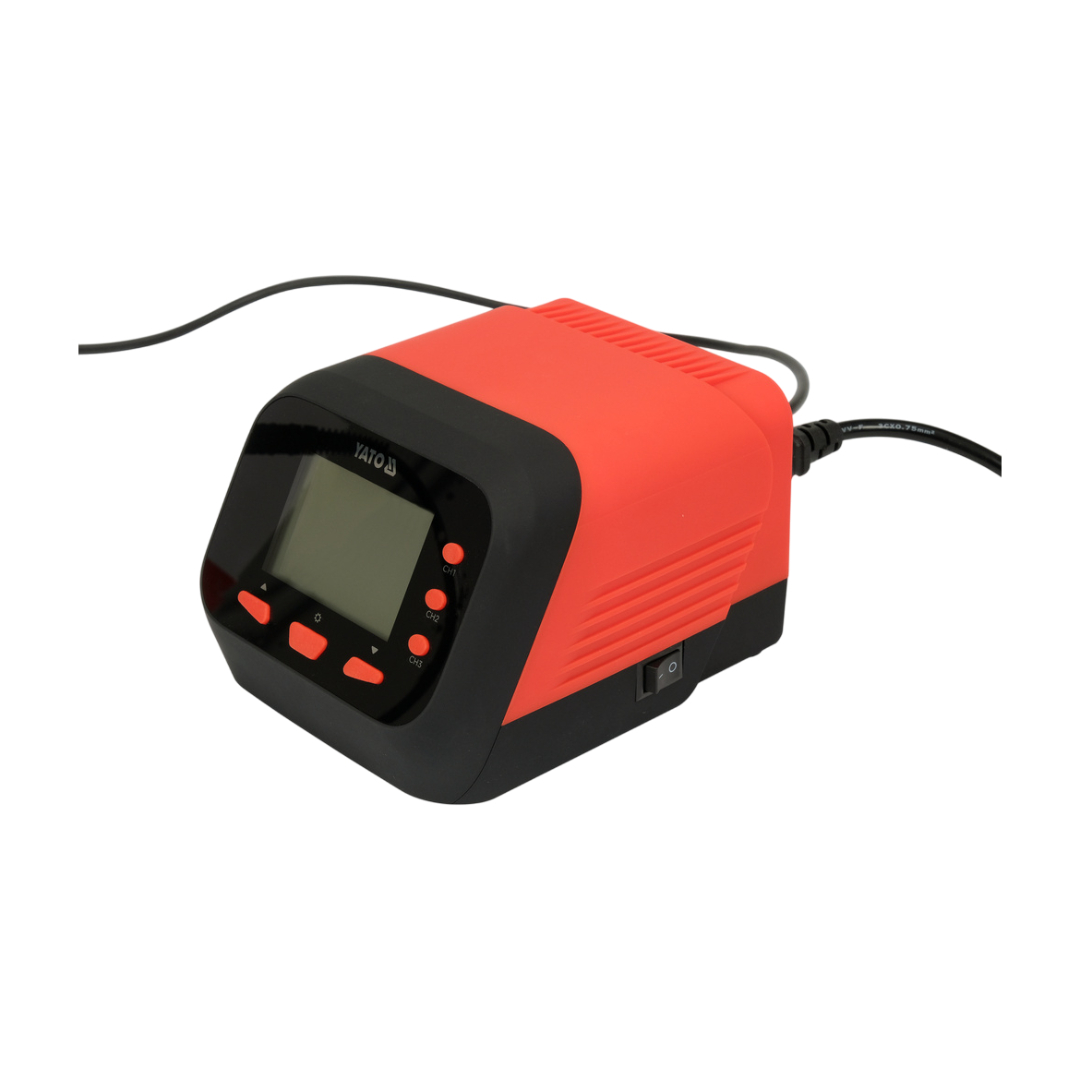

Soldering station YT-82462 - Yato 75 W.
The YT-82462 soldering station is designed with professionals and advanced hobbyists in mind.
Special Features
- High power 75 W : ensures quick heating and efficient operation
- T12 tip support : lightning-fast heating and excellent temperature stability
- Temperature range: 90°C to 480°C with an accuracy of ± 2°C
- Express heating: up to 350°C in just 6 seconds

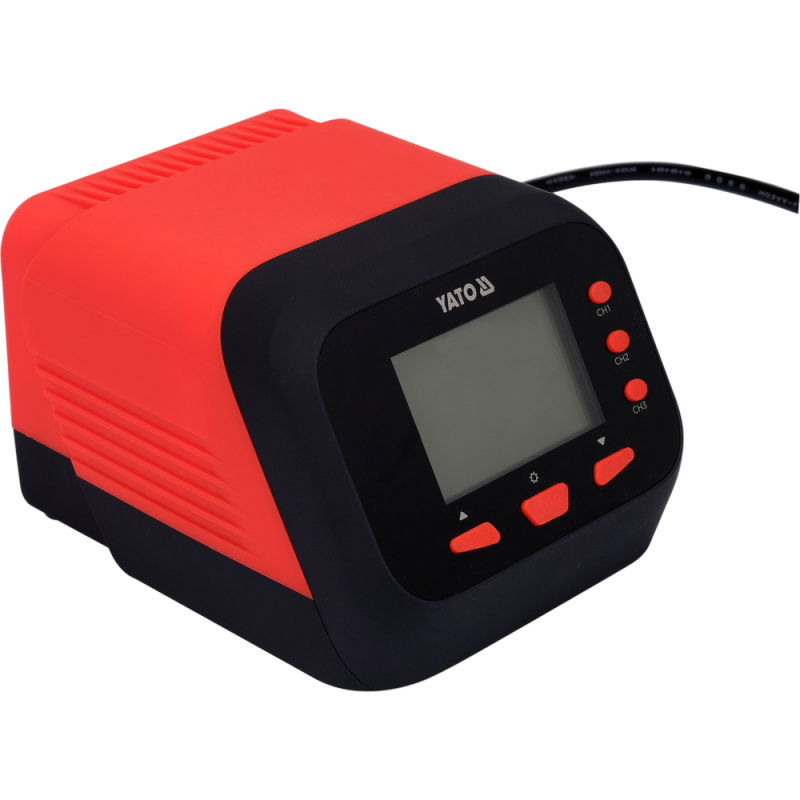

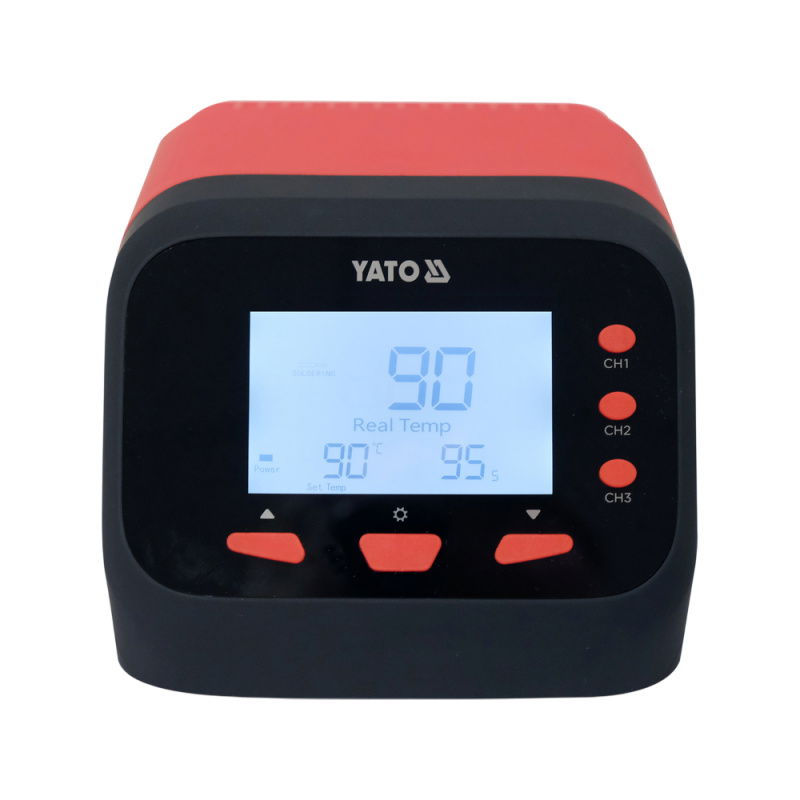

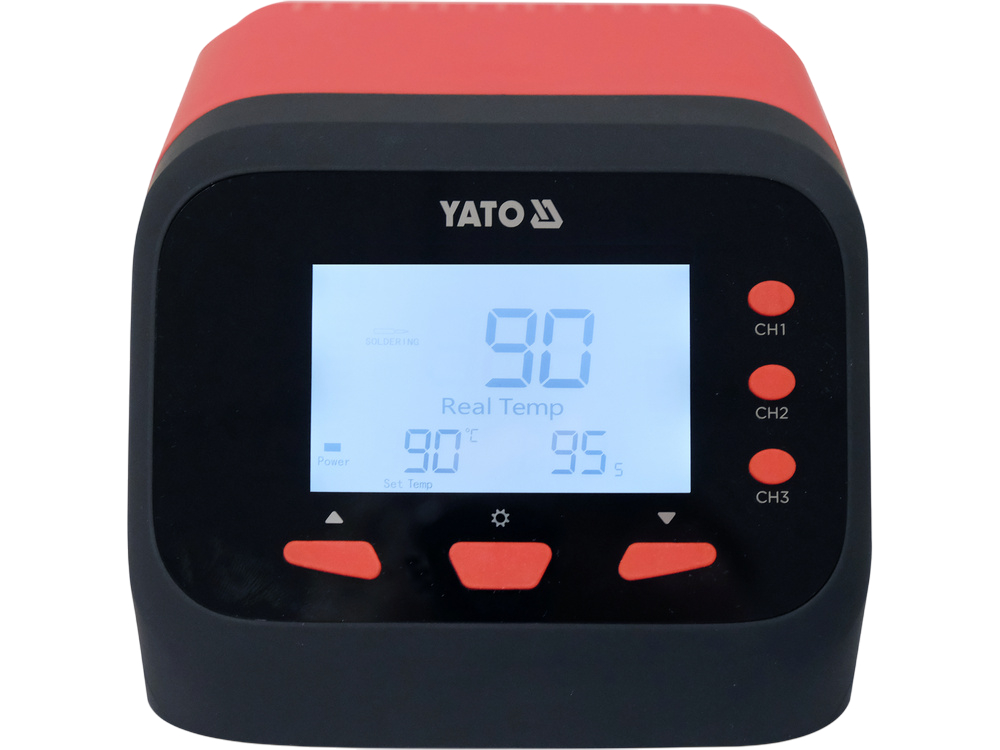

- LCD display : shows tip temperature, power, operating modes and other parameters
- Auto sleep function : adjustable from 20 s to 999 s, extends tip life
- Temperature calibration : allows precise adjustment to a specific tip
- Three memory channels : save and quickly select your favorite temperature settings

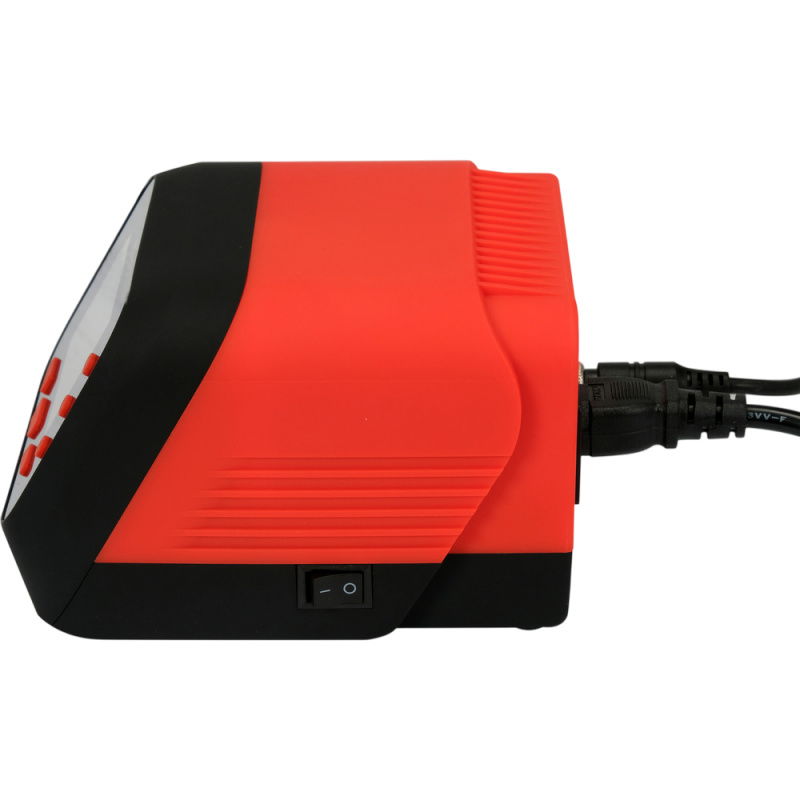

- Power ON/OFF button : on the front of the housing for convenient operation
Soldering iron technical specifications

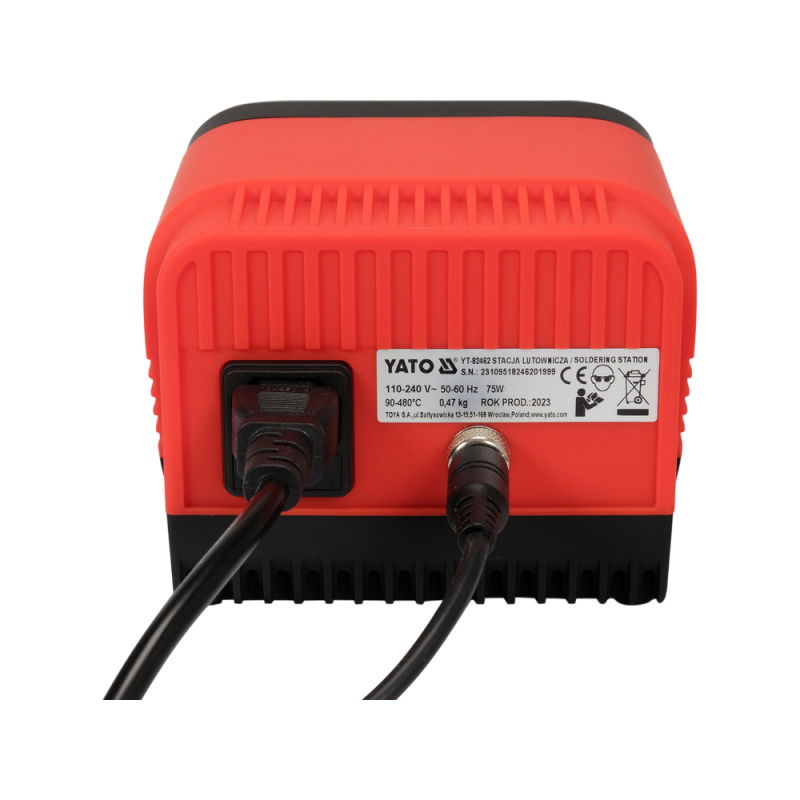

- Supply voltage: 110 V to 240 V
- Power: 75 W
- Heater voltage: 24 V
- Temperature control range: 90°C to 480°C
- Temperature setting accuracy: ±2°C
- Heating time to 350°C: approx. 6 s
- Tip type: T12
- Frequency: 50 Hz to 60 Hz
- Functions: auto sleep (from 20 s to 999 s), temperature calibration, 3 memory channels, temperature stabilization
- Display: LCD with temperature, power and system function display
- ON/OFF button: on the front panel
- Length of the stock cable: 1.05 m
- Weight: 0.47 kg
Kit Contents

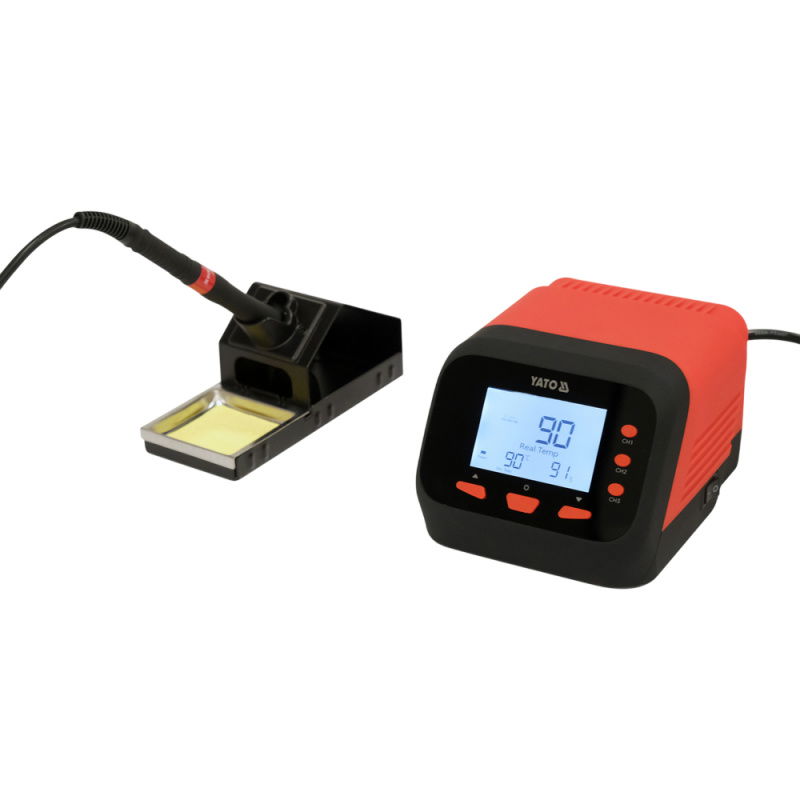

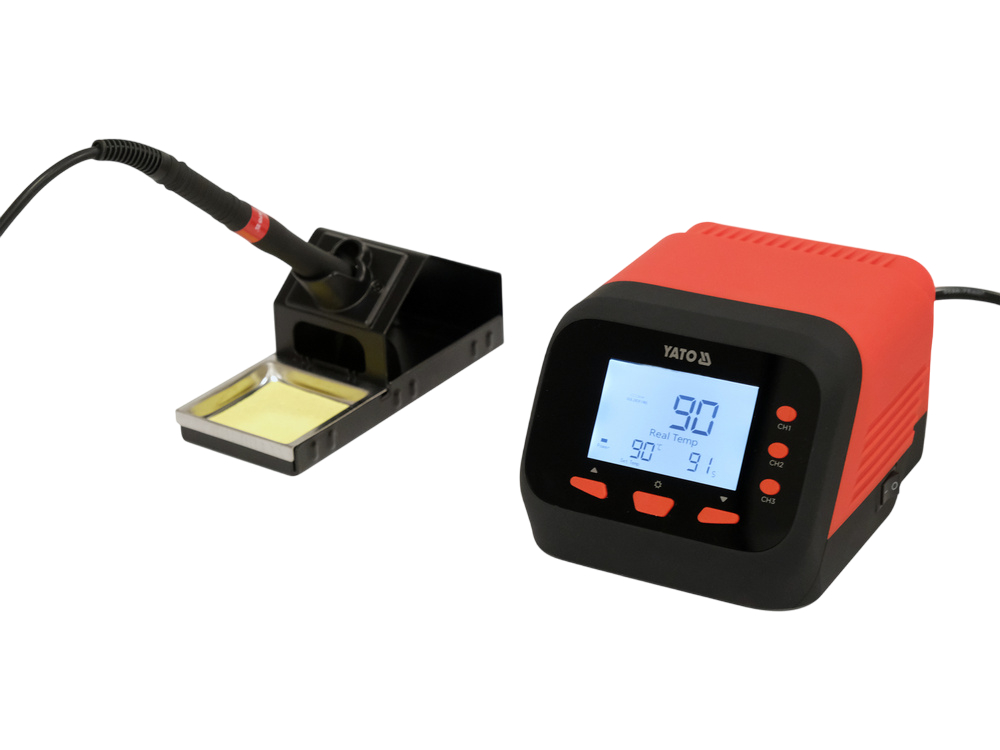

- Soldering station YT-82462
- Soldering iron with cable
- 4 T12 tips: T12-ILS, T12-JL02, T12-BCM2, T12-K
- Brass shavings cleaner pocket under the stock
- Rubber grip for quick replacement of heated tips
Thanks to the support of T12 tips, integrated with the heater and temperature sensor, the device achieves high work efficiency and exceptional precision.
