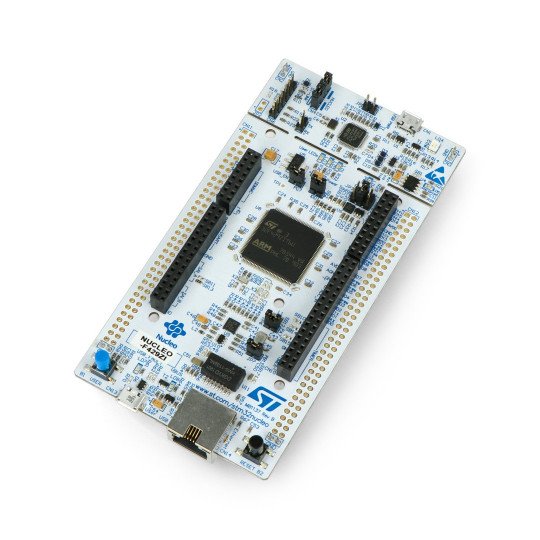

Product description: STM32 NUCLEO-F429ZI - STM32F429ZIT6 ARM Cortex M4
Nucleo allows the implementation of projects based on efficient microcontroller with 32-bit core ARM Cortex. The modules are compatible withArduino caps and system of the on-line compiler mbed.org. Nucleo works with most of the popular development platforms, including Keil, IAR and environments, based on the GCC compiler.
A detailed description can be found in thedocumentationand onthe website of the manufacturer.
Specification
- The microcontroller: STM32F429ZIT6
- Core: ARM Cortex M4 32-bit
- Clock frequency: 180 MHz
- Flash memory: 2 MB
- RAM: 256 KB
- Analog-to-digital converter (ADC): 12-bit, 24 channel
- Digital-to-analog converter (DAC): 12-bit, 2-channel
- The number of 16-bit Timers: 12
- The number of 32-bit Timers: 2
- Interfaces: 3x I2C, 6x SPI, 2x I2S, 2x CAN, 4x USART, 4 UART, USB OTG
- Ethernet Connector
- Two types of connectors:
- Connectors for caps compatible with Arduino Uno Rev3
- Standard STMicroelectronics Morpho pins to access the leads of the microcontroller
- The module is compatible with the mbed system (mbed.org)
- The debugger ST-Link/V2 is placed on the board with the opportunity to work as a standalone device with the SWD output
- The possibility to power through the USB connector
- Embedded three LEDs:
- 1 x for indication of supply voltage
- 1 x indicator of connection
- 1 x at user disposal
- Two buttons:
- 1 x RESET
- 1 x at user disposal
- Three different interfaces via the microUSBconnector (USB re-enumeration):
- Virtual COM port
- Mass memory
- Port for programming/debugging
- The module supports most of popular environments, i.a.: IAR, Keil, and the platforms based on GCC compiler
- Module dimensions: 135 x 70 x 18 mm
