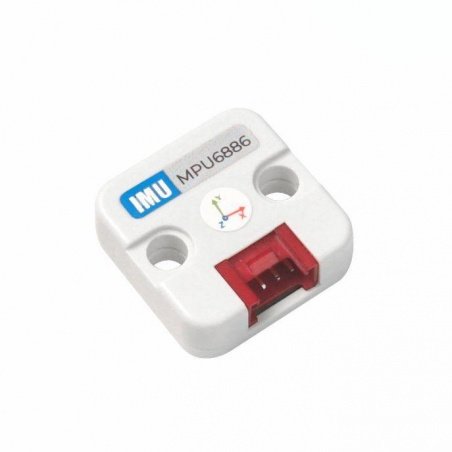

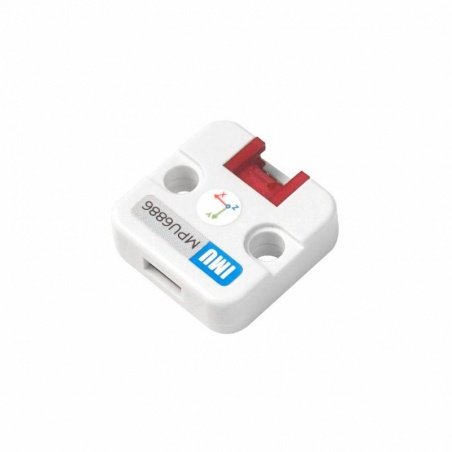

Product description: MPU6886 6-axis IMU module - accelerometer and gyroscope - Unit extension module for M5Stack development modules
Unit typeextension -6-axis IMU modulecombines gravityaccelerometerandgyroscope. It has built-inMPU6886chip. Allows to determineaccelerationin the range± 2 g / ± 4 g / ± 8 g / ± 16 gand angular velocity± 250 / ± 500 / ± 1000 / ± 2000 °/s.Uses I2C communication interface. It is powered from 1.7 V to 3.45 V.
What is an accelerometer?
Accelerometer is a device that measuresaccelerationdue to gravity. This is done by determining the angle at which the device is tilted relative to the Earth. The sensor also analyzes thedynamicacceleration caused by the movement of the device. Thanks to that it provides information about the direction in which the device ismovinganditscurrent position.
What is a gyroscope?
A gyroscope is a device that can determine spatial orientation in three axes: X, Y and Z. For this purpose it uses angular velocity, which is analyzed according to the principle of conservation of angularmomentum.
Technical specifications of the IMU sensor
- Type: 6-axis IMU sensor
- 3-axis gravity accelerometer
- 3-axis gyroscope
- Embedded chip: MPU6886
- Accelerometer range: ± 2 g / ± 4 g / ± 8 g / ± 16 g
- Gyroscope measurement range: ± 250 / ± 500 / ± 1000 / ± 2000 °/s
- Gyroscope measurement sensitivity: 1%
- Operating voltage: 1.71 V to 3.45 V

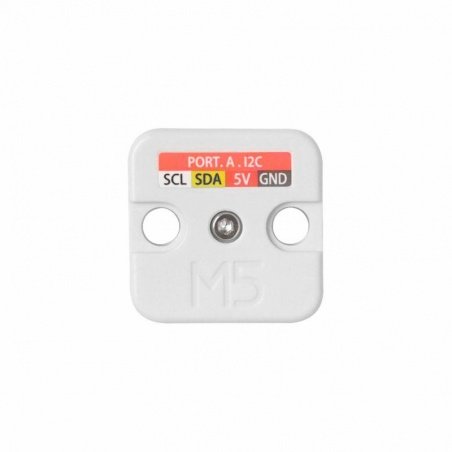

- Communication interface: I2C bus
- Interface address: 0x68

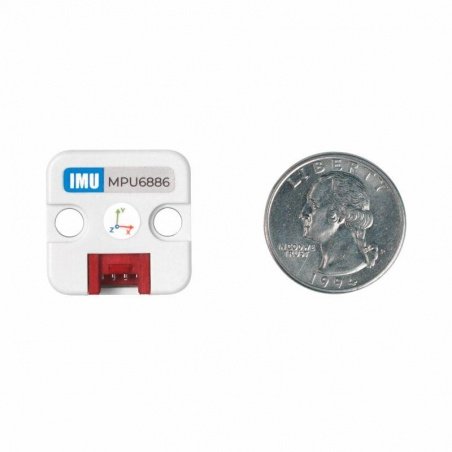

- Module dimensions: 24 x 24 x 13 mm
- Weight: 4 g
Supported by popular programming environments such as Arduino.
- For use in UAV tracking and positioning applications
- Compatible with theM5Stackseries of development modules
- Supported development platforms: Arduino, UIFlow (Blockly, Python)
- Equipped with two LEGO compatible holes

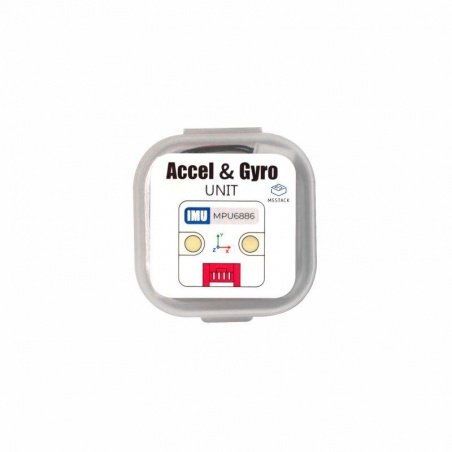

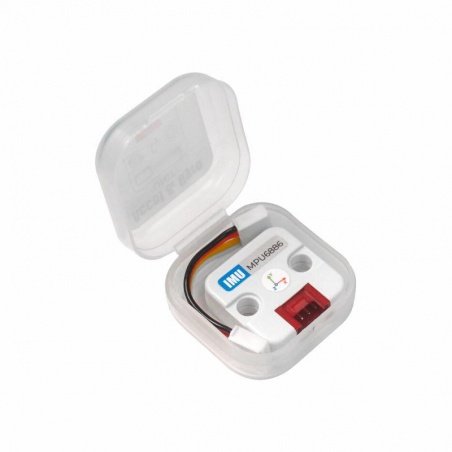

Contents of the kit
- 6-axis IMU Expansion Unit
- Connection cable with Grove connector - length 5 cm
In our shop you will also find otherUnittype extensions that will allow you to extend any project according to your individual needs.
