Gas sensor SGP40 - VOC - STEMMA QT / Qwiic - Adafruit Air purity sensor SGP40 - VOC - STEMMA QT / Qwiic - Adafruit 4829

Index: ADA-18998 EAN: 5904422366995
SGP40 gas sensor is used as an instrument to monitor indoor air quality. It allows to monitor the concentration of volatile organic compounds (VOC) present in the air. The measured values are processed by an algorithm and presented in a VOC index, which represents the air quality value on a scale from 0 to 500. The lower the VOC index value the cleaner the air. The measuring range is from 0 ppm to 1000 ppm. The sensor is equipped with STEMMA QT / Qwiic compliant connectors, with which it can be connected to a microcontroller module such as Arduino.
Gas sensor SGP40 - VOC - STEMMA QT / Qwiic - Adafruit Air purity sensor SGP40 - VOC - STEMMA QT /...
€23.90
€19.43 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit
Compatibility: Arduino Raspberry Pi

Product description: Air cleanliness sensor SGP40 - VOC - STEMMA QT / Qwiic - Adafruit 4829

Air cleanliness sensorSGP40is used as an instrument formonitoringindoor airquality. It allows to monitor the concentration of volatile organic compounds (VOC) present in the air. The measured values are processed byan algorithmand presented in a VOC index, which represents the air quality value on a scale from 0 to 500. The lower the VOC index value the cleaner the air. The measuring range is from 0 ppm to 1000 ppm.The sensoris equipped withSTEMMA QT / Qwiiccompatible connectors, with which it can be connected to a microcontroller module such as Arduino.

Product is compatible with Arduino and Raspberry Pi.

Auser guideand libraries for theArduino IDEandCircuitPythonenvironment are available on the manufacturer's website and can be downloaded from GitHub.

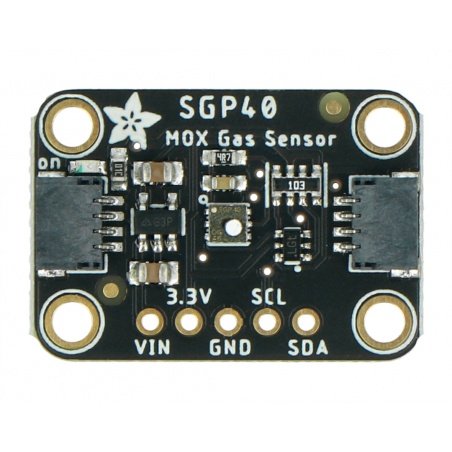

Czujnik czystości powietrza SGP40 od Adafruit.SGP40 air purity sensor from Adafruit.

Schemat podłączenia czujnika poprzez złącze STEMMA QT.

Connection diagram of the sensor via STEMMA QT connector.

Connection diagram and pinout description for Adafruit air purity sensor

SGP40 air cleaner sensor can be connected in two ways: using goldpin connectors included in set (require soldering) or using built-in STEMMA QT connector. Example connection is made using STEMMA QT connectors andMetro board, which is equivalent to Arduino. You need to connect particular pins according to following dependencies:

  • VIN- power pin from 3 V to 5 V.
  • 3.3V- power supply pin 3.3 V.
  • GND- chip ground pin.
  • SCL- I2C communication interface clock line pin.
  • SDA- I2C communication interface data line pin.

Technical specification of SGP40 sensor

  • Circuit: SGP40
  • Supply voltage: 3 V to 5 V
  • Communication interface: I2C
  • I2C communication interface address: 0x59
  • Measuring range:
    • VOC: 0 ppm to 1000 ppm
    • VOC index value: 0 to 500
  • Connectors: STEMMA QT / Qwiic

Set contents

  • Air purity sensor SGP40
  • Goldpin connector strip with 2,54 mm pitch
Do zestawu dołączono kompatybilne złącza goldpin - raster 2,54 mm.

This set includes compatible goldpin connectors - 2,54 mm pitch.

Package width 11 cm
Package height 1 cm
Package depth 8 cm
Package weight 0.005 kg
