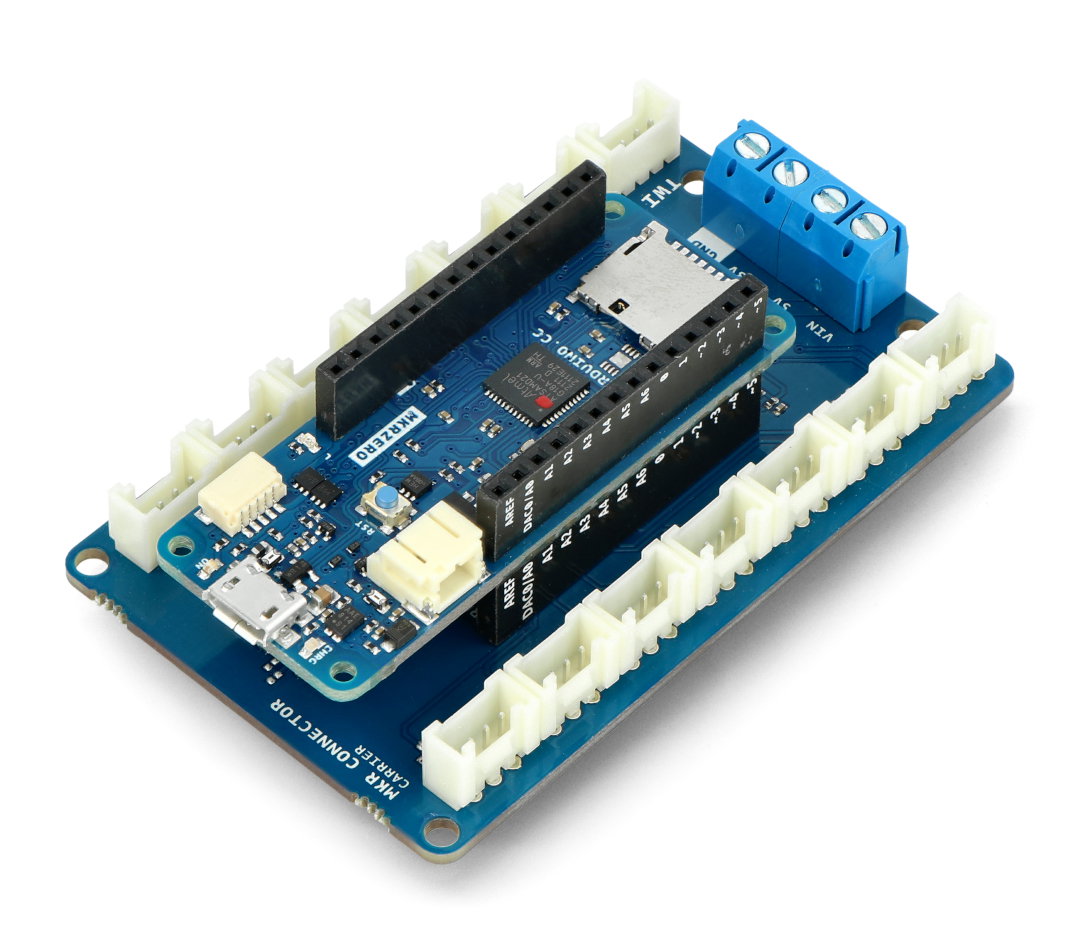

Arduino MKR Connector Carrier ASX00007 - shield for Arduino MKR

Index: ARD-12947 EAN: 7630049200272

Module for Arduino from the MKR that extends the capabilities of I/O pins. It is designed for modules and sensors from the Grove series. It has 4-pin connectors, works with voltages of 3.3 V and 5 V.

€19.52
€15.87 tax excl.
In stock, shipping 24 hours!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Arduino
Compatibility: Arduino

Description

Module for Arduino from the MKR that extends the capabilities of I/O pins. It is designed for modules and sensors from the Grove series. It has 4-pin connectors, works with voltages of 3.3 V and 5 V.



Arduino MKR Connector Carrier ASX00007 - nakładka dla Arduino MKR

Specification

  • 14 Grove connectors: 4-pin
  • Screw connections for power supply
  • Analog inputs: 6 with voltage of 5 V
  • Digital inputs / outputs: 6 with voltage of 5 V
  • Others:
    • 1 x UART: 5 V
    • 1 x I2C: 5 V
  • Supply voltage: 5 V
  • The operating voltage of the logic of the system: 3.3 V
  • Compatible with Arduino MKR
  • Dimensions: 80 x 50 x 13 mm

Attention!

Board series Arduino MKR has minor visual defects which the manufacturer i.e. the Arduino company explains with working on parameters of the new machine. We guarantee that all boards marked with a symbol Arduino, are original and come from the same source, as you can see by checking the list of authorized distributors.
