Product description: Devil Design ASA 1.75 mm 0.8 kg - Aluminum
ASA filament is a thermoplastic filament used for FFF 3D printing . It is designed for building functional prototypes and finished products that are expected to be weather-resistant and durable . The filament does not discolor when exposed to UV radiation.
Our range of filaments also includes other materials and colors.

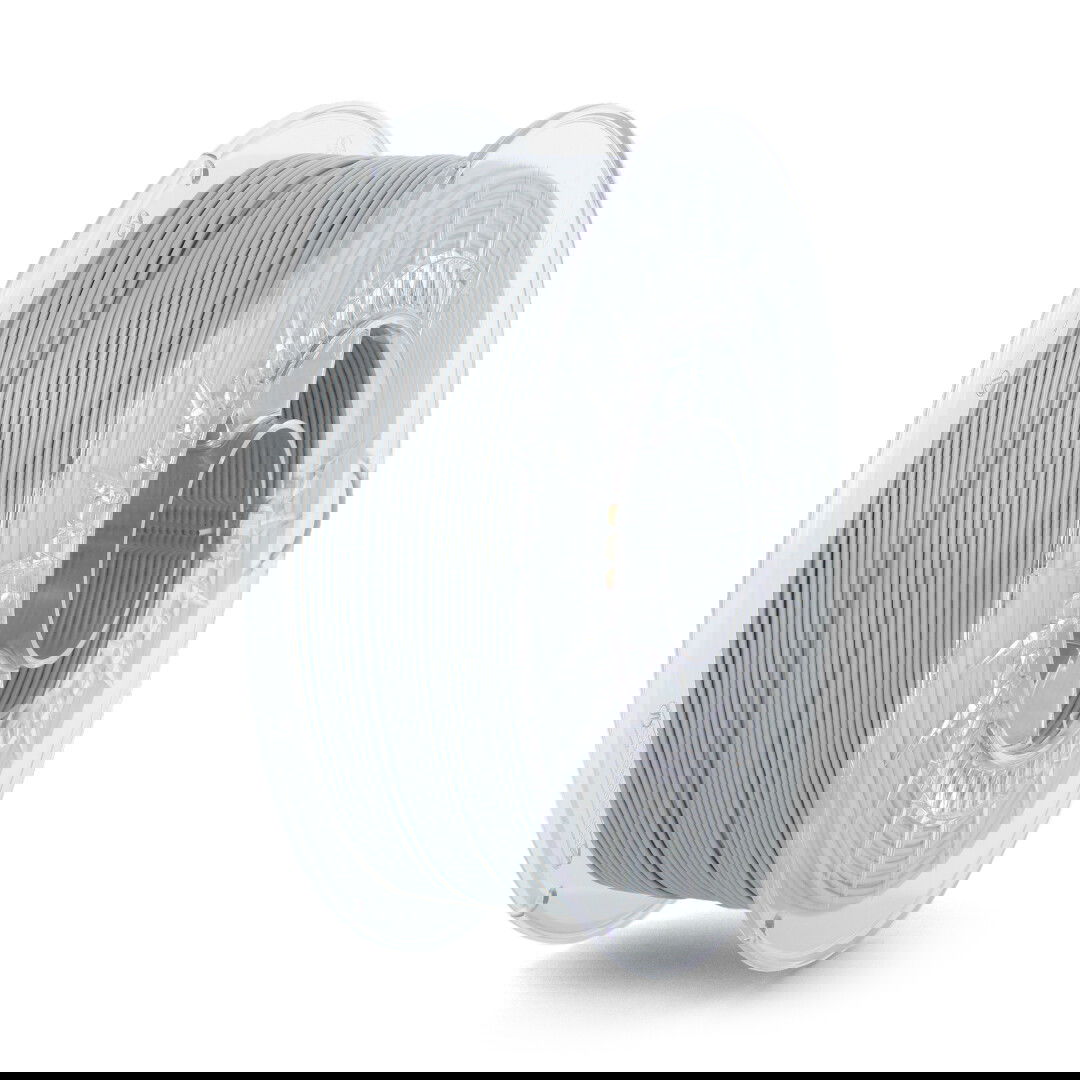

Devil Design ASA filament 1.75 mm 0.8 kg - Aluminum.
Filament wound on a spool, vacuum-packed with a moisture absorber. The spool contains 0.8 kg of material net . It can be used in all FFF printers not protected against the use of material from a third-party supplier or open-source design. ASA is a material with increased resistance (compared to ABS) to external factors and is easily machined , such as grinding or drilling. ASA is an excellent substitute for typical ABS copolymer.
ASA filament properties
- There is a smell of melting plastic while printing
- More durable than PLA
- Easy to sand, you can drill holes in it without any problems
- It is cheap and comes in many color variants.
- Increased resistance to UV radiation
- Increased resistance to weather conditions
- Good chemical and thermal resistance
ASA filament is characterized by increased resistance to atmospheric factors and UV radiation.
Due to differences in printer design, the above data should be treated as guidelines and the appropriate values should be determined experimentally.
Suggested filament printing parameters
| Head temperature | From 230°C to 240°C |
| Table temperature | From 90°C to 100°C |
| Print cooling | Not recommended |
Technical specifications and physical properties of Devil Design ASA filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75 mm |
| Filament dimensional tolerance | +/- 0.05 mm |
| Filament roundness | +/- 0.03 mm |
| Material surface | Light shine |
| Material shrinkage | Big |
| Product weight | 0.8 kg |
| Material | ASA |
| Weight of empty spool | ~ 250 g |
| Spool diameter | 200 mm |
| Spool width | ~ 70 mm |
| Mounting hole diameter | 52 mm |
| Packaging | Cardboard with print |
| Package dimensions | ~ 205 x 205 x 80 mm |
| Vacuum packaging | Yes |
| Moisture absorber | Yes |
Devil Design ASA filament 1.75 mm 0.8 kg - Aluminum
Devil Design's ASA filaments have a center of gravity of 1.07 g/cm³ (ASTM D792 test method). The softening point of the thermoplastic material, tested using the ASTM D1525 method, is 96℃. The manufacturer has rated the Rockwell R hardness at 107.
ASA filaments are characterized by a maximum elongation at break of no more than 20%. Their tensile strength, tested using the ASTM D638 method, is as high as 500 kg/cm². Once cooled, the print can be easily removed from the print bed without risk of damage.
Additional information about Devil Design ASA filament
This thermoplastic material is soluble in acetone. 3D printing with ASA filaments is relatively simple, making them a popular choice for both beginners and experienced 3D printer users.
Due to their properties, ASA filaments are versatile. Their high model accuracy, combined with a subtle sheen, make them ideal for printing decorative elements. ASA is also used for prototyping, printing housings, and various accessories.
