Universal board medium 420 holes - MSX

Index: MSX-06119 EAN: 5904422365349

A universal tile with a connection layout in line with the popular 400 field contact tile. The module allows the transfer and soldering of the prototype system from the contact plate while maintaining the distribution of elements.

Universal board medium 420 holes - MSX
€4.75
€3.86 tax excl.
Available, 24h shipping!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: MSX Elektronika

Product description:Multi-purposetilemedium 420 fields - MSX

A universal tile with a connection layout in line with the popular 400 field contact tile. The module allows the transfer and soldering of the prototype system from the contact plate while maintaining the distribution of elements.

Płytka uniwersalna średnia 420 pól - MSX

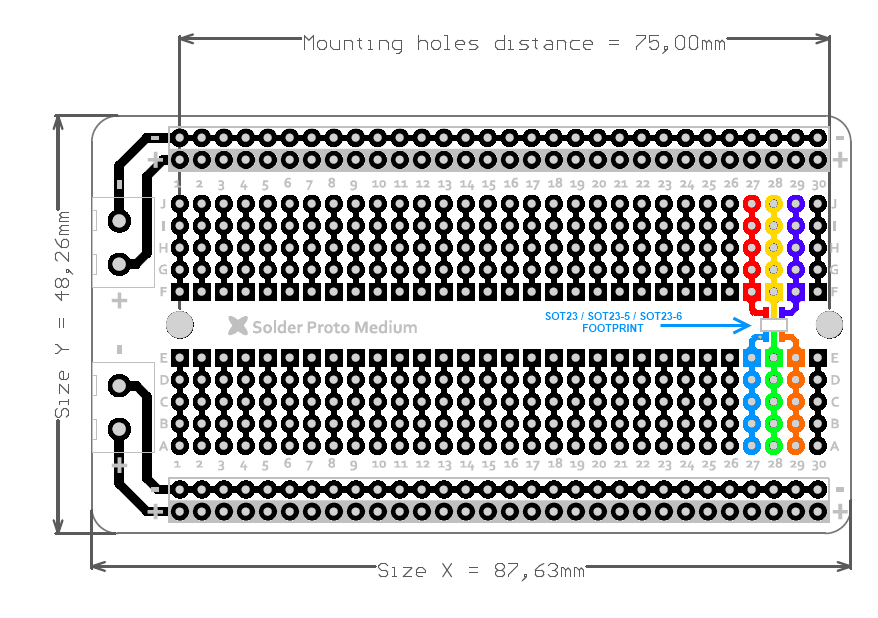

Specifications of the universal insert

  • Dimensions: 87 x 48 mm
  • Soldermask colour: black
  • Mounting: THT threaded
  • Hole raster: 2.54 mm
  • Additional power supply leads
  • Two 3 mm diameter mounting holes

A universal tile with a connection layout in line with the popular400 field contacttile.The module allows the transfer and soldering of the prototype system from the contact plate while maintaining the distribution of elements.

We also offer tiles in other sizes: large840,medium 420 andsmall210.
