Fermion - analog gas sensor NO, NO2, H2 - MEMS MiCS-2714 - DFRobot SEN0441
An analog sensor for NO, NO2 and H2 gases manufactured by DFRobot. The MiCS-2714 MEMS sensor module can measure hydrogen and nitrogen oxide concentrations. It detects hydrogen (H2) from 1 ppm to 1000 p pm and nitrogen dioxide (NO2) from 0.05 ppm to 10 ppm. The board is powered by 5 V, has an analog voltage output and an activating EN pin for low power consumption.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Fermion - analog NO, NO2, H2 gas sensor - MEMS MiCS-2714 - DFRobot SEN0441
An analog NO, NO2 and H2 gas sensor manufactured by DFRobot. The MEMS MiCS-2714 sensor module can measure hydrogen and nitric oxide concentrations. It detects hydrogen (H2) from 1 ppm to 1000 p pm and nitrogen dioxide (NO2) from 0.05 ppm to 10 ppm. The board is powered by 5 V, has an analog voltage output and an activating EN pin for low power consumption.

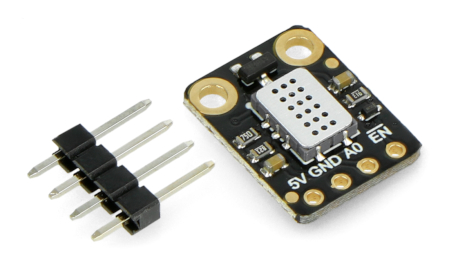

Analog NO, NO2, H2 gas sensor - MiCS-2714
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

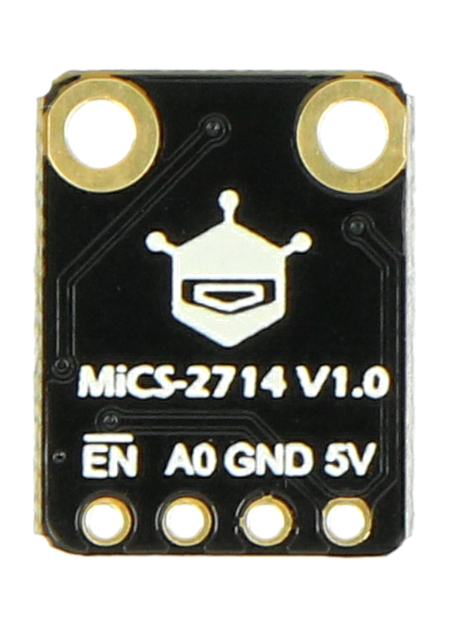

Moud³ DFRobot Fermion with gas sensor.
Main features of the gas sensor
- Detects NO, NO2 and H2 gases
- Integrated calculation formulas for different gases
- Low power consumption
- Analog interface
- Compatible with 5 V microcontrollers
Application of the sensor
- Gas leak detection
- Gas safety equipment
- Air pollution detection

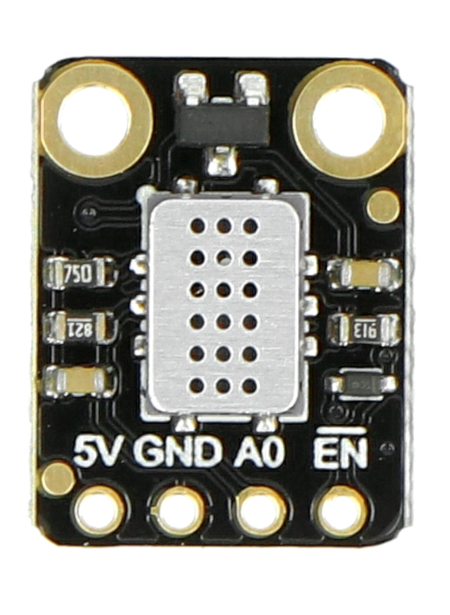

MiCS-2714 sensor terminals
The MiCS-2714 sensor module uses an analog interface for communication. It is powered by 5 V. It has 4 pinouts in form of holes, where goldpin connector can be soldered.
- 5V - 5V power supply voltage
- GND - ground
- A0 - analog output
- EN - switch on/off pin (activated by low state)

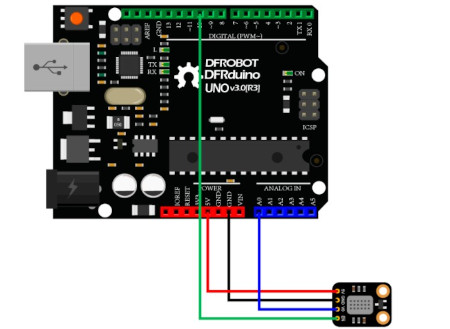

Example of sensor connection with Arduino.
Fermion - analog NO, NO2, H2 gas sensor - MEMS MiCS-2714 - DFRobot SEN0441.
MiCS-2714 gas sensor specification
- Detected gases: H2, NO2, NO
- Supply voltage: 4.9 V to 5.1 V
- Power consumption: 0.45 W
- Output signal: analogue quantity
- Measuring range:
- H2: from 1 ppm to 1000 ppm
- NO2: 0.05 ppm to 10 ppm
- Working temperature: from -30°C to 85°C
- Operating humidity: 5% to 95% RH
- Storage temperature: from -40°C to 85°C
- Service life: over two years (in air)
- Mounting hole diameter: 2 mm
- PCB dimensions: 12 x 16 mm
- Weight: 7 g
Useful links
| Name | Value |
|---|---|
| Width | 5.6 cm |
| Height | 2.5 cm |
| Depth | 6 cm |
| Weight | 0.006 kg |
