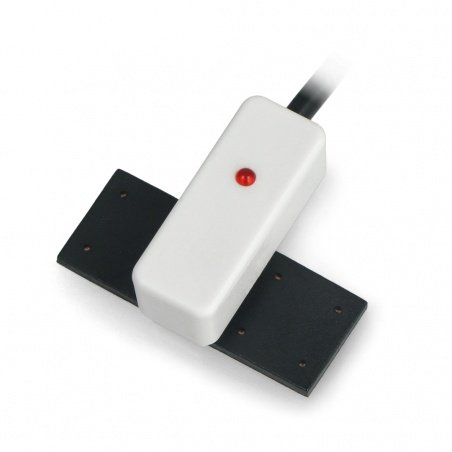

Non-contact Capacitive Liquid Level Sensor - DFRobot SEN0368

Index: DFR-19247 EAN: 5904422358877

Non-contact capacitive liquid level sensor with status indicator and adjustable sensitivity. This product can be used to detect liquids in non-metallic containers or pipes(outside diameter greater than 11 mm). It is suitable for all types of detection of curved or flat surfaces, curves, cylindrical containers or pipes. Feedback of the sensor status is done in real time.

€13.84
€11.25 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Product description: Non-contact liquid level sensor - digital - DFRobot SEN0368

Manufactured by the companyDFRobotThe non-contact capacitive liquid level sensor is equipped with astatus indicator and the possibility of adjusting sensitivity. This product can be used to detect liquids in non-metallic containers or pipes(external diameter greater than 11 mm). Feedback on the status of the sensor takes place in real time. In addition, this sensor is equipped with a 4-pin adapter, which allows the direct collection of a digital signal, convenient for connection toArduinoor other microcontrollers. This product features a wide applicability in detecting liquid in a tank, water dispenser, etc. This non-contact liquid level sensor is developed with advanced signal processing technology using high-speed chip. The measurement is not affected by the thickness of the container walls, contamination and the presence of acids and alkalis.

Bezdotykowy pojemnościowy czujnik poziomu o małej średnicyNon-contact capacitive level sensor with small diameter.

Arduinocompatible product

Wuser guideyou will find useful information and a sample code.

Arduino connection diagram.
Number Pin Description
1 (left, brown) VOUT Liquid sensor power supply 5 V to 12 V
2 (left, blue) GND GND
3 (left, black) IO1 Liquid front/rear sensor output
4 (left, yellow) IO2 Liquid level sensor signal output
1 (right, red) VIN Power supply
2 (right, black) GND GND
3 (right, blue) IO1 Sensor output forward/reverse
4 (right, green) IO2 Liquid level signal output

Main product features

  • Suitable for use in all kinds of non-metallic tanks such as plastic, glass, ceramic and other containers.
  • Maximum wall thickness of the tank containing the liquid under test - 20 mm
  • Wide voltage range from 5 to 12 V, suitable for different circuits or applications
  • High stability and sensitivity
  • Sensitivity adjustment
  • Sensor status indicator
  • Stable performance and long lifetime
  • Resistant to external interference

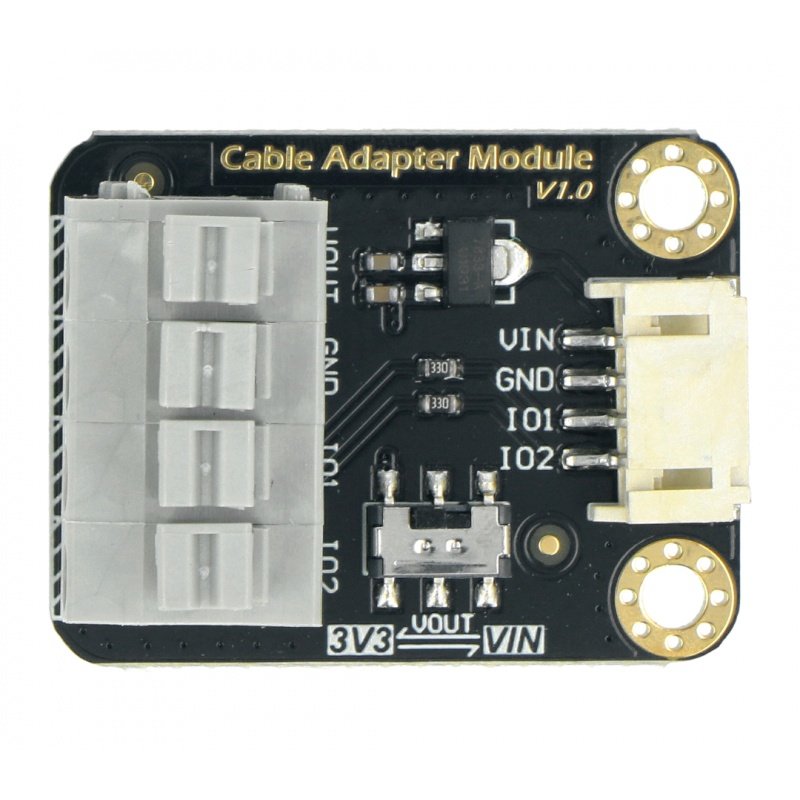

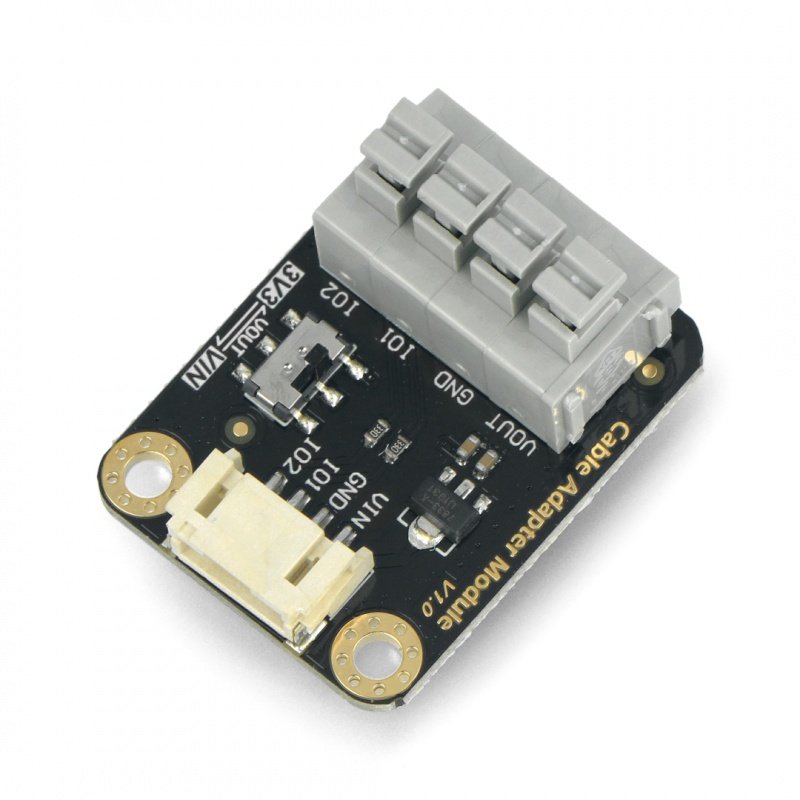

Czujnik wyposażono w 4-pinowy adapter

The sensor is equipped with a 4-pin adapter.

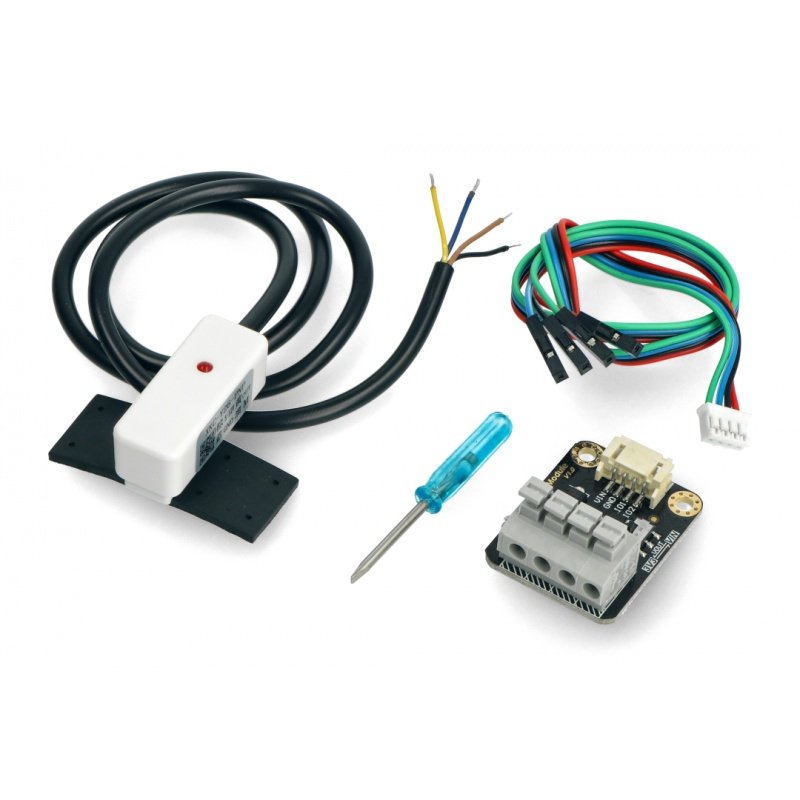

Na zdjęciu widoczny skład zestawu.

On the picture you can see the composition of the set.

Specification for non-contact liquid level sensor

  • Power supply from 5 to 12 V
  • Response time 500 ms
  • Operating temperature: from -5 to 105° C
  • Suitable pipe diameter: up to 11 mm
  • Liquid level error: ± 1.5 mm
  • Material: ABS
  • Water resistance: IP65

The set includes

  • Non-contact capacitive sensor x1
  • Gravity: 4-pin sensor adapter x1
  • Screwdriver x1
  • Black cable tie x1
