Product description: Two Trees TTS-10 Pro 10W Laser Plotter

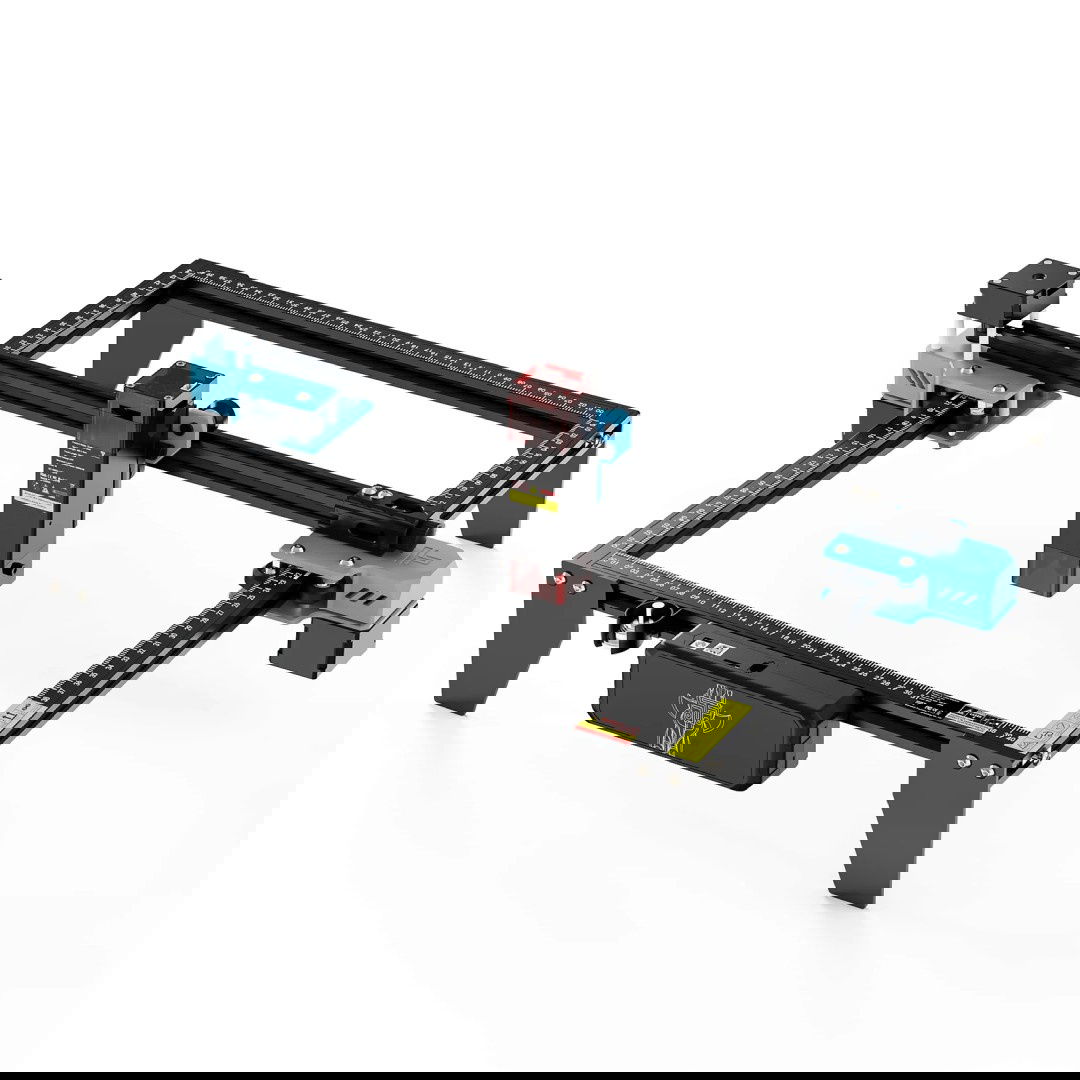

The Two Trees TTS-10 Pro laser plotter features a modular design that simplifies installation, expansion, and maintenance. Its 10W laser produces a beam with a minimum size of 0.08mm , enabling highly precise engraving and cutting. Dual stepper motors on the Y axis and a belt -driven motion system ensure stable operation and high accuracy even at high speeds. A 300 x 300mm working area, with optional expansion to 600 x 600mm, makes the TTS-10 Pro an extremely versatile tool.

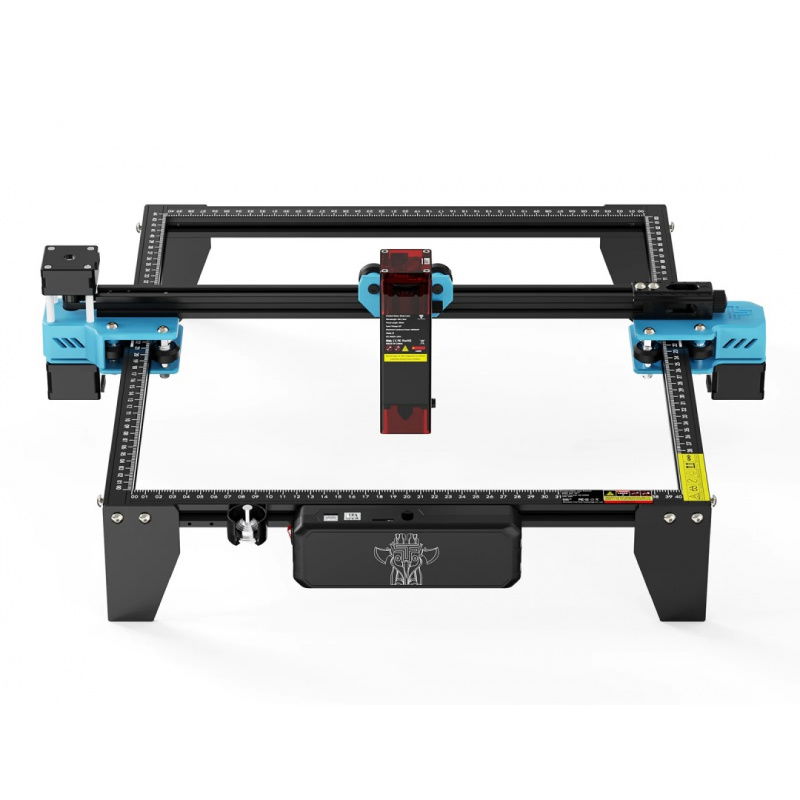

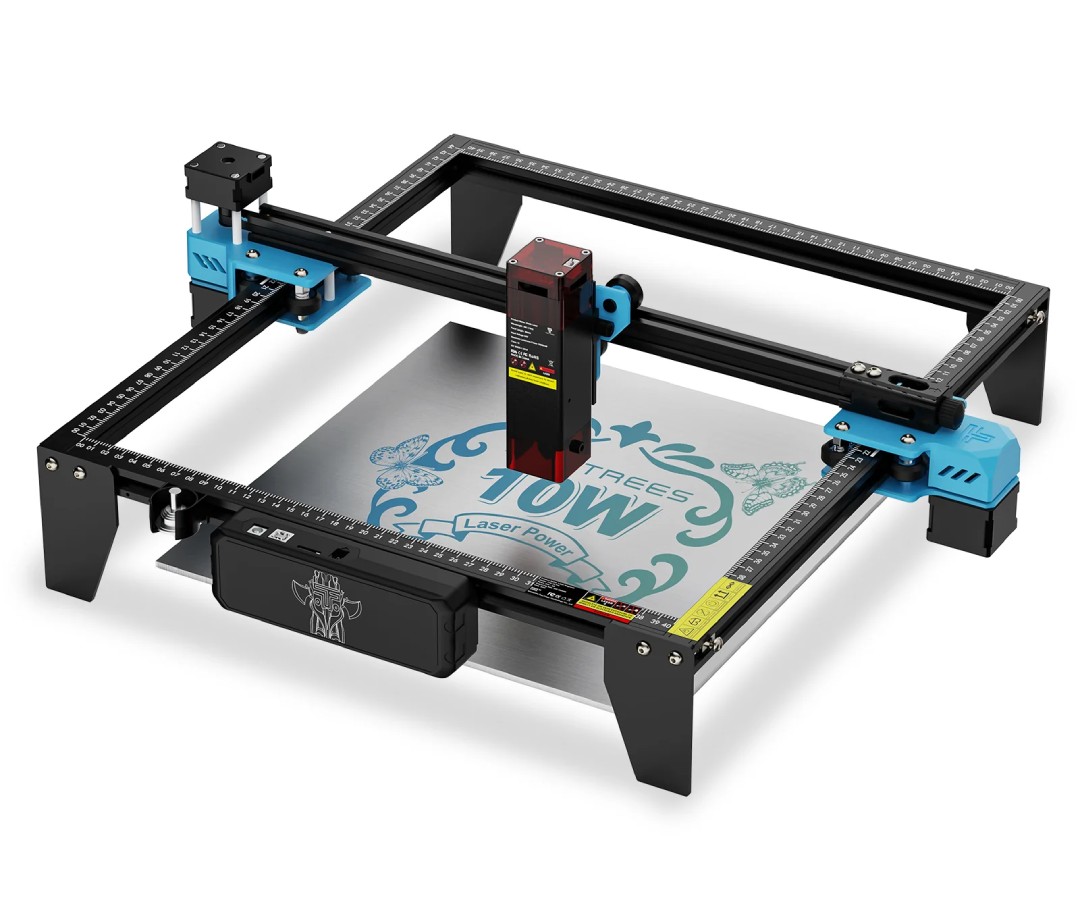

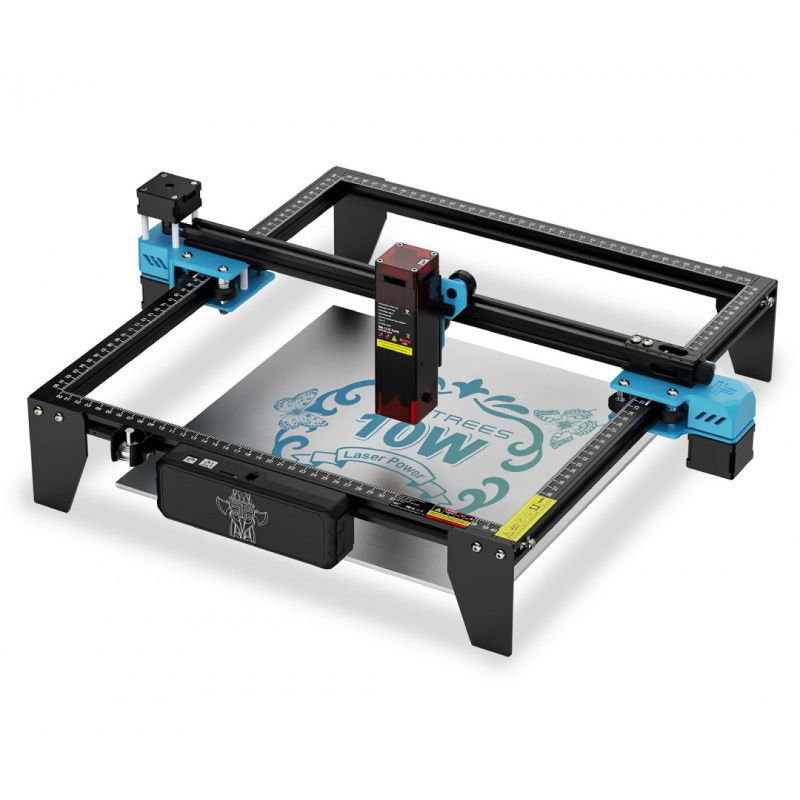

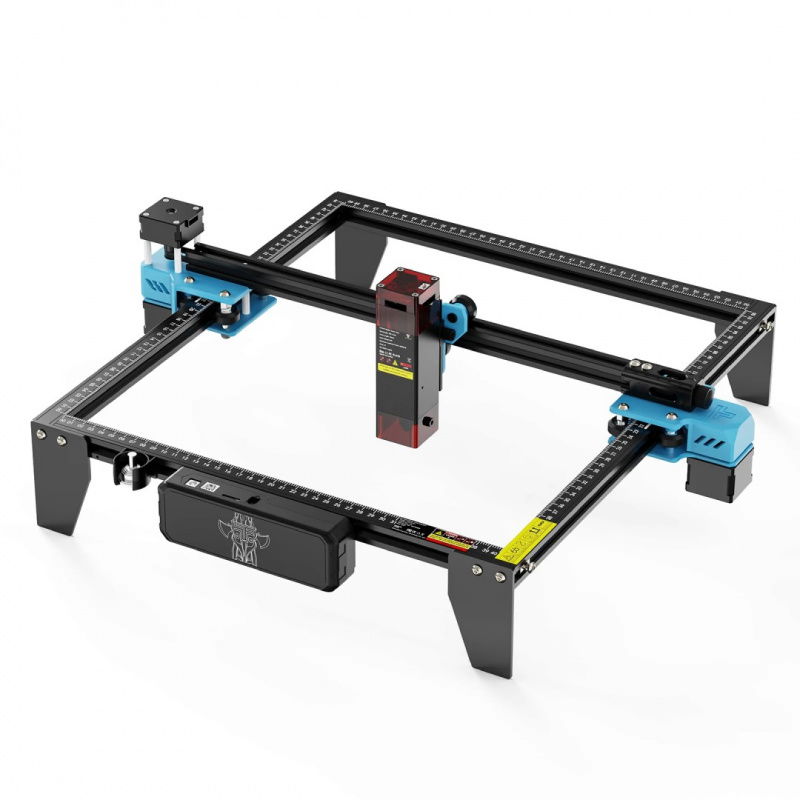

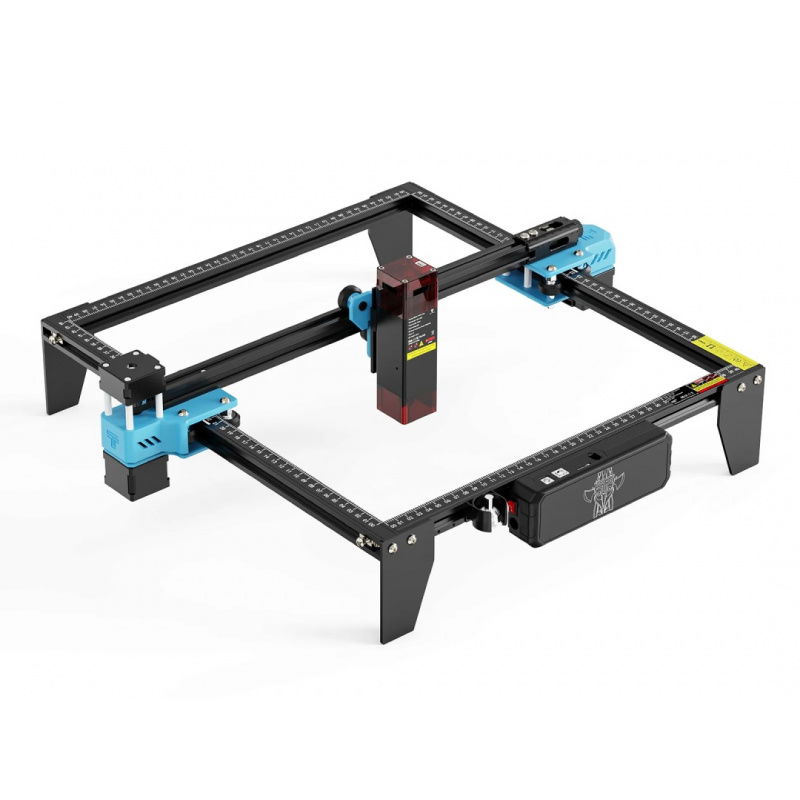

Two Trees TTS-10 Pro 10W Laser Plotter
TTS-10 Pro combines speed and precision in everyday work.
Advanced compression laser technology
The TTS-10 Pro utilizes laser beam compression technology, which focuses light into a smaller spot . This allows for sharper details and greater cutting depth. Combined with FAC lenses, the laser becomes the ideal tool for creating intricate and fine patterns that require maximum precision.
Efficiency and speed of work
The device offers engraving speeds of up to 30,000 mm/min , which, combined with a belt drive and dual Y-axis stepper motors, guarantees smooth and stable operation. This allows for the rapid completion of large projects while maintaining high-quality details.
Versatility of applications
Thanks to its high power and modern technology, the TTS-10 Pro allows you to engrave and cut a wide range of materials, such as wood , leather, paper, plastic, acrylic, stainless steel, and rubber . The ability to work on cylinders (thanks to the optional rotary module) further expands the device's potential. It is an ideal tool for workshops, design studios, and small and medium-sized businesses producing personalized products.
Simple operation and various connection methods

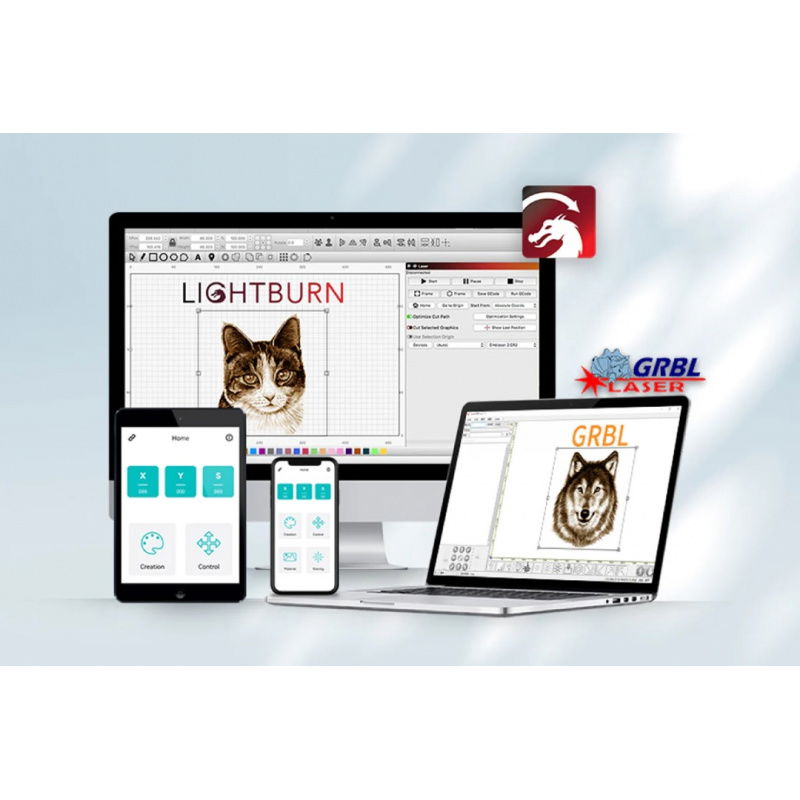

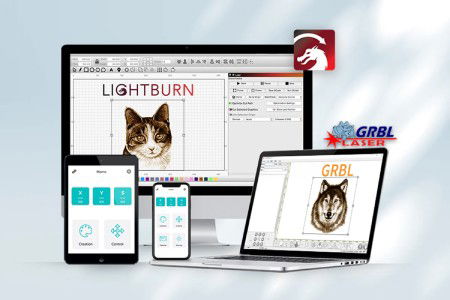

The plotter supports wired and wireless connections, including USB, WiFi, local area network, and TF card . The built-in ESP32 module allows for fast and stable project transfer from a computer, smartphone, or mobile app . The TTS-10 Pro works with popular software such as LightBurn and LaserGRBL , ensuring complete control over the engraving process.
Support for wired and wireless connections ensures convenience of use.

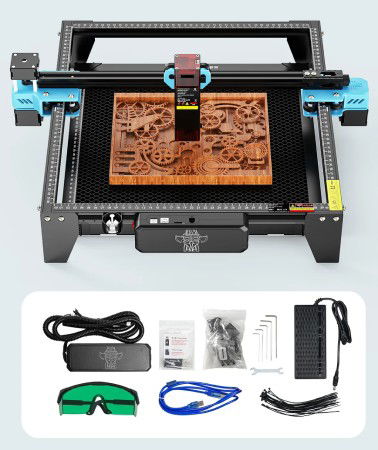

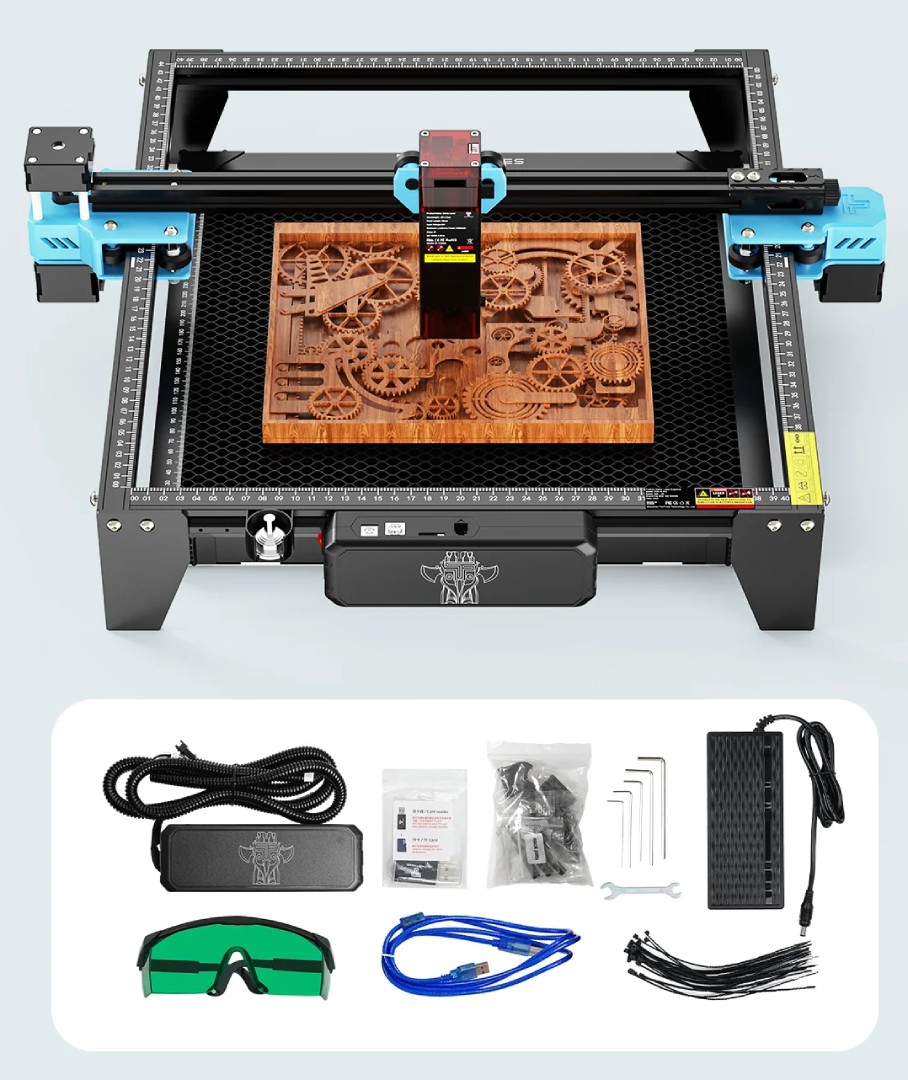

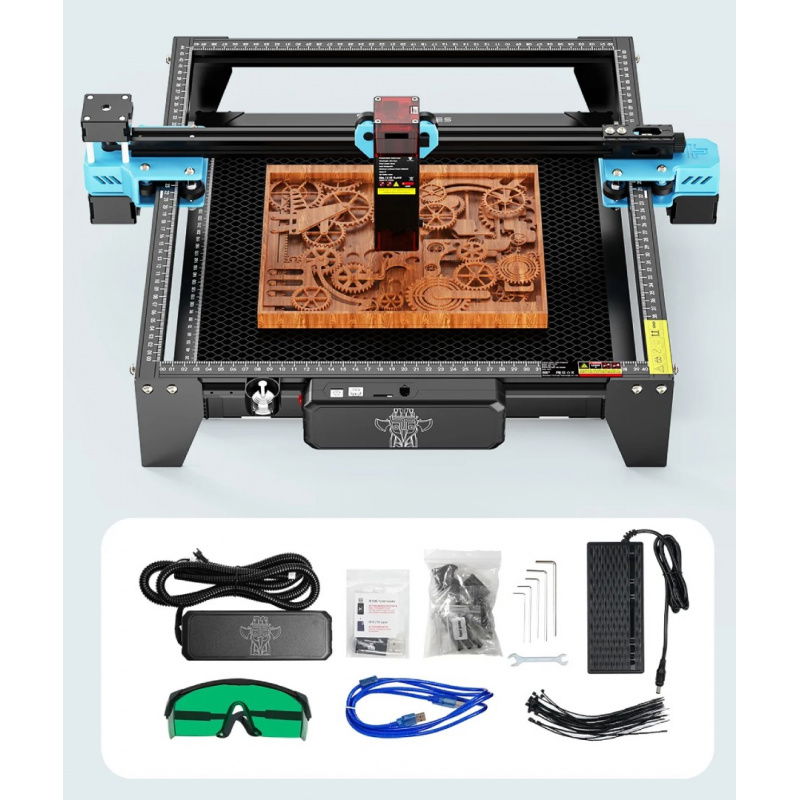

Elements included in the set.
Contents of the set
- Two Trees TTS-10 Pro Laser Plotter
- Goggles
- 24V AC adapter
- USB cable and connection cables
- Assembly keys and accessories
- User manual
| Technical specifications of the Two Trees TTS-10 Pro laser cutter | |
|---|---|
| Laser power | 10 W |

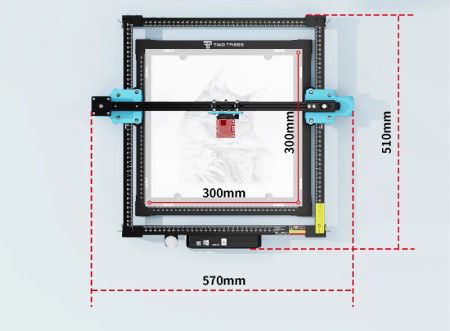

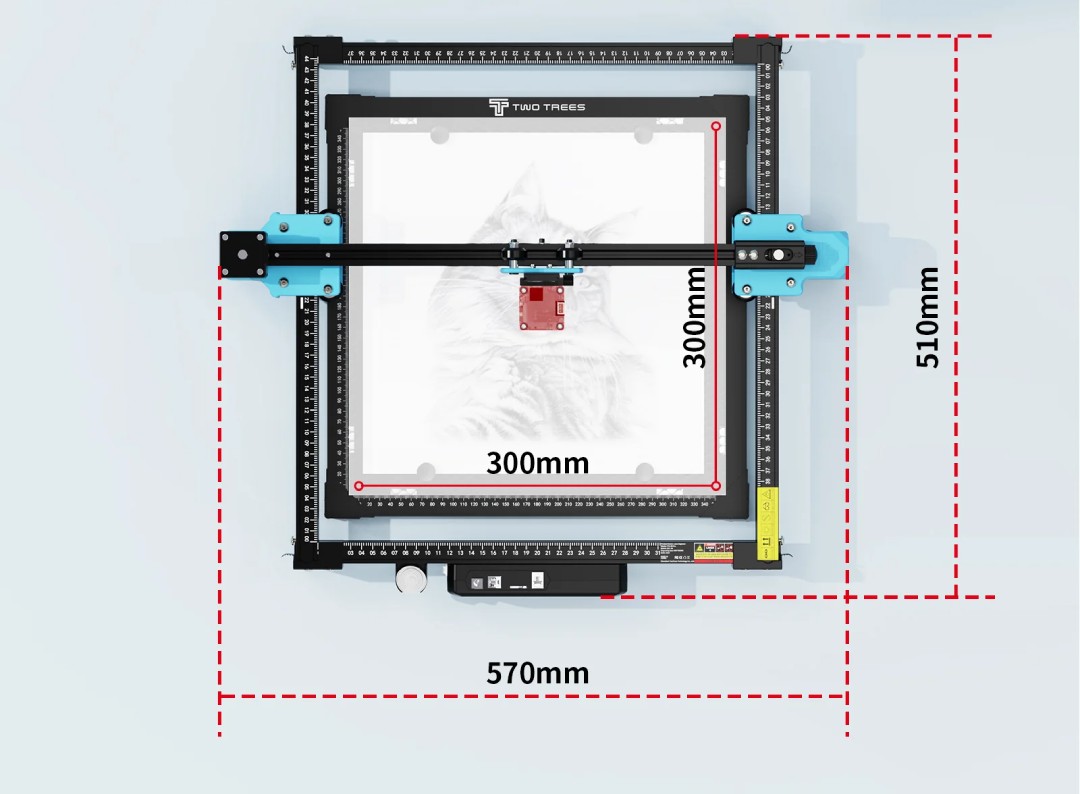

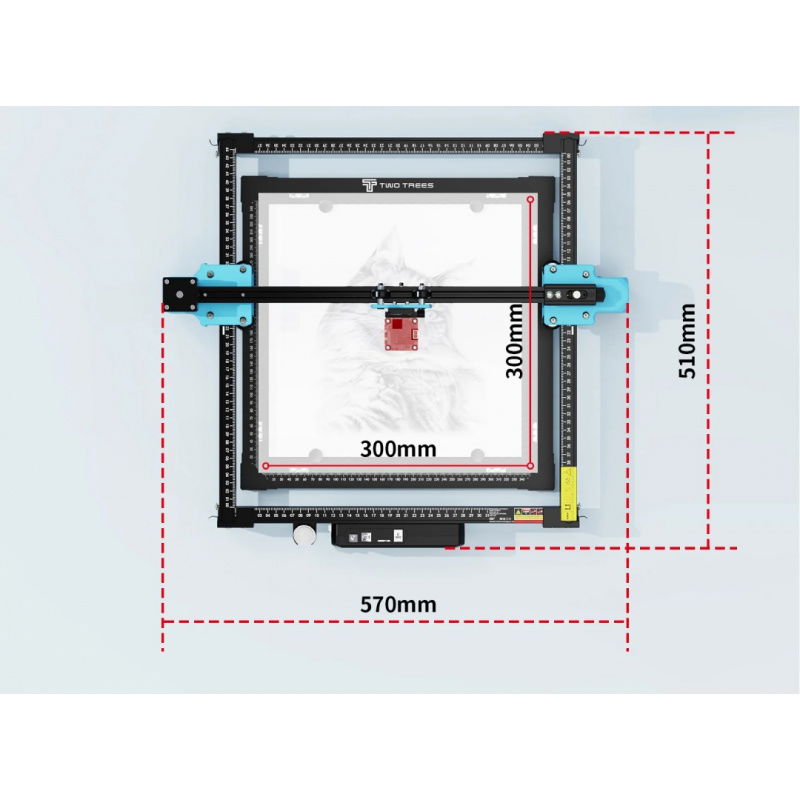

| Work area | 300 x 300 mm (optionally expandable to 600 x 600 mm) |
| Engraving accuracy | 0.1 mm |
| Operating speed | up to 30,000 mm/min |
| Laser spot size | 0.08 mm |
| Operating systems | Windows, MacOS, Linux |
| Communication | USB, 2.4GHz WiFi, TF card |
| Construction material | aluminum |
| File formats | lbrn, BMP, JPG, PNG, GCODE |
| Supported languages | Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean |
| Supported materials | wood, plastic, paper, leather, stainless steel, acrylic |
| Supply voltage | 24V / 3A |
| Dimensions | 570 x 510 x 180 mm |
| Mass | 4.3 kg |
