Product description: Two Trees TTS-20 Max 20 W laser plotter
The Two Trees TTS-20 Max is an advanced laser engraver with a 600 x 600 mm working area that delivers incredibly precise results thanks to FAC + SAC technology and an improved COS chip cooling system. The device features a 20 W laser (22 W peak) with a compressed spot for exceptional cutting quality. With a 0.08 x 0.08 mm laser spot, the machine offers unprecedented engraving accuracy on metals, wood, and other materials . Increased productivity, improved laser beam quality, and advanced safety features make the TTS-20 Max an excellent choice for precision applications.

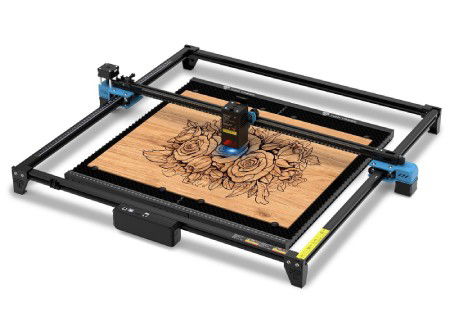

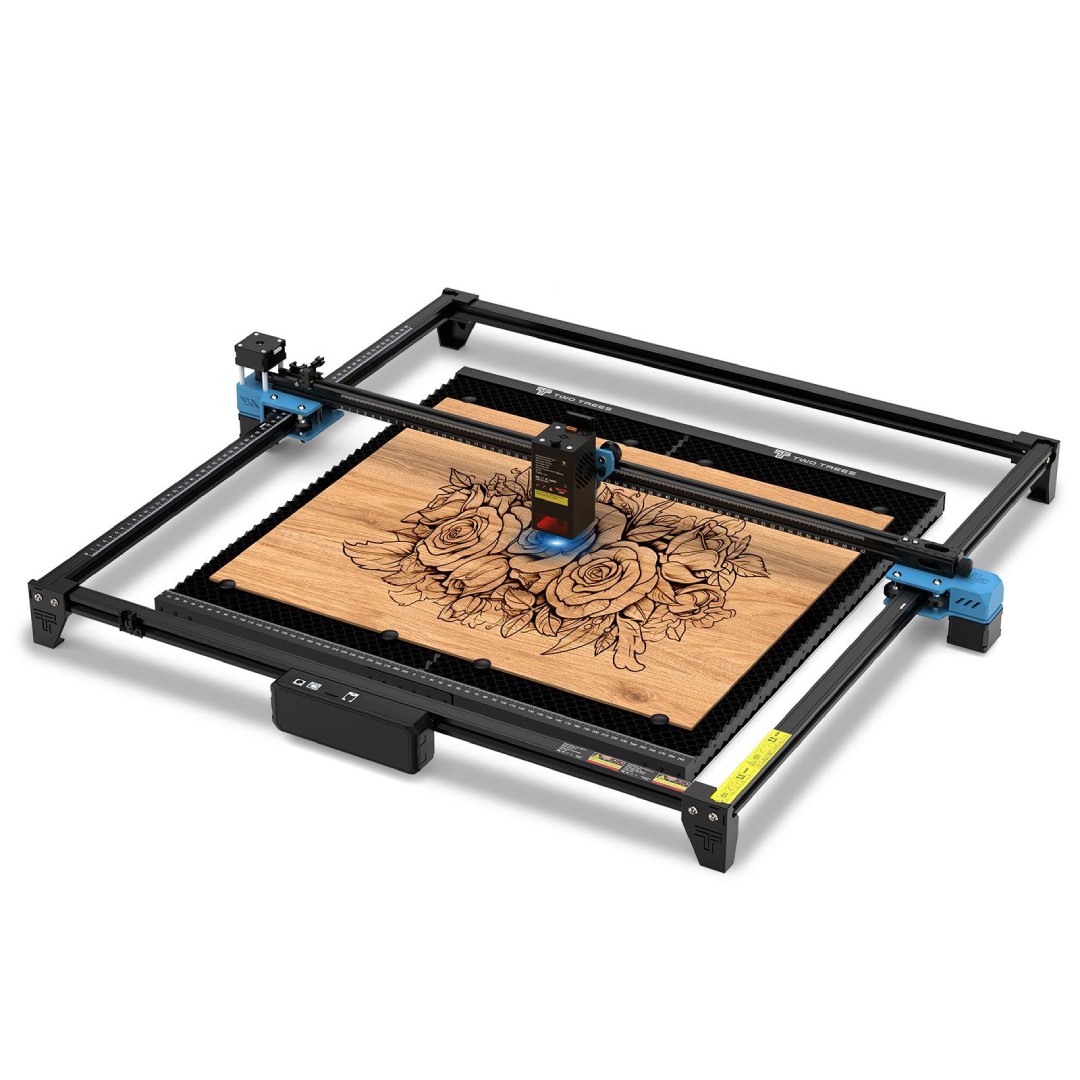

Two Trees TTS-20 Max 20 W Laser Plotter

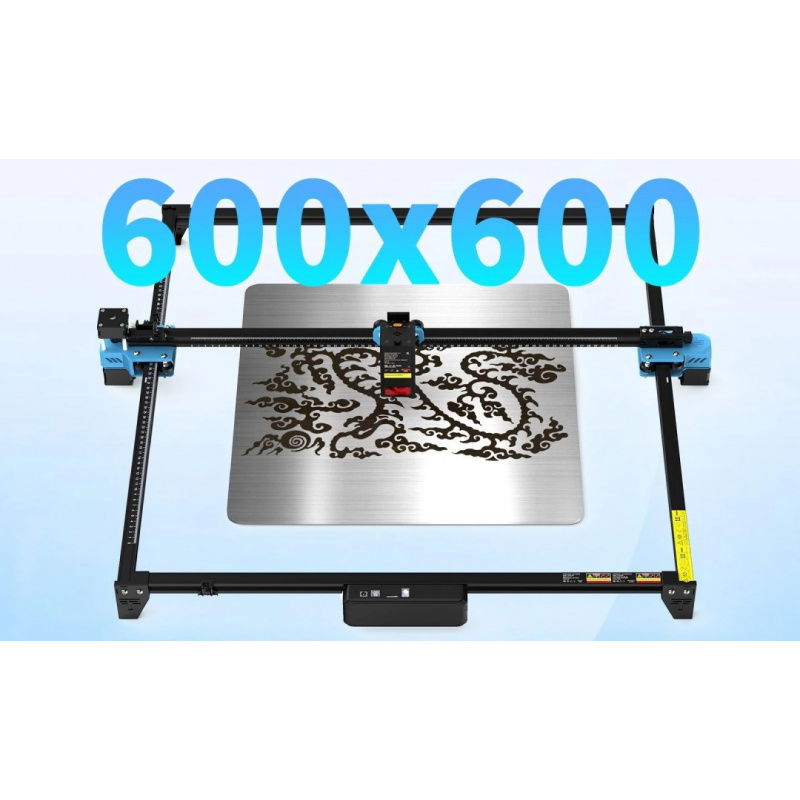

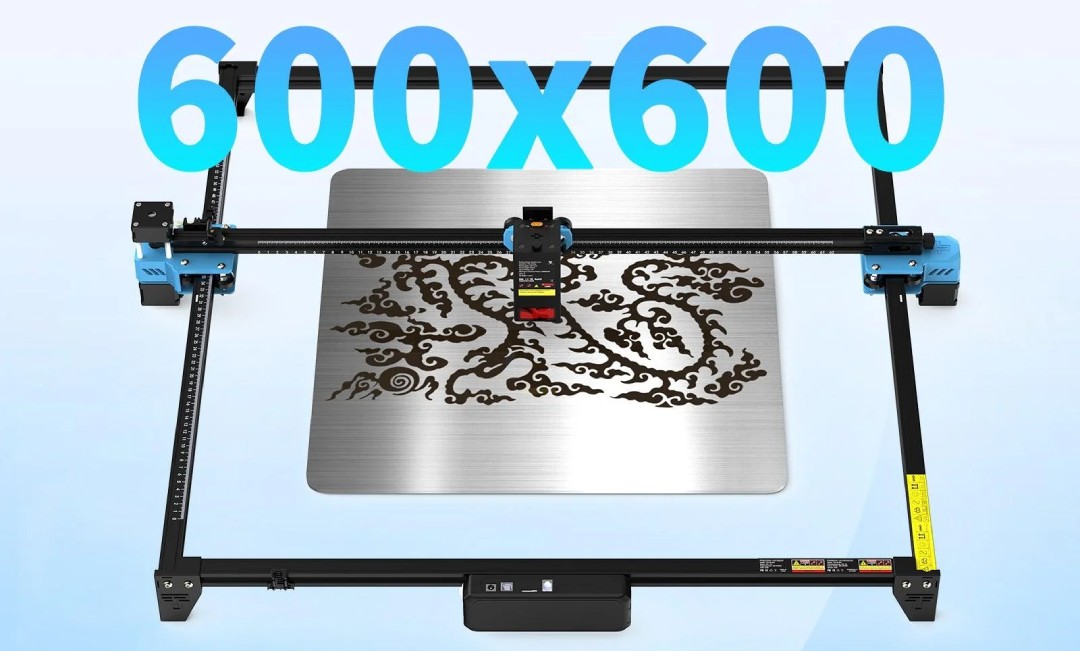

The device offers a large working area of 600 x 600 mm.
Exceptional movement stability
Thanks to its professional design with a 600 x 600 mm working area and steel wheels and shafts , the TTS-20 Max offers excellent motion stability , which translates into greater precision and accuracy in every operation. The increased rigidity of the device minimizes the risk of engraving errors, which is crucial when working with delicate materials and precise patterns.

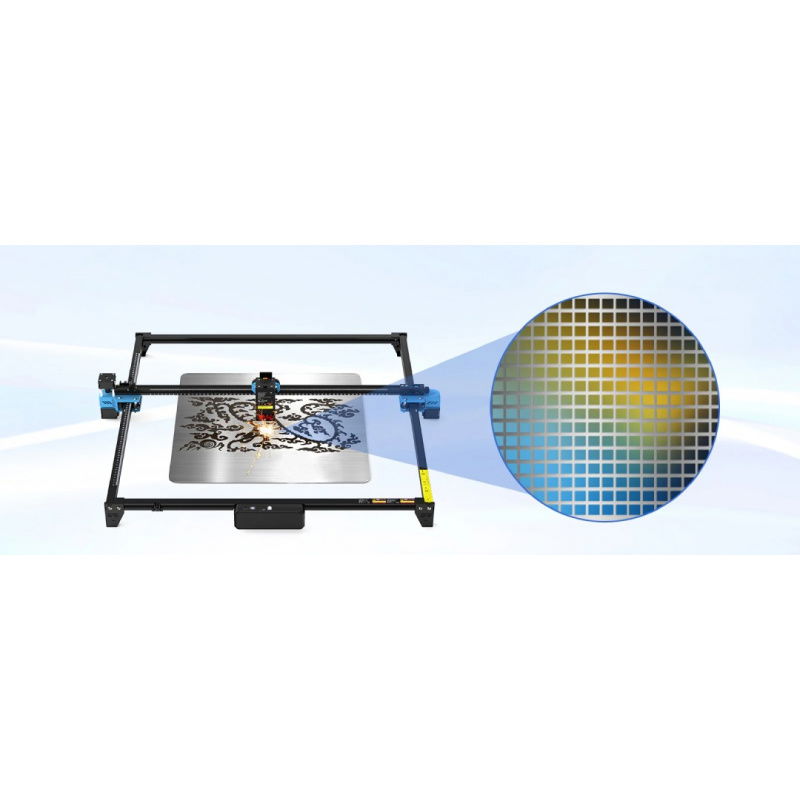

Advanced cooling technology
The laser's modern design utilizes a hermetic sealing system that ensures improved heat dissipation and long-term reliability. The updated COS chip improves heat dissipation efficiency, extending component life and improving cut quality over extended periods of operation.
Easy to use and install
The Two Trees TTS-20 Max is easy to assemble and ready to use right out of the box. With 90% pre-assembly , you can easily get started, which is especially helpful for those just starting out in laser processing. The intuitive interface and compatibility with popular software (e.g., LightBurn, GRBL) make it easy to get started.
Cutting and engraving performance
With an increased engraving speed of up to 500 mm/s , the TTS-20 Max saves time without compromising quality. It allows you to quickly create precise engravings on a wide range of materials, including metal, wood, plastics, and leather , offering improved quality while reducing processing time.

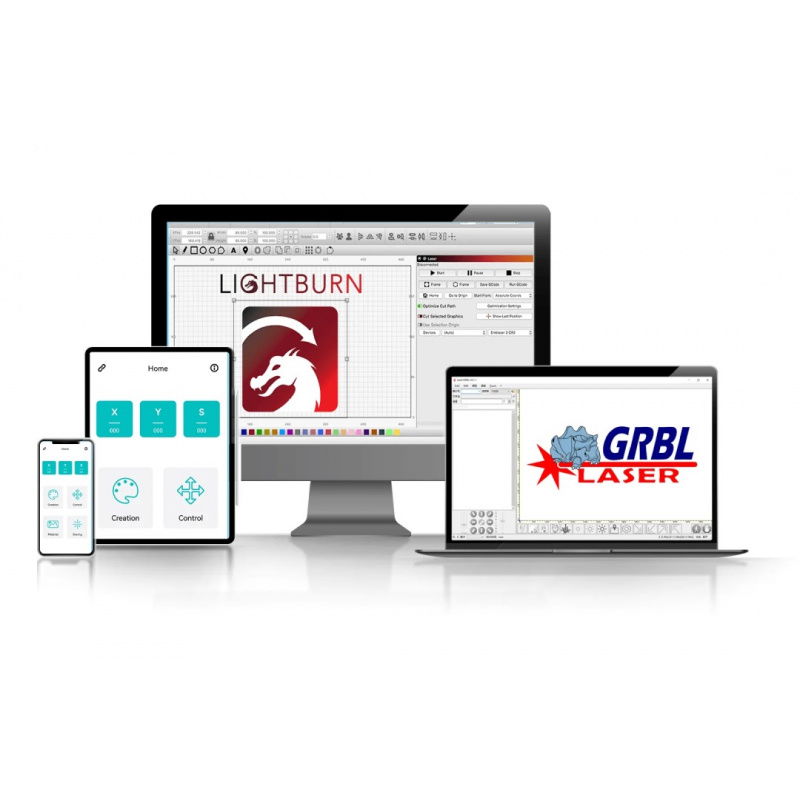

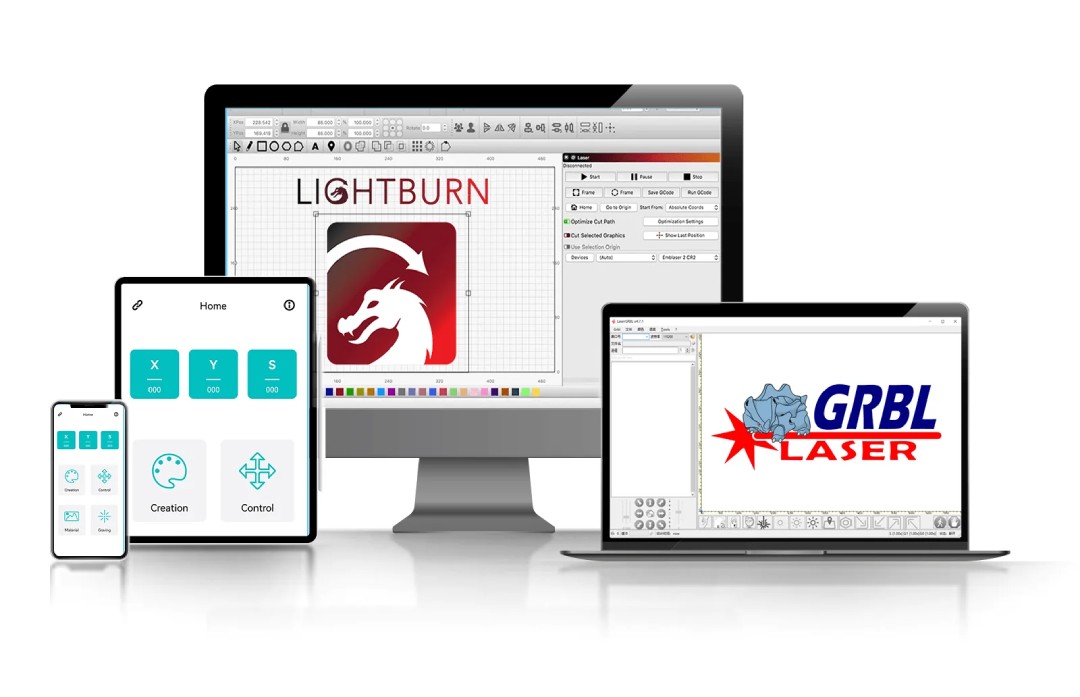

The plotter works with software such as LightBurn or GRBL.

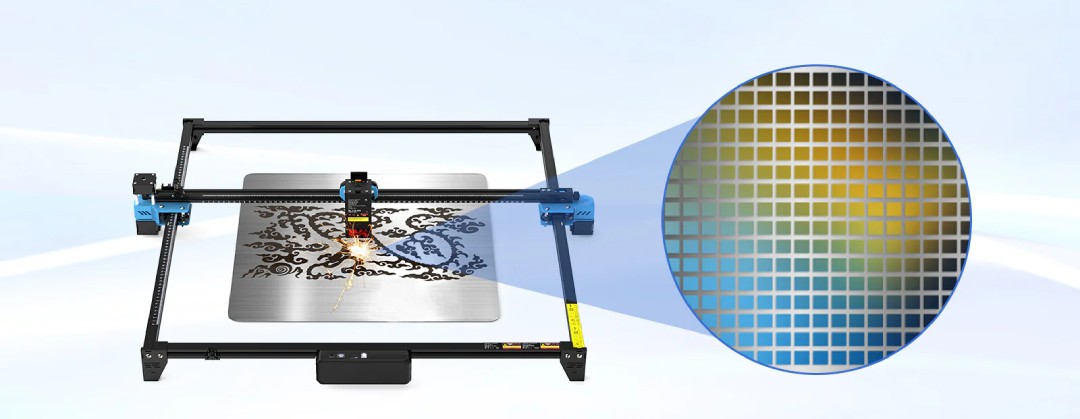

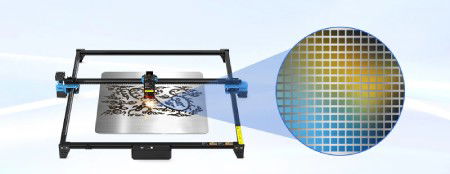

The powerful laser head allows engraving on metal surfaces.
Engrave in color
The TTS-20 Max allows you to create not only precise but also colorful engravings. Thanks to its powerful 20W laser head , which emits a beam with a peak power of 22W, the machine can engrave on metal surfaces . When the metal is heated by the laser, its surface instantly oxidizes, revealing a variety of brilliant colors that bring your design to life . This feature adds a new dimension to traditional engraving, enabling visual effects that would be difficult to achieve using other technologies.
| Technical specifications of the Two Trees TTS-20 Max laser plotter | |
|---|---|
| Laser power | 20 W (22 W peak) |
| Work area | 600 x 600 mm |
| Engraving speed | up to 30000 mm/min, 500 mm/s |
| Laser wavelength | 450 nm (+/- 5 nm) |
| Laser spot | 0.08 x 0.08 mm |
| XY axis positioning accuracy | 0.01 mm |
| Precision engraving | +/- 0.1 mm |
| Cooling system | improved COS Chip cooling system |
| Cutting/Engraving Materials | wood, acrylic, metal, leather, plastic |
| Laser technology | FAC + SAC, macular compression |
| Eye protection | yes, built-in |
| Communication | WiFi, USB, TF card |
| Operating system | Windows, macOS |
| Supported files | NC, DXF, BMP, JPG, PNG, GCODE |
| Software | LaserGRBL, Lightburn |
| Supported languages | Chinese, English, Italian, French, German, Russian, Portuguese, Japanese, Korean |
| Supply voltage | 24V DC |
| Construction material | aluminum profile + injection parts |
| Operating temperature range | from 5°C to 40°C |
| Working humidity | from 20% to 60% |
| Dimensions | 787 x 770 x 124 mm |
| Mass | 5.6 kg |
