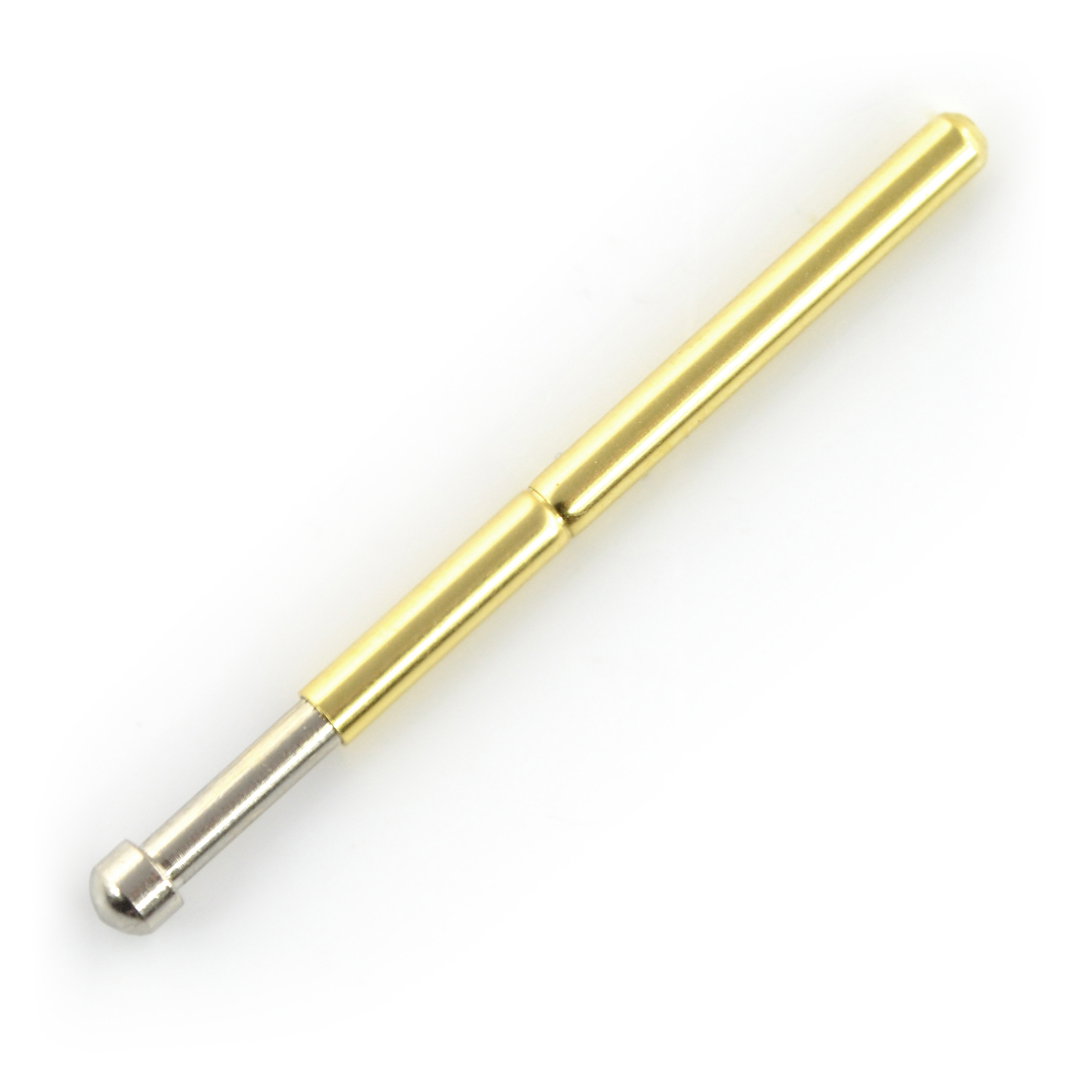

Pogo Pin - round P125-D

Index: MOD-05729 EAN: 5904422359645
5
(2)
Ask a question

Spring bolt with a rounded head designed for connecting and testing the modules with the pins on the goldpin straps without the need of soldering.

Pogo Pin - round P125-D
€0.50
€0.41 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: OEM

Description of product: Pogo Pin - round P125-D

Pin connectors with the length of 33 mm, it is ideal for testing or programming the modules without the need of soldering the goldpin straps. It is sufficient to attach the connectors to the breadboard or solder it to the main circuit, put on a module and press lightly. Thanks to the built-in, the connection made in this way, is stable. This version has a rounded head.



Igła testowa - pogo pin

Pogo Pin - round P125-D.

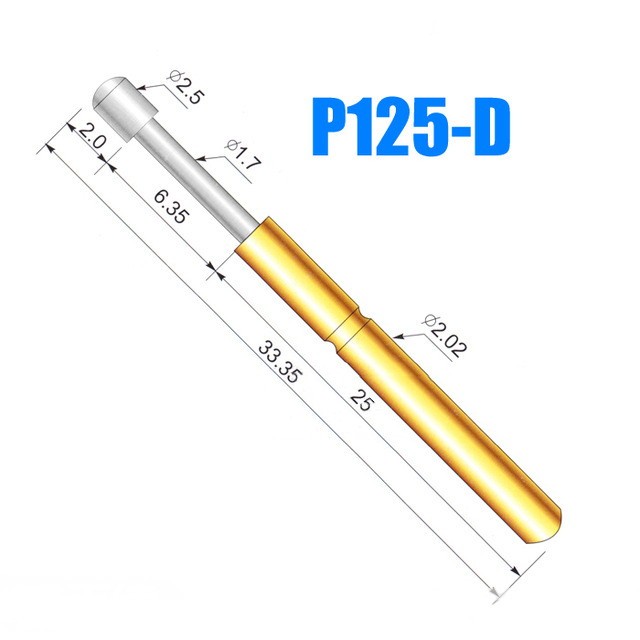

Specification

  • Length: 33,35 mm
  • Length of the moving element: 6.35 mm
  • Head diameter: 2.5 mm



Details can be found in thedocumentation.

Lead 1
Conn Type Pogo Pin
Conn - Standard male
Test 4
Package width 4 cm
Package height 0.1 cm
Package depth 8 cm
Package weight 0.005 kg
Send us your question

Be the first to ask a question about this product!

Product reviews

Pogo Pin - round P125-D

5/5

Average grade

2

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Piotr K. 09.06.2022 Confirmed purchase Translated review
the product meets the design requirements.
Michał K. 02.07.2021 Confirmed purchase Translated review
How is pogopin. The spring works fine. Better to have a small hole in the board rather than a test pad because of the shape.
