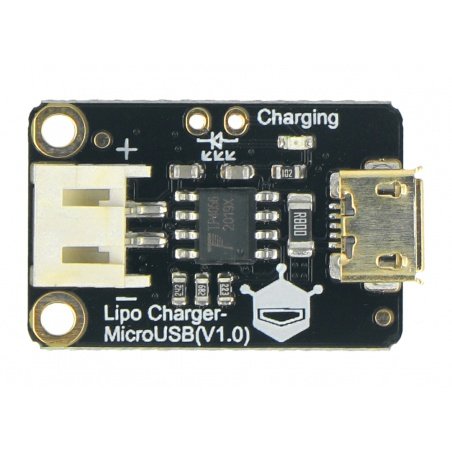

Lipo Charger - charging module for Li-Pol batteries via microUSB - DFRobot DFR0667

Index: DFR-19388 EAN: 6959420917242
Integrated Lipo Charger module from DFRobot. Designed to charge one 3.7V Li-Pol battery cell. The small size allows the module to be used in many scenarios and applications. The charger has a built-in TP4056X chip, which makes charging fast and safe. The module allows you to adjust the power parameters to your individual needs - it is possible to set up to three charging modes: 50 mA, 200 mA and 500 mA (default 50mA).
Lipo Charger - charging module for Li-Pol batteries via microUSB - DFRobot DFR0667
€6.90
€5.61 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot

Product description: Lipo Charger - charging module for Li-Pol batteries via microUSB - DFRobot DFR0667

Integrated charging moduleLipo Charger from DFRobot. It is designed to charge one3.7VLi-Polbattery cell. The small size allows the module to be used in many scenarios and applications. The charger has a built-inTP4056Xchip, which makes chargingfastandsafe. The module allows you to adjust the power parameters to your individual needs - it is possible to set up to three charging modes:50 mA,200mA and500 mA(default 50mA).

 Lipo Charger - moduł ładujący do akumulatorów Li-Pol poprzez microUSB

Lipo Charger - charging module for Li-Pol batteries via microUSB.

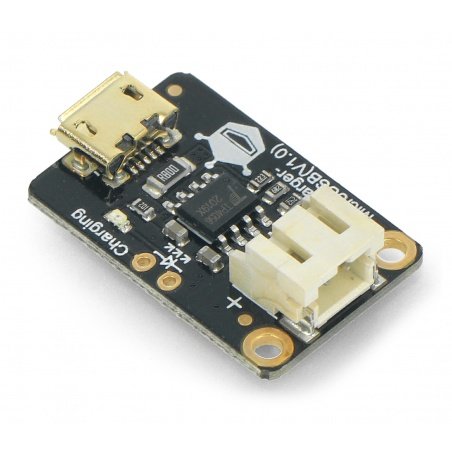

Kompaktowe wymiary pozwalają na szerokie zastosowanie elementu w wielu projektach.

Compact dimensions allow to use this element in many projects.

Technical specification of the module

  • Type: charging module for Li-Pol battery
  • Connector: microUSB
  • Built-in circuit: TP4056X
  • Input voltage: 5 V
  • Charging current: 50 mA / 200 mA / 500 mA
  • Limited charging voltage: 4,2 V ± 1%
  • Operating temperature range: from -40°C to 85°C
  • Module dimensions: 16.5 x 25 mm

Lipo Charger - how to use

Connect the Lipo Charger module to an external power source via themicroUSBport. There is anLEDon the module to indicate the operating status:flashingwhen no battery is connected;onwhen a battery cell is connected;offwhen the battery is fully charged. In addition, you can connect an extraexternal indicatorto continuously check the charge level of the cell. Charging is possible in three modes:sustainedcharging,direct currentcharging anddirect voltagecharging. The user can also choose thecurrent value, but the choice must take into account the capacity of the battery being charged:

  • from 100 mAh to 400 mAh - 50 mA
  • 400 mAh to 1000 mAh - 200 mA
  • > 1000 mAh - 500 mA

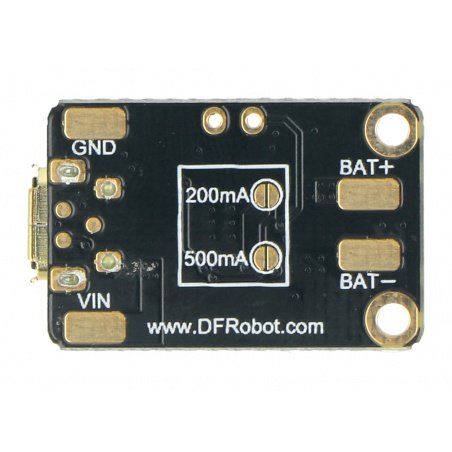

Zintegrowany moduł ładujący Lipo Charger od DFRobot posiada wybierany poziom natężenia prądu ładującego.The integrated Lipo Charger from DFRobot has a selectable charging current level.

Attention!

The low current mode can be used to charge a high capacity battery, but the high current mode cannot be used to charge a low capacity battery. The battery may explode if the charging current is too high.

Package width 6.1 cm
Package height 5.6 cm
Package depth 2.5 cm
Package weight 0.008 kg
