Pico Dual Expander - 2 x 20 GPIO pins expander - for Raspberry Pi Pico - Waveshare 19343

Index: WSR-19038 EAN: 5904422371685
Another product in the series of extensions for Raspberry Pi Pico - Pico Dual Expander pinout expander manufactured by Waveshare. It allows to extend functionality of Raspberry Pi Pico. It has two fields (with male pins) in 2 x 20 pin layout for additional peripherals and one field (with female pins) for main module - Raspberry Pi Pico. Each of the pins is appropriately labeled so that the user knows what each pin corresponds to. This greatly improves the process of connection and reduces the possibility of mistakes. Expander does not require additional soldering. External dimensions of the board are 103,5 x 55 mm.
Pico Dual Expander - 2 x 20 GPIO pins expander - for Raspberry Pi Pico - Waveshare 19343
€6.90
€5.61 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: Pico Dual Expander - 2 x 20 GPIO lead expander - for Raspberry Pi Pico - Waveshare 19343

Another product in the series of extensions for Raspberry Pi Pico-the Pico Dual Expander pinout expander produced byWaveshare. It allows toextend functionality ofRaspberry Pi Pico. It hastwo fields(with male pins) in2 x 20pin layout for additional peripherals and one field (with female pins) for main module - Raspberry Pi Pico. Each of the pins isappropriately labeledso that the user knows what each pin corresponds to. This greatly improves the process of connection and reduces the possibility of mistakes. Expander does not require additional soldering. External dimensions of the board are 103.5 x 55 mm.

Podwójny ekspander od Waveshare, który pozwala uzupełnić Raspberry Pi Pico o dodatkowe urządzenia peryferyjne.A dual expander from Waveshare that allows you to complement your Raspberry Pi Pico with additional peripherals.

The subject of this sale is a dual lead expander for Raspberry Pi Pico.The peripheralsandRaspberryPi Pico can be purchased separately from our store.

Overview of key features

  • Connectors in a standard that allows you to connect your RaspberryPi Picodirectly (with soldered male connectors) or connect it using connection cables
  • The expander board includes space for two modules with 2 x 20 pin spacing, allowing you to use additional peripherals in your design
  • Detailed pinout markings, which minimize the risk of incorrect connection of extensions

Technical specification of Pico expander for Raspberry Pi

  • Type: lead expander
  • Compatible with: Raspberry Pi Pico
  • Number of fields:
    • for peripherals: 2 fields with male pins for connecting overlays or accessories using connection cables
    • on Raspberry Pi Pico: 1 field with female connectors to connect Raspberry Pi Pico with soldered connectors
  • No soldering required
  • External dimensions: 103.5 x 55 mm

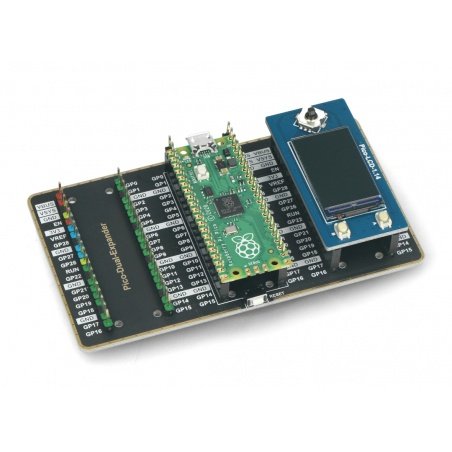

Ekspander posiada miejsce na jedno Raspberry Pi Pico oraz dwa moduły dodatkowe.The expander has space for one Raspberry Pi Pico and two add-on modules.
Package width 10 cm
Package height 15 cm
Package depth 1.2 cm
Package weight 0.036 kg
