Product description: Geared motor 70:1 37D x 70L 24 V 140 RPM + CPR 64 encoder - Polyol 4694

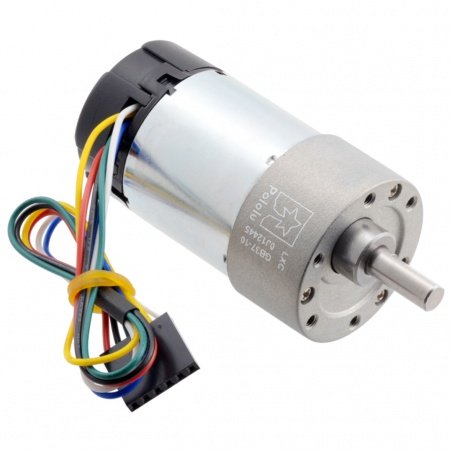

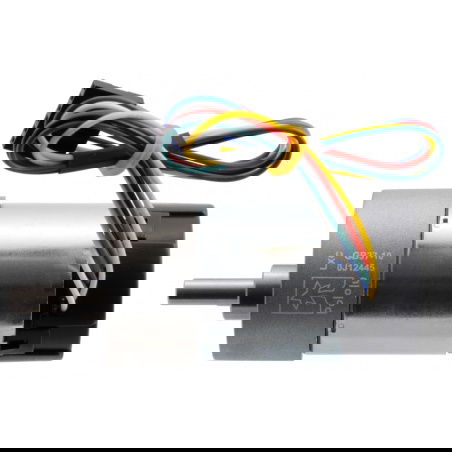

Polol's DC motor, supplied with voltage up to 24 V. It is equipped witha CPR 64 quadrature encoder, which counts 64 pulses per motor shaft revolution. The speed is140 rpmand the torque is31 kg*cm. The motor draws up to 100 mA of current during normal operation and up to 3000 mA of current when the shaft is stopped.
The diameter of the DC motor is 37 mm and its length is 70 mm. Exact dimensions can be found in the drawing.
Encoder CPR 64

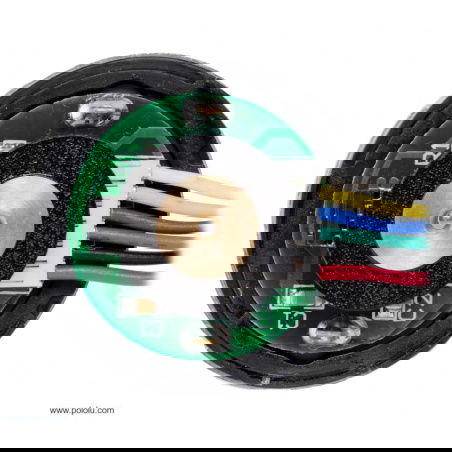

The DC motor has a quadrature encoder mounted, which uses the Hall effect. It allows the detection of pulses on a rotating magnetic disk, which is located at the back of the motor. The encoder allows the measurement with a resolution of 64 pulses per revolution of the motor shaft, and after translation it is the right amount more.

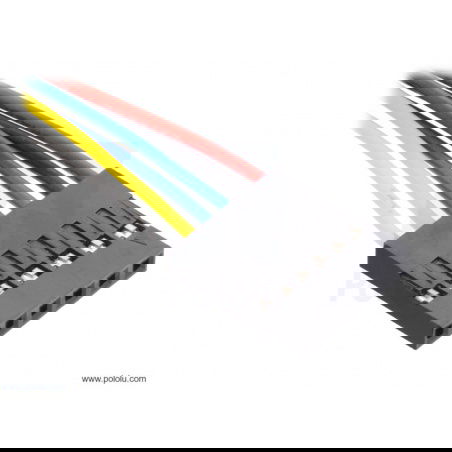

- Red-motor power supply
- Black -engine power
- Green -encoder mass potential
- Blue -Encoder power supply (3.5 V to 20 V)
- Yellow -encoder output A
- White -encoder B output
|Power supply voltage:||24 V|
|Encoder operation voltage:||3.5 V to 20 V|
|Encoder resolution:||64 pulses per revolution|
|Average current consumption at 24 V:||100 mA|
|Maximum power consumption at 24 V:||3000 mA|
|Speed at 24 V supply:||140 rpm|
|Torque at 24 V supply:||31 kg*cm|
|Dimensions:||70 x 37 mm|
|Shaft diameter:||6 mm|
|The weight:||205 g|
