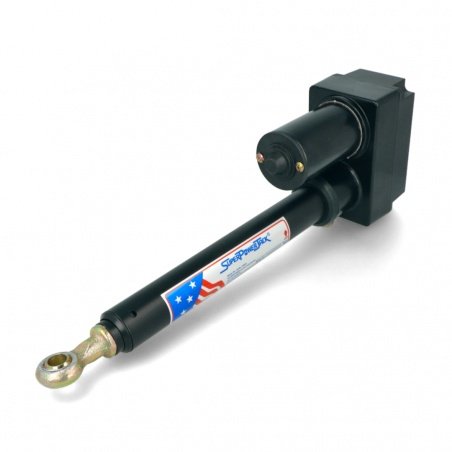

Siłownik elektryczny Super Power Jack 3000N 7,5mm/s 24V - wysuw 15cm

Index: ELB-19268 EAN: 5904422362027
The Super Power Jack electric actuator manufactured by Elektrobim. The actuator has a supply voltage of 24 V and maximum current consumption is up to 2.1 A. Its maximum lifting capacity is 3000 N (300 kg) and speed is 7,5 mm/s. An impulse generator with a resolution of 48 pulses/inch provides information about the current position of the actuator. The Super Power Jack is equipped with limit switches to ensure that the extension range is not exceeded. The direction is changed by reversing the polarity, just like in DC motors.
€37.18
€30.23 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Elektrobim

Description: Electric actuator Super Power Jack 3000 N 7.5 mm / s 24 V - extension 15 cm

TheSuper Power Jack is an electric actuator manufactured byElektrobim. The actuator has a24 Vsupply voltage and the maximum current consumption is up to2.1 A. Its maximum lifting capacity is3000 N (300 kg)and speed is7,5 mm/s. An impulse generator with a resolution of 48 pulses/inch provides information about the current position of the actuator. The Super Power Jack is equipped with limit switches to ensure that the extension range is not exceeded. The direction is changed by reversing the polarity, the same as inDC motors.

The units are available in various lengths and 12 V extension versions:15 cm,20cm,25cm,30cm,44cm,61cm. A 24 V actuator with44 cmextension is also available.

Siłownik liniowy od Elektrobim.

A linear actuator from Elektrobim.

Main features of the Super Power Jack 3000 N 7.5 mm/s 24 V electric actuator with 15 cm stroke

  • Load capacity up to 3000 N (300 kg)
  • Stable work regardless of weather conditions
  • Comfortable attachment of the actuator
  • Safe working voltage: 24 V DC
  • High resistance to external influences in the working environment
  • Adjustable extension length
  • Different voltage versions: 12 V, 24 V, 36 V

Set contents

  • Super Power Jack linear actuator
  • Mounting screws
  • Seal for the end of the arm

Instructions for adjusting the actuator

The manufacturer has prepared instructions in the form of a video, which shows how to adjust limit switches located in the actuator.

Electric actuator control

  • By radio, via a remote control and a control unit
  • By manual pushbuttons on the supply cables
  • Automated operation based on sensors

Technical specifications

Name Parameter
Supply voltage 24 V DC
Current consumption up to 2.1 A
Resolution of built-in pulser 48 pulses per inch
Speed 7.5 mm/s
Maximum force 3000 N (300 kg)
Extension length L 150 mm
Total length in folded position 250 mm + L (extension length)
Arm diameter 32 mm
Dimensions (DxSxG) 120 x 72 x 50 mm
Voltage to 24.0 V
Voltage from 24.0 V
Torque 300 kg*cm
Voltage nominal 24 V
Motor - linear speed 7.5 mm/s
Motor - eject 15 cm
