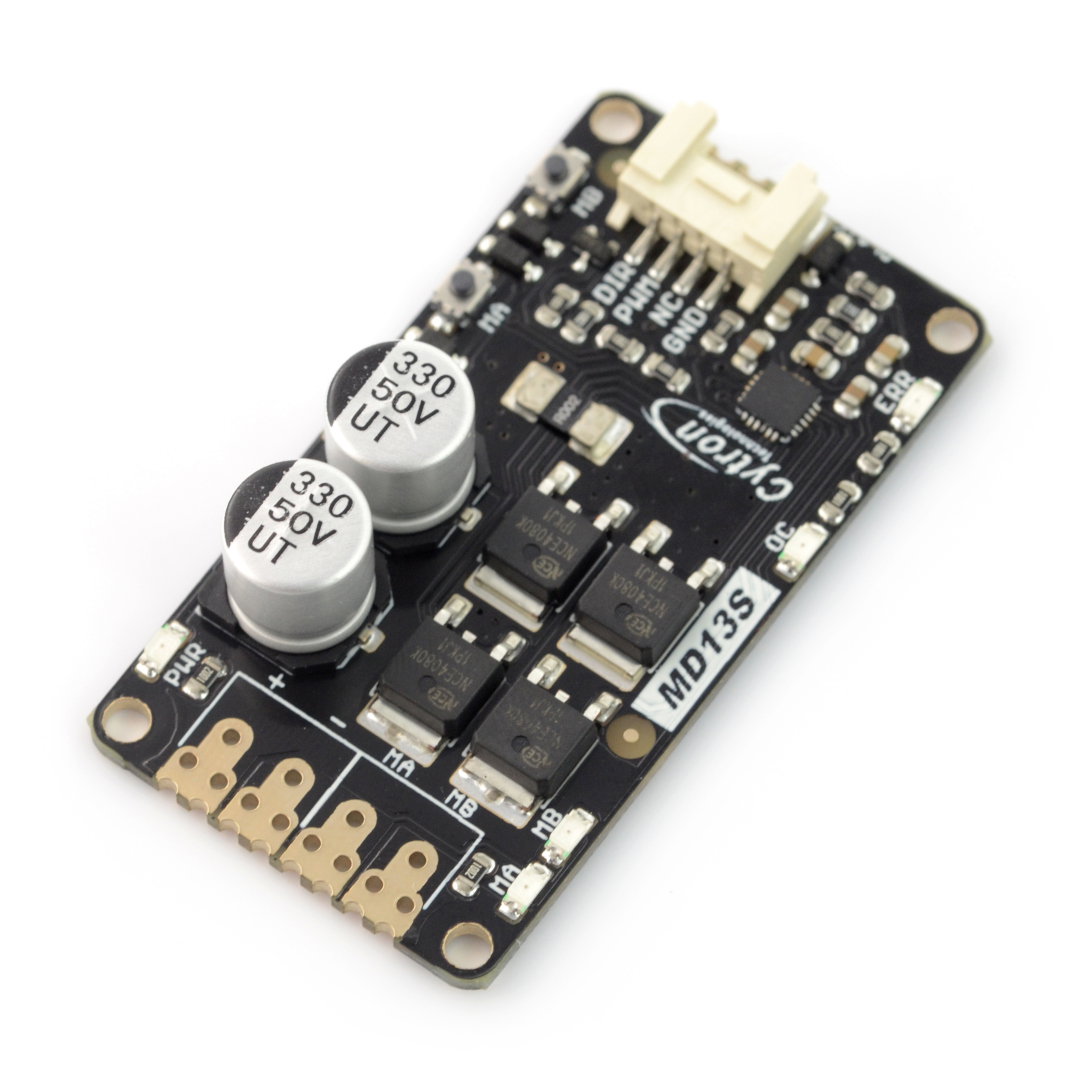

Product description: Cytron MD13S - single channel motor controller 30 V / 13 A
Single channel DC motor controller. Continuous current per channel 13 A (momentary 30 A). Supply voltage from 5 V to 30 V. There is a Grove connector on the board. Module controlled by buttons on the board or microcontroller such as Arduino.
|
Product compatible with Arduino Example code and detailed information can be found in user guide. |
Technical specification of the controller
- Supply voltage: from 6 V to 30 V DC
- Logic part voltage: 3.3 V or 5 V
- Average current per channel: 13 A (momentary 30 A)
- Number of channels: 1
- Full H-bridge NMOS for better performance without the need for readouts
- PWM speed control up to 20 kHz
- Grove connector
- 2 ARK connectors for self-soldering
- Dimensions: 61 x 33 mm
Cytron MD13S - 30 V / 13 A single channel motor controller.
Set includes
- Cytron MD10C motor controller
- 2x ARK connector (black for motors, green for power supply)
- Grove cable
