Product description: LaserPecker LP5 - 20W fiber and diode laser engraver - basic kit

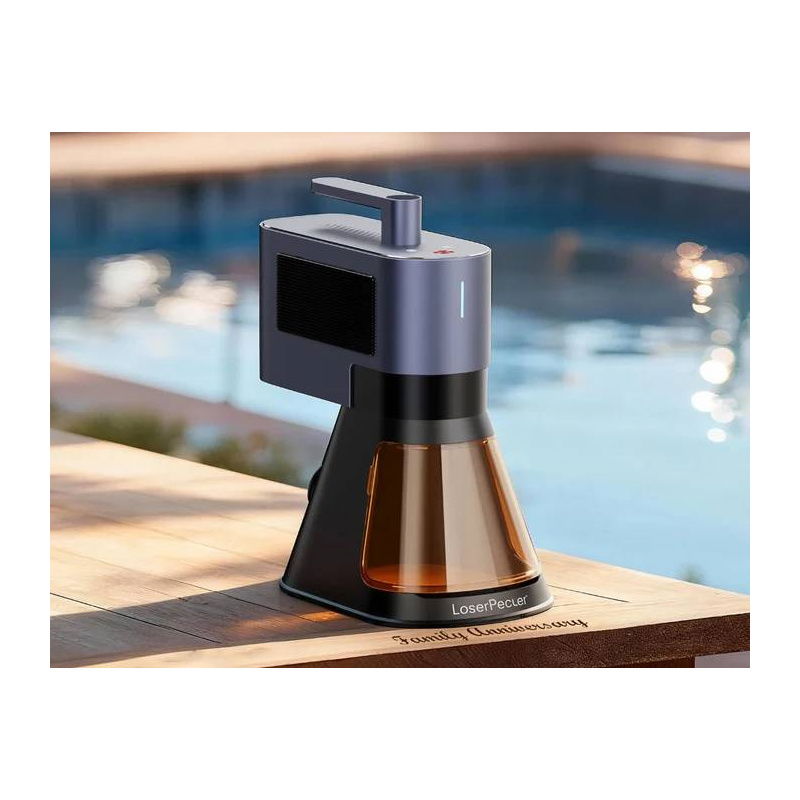

The LaserPecker LP5 redefines the compact laser engraving category by integrating a 20W 450nm diode laser and a 20W 1064nm fiber laser . This combination allows you to work on virtually any material – from wood and glass to precious metals, aluminum, and titanium. It offers a speed of up to 10,000 mm/s and a precision of 0.0027 mm , making it an ideal tool for both professional workshops and mobile businesses personalizing products on-site. Whether you're creating keychains, ID badges, industrial markings, or decorative engravings, the LP5 delivers excellent quality, repeatability, and speed. Full compatibility with LightBurn and the Design Space mobile app makes operation intuitive, even for novice users. The compact design with a laser unit weighing only 3.36 kg allows for manual operation , opening the door to personalizing items with non-standard dimensions that cannot be placed inside traditional CNC machines.

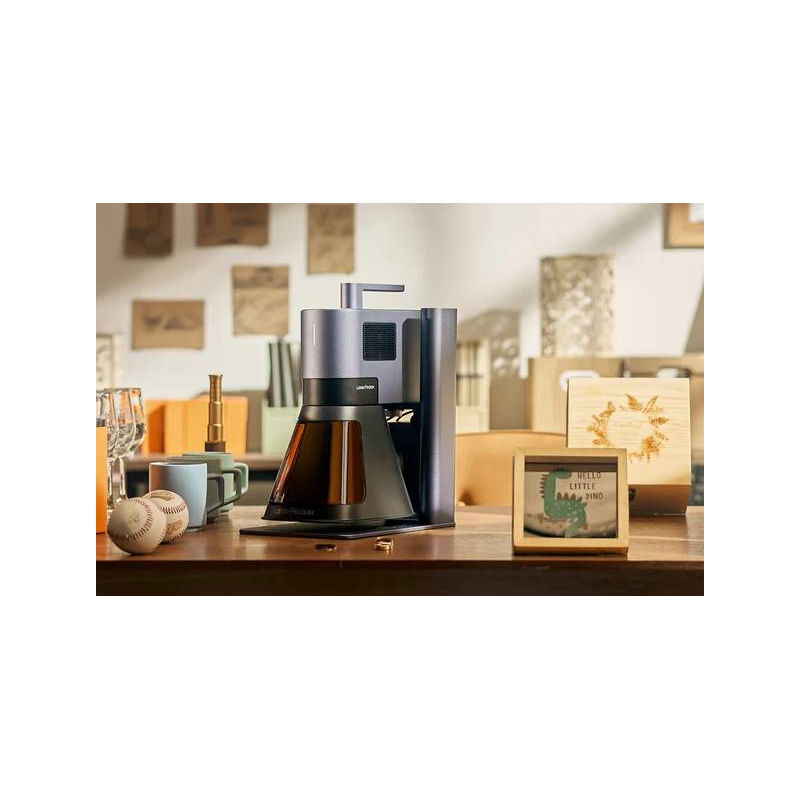

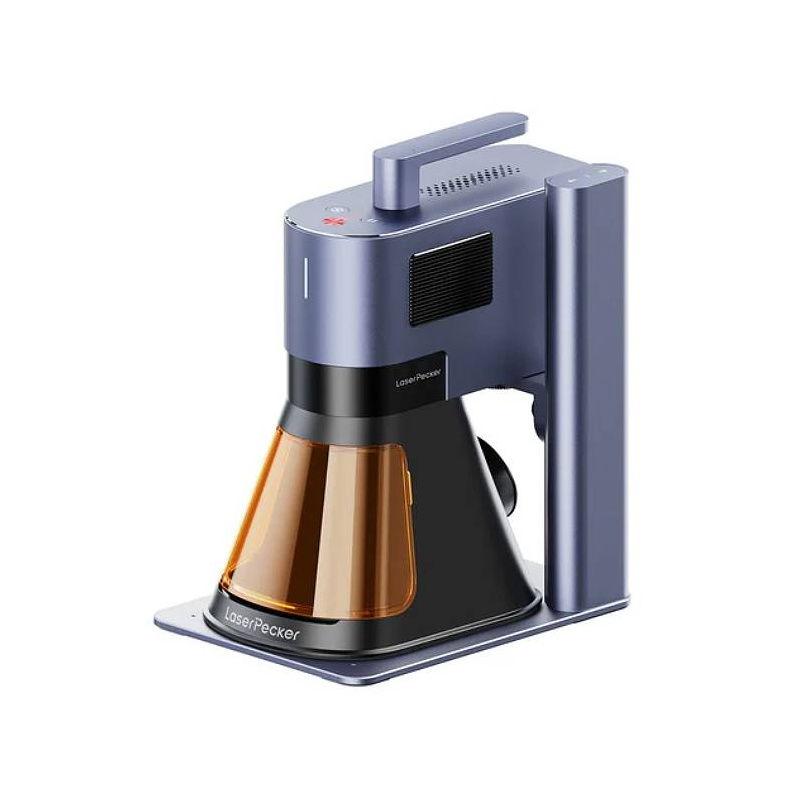

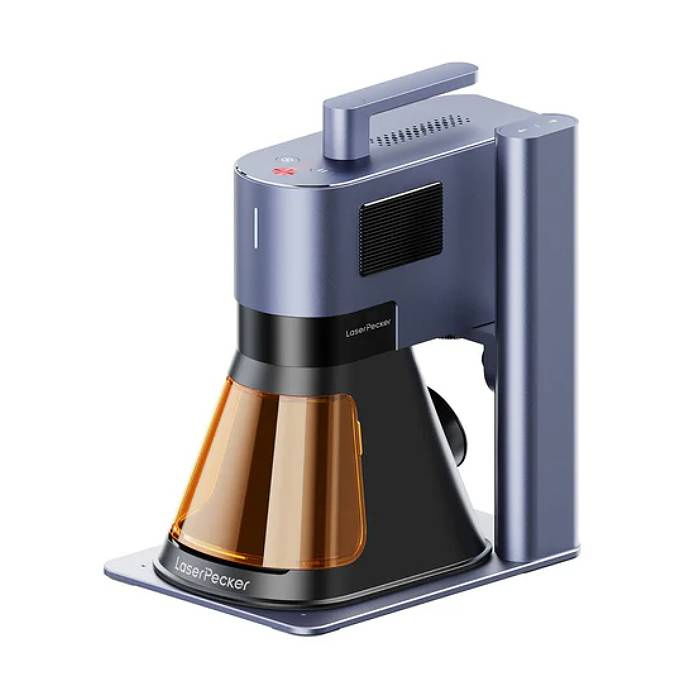

LaserPecker LP5 - 20W fiber optic and diode laser engraver - basic kit.

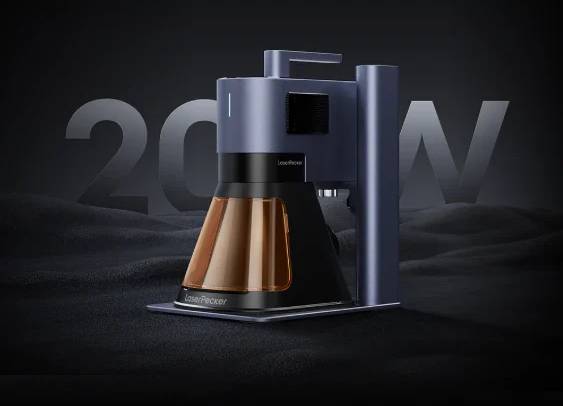

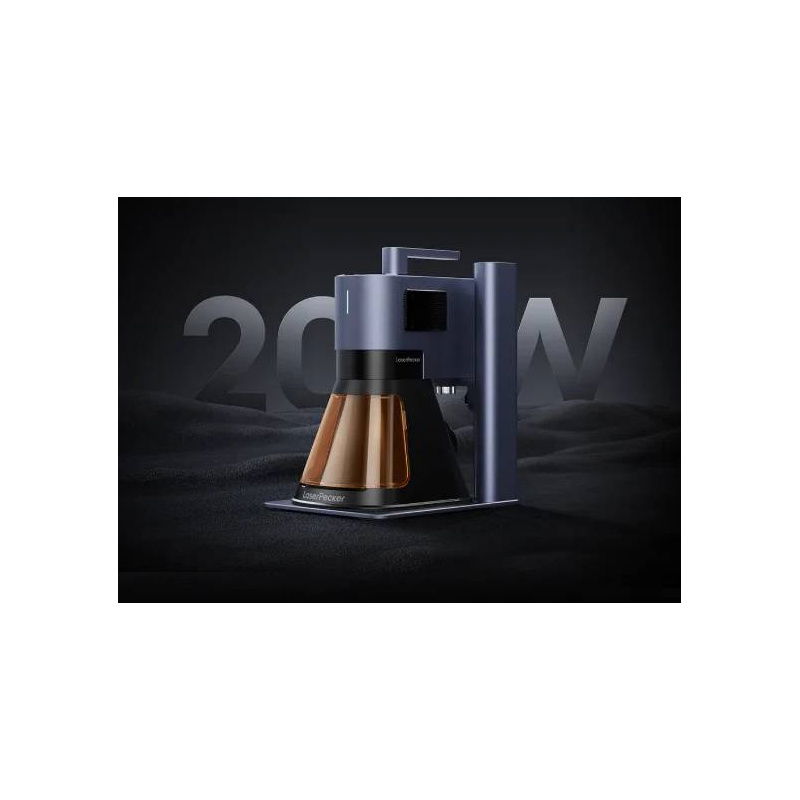

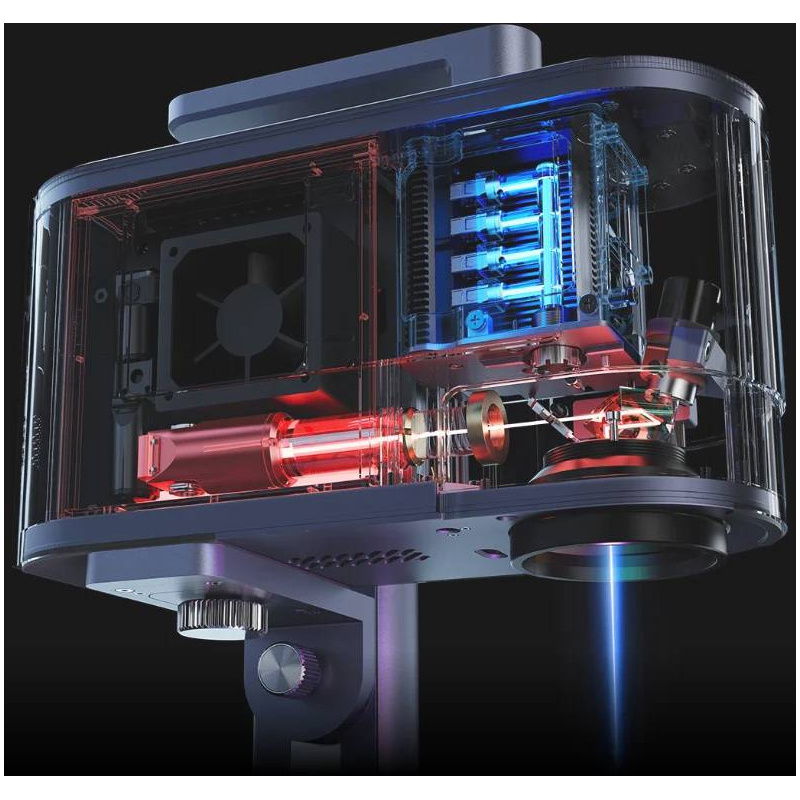

The LP5 integrates a 20W fiber laser with a 20W diode laser.
Dual 20W laser - unprecedented material versatility
The LaserPecker LP5 is equipped with two independent light sources: a 20W diode laser with a wavelength of 450nm and a 20W fiber laser with a wavelength of 1064nm. This allows for efficient engraving and cutting of over 99% of materials – from wood, acrylic, and leather to stainless steel, aluminum, titanium, and plastics. Automatic switching between sources and predefined settings for different materials minimize the risk of errors and speed up work. Advanced fiber laser control allows for deep engravings in metal and impressive 3D reliefs in wood, stone, and other surfaces. The LP5 effortlessly cuts thin metal sheets (e.g., 0.4mm iron in two passes, 0.5mm stainless steel in four passes, 0.2mm aluminum in one pass), while the diode laser easily cuts 12mm acrylic or 20mm wood . The device also supports color engraving on metals and precise black marking without the relief effect.
Impressive speed and industrial-grade precision
The LP5 utilizes an industrial Galvo system , achieving speeds of up to 10,000 mm/s and positioning precision of 0.0027 mm . The intelligent Smart Path algorithm automatically optimizes the laser beam path , minimizing empty runs and increasing production efficiency. The LP5 also offers advanced preview modes—outline, rectangle, and center—and a real-time preview function with multiple file support , allowing you to precisely position your graphics before you begin. Additionally, the automatic Batch Variable Engraving feature allows you to batch engrave variable data such as serial numbers, dates, or names without having to manually set each one.

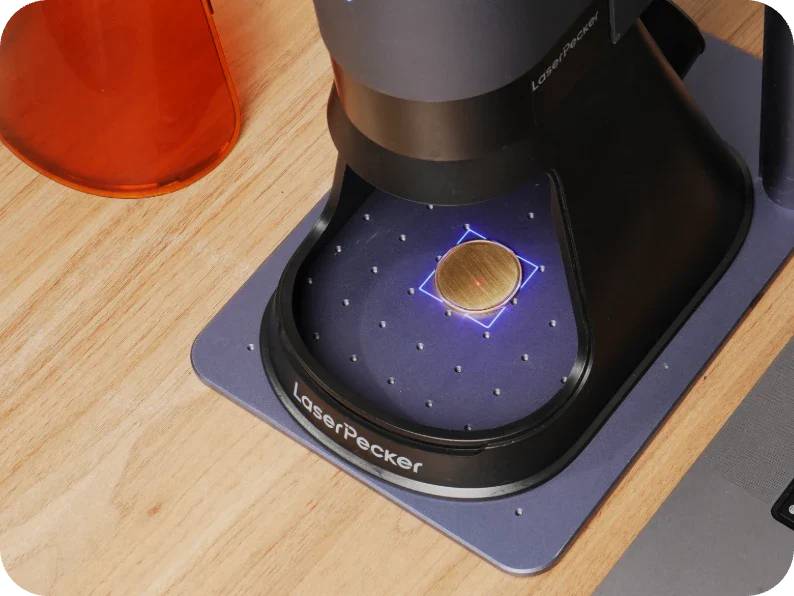

The contour preview allows you to check the engraving effect before you start working.

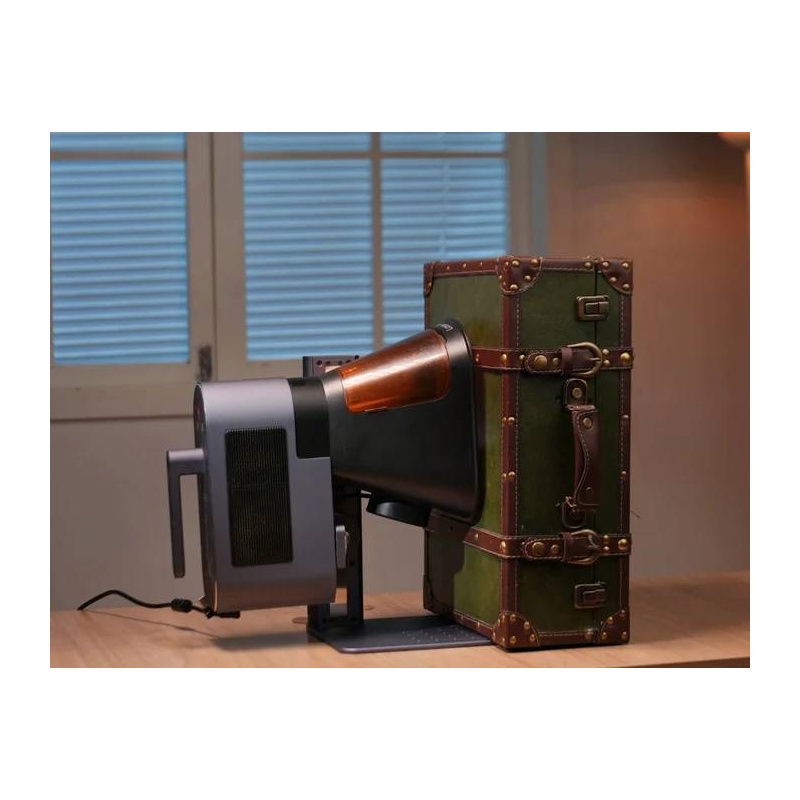

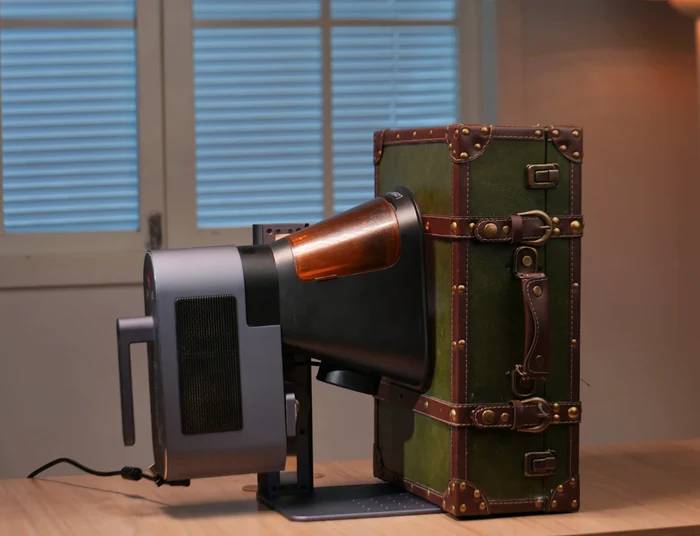

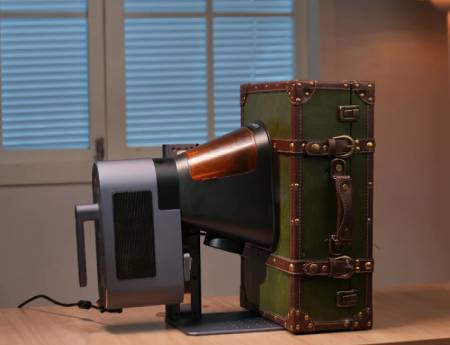

Weighing only 3.7 kg, it allows engraving at various angles.
Mobility and adaptation to any work environment
With its compact design and weight of just 3.7 kg , the LP5 is ideal for mobile use and field work. The device can be operated in handheld mode, at any angle , on hard-to-reach surfaces, and the open-bottom design allows for direct engraving onto large objects . Mobile app operation and a live project preview significantly enhance user convenience.

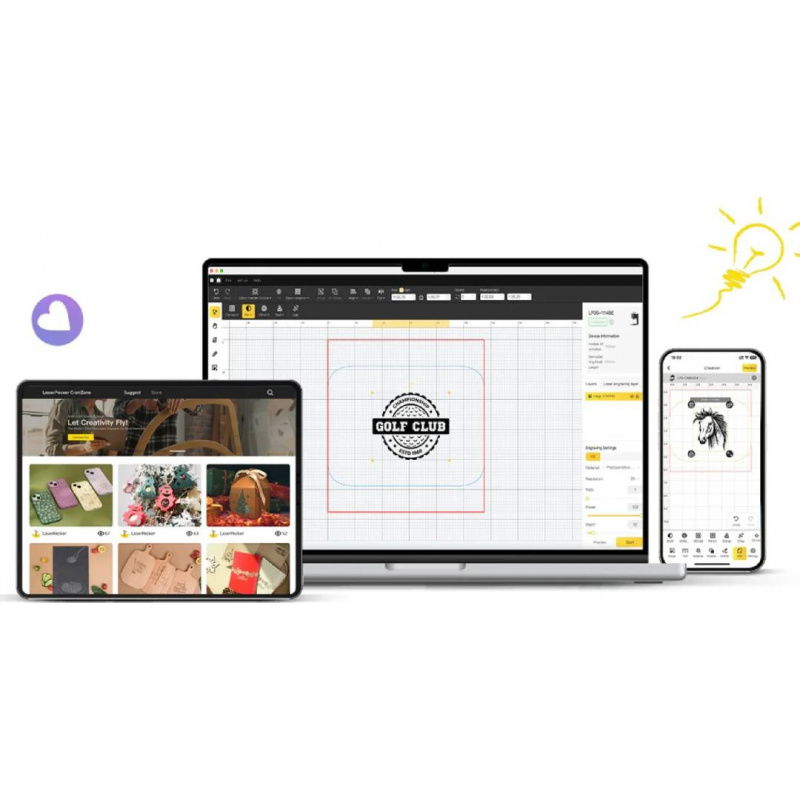

LaserPecker and LightBurn Software - Flexibility and Automation
LaserPecker LP5 works with free Design Space software, available for PCs and iOS and Android mobile devices. It also offers full compatibility with the LightBurn environment . It supports wireless connection via WiFi and supports offline work via a USB drive, enabling convenient work in a variety of conditions – both in the studio and in the field, which is crucial during events and live shows, among other things.

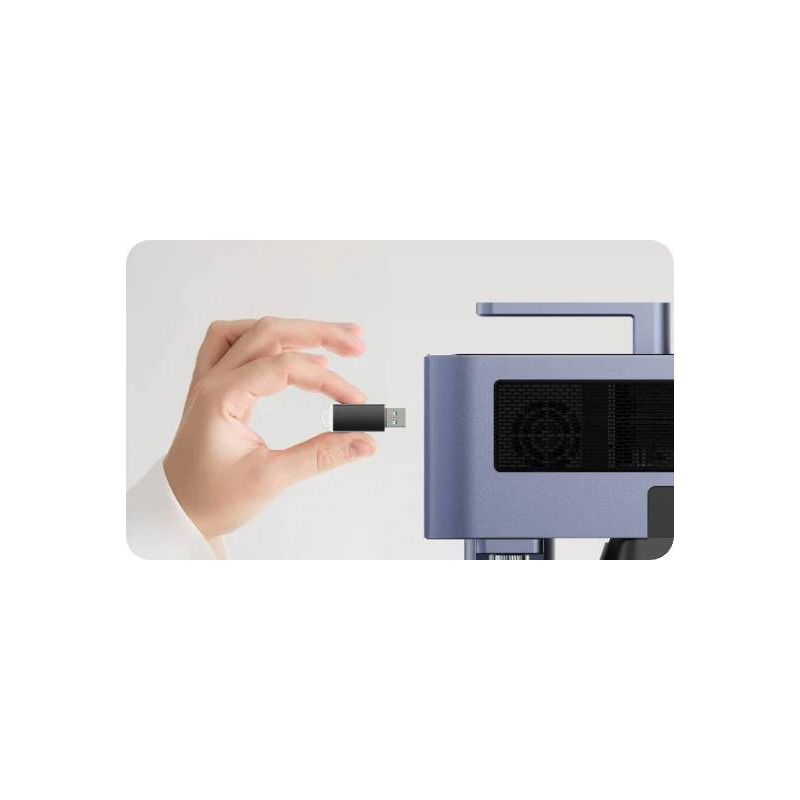

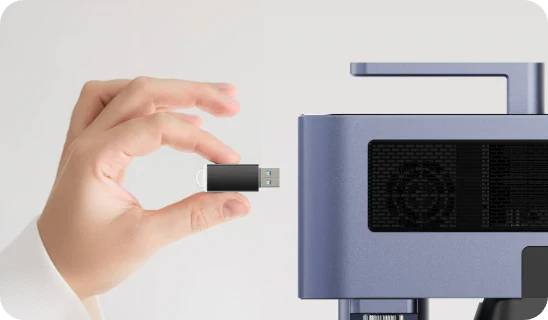

The LP5 allows control via WiFi or wired connection , as well as offline USB drive support.

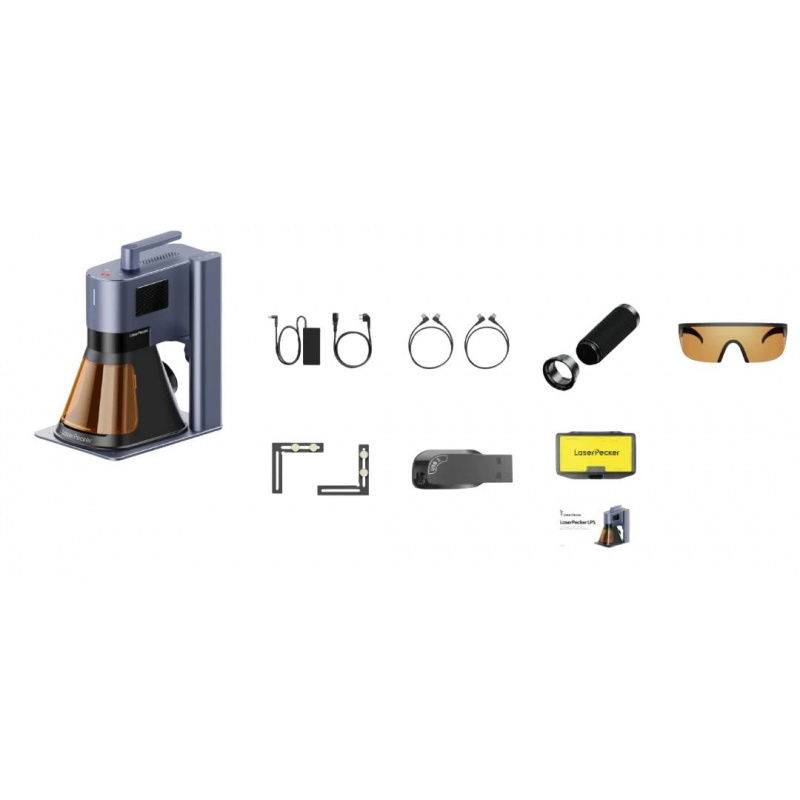

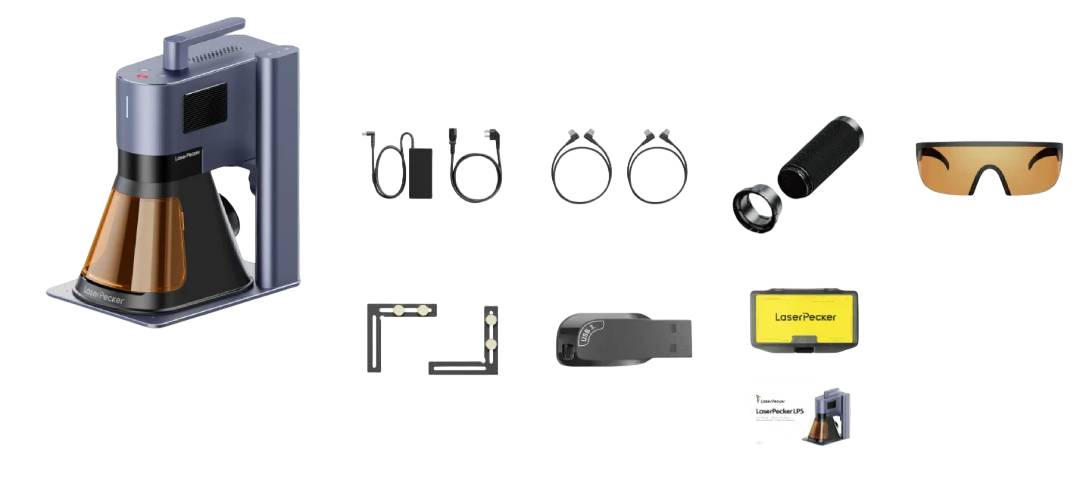

Elements included in the set.
Kit contents
- LP5 laser engraver
- Electric stand
- Protective cover
- Goggles
- USB cables (1.5m and 0.6m)
- Charger
- Angle positioner
- USB drive
- Pipe with adapter
- Tools
- User manual
| Technical specifications of the LaserPecker LP5 laser engraving machine | |
|---|---|
| Laser type | diode 450 nm + fiber optic 1064 nm |
| Laser power | 20 W |
| Laser spot | 0.08 x 0.1 mm (diode), 0.06 x 0.06 mm (fiber optic) |
| Positioning accuracy | 0.0027 mm |
| Movement accuracy | 0.0027 mm |
| Image resolution | 1K / 2K / 4K / 8K |
| Work area | 120 x 160 mm (ellipse), 100 x 100 mm (square) |
| Max operating speed | 10000 mm/s |
| Max processing height | 137 mm |
| Max. rotating diameter | 200 mm |
| Cutting depth | up to 1 mm (metal), up to 20 mm (wood), up to 15 mm (black acrylic) |
| Supported materials - fiber laser | stainless steel, aluminum, brass, silver, plastic, platinum, titanium |
| Supported materials - diode laser | wood, acrylic, leather, glass, stone, paper, rubber |
| Preview modes | rectangular / contour / center point |
| Cooling | semiconductor + air cooling |
| File formats | PC: G-code, JPG, PNG, BMP, SVG, DXF mobile: G-code, JPG, PNG, SVG |
| Operating systems | Windows 10+, macOS 10+, Android 7.0+, iOS 9.0+ |
| Communication | USB, WiFi |
| Input power | DC 24V, 7.5A/AC 100V to 240V, 50/60Hz (180W) |
| Ambient temperature | from 10°C to 35°C, humidity from 10% RH to 95% RH |
| Certificates | CE, ROHS, FCC, FDA, NCC, KC, UKCA, TELEC, SRRC |
| Supported languages | Polish, English, German, Spanish, French, Japanese, Korean, Russian, Portuguese, Traditional and Simplified Chinese |
| Dimensions | Laser: 255 x 98 x 183 mm; Stand: 198 x 286 x 323 mm; Cover: 167 x 231 x 160 mm |
| Mass | Laser: 3.36 kg; Stand: 2.28 kg; Cover: 0.38 kg; Total: 6.02 kg |
