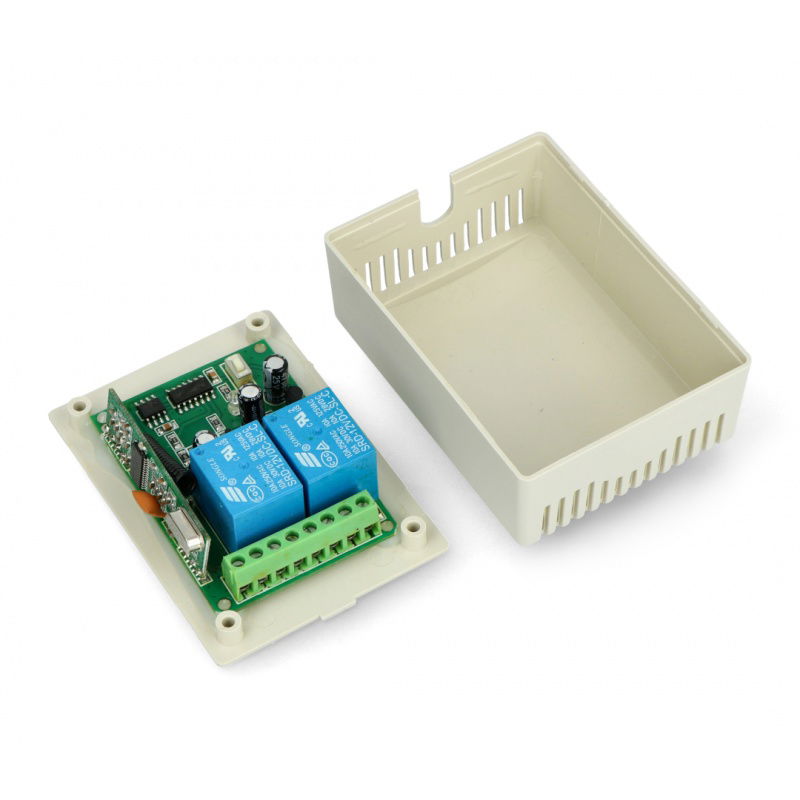

Product description: Remote controller 12/24 V DC + remote controls 433.92 MHz - 2 channels
The radio receiver allows you to control 2 devices operating with a voltage of 250 V AC via NO/NC relay outputs. Built-in relays with a power of up to 10 A allow you to control devices with high current consumption such as DC motors , roller blinds, blinds, doors, windows, gates and wickets. The module operates at a frequency of 433.92 MHz . The set includes 2 remote controls that allow you to control the receiver within a range of 100 meters. The remote controls may differ in appearance from those shown in the photo, they are sent randomly. The coil is powered by 12 or 24 V DC.
Remote controller pins 12/24V DC - 433.92MHz - 2 channels

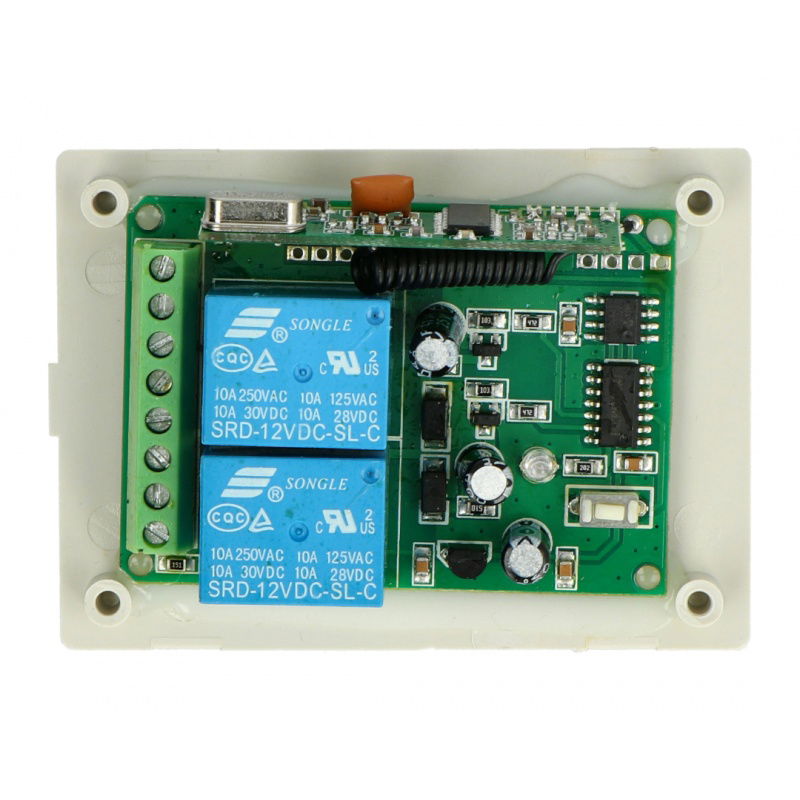

The connectors in the table are described from top to bottom in the order in which they appear on the controller module.
| Name | Description |
|---|---|
NO_1 | Pinout of the normally open contact of the first relay PK1. |
COM_1 | Pinout of the common contact of the first relay PK1. |
NC_1 | Normally closed contact leads of the first relay PK1. |
NO_2 | Normally open contact output of the second relay PK2. |
COM_2 | Common contact pinout of the second relay PK2. |
NC_2 | Normally closed contact leads of the second relay PK2. |
+ | Power connector, supply voltage 12 or 24 V |
- | System mass. |
The set includes:
- 2-channel receiver
- Remote control - 2 pieces
Remote Controller Specification 12/24V DC - 433.92MHz - 2 Channel
- Supply voltage: 12/24V DC
- Relay operating voltage: 250 V AC
- Maximum load: 10A
- Memory: up to 50 remotes
- Receiver sensitivity: -100 dBm
- Actual range in open terrain: up to 100 m
- Quartz stabilization
- 2 relay outputs
- 3 operating modes:
- bistable
- monostable
- change of state
- Can be used as an additional receiver for the gate automatic.
- Operating temperature: -20°C to 60°C

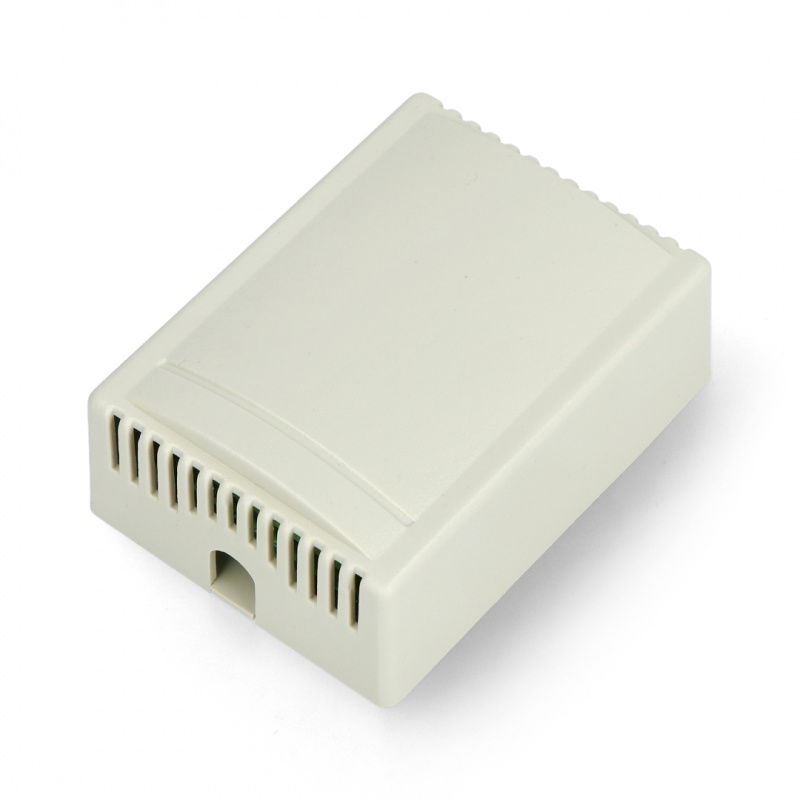

- Dimensions: 57.5 x 40.5 x 17 mm

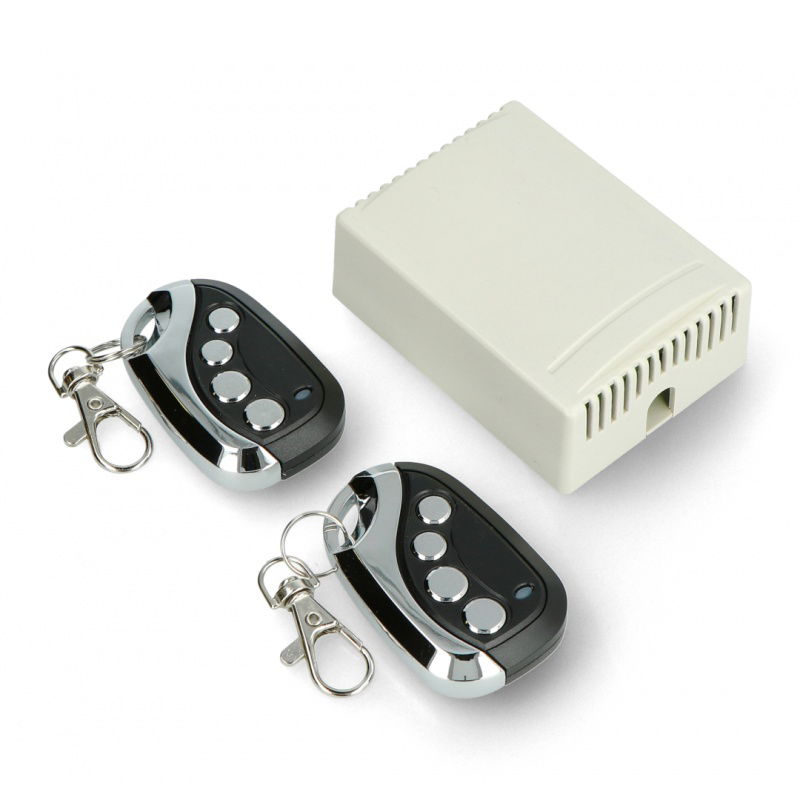

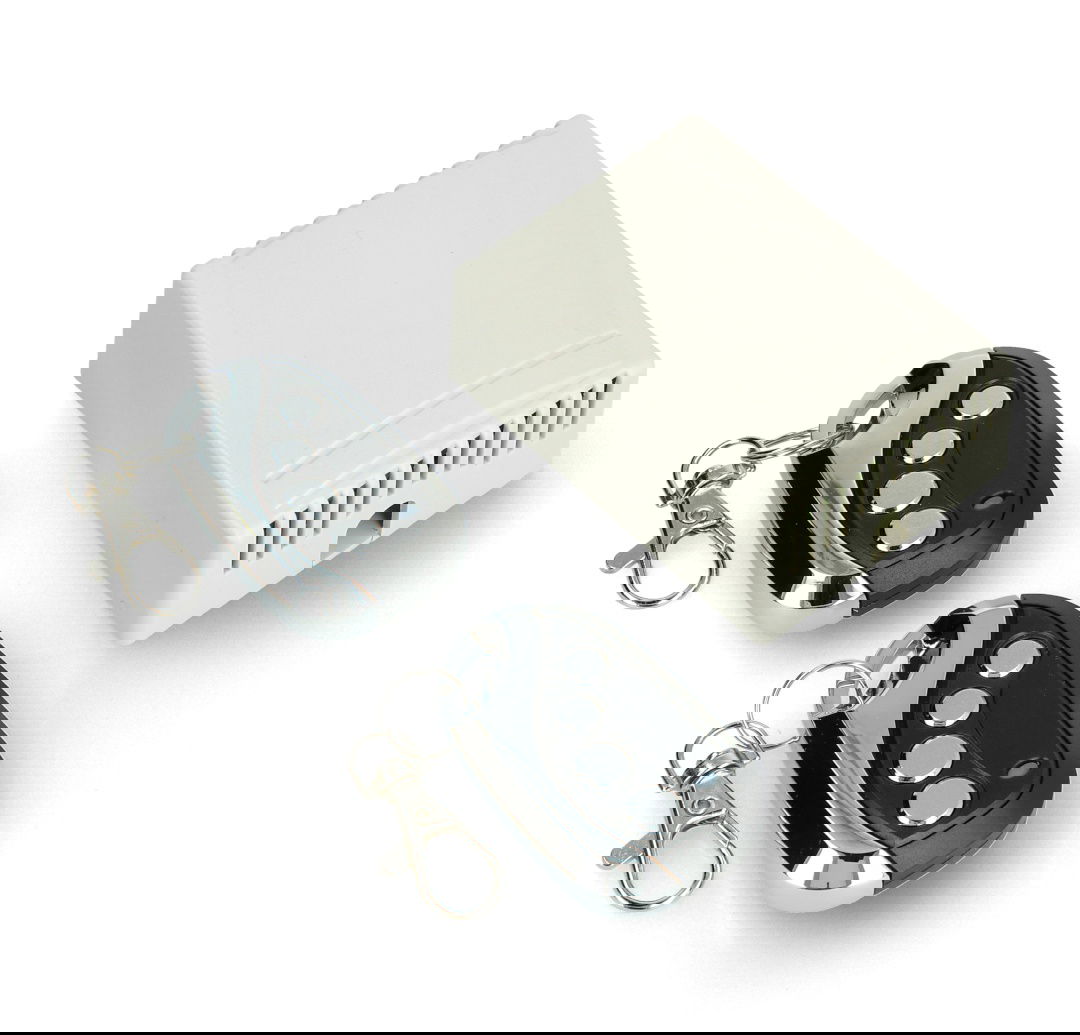

Remote controls may differ in appearance from those shown in the photo.
Example of using a 12/24 V DC - 433.92 MHz - 2-channel remote control
