Product description: Make your own Dasduino Solder Kit - educational kit for learning soldering Dasduino - ATmega328P - Soldered 333200

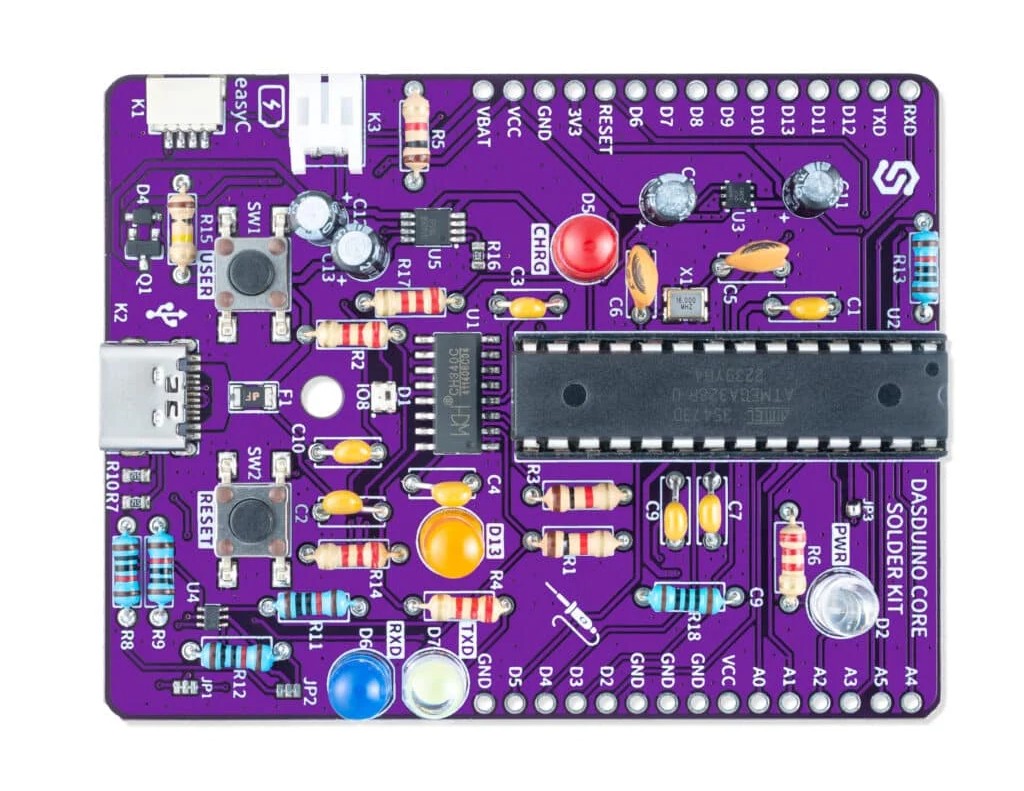

The Dasduino Solder Kit from Soldered is a complete educational kit that allows you to learn hands- on soldering by assembling a functional microprocessor board yourself . The kit is based on the popular ATmega328P microcontroller, known from Arduino boards, among others. SMD components are pre-soldered , so you only need to solder THT components, making the kit ideal for beginners. The module is fully compliant with the easyC open standard, and the project is available as open-source, along with documentation on GitHub.
Make your own Dasduino Solder Kit - educational kit for learning soldering Dasduino - ATmega328P - Soldered 333200.

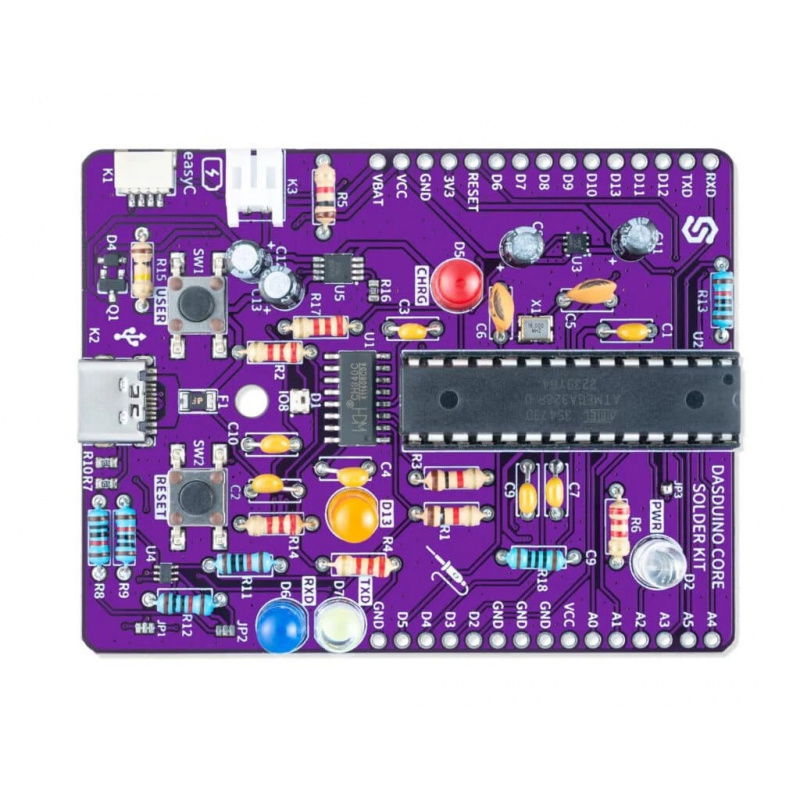

The kit is based on the ATmega328P microcontroller, and all SMD components are already soldered on the board.
Main features of the set
- ATmega328P microcontroller : a popular Arduino Uno-compatible chip
- SMD components are already soldered : this simplifies assembly and reduces assembly time.
- Perfect for learning soldering : simple assembly of THT components
- Modular open-source project : full documentation on GitHub
- EasyC Compatibility : Rapid prototyping and interfacing with other modules
Practical applications
The Make Your Own Dasduino Solder Kit is perfect as a teaching aid in schools and universities , as a resource for soldering workshops, or as a first hobby project for beginner electronics enthusiasts. Thanks to its Arduino compatibility and easyC support , the board can be used as the heart of a variety of projects – from controlling LEDs and sensors to more advanced automation systems.
easyC - fast and error-free prototyping
The Dasduino kit complies with the easyC standard, which allows for quick and easy module connection without the need for soldering or the risk of misconnection. This system is based on the I2C bus, and connections are made using dedicated cables. This allows even beginners to create complex electronic circuits in a short time.
Programming and compatibility
The finished Dasduino board built with this kit is fully compatible with the Arduino IDE . Based on the ATmega328P, it can be programmed using a USB-UART or ISP programmer. You can access thousands of available Arduino libraries, significantly simplifying the development of electronics projects. Full documentation is available online, further simplifying learning and integration with other systems.
Elements included in the set.
Technical specifications of the set
- Microcontroller: ATmega328P
- Type of soldering components: THT
- SMD components: factory-soldered
- Compatibility: Arduino IDE, easyC
- Connector: USB Type-C

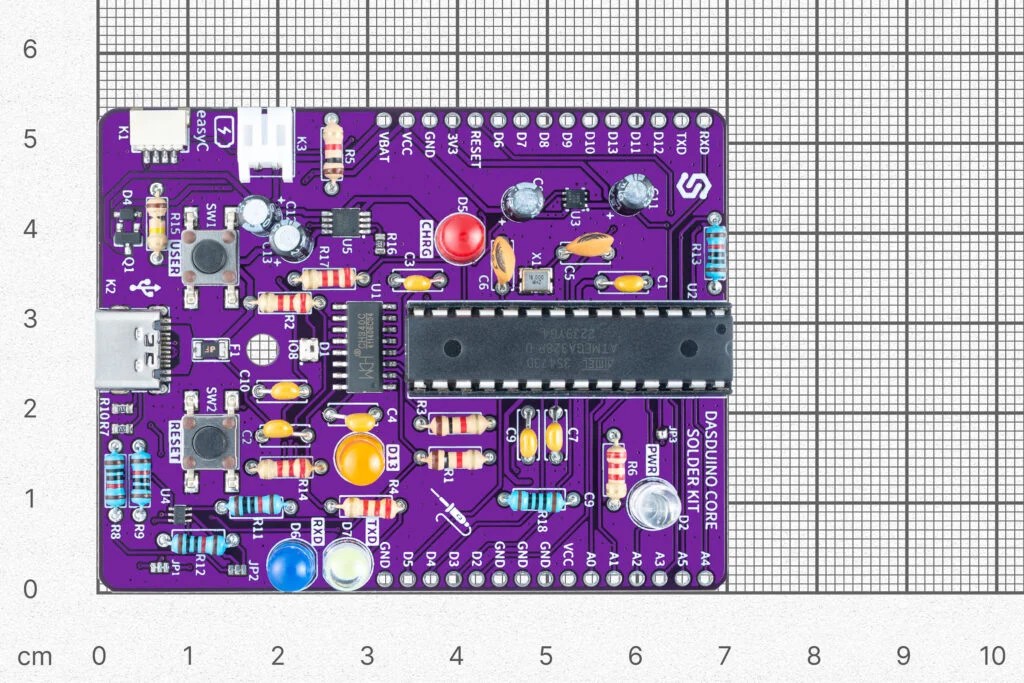

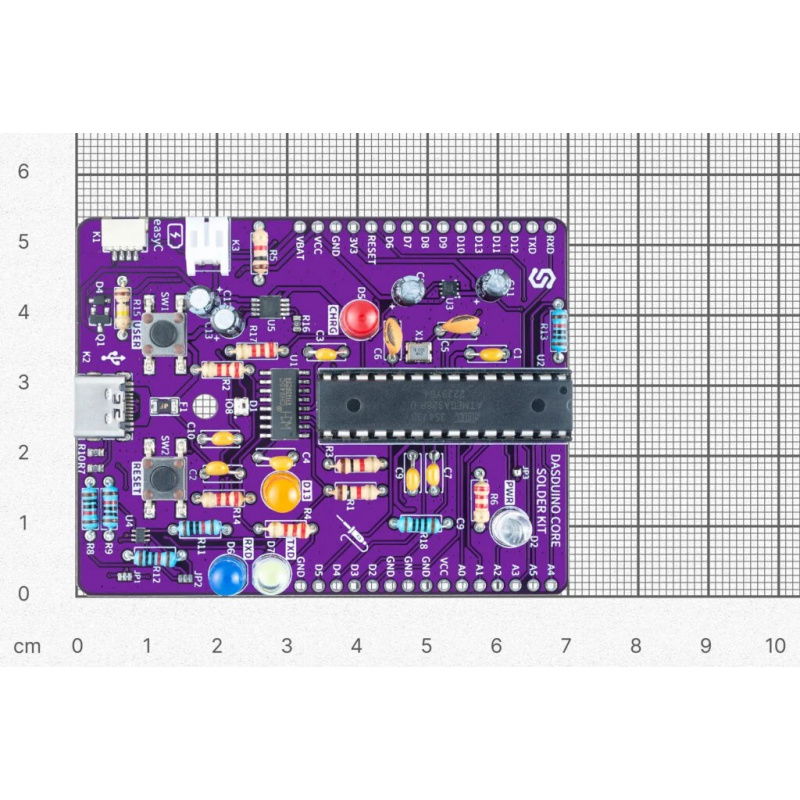

- Dimensions: 54 x 70 mm

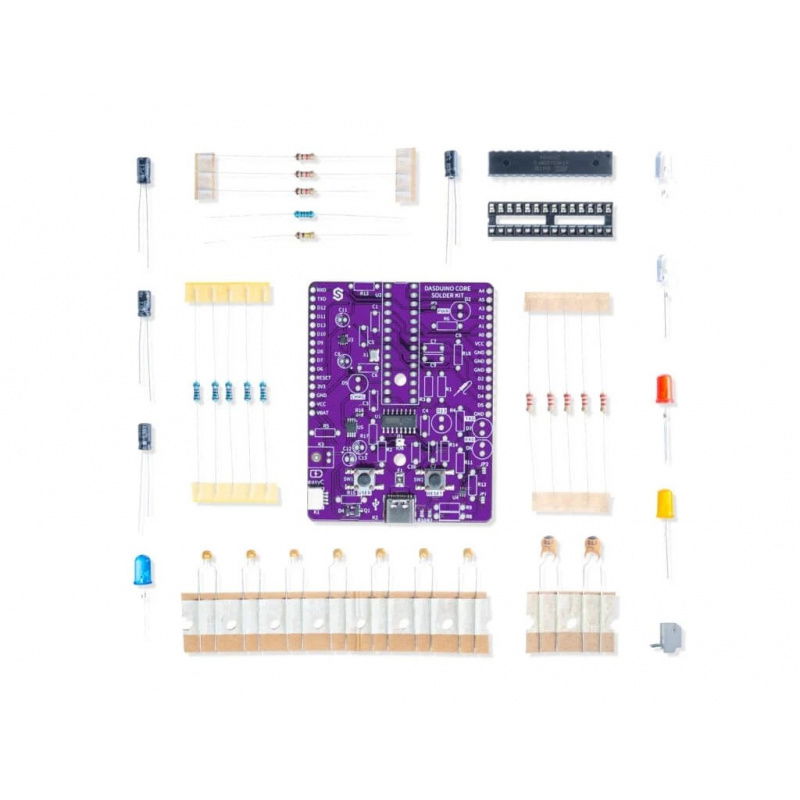

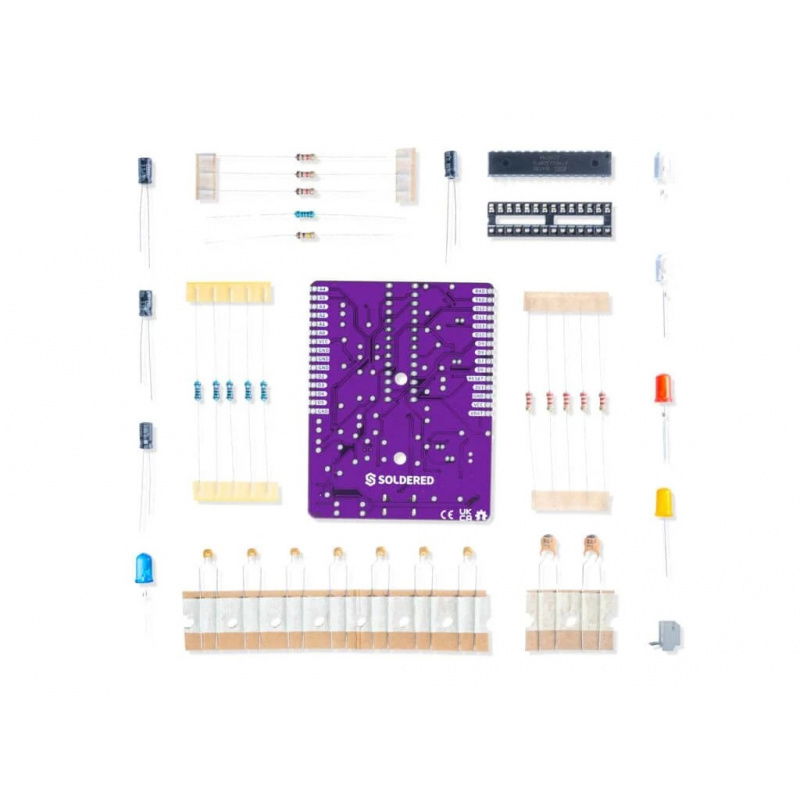

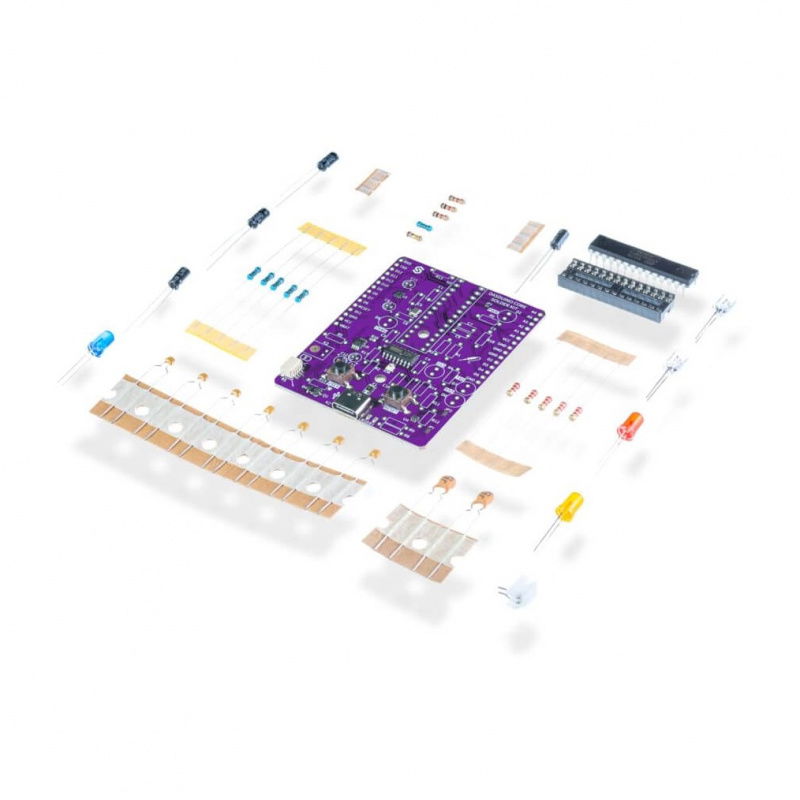

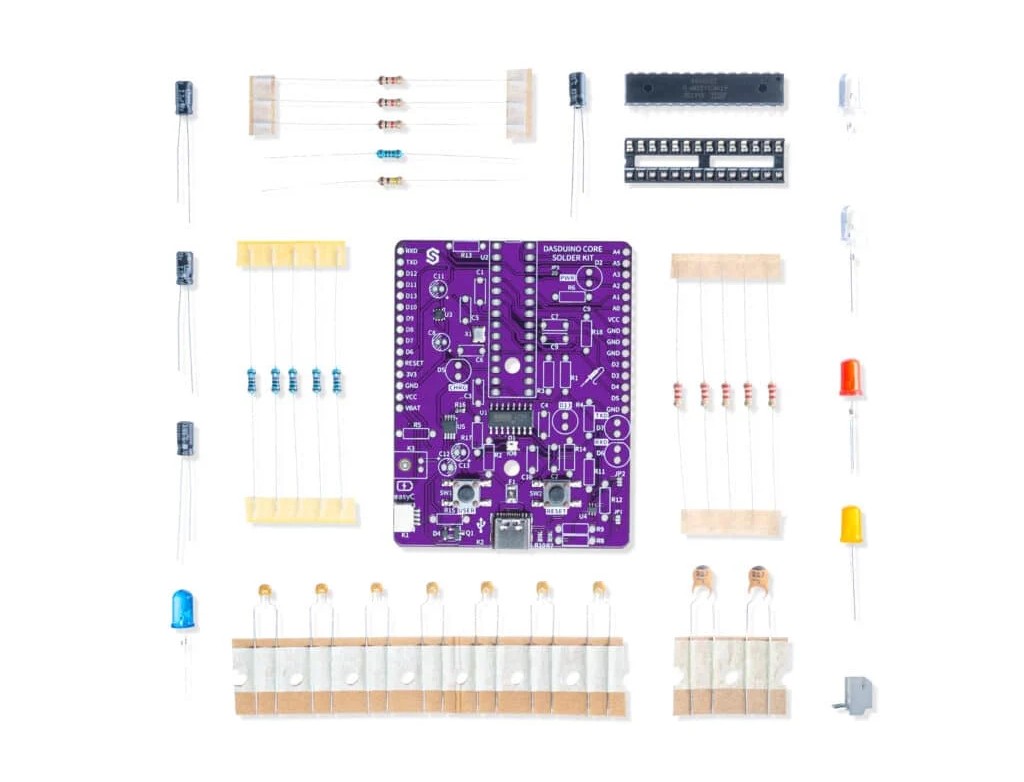

Contents of the set
- 1x PCB with soldered SMD components
- 1x ATmega328P Microcontroller
- 1x Microcontroller socket
- 7x 100 nF capacitor
- 4x Capacitor 2.2 µF
- 2x Capacitor 22 pF
- 5x 2.2kΩ resistor
- 5x 10kΩ resistor
- 3x 1 kΩ resistor
- 1x 100kΩ resistor
- 1x 100Ω resistor
- 5x LED (purple, white, blue, red, orange)
- 1x JST connector
