Product description: Four-legged walking platform - robo dog - Unitree Go2 Air
The Unitree Go2 Air is a version of the Go2 series walking robot designed for users who need a robust robotic platform for learning, experimentation, and light home use . Featuring an aluminum alloy and engineering plastics construction, standard 4D L1 LiDAR , and components that provide basic AI and mobility capabilities , the Go2 Air is suitable for both indoor and outdoor use. The Air model boasts speeds of up to approximately 2.5 m/s, a payload of approximately 7 kg, and an operating time of 1 to 2 hours , making it a convenient solution for education, hobbyists, and users looking for an interactive home robot .

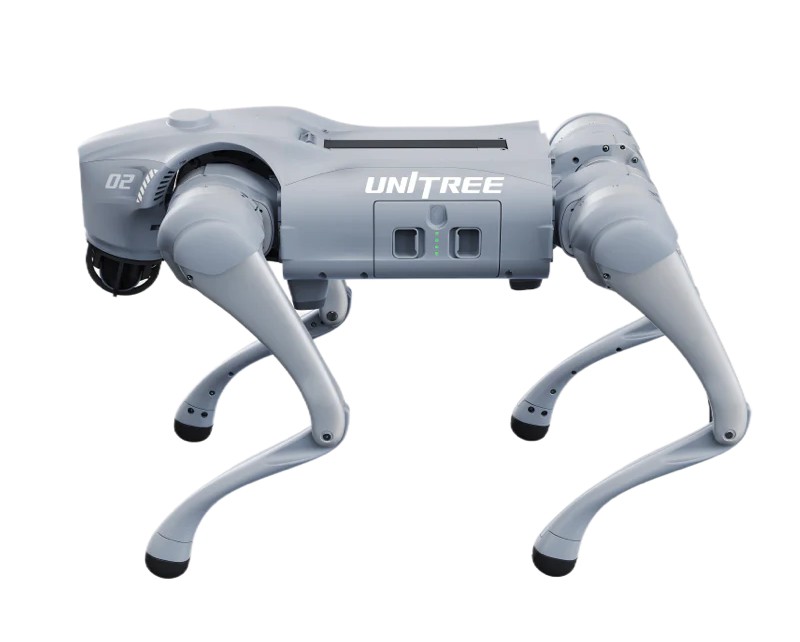

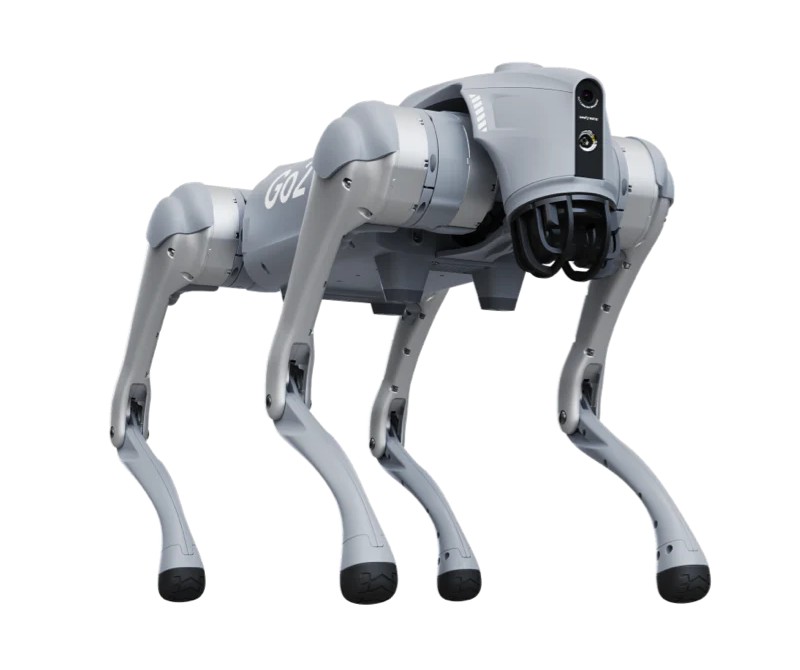

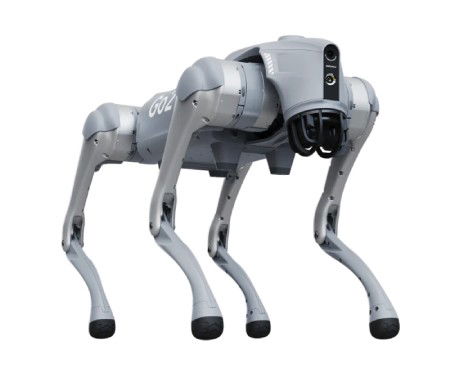

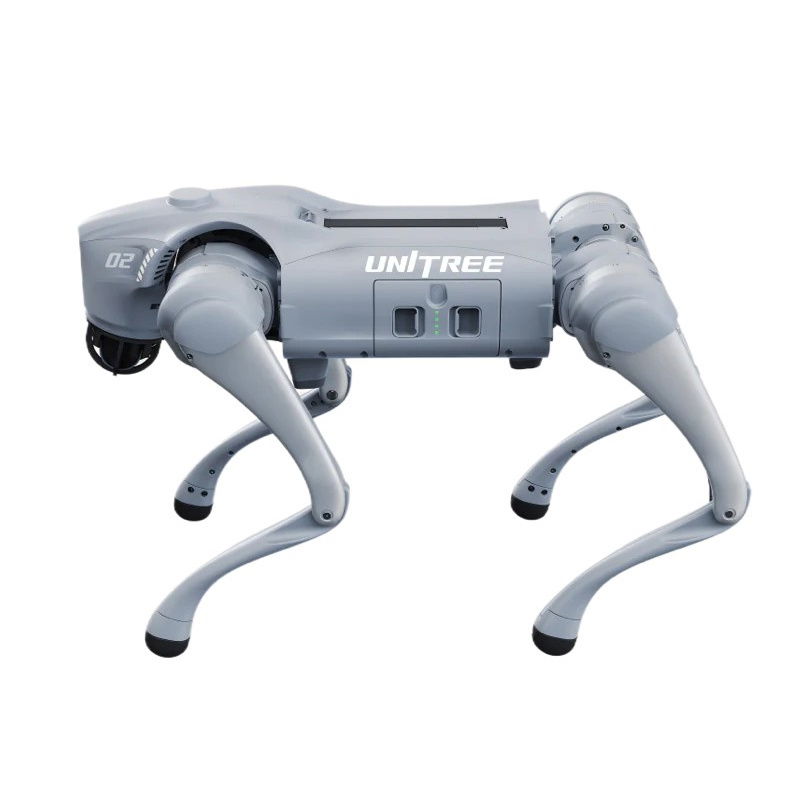

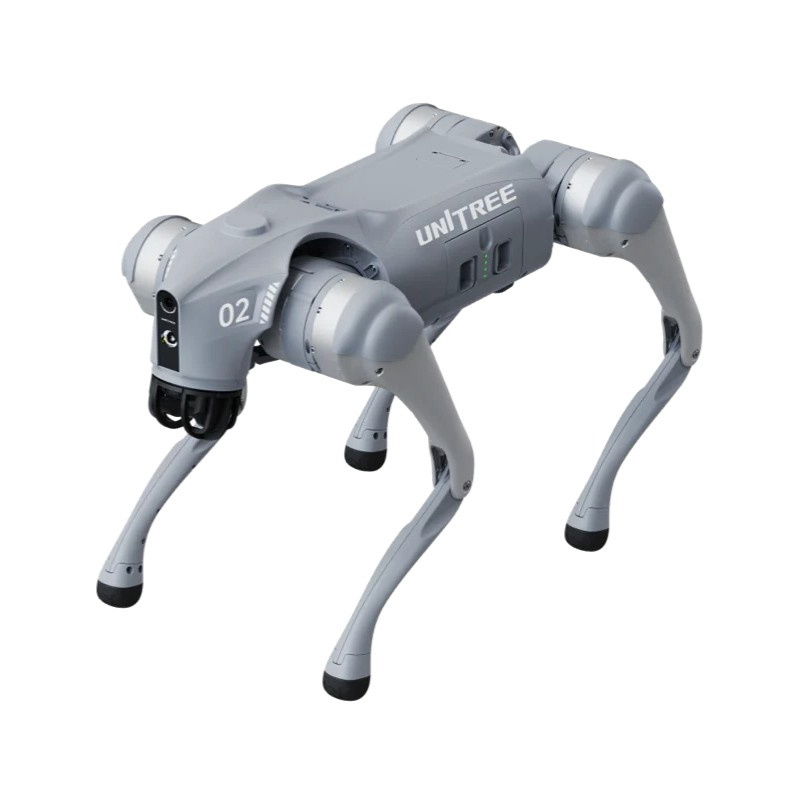

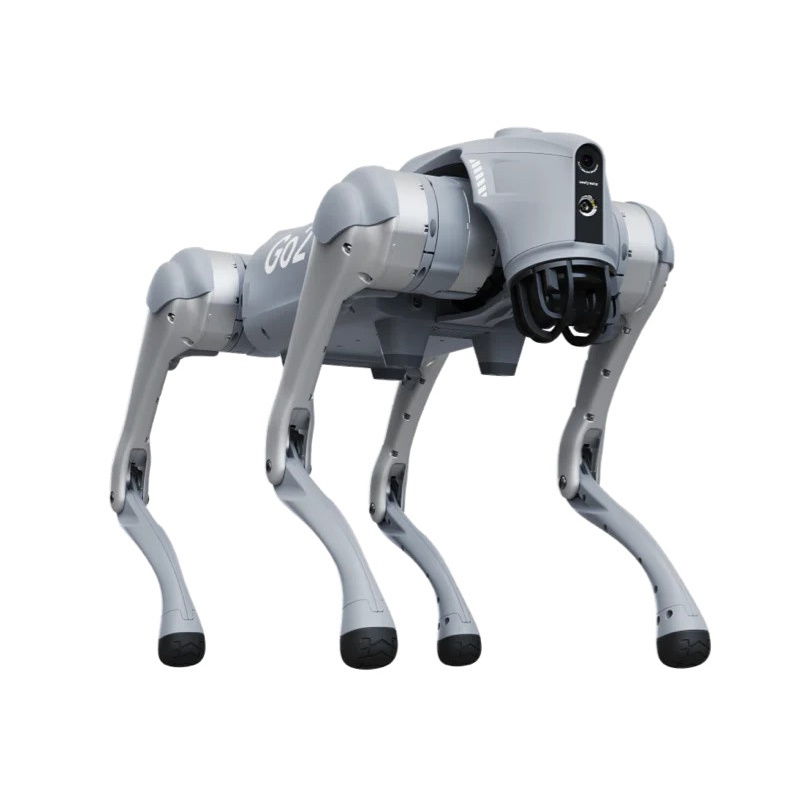

Four-legged walking platform - robo dog - Unitree Go2 Air.
Main features of the Go2 Air
- Ultra-wide-angle 4D LiDAR L1 : 360° x 90° field of view, minimal blind spots, object detection from 0.05 m - ideal for mapping and obstacle avoidance
- 8000 mAh basic battery : provides 1 to 2 hours of operation, optionally available with a higher capacity battery
- Speed up to approximately 2.5 m/s : sufficient for home, educational and light mobility applications
- Lightweight and stable : Approximately 7kg load capacity, the design ensures stability for light tasks and simple use
- Wireless connectivity and control : WiFi 6, Bluetooth 5.2, optional 4G module, mobile app, control via graphical interface
- Optimized cooling and design : aluminum joints, heat pipes, and hidden wiring improve durability and user comfort
- Interactions and gestures : basic poses and movements: jumping, sitting, rolling, stretching - a good start to learning robotics and AI
- OTA system : remote software updates, new features without the need for physical intervention
- Mobile app and graphical programming : user-friendly interface for creating your own robot behaviors for beginners and educators
Basic perception and movement adaptation

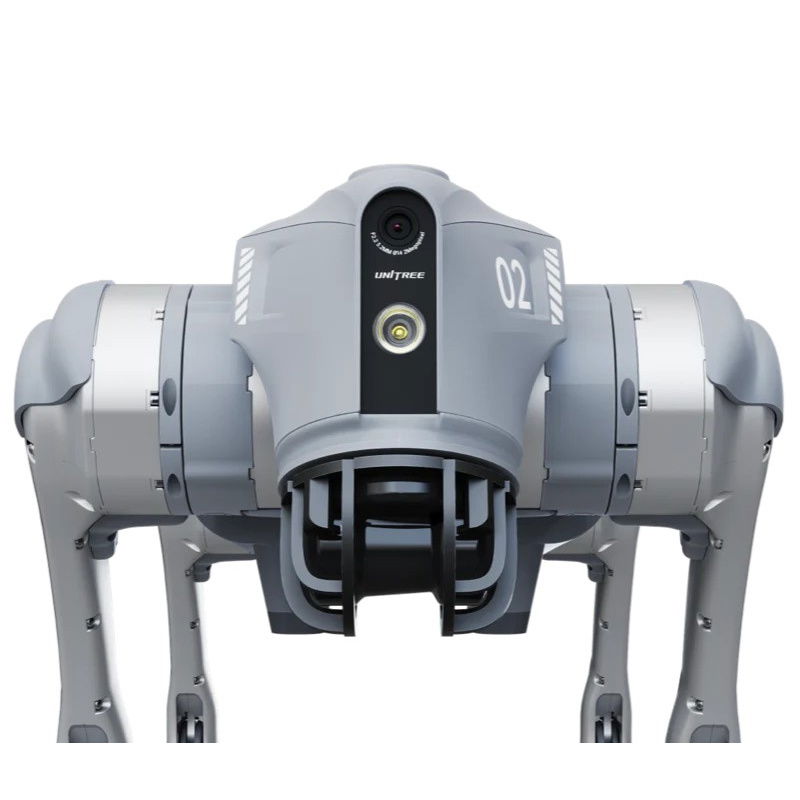

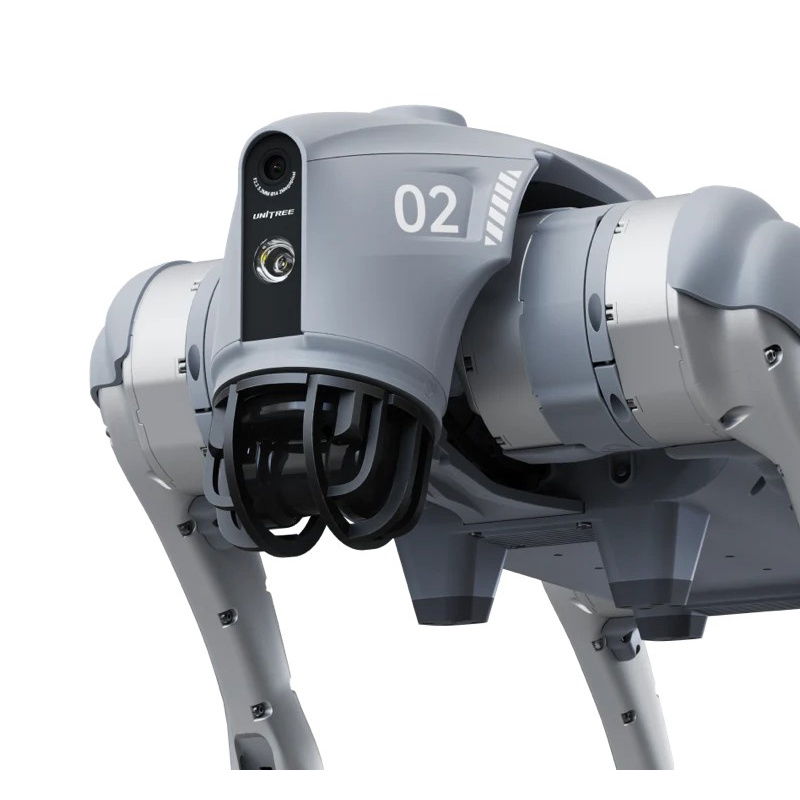

The Go2 Air uses LiDAR L1 and a wide-angle HD camera , enabling basic space mapping, obstacle detection, and orientation even in low-light conditions. Thanks to basic AI algorithms, the robot can navigate slopes and avoid obstacles . The mechanical design has been optimized for stability, including robotic joints and cooling. although simpler than the Pro and Edu versions, they guarantee long-term functionality in hobby and educational use.
Mobility and design
The Go2 Air can handle inclines of up to approximately 30° , step heights of up to approximately 15 cm , and a maximum speed of up to approximately 2.5 m/s, making it suitable for use at home, in the lab, or for light field work. Weighing approximately 15 kg (33 lbs) with the battery, its aluminum alloy and engineering plastic construction allows for easy portability and transport without excessive bulk. Because the Air version has fewer extras (e.g., lower cooling capacity, basic connectivity modules), it is less complex to service and more affordable.

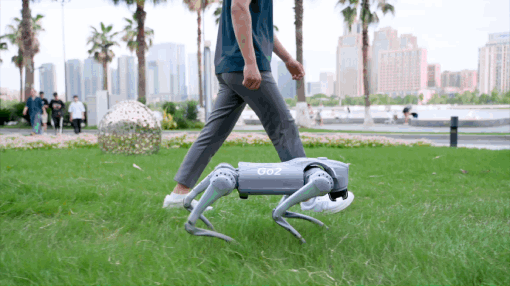

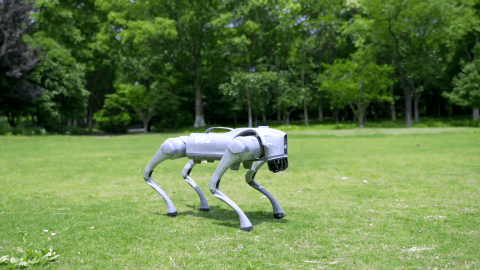

Through large-scale simulation using artificial intelligence, the Go2 robot learned advanced walking techniques such as walking upside down, adaptively tumbling, and overcoming obstacles.
An optimized obstacle avoidance strategy is available in the Go2 Pro and Edu versions.
Interaction and connectivity
The Go2 Air offers control via a mobile app or an additional remote control , as well as optional gesture and voice control. WiFi 6 and Bluetooth 5.2 connectivity ensure stable communication in home and school environments. The Go2 Air lacks the ISS 2.0 module or voice functionality , which distinguishes it from the Pro and Edu versions, but makes it more accessible and less complex. Over-the-Air (OTA) software updates allow for remote updates , ensuring the robot's capabilities evolve with new software releases.
Comfort of use and simplicity of operation
The Go2 Air was designed with simplicity in mind – easy assembly, intuitive application, and fewer operating components than more advanced versions. Thanks to its lower hardware requirements, it is less expensive to maintain and more predictable to operate and use by those just starting their robotics journey. This model is ideal for introductory STEM projects , hands-on education, demonstrations, and exhibitions.
Contents of the set
- Unitree Go2 Air Robot
- 8000 mAh battery
- Standard charger (119W)
- Set of foot pads (4 pcs.)
- Leg calibration device
- Service stand
- Transport case

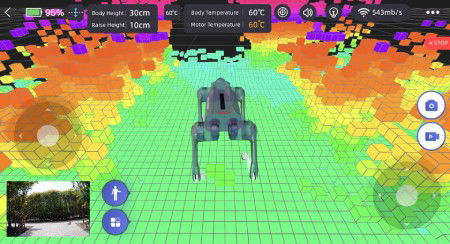

The Go2 is equipped with 4D LIDAR L1 with an ultra-wide 360° x 90° field of view.
| Unitree Go2 Robot Technical Specifications and Comparison | |||
|---|---|---|---|
| Parameter | AIR | PRO | EDU |
| Material | aluminum alloy + engineering plastic | aluminum alloy + engineering plastic | aluminum alloy + engineering plastic |
| Supply voltage | from 28 V to 33.6 V | from 28 V to 33.6 V | from 28 V to 33.6 V |
| Maximum power | approx. 3000 W | approx. 3000 W | approx. 3000 W |
| Lifting capacity | ~7 kg (max 10 kg) | ~8 kg (max 10 kg) | ~8 kg (max 12 kg) |
| Speed | from 0 m/s to 2.5 m/s | from 0 m/s to 3.5 m/s | from 0 m/s to 3.7 m/s (max 5 m/s) |
| Max step height | approx. 15 cm | approx. 16 cm | approx. 16 cm |
| Max tilt angle | 30° | 40° | 40° |
| Engines (joints) | 12 pcs. | 12 pcs. | 12 pcs. |
| Range of motion | Torso: -48° to 48°; Thigh: -200° to 90°; Lower leg: -156° to -48° | Torso: -48° to 48°; Thigh: -200° to 90°; Lower leg: -156° to -48° | Torso: -48° to 48°; Thigh: -200° to 90°; Lower leg: -156° to -48° |
| Torque | - | approx. 45 N*m | approx. 45 N*m |
| LiDAR module | Yes | Yes | Yes |
| Wireless Vector Positioning Tracker | NO | Yes | Yes |
| HD wide-angle camera | Yes | Yes | Yes |
| Depth camera module | NO | Yes | Yes |
| ISS2.0 Tracker | NO | Yes | Yes |
| Voice functions | NO | Yes | Yes |
| WiFi connectivity | WiFi 6 (dual-band) | WiFi 6 (dual-band) | WiFi 6 (dual-band) |
| Bluetooth | 5.2 / 4.2 / 2.1 | 5.2 / 4.2 / 2.1 | 5.2 / 4.2 / 2.1 |
| 4G module | NO | Yes | Yes |
| Manual controller | optional | optional | included in the set |
| Automatic charging function | NO | NO | yes (compatibility) |
| Graphical programming | Yes | Yes | Yes |
| OTA system | Yes | Yes | Yes |
| Computing unit | lack | lack | Nvidia Jetson Orin |
| Battery | 8000 mAh | 8000 mAh | 15000 mAh |
| Working time | approx. 1-2 hours | approx. 1-2 hours | approx. 2-4 hours |
| Landing | standard (33.6V / 3.5A) | standard (33.6V / 3.5A) | fast (33.6 V / 9 A) |
| Dimensions (standing) | 70 x 31 x 40 cm | 70 x 31 x 40 cm | 70 x 31 x 40 cm |
| Dimensions (folded) | 76 x 31 x 20 cm | 76 x 31 x 20 cm | 76 x 31 x 20 cm |
| Weight (with battery) | approx. 15 kg | approx. 15 kg | approx. 15 kg |
