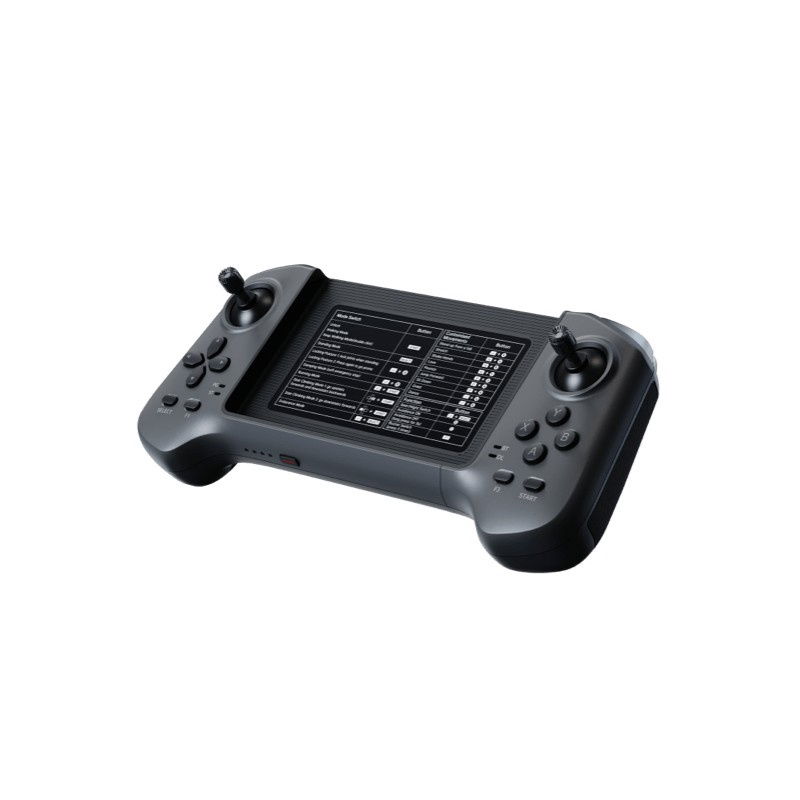

Product description: R3 controller for Unitree Go2 robots
The Unitree R3 controller was designed with mobility, ergonomics, and functionality in mind. Weighing only 300 g and boasting compact dimensions of 216.43 x 100 x 41.42 mm , it's convenient for transport and everyday use. A built-in 780 mAh battery provides up to 5 hours of operation on a single charge. The controller connects to the robot via Bluetooth or a data transfer module, offering a range exceeding 100 meters . Operation is via joysticks, function buttons, and a central smartphone screen displaying operating modes.

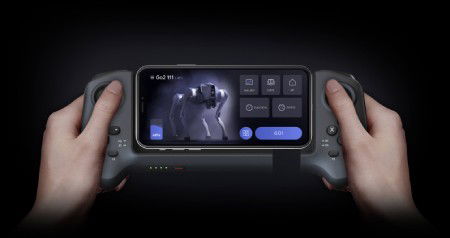

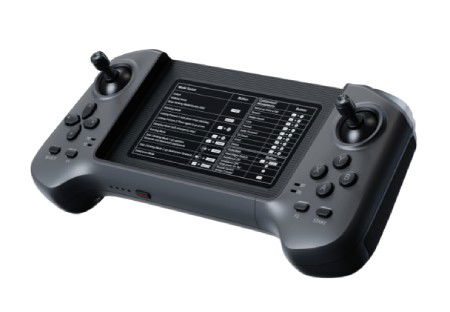

R3 controller for Unitree Go2 robots.
The controller provides precise and reliable control of the Unitree Go2 robot.
Main features of the Go2 robot controller
- Light and compact design: only 300 g of weight and dimensions of 216.43 x 100 x 41.42 mm make the controller extremely handy and mobile
- Built-in 780 mAh battery: up to 5 hours of continuous operation
- Advanced controls: joysticks, 12 buttons and 4 top buttons
- Touch and sound effects: built-in vibration motor and buzzer
- Multi-model support: compatible with Go2 Air, Pro, and Edu models
- Wireless range: over 100 meters in open space

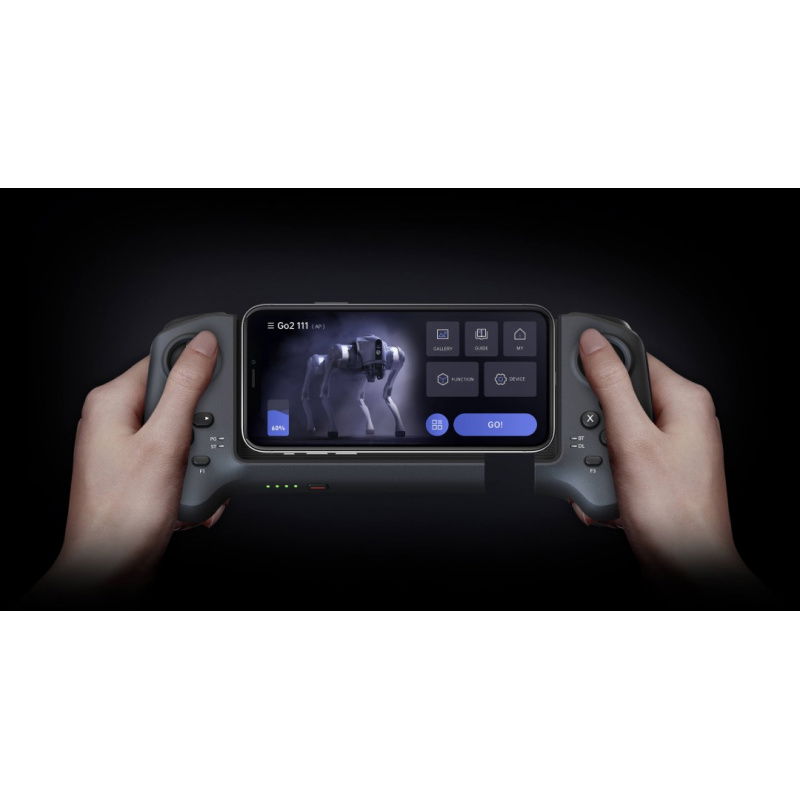

- Smartphone holder: can be integrated with the Unitree app
Advanced features and interactive controller capabilities
The R3 controller offers a rich feature set that makes it a versatile control tool for the entire Unitree robot range. An integrated vibration motor and buzzer provide sound and haptic feedback, creating a realistic, immersive control experience. A smartphone holder enables integration with the official Unitree app, allowing for even more precise control of robot movement and parameters.
Practical applications
The Unitree R3 controller is ideal for industrial, educational, research, and demonstration applications . It enables fast and accurate real-time robot control, which is invaluable during inspection tasks, mobility tests, demonstrations, and robotics competitions. Its ergonomic design allows for long-term, fatigue-free operation, and support for multiple Unitree models makes it a versatile tool in any laboratory or research center.

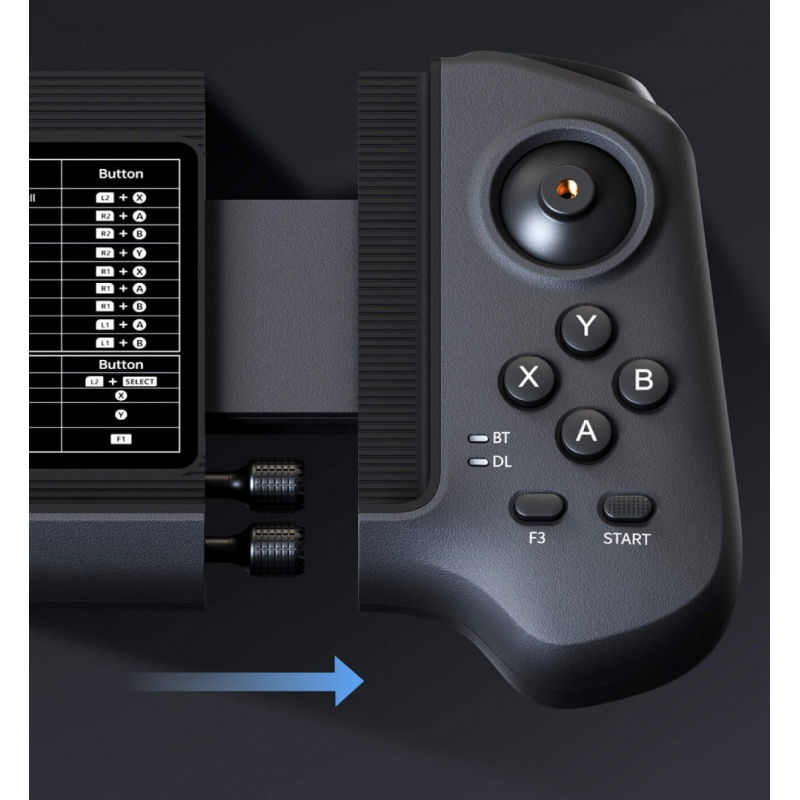

The controller offers a foldable design, which is practical in storage and transport.

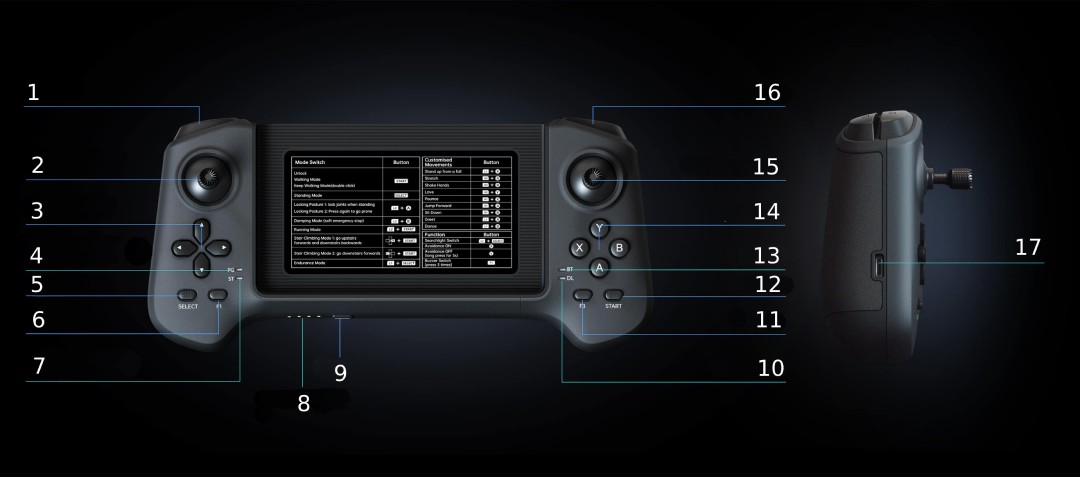

Arrangement of controller elements.
Go2 Controller Components
- Top buttons L1 / L2
- Left joystick
- Left button
- LED connection indicator
- Select button
- F1 button
- LED charging indicator
- Power LED indicator
- Power button
- Data LED indicators
- F3 button
- Start button
- Bluetooth LED indicator
- Right button
- Right joystick
- Top buttons R1 / R2
- Charging connector
Controller technical specifications
- Model: R3
- Battery capacity: 780 mAh
- Working time: up to 5 hours
- Charging voltage: 5 V
- Charging current: 700 mA
- Operating range: over 100 m (depending on conditions)
- Communication: Bluetooth, wireless data transmission
- Compatibility: Go2
- Dimensions: 216.43 x 100 x 41.42 mm
- Weight: 300 g
Contents of the set
- 1x Unitree R3 Controller

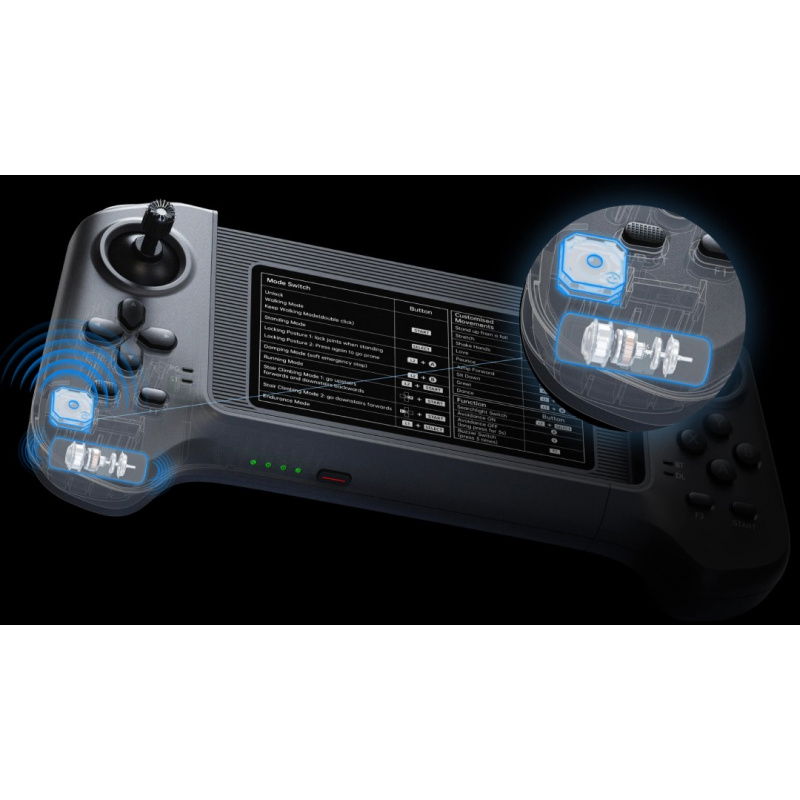

Equipped with a built-in vibration motor and buzzer, offering optional vibration or sound signals for an interactive and realistic experience.
