RPLidar A2M12 laser scanner - 360 degrees - 12m
Distance sensor in the form of a 360° laser scanner from Slamtec. Using RPLidar A2M12 , you can scan from 8000 to 16000 samples per second in the range from 20 cm to 1200 cm . The typical scanning frequency is 10 Hz, adjustable from 5 Hz to 15 Hz, and the operating angular resolution is 0.225° .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: RPLidar A2M12 laser scanner - 360 degrees - 12 m
Distance sensor in the form of a 360° laser scanner from Slamtec. Using RPLidar A2M12 , you can scan from 8000 to 16000 samples per second in the range from 20 cm to 1200 cm . The typical scanning frequency is 10 Hz, adjustable from 5 Hz to 15 Hz, and the operating angular resolution is 0.225° . The RPLidar A2M12 laser scanner enables multi-directional scanning of the surrounding environment and generation of a contour map of the environment based on the obtained data. The thickness of the device is only 4 cm, which means that it can also be placed in service robots and other structures.

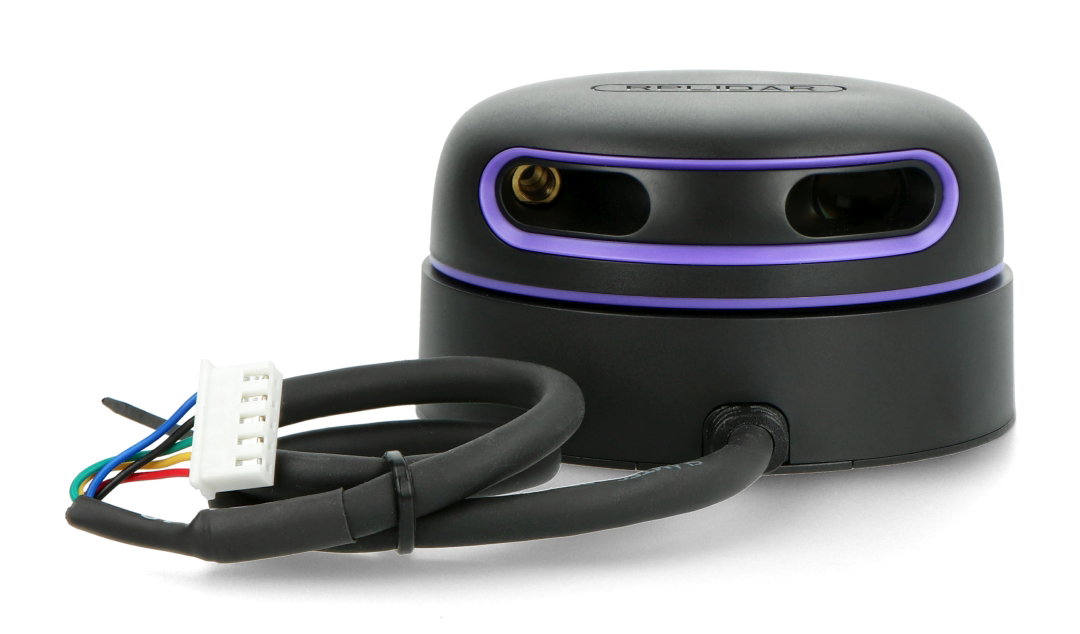

The RPLidar A2M12 laser scanner from Slamtec.

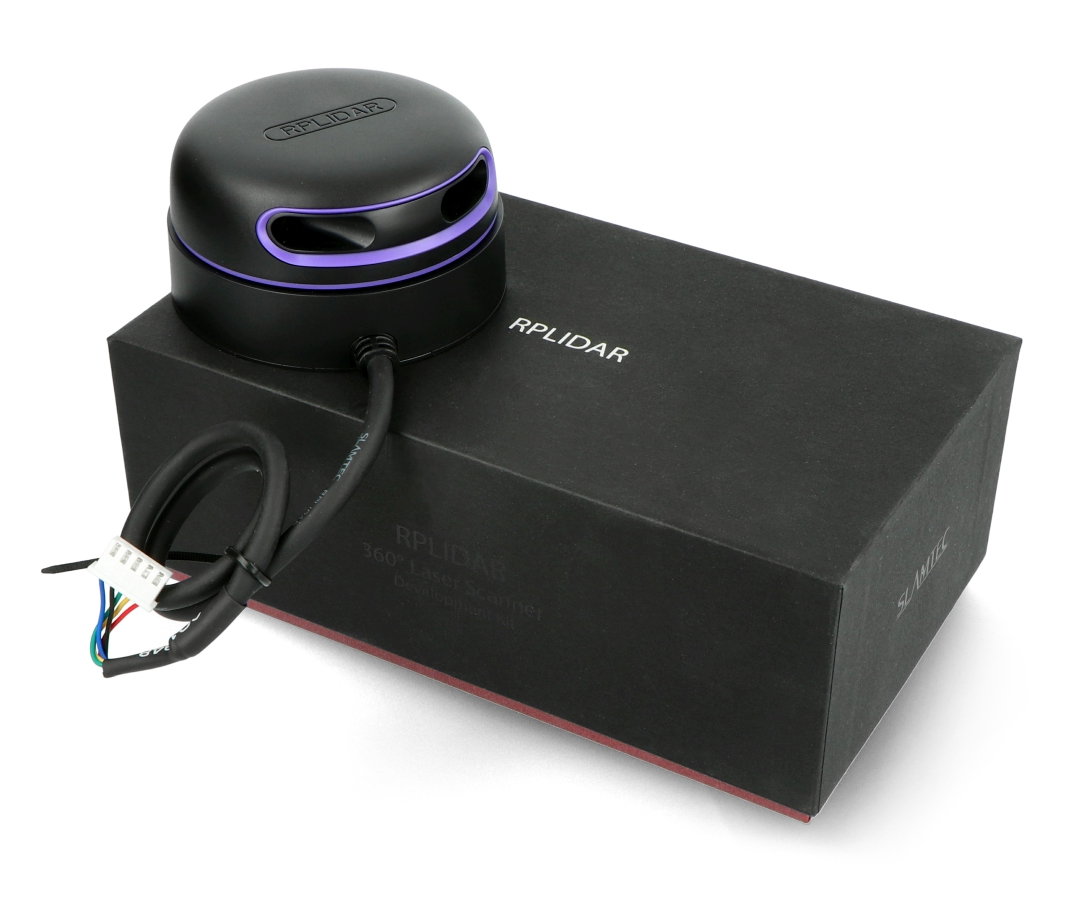

RPLidar A2M12 laser scanner - 360 degrees - 12 m.
Special features of the RPLidar A2M12
- 360 degree omni-directional laser scanning of the surrounding environment
- High performance with small dimensions
- Sampling rate for fast and accurate mapping
- Built-in silent brushless motor, which has much less mechanical friction during operation, which allows you to achieve smooth rotation in the full range
- The wide measurement range allows you to get more data
- Integrated wireless power and optical communication technology that increases the life of the device and reduces the risk of electrical connection failures
- Class 1 safety standard, thanks to the use of infrared (as the light source) and driving it with a modulated pulse
- Up to 5 years of service life when working 24 hours a day thanks to the use of a brushless motor and OPTMAG RPLIDAR technology
RPLidar laser scanner specification
- Model: RPLDIAR-A2M12
- Angular range: 360°
- Measuring range: from 20 cm to 1200 cm
- Range resolution: ≤ 1% of range (≤ 12m)
- 1% range (≤3m)
- 2% of range (3 m to 5 m)
- 2.5% of range (5 to 12 m)
- Detection range:
- white object: up to 1200 cm
- black object: up to 1000 cm
- Sampling Rate: 16K
- Typical scan frequency: 10 Hz (adjustable from 5 Hz to 15 Hz)
- Angular resolution of work: 0.225°
- Field flatness: ±1.5°
- Safety standard: Class 1 IEC-60825
- Communication interface: TTL UART
- Communication speed: 256000 bps
- Operating temperature range: 0°C to 40°C
Full 360 degree multi-directional scanning of the environment.

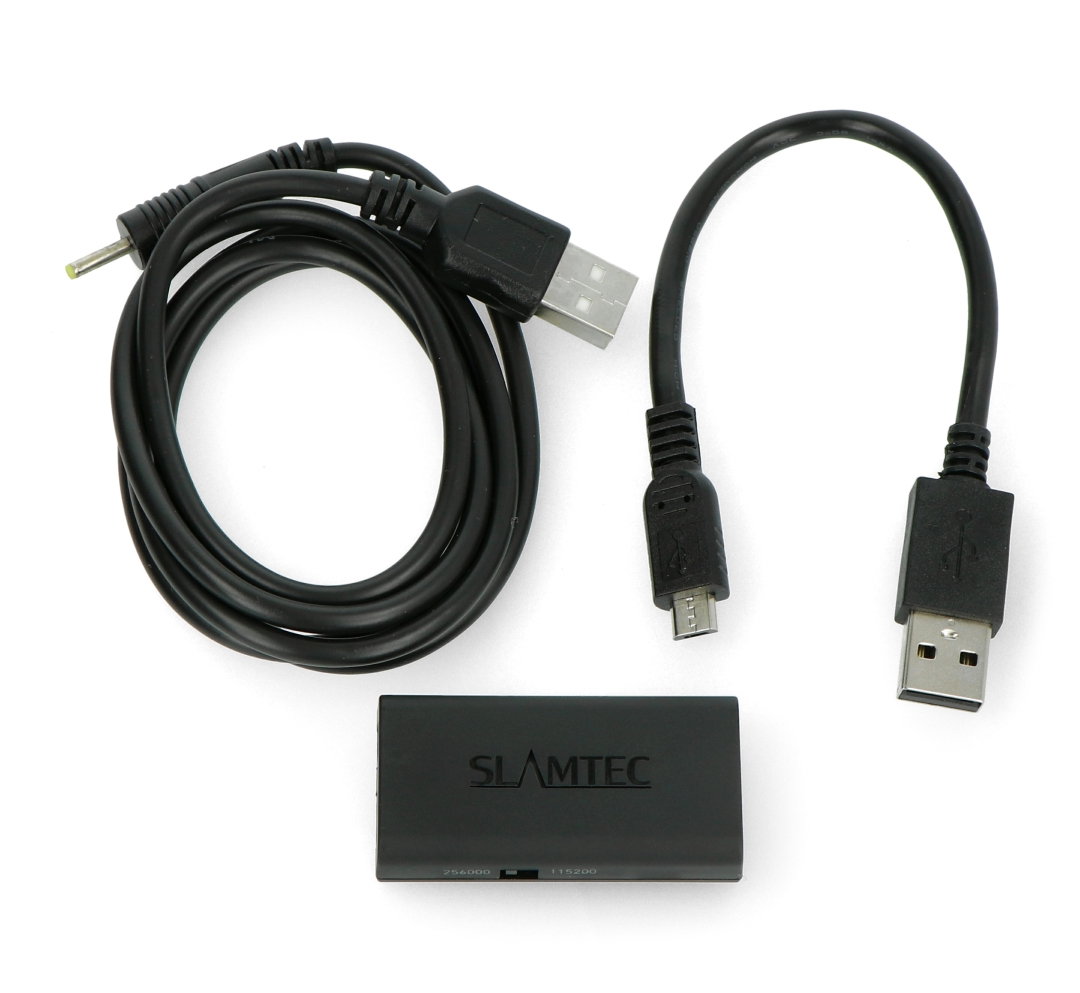

Components included in the set.
Kit contents
- RPLidar A2M12 laser scanner
- USB - microUSB cable
- USB-DC cable
- Controller
Useful links
| Name | Value |
|---|---|
| Sensor - type | distance |
| Sensor - distance to | 1200 cm |
| Sensor - distance from | 20 cm |
| Width | 17.6 cm |
| Height | 7.7 cm |
| Depth | 7.7 cm |
| Weight | 0.425 kg |
