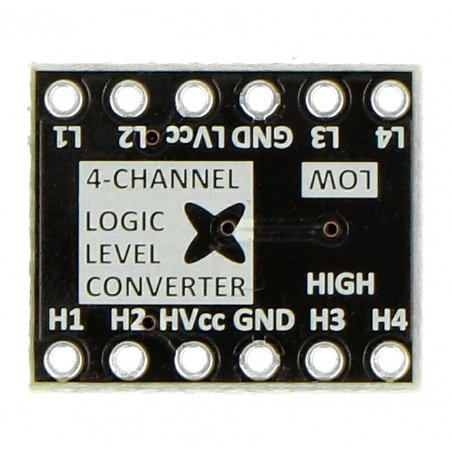

4-channel logic level converter

Index: MSX-06117 EAN: 5904422308131
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

The module allows to exchange data between systems that use the most popular levels of voltage: 5 V <-> 3.3 V and 3.3 V <-> 1,8 V. It works in both directions simulatneously. It has four channels. This kit includes the goldpin connectors for self-soldering.

PLN6.42
PLN6.42 tax excl.

In stock, shipping 24 hours!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: MSX Elektronika

Description of Logical Level Converter

The module allows to exchange data between systems that use the most popular levels of voltage: 3.3 V and 5 V. It works in both directions simulatneously. It reduces the 5 V to 3.3 V and rises the 3.3 V to 5 V, at the same time. This feature is useful in bidirectional communication protocols, for example, the SPI in full duplex mode. The converter also operates with lower voltages: 3.3 V at 1.8 V. It has four channels.

Logical Level Converter

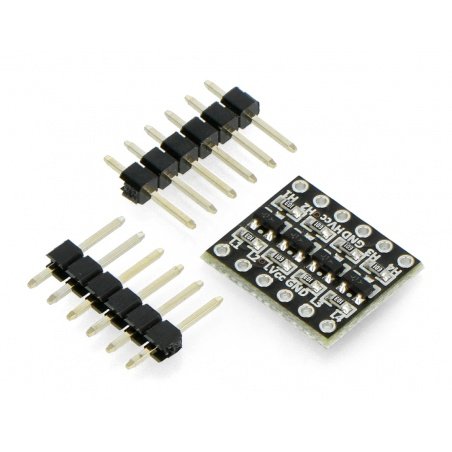

The kit includes the goldpin connectors (2.54 mm pitch) for self-soldering. Thanks to them, it is possible to connect the system with the breadboard or the main module (for example, STM32Discovery or Arduino) via wires. The size of the converter is 16.1 x 13 mm.



Logical Level Converter

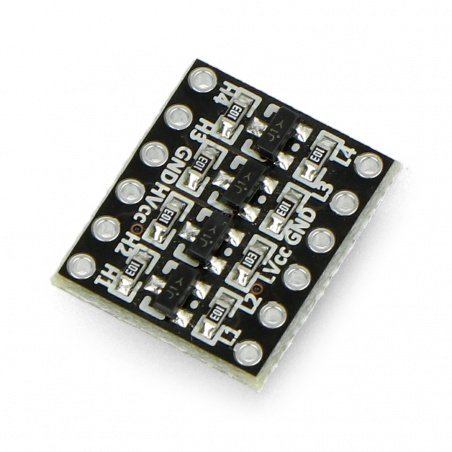

The board has signed pins on both sides.



Example of usage

Converter is easy to use, for correct operation, sufficient is to connect the power supply of two systems that will be converted. A higher voltage (e.g. 5 V) should be connected to the output of the HVcc (high voltage), lower (e.g. 3.3 V, 2.8 V or 1.8 V) to LVcc (low voltage). Grounds are connected to the pins marked with the GND symbol. Logic signals should be led to the corresponding HV1, HV2, HV3, HV4 connectors - higher voltages and respectively LV1, LV2, LV3, LV4 - lower voltages.
