SparkFun MicroMod ATP Carrier Board - DEV-16885

Index: SPF-19164 EAN: 5904422370367
Module produced by SparkFun, which brings out all pins of MicroMod module from M.2 connector to pins with 2,54 mm raster. On the board there are female goldpin strips with described pins, which make it much easier to find the right interface and properly connect the peripheral to the board. Additionally on the board are SWD pins, two Qwiic connectors for I2C interface, USB port and USB type C for programming. All MicroMod main modules with M.2 connector can be used. Modules can be easily exchanged in case a project requires a different microcontroller.

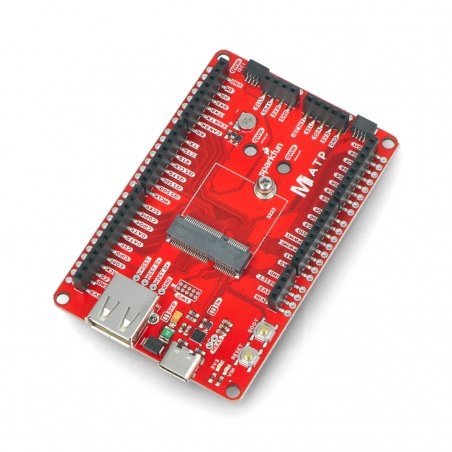

SparkFun MicroMod ATP Carrier Board - DEV-16885
€17.77
€14.45 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: SparkFun

Product description: SparkFun MicroMod ATP Carrier Board - MicroMod pinouts - DEV-16885

Module produced bySparkFun,which brings out all pins of MicroMod modulefrom M.2 connector to pins with2,54 mmraster. On the board there are femalegoldpin stripswithdescribed pins, which make it much easier to find the right interface and properly connect the peripheral to the board. Additionally on the board there are SWD pins, twoQwiicconnectors for I2C interface,USBport and USB type C for programming and RTC (real time) chip ensuring always up-to-date date and time. AllMicroModmain moduleswith M.2connector can be used and are easily interchangeable in case a different microcontroller is required for a given project.

The kit does not include the MicroMod main module. The module works with MicroModRP2040,ESP32,SAMD51andArtemis.

Moduł SparkFun MicroMod ATP Carrier BoardSparkFun MicroMod ATP Carrier Board.

Main features of the SparkFun MicroMod ATP Carrier Board

  • M.2 connector
  • Operating voltage:
    • 3.3 V to 6 V (via VIN pin to 3.3 V voltage regulator AP7361C)
    • 3.3 V (via 3V3 pin)
  • Ports:
    • 1x USB type C
    • 1x USB Type A Host
    • 2x Qwiic I2C connector
    • 1x CAN connector
    • 1x I2S
    • 2x SPI
    • 2x UART
    • 2x dedicated analog pins
    • 2x dedicated PWM pins
    • 2x dedicated digital pins
    • 12x GPIO pins (general purpose inputs and outputs)
    • 1x SWD connector 2x5 pins
  • RTC chip battery with 1 mAh capacity
  • Buttons:
    • Reset
    • Boot buttons
  • LEDs:
    • Power
    • 3,3 V
  • Screw included to fix MicroMod main chip to M.2 connector

All the GPIO pins

ATP stands for All the[GPIO]Pins, which means all GPIO pins. The MicroMod ATP board outputs all the GPIO pins from the M.2 connector onto a female goldpin strip with a standard2.54mmraster. Producer added also loop-through holes next to strip for connecting for example cable or soldering male goldpin strip. All pins are described which makes finding the right pin much easier.

Wyprowadzenia płytki ATP MicroMod

Pinouts of MicroMod ATP board.
