Product description: Pimoroni Pico Plus 2 W - board with RP2350B microcontroller - WiFi / Bluetooth - Pimoroni PIM726
Pimoroni Pico Plus 2 W is a module with an advanced RP2350B microcontroller , using a dual-core ARM Cortex M33 processor clocked at up to 150 MHz, offering exceptional performance for applications requiring more computing power. Thanks to the built-in 16 MB Flash memory and 8 MB PSRAM , it works great in applications requiring large memory resources, such as data processing or display support. The module connects to devices wirelessly via WiFi and Bluetooth , thanks to the integrated Raspberry Pi RM2 module. The Qwiic / STEMMA QT connector ensures easy integration with a wide range of sensors and I2C devices, which allows for rapid prototyping. The module supports standard accessories dedicated to Raspberry Pi Pico , which allows for easy expansion with additional components, such as GPS modules, temperature, humidity sensors and many others.

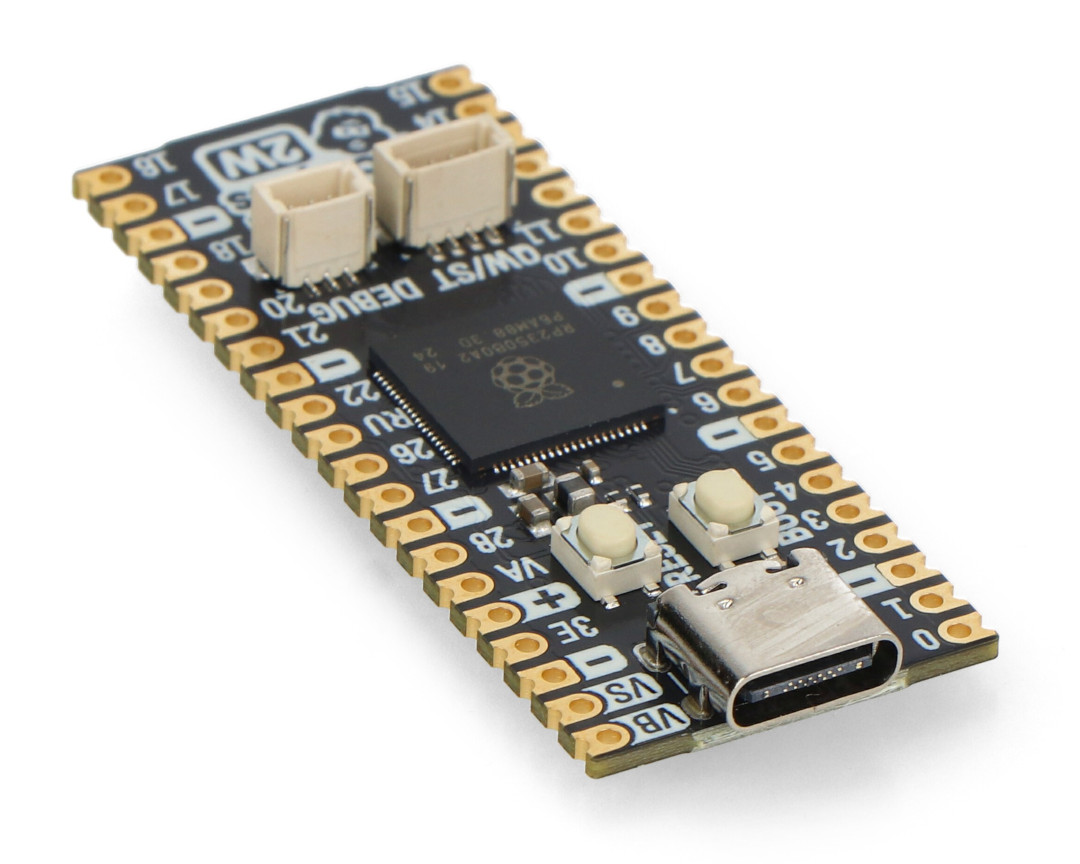

Pimoroni Pico Plus 2 W - board with RP2350B microcontroller - WiFi / Bluetooth - Pimoroni PIM726.

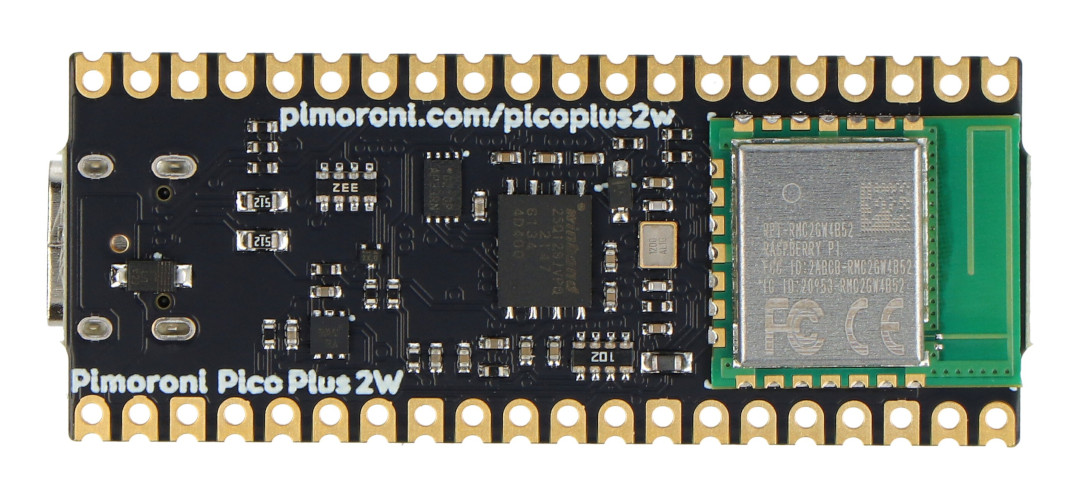

The Raspberry Pi RM2 module provides WiFi and Bluetooth connectivity.
Pimoroni Pico Plus 2 W Main Features
- Powerful RP2350B processor : dual ARM Cortex-M33, running at up to 150 MHz, provides high computing power for advanced applications
- Memory : 16 MB Flash and 8 MB PSRAM to handle large projects
- Wireless connectivity : The integrated Raspberry Pi RM2 module offers 2.4 GHz WiFi and Bluetooth
- Easy accessory connection : Qwiic / STEMMA QT connector allows quick connection of I2C sensors and devices without the need for soldering
- Compatibility : Fully compatible with Raspberry Pi Pico accessories, allowing easy expansion with additional modules and sensors
- Versatile : Supports multiple programming platforms, including MicroPython and C++

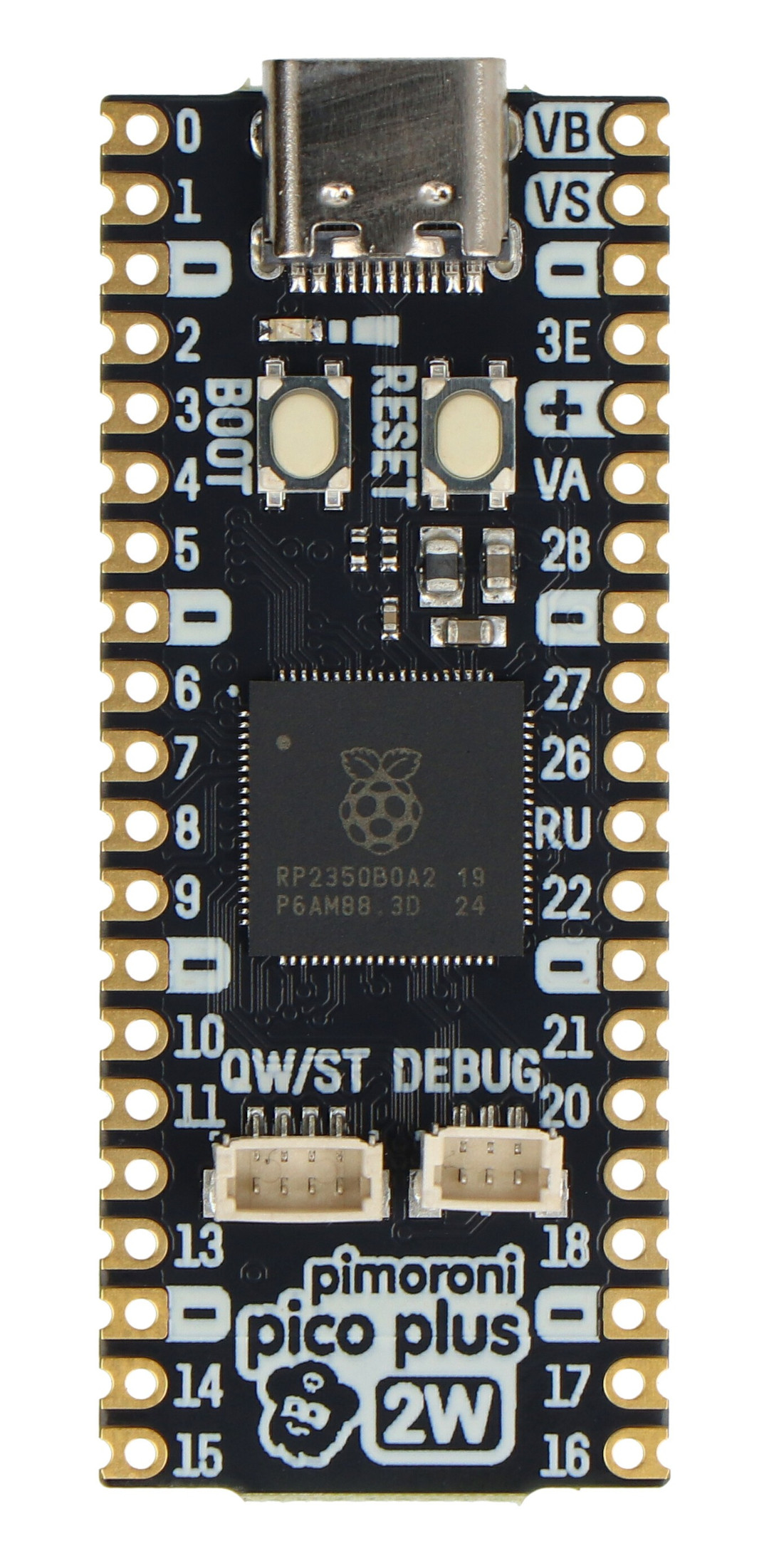

Module pins
Pimoroni Pico Plus 2 W is equipped with 40 GPIO pins , including 8 analog inputs (ADC), 24 PWM pins and other functions such as SPI, UART, I2C . The Qwiic / STEMMA QT connector allows easy connection of I2C devices. Additionally, the microcontroller has support for standard Raspberry Pi Pico pins , which allows the use of popular accessories for this platform.
Pimoroni Pico Plus 2 W Programming
Pimoroni Pico Plus 2 W supports programming in popular languages such as MicroPython and C/C++ . Thanks to its compatibility with popular platforms, you can easily write and upload scripts directly through the port USB Type-C . Additionally, an SWD debug connector is available for advanced programming and debugging. MicroPython also supports wireless functionality, which facilitates the development of IoT systems.

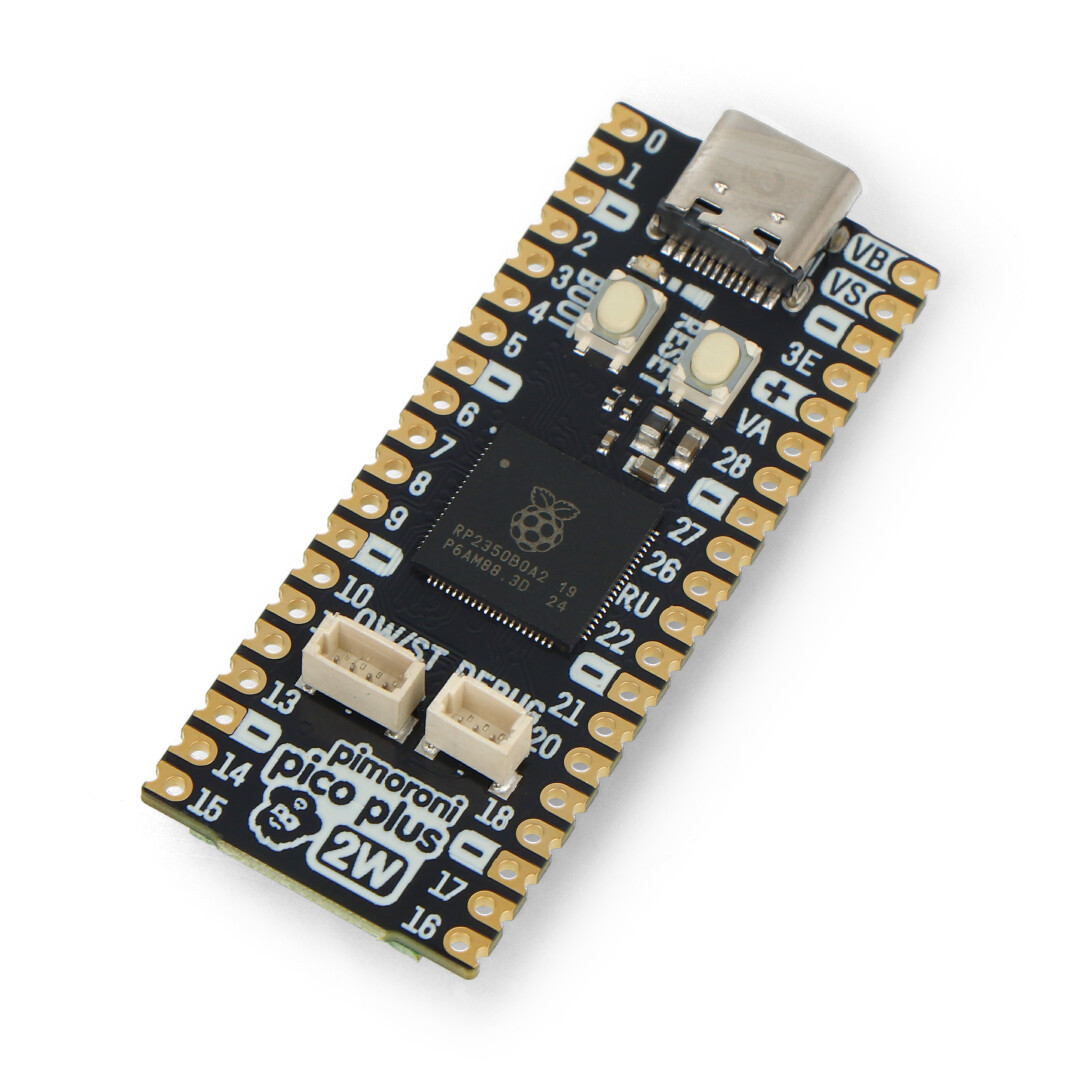

The Pimoroni Pico Plus 2W is powered and programmed via USB Type-C.Pimoroni Pico Plus 2 W Technical Specification
- System: RP2350B
- Processor: Dual Arm Cortex M33 clocked at up to 150 MHz
- PSRAM memory: 8MB
- Flash Memory: 16MB, supports XiP
- Connectivity: WiFi 2.4GHz, Bluetooth
- Pins: 40 pin
- Connectors: USB Type-C, Qwiic / STEMMA QT, 3-pin JST-SH debugger
- Buttons: Reset, Boot
- Diodes: User LED
- Built-in 3.3V voltage regulator (output current max. 600mA)
- Supply voltage: 3 V to 5.5 V
- Compatibility: board compatible with Raspberry Pi Pico extensions
- Dimensions: 53 x 21 x 8.3 mm
