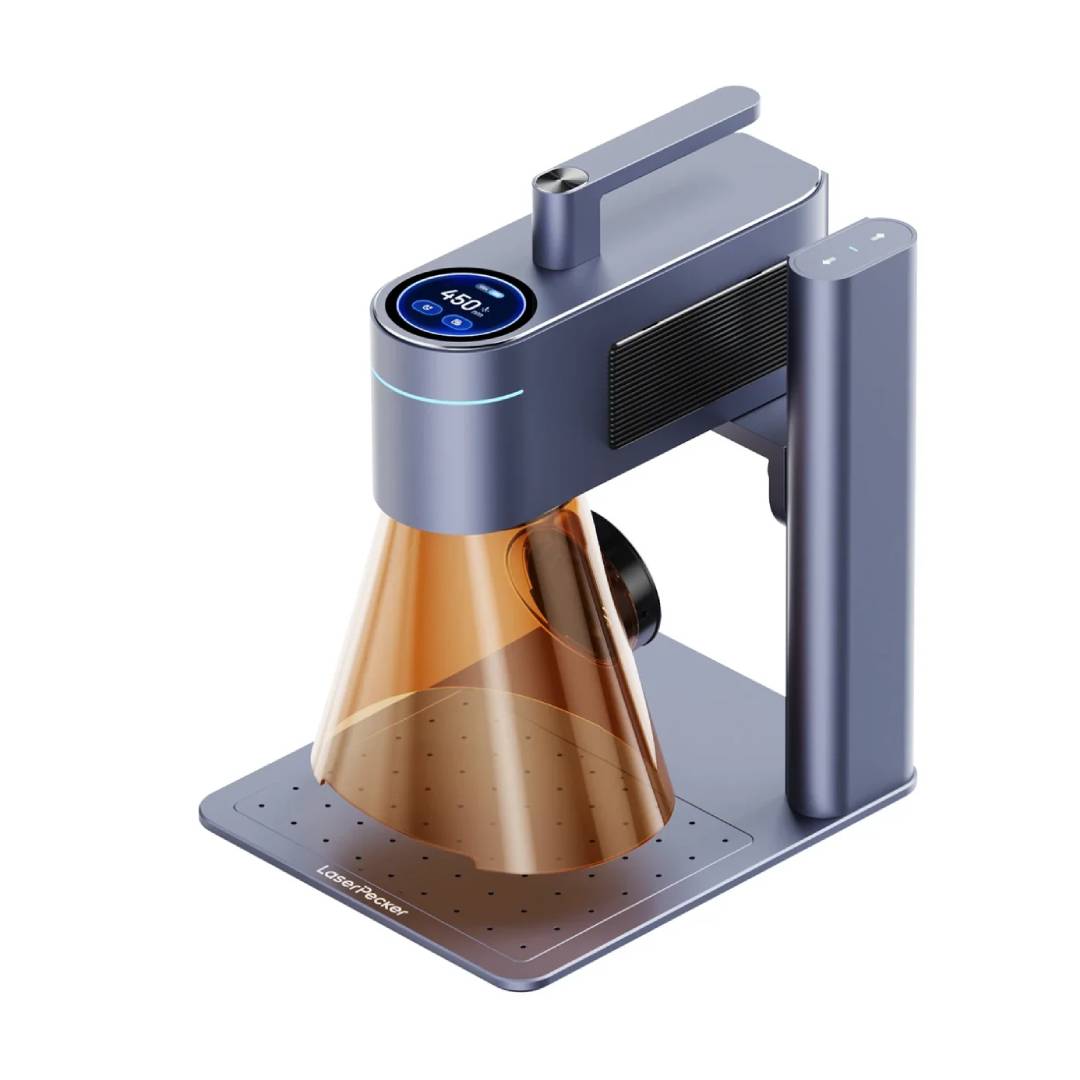

Product description: LaserPecker LP4 - 10W diode and 2W infrared laser engraving machine - basic set
The LaserPecker LP4 is a modern, compact laser engraver combining a 450 nm (10 W) diode laser with a 1064 nm (2 W) infrared laser , ensuring maximum compatibility with a variety of materials. The diode laser excels at cutting materials (up to 8 mm plywood ) and engraving organic surfaces, while the IR laser is designed for precise marking of metals and plastics without the need for auxiliary sprays. The galvo system allows for incredible speeds of up to 4000 mm/s , and with a resolution of up to 8K and a movement accuracy of 0.01 mm , the device guarantees perfect detail reproduction even in micro-engraving. The 160 x 120 mm working area can be optionally expanded to 160 x 300 mm. The built-in touchscreen and intuitive software allow you to get started in minutes.
LaserPecker LP4 - 10W diode and 2W infrared laser engraving machine - basic set.

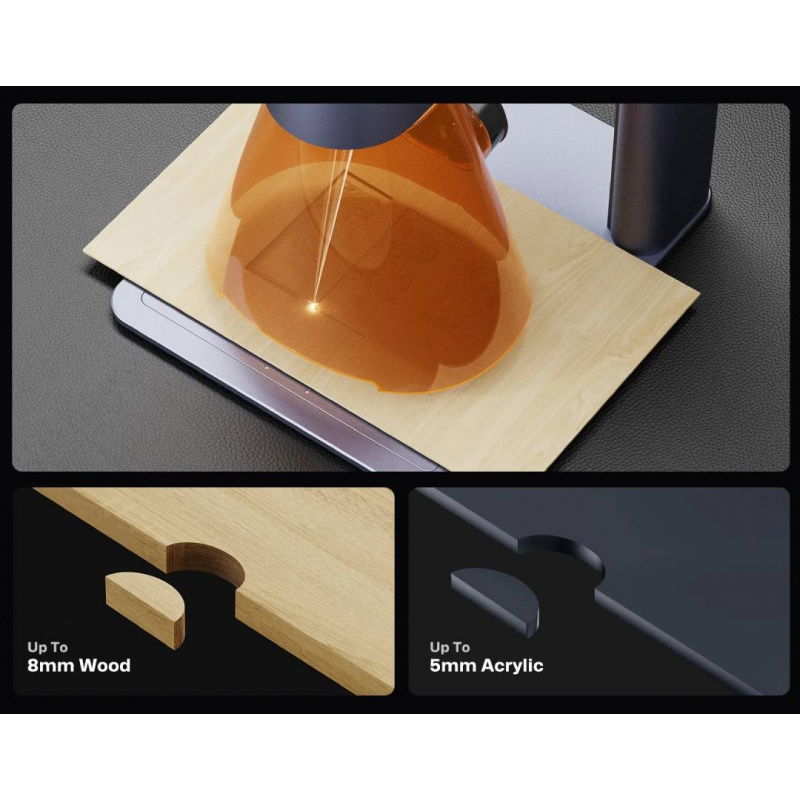

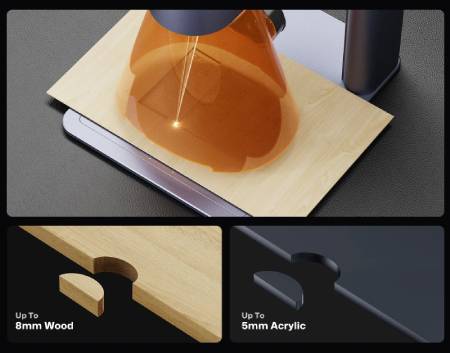

With the appropriate LP4 settings it allows you to cut wood up to 8 mm thick and acrylic up to 5 mm thick.
Dual laser technology for any material

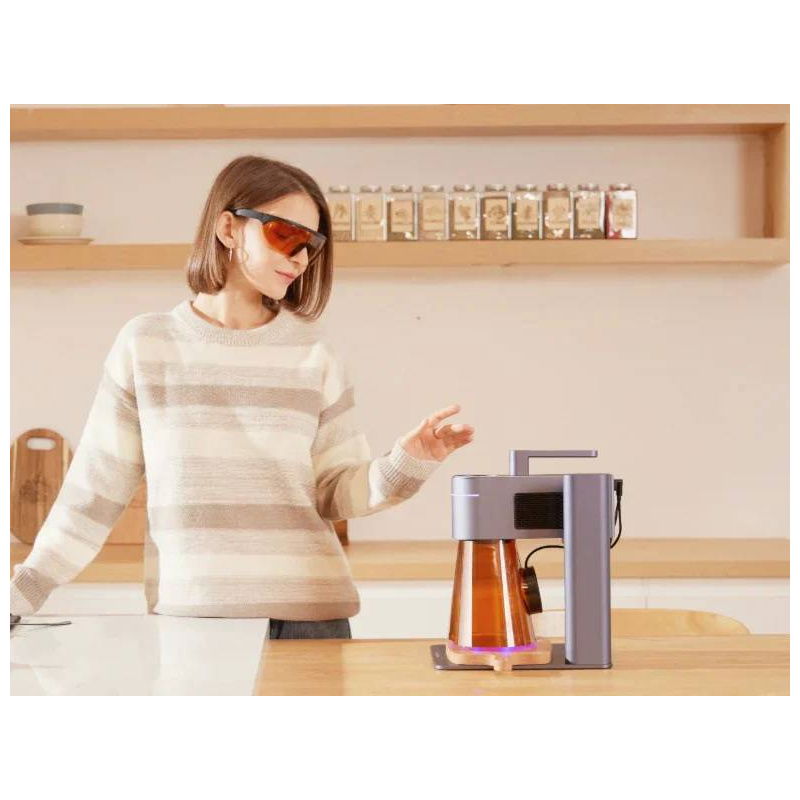

The LaserPecker LP4 combines a 450nm (10W) blue diode laser with a 1064nm (2W) infrared laser in a single compact device. This combination enables engraving on over 300 types of materials – from wood, paper, and leather, through glass and plastic, to precious metals like gold, silver, titanium, and steel. Depending on the material type, you can easily switch the laser source with a gesture on the touchscreen or in the app . The device automatically adjusts the recommended engraving parameters for the specific material. This eliminates the need for separate tools or time-consuming adjustments. Integrated sensors ensure user safety: an immediate stop button, overheating protection, and a tilt sensor that shuts off the laser if the machine moves. Additionally, the included conical shield and safety goggles effectively filter harmful radiation at wavelengths typical of both installed light sources.
Ultra-precise engraving and impressive resolution
Thanks to Galvo technology and advanced motion control, the LP4 offers 0.01mm positioning accuracy and image resolution up to 8K . This enables the creation of exceptionally detailed designs, from micro-engravings on rings and key rings to photographic reproductions on glass or anodized aluminum. Whether you want to apply a company logo, a dedication, or artistic graphics, the LP4 guarantees perfect reproduction of every detail. Its operating speed of up to 4000 mm/s makes the device equally suitable for both individual and mass production.

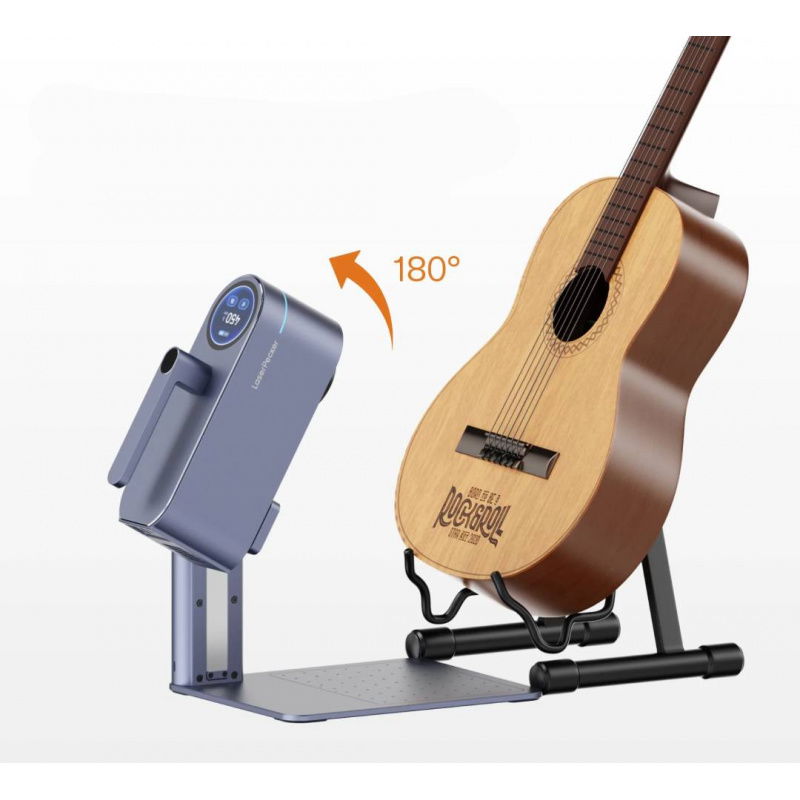

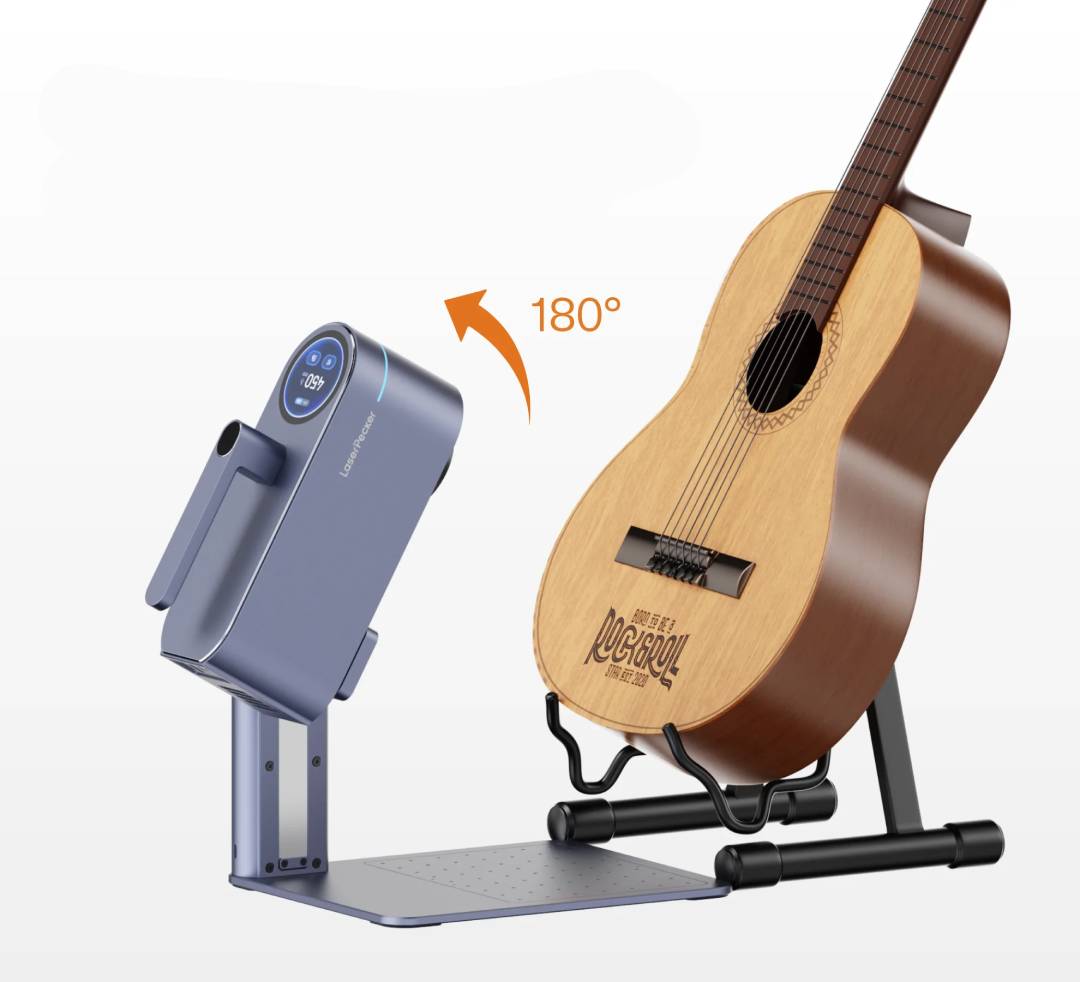

The engraving machine can work at an angle.

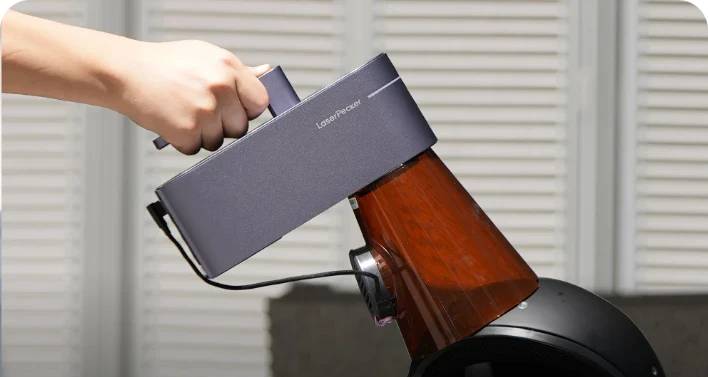

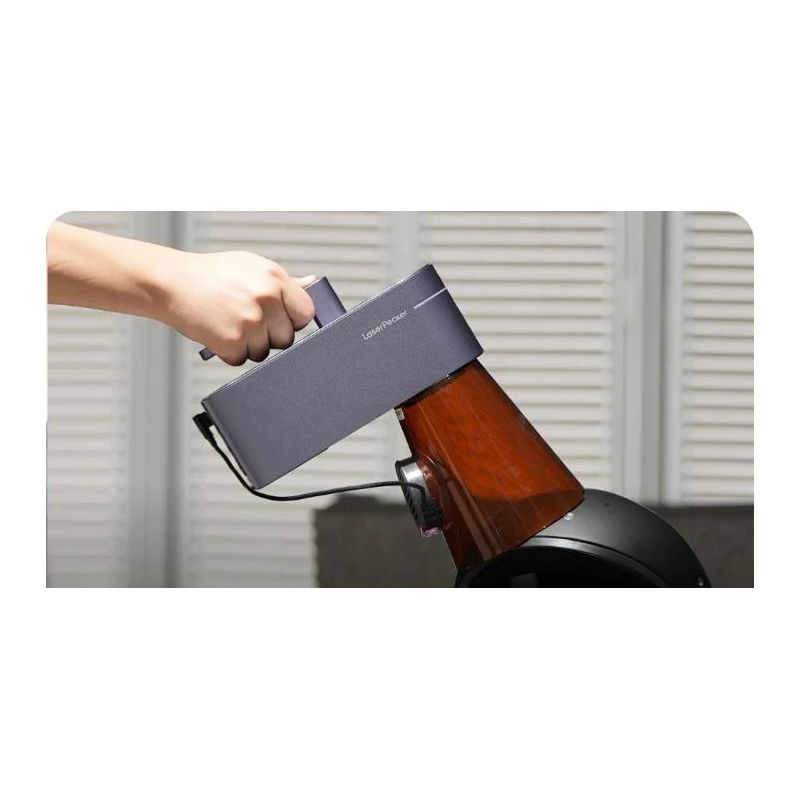

The handheld version is perfect for creative work while traveling.
Professional ergonomics and functional expandability
The LP4 is a fully modular device – it can be used as both a desktop and handheld engraver , allowing you to work at any angle and on hard-to-reach surfaces. The standard 160 x 120 mm working area can be expanded to 160 x 300 mm with an optional extension, opening up the possibility of working on larger formats. Additional accessories, available for purchase separately, such as a rotary attachment or an air filter, enable engraving of cylindrical objects and work in unventilated spaces.
Intuitive operation and versatile software
Operating the LP4 requires no experience – everything is done via the built-in color touchscreen or the LaserPecker Design Space app, available for Android, iOS, Windows, and macOS . The system remembers previous settings and allows you to repeat jobs without having to reconfigure. You can preview the outline or engraving field in real time, significantly reducing the risk of errors. The LP4 is also fully compatible with LightBurn software , providing access to advanced editing and automation features. This allows the device to combine ease of use with professional-grade capabilities. The LP4 connects to operating systems via a stable Bluetooth 5.0 connection or a USB Type-C cable.

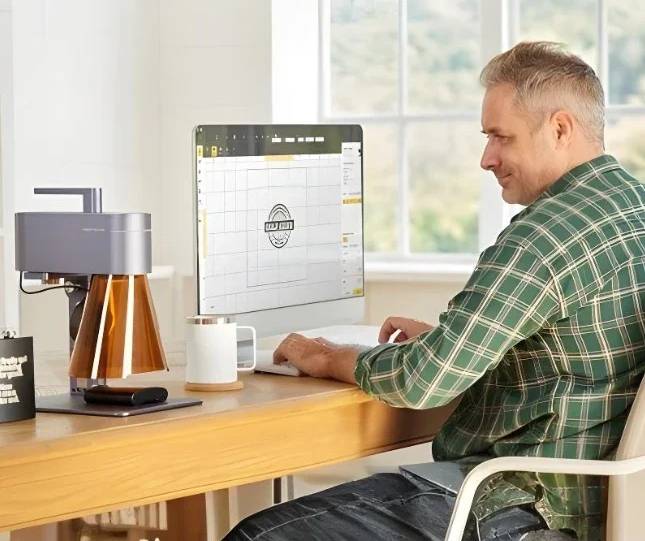

LaserPecker LP4 works with the LaserPecker Design Space app.

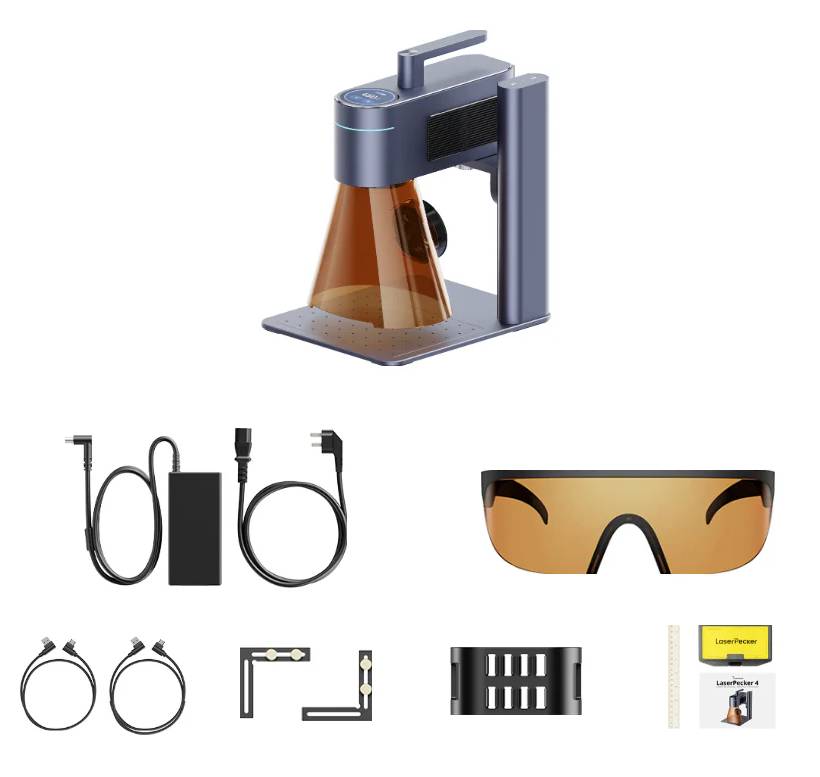

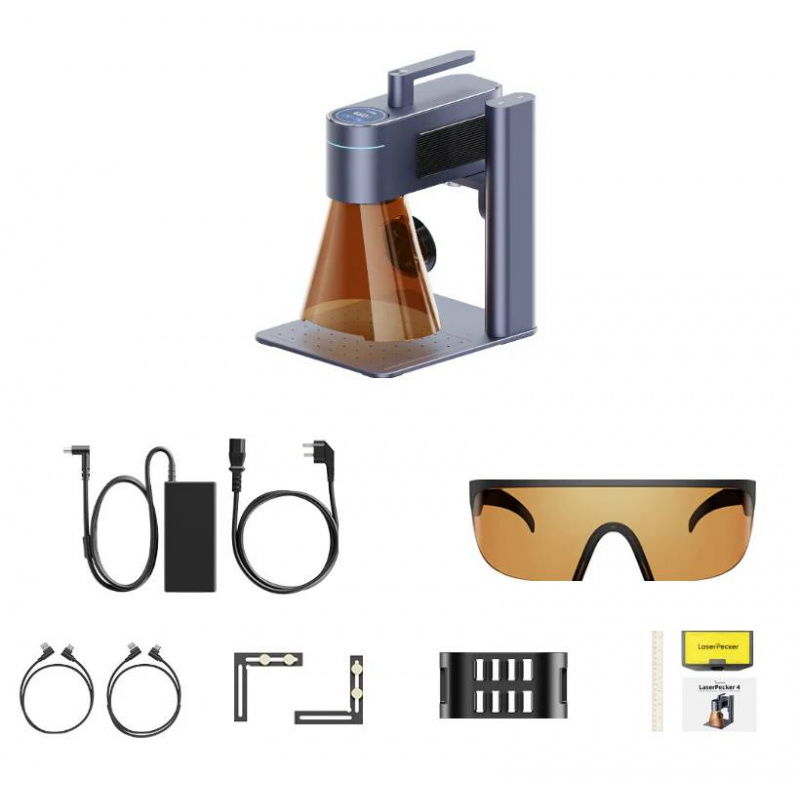

Elements included in the set.
Kit contents
- LP4 laser engraver
- Electric stand
- Protective cover
- Goggles
- USB cables
- Power cord
- Angle positioner
- Cable holder
- Tools
- User manual
| Technical specifications of the LaserPecker LP4 laser engraving machine | |
|---|---|
| Laser type | 450 nm blue diode laser + 1064 nm infrared (IR) laser |
| Laser power | 10W (450nm) / 2W (1064nm) |
| Laser spot | 0.05 x 0.05 mm (450 nm) / 0.01 x 0.01 mm (1064 nm) |
| Image resolution | 1K / 2K / 4K / 8K |
| Positioning accuracy | 0.01 mm |
| Movement accuracy | 0.01 mm |
| Engraving speed | up to 4000 mm/s |

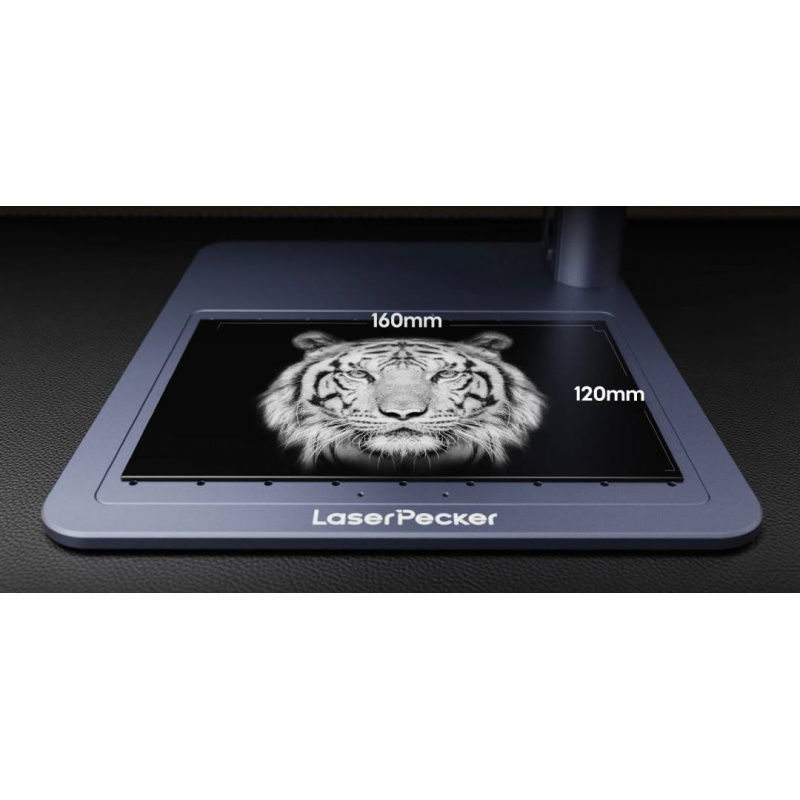

| Working field | 160 x 120 mm |
| Working range of the electric stand | 120 mm |
| Focal length | 150 mm |
| Maximum height of the workpiece | 94 mm |
| Maximum rotary engraving diameter (with optional module) | 200 mm |
| Cutting depth | up to 8 mm (plywood), up to 5 mm (black acrylic) |
| Supported materials - 450 nm | painted metal, anodized aluminum, 304 stainless steel, bamboo, wood, leather, paper, fabrics, food, photosensitive printing, plastic, acrylic, colored glass, glazed ceramics |
| Supported materials - 1064 nm | stainless steel, gold, silver, platinum, aluminum, titanium, brass, plastic, acrylic, leather and coated materials |
| Software | LaserPecker Design Space (App & PC) / LightBurn |
| Supported systems | iOS 13.0+, Android 7.0+, Windows 10+, macOS 10.15+ |
| Supported file formats | PC: G-code, JPG, PNG, BMP, SVG, DXF Mobile app: G-code, JPG, PNG, BMP, SVG |
| Preview modes | rectangular, contour, center point preview |
| Communication | Bluetooth 5.0 / USB (PC via dongle or cable) |
| Power supply | DC 24V 5A, AC 100V to 240V 50/60Hz |
| Device power | 120 W |
| Certificates | CE, ROHS, FCC, FDA, CDRH, NCC, KC, UKCA, TELEC |
| Supported languages | English, German, Spanish, French, Japanese, Korean, Polish, Russian, Portuguese, Simplified and Traditional Chinese |
| Dimensions | 260.5 x 218 x 283.5 mm |
| Mass | 4.23 kg |
