Argon Mini Fan for Raspberry Pi 4B with switch and heat sink

Index: ARG-17275 EAN: 5904422378486

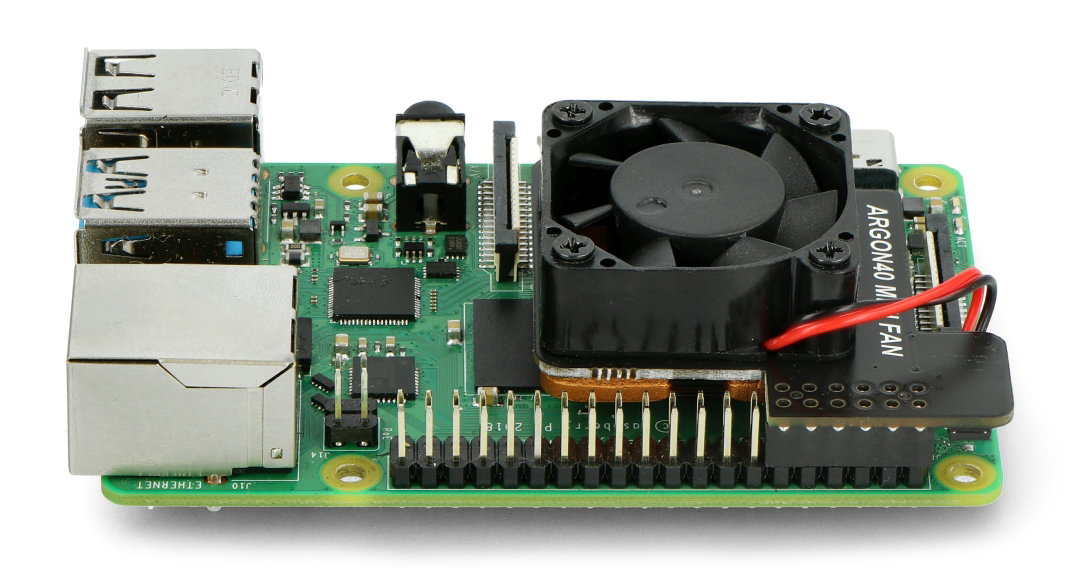

Mini Fan is a fan module designed for Raspberry Pi 4B. The product has dimensions of 45 x 45 x 15 mm and uses only 12 GPIO pins in the Raspberry Pi. This allows you to use the rest of the GPIO pins in other projects. The HAT fan is fully controlled by the ON - OFF - PWM switch. You can turn it on, off or program it to turn on at a specific temperature. A thermocouple is also included for better heat transfer from the PCB to the heat sink on the bottom of the unit.

Argon Mini Fan for Raspberry Pi 4B with switch and heat sink
€6.90
€5.61 tax excl.
Delivery 30 pcs scheduled for 2024-04-26
Waiting for delivery
PayPal payment
Manufacturer: Argon40
Compatibility: Raspberry Pi

Product description: Argon Mini Fan for Raspberry Pi 4B with switch and heatsink

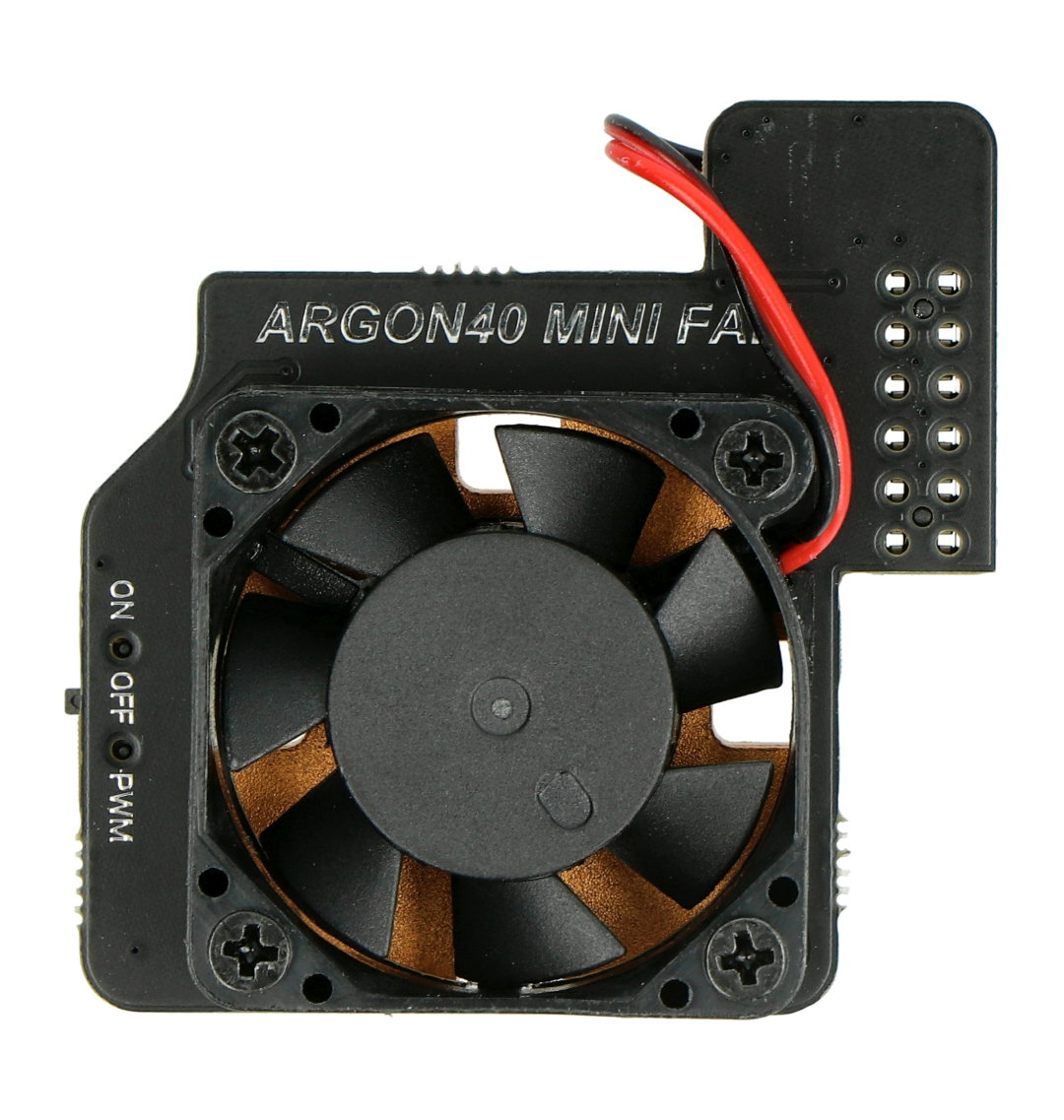

Mini Fan is a fan module designed forRaspberry Pi 4B. The product has dimensions of45 x 45 x 15 mmand uses only 12 GPIO pins in the Raspberry Pi. This allows you to use the rest of the GPIO pins in other projects. The HAT fan is fully controlled by theON - OFF - PWMswitch. You can turn it on, off or program it to turn on at a specific temperature. Athermocoupleis also included for better heat transfer from the PCB to the heat sink on the bottom of the unit.

Wentylator Argon Mini Fan dla Raspberry Pi 4B z włącznikiem i radiatoremArgon Mini Fan for Raspberry Pi 4B with switch and heat sink.

Przedmiotem sprzedaży jest wentylator Mini Fan, Raspberry Pi 4 do nabycia osobno.Mini Fan,Raspberry Pimini computer can be purchased separately.

Fan settings

  • Open the Terminal on Raspbian
  • Go to the main directory and open it:
/boot/config.txt file
  • Open and edit the file "config.txt" by typing:
sudo nano config.txt
  • Add a line:
dtoverlay=gpio-fan,gpiopin=18,temp=55000
  • Save your changes and exit by pressing Ctrl+X


This setting will run the mini fan at 55°C CPU temperature. Of course, you can set another desired fan activation temperature.

Fan specification

  • Compatible with Raspberry Pi 4B
  • Uses 12 of the 40 GPIO pins in Raspberry Pi
  • Fully switchable
  • Can be switched on at any assigned temperature when set to PWM control
  • Built-in heat sink for additional cooling
  • Dimensions: 45 x 45 x 15 mm

Set contents

  • Argon Mini Fan
  • Thermopad
Wentylator Argon Mini Fan dla Raspberry Pi 4B z włącznikiem i radiatorem

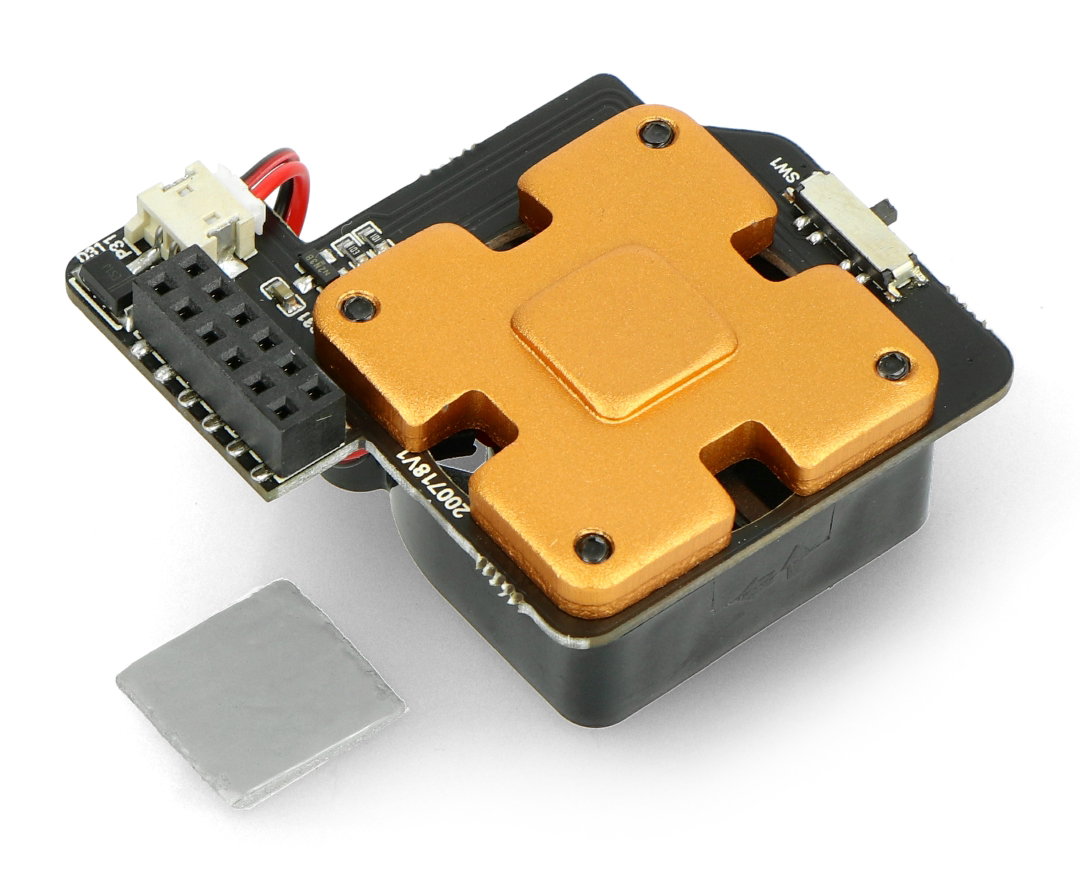

Argon Mini Fan with heatsink and thermocouple.

Package width 8 cm
Package height 12 cm
Package depth 1.5 cm
Package weight 0.022 kg
