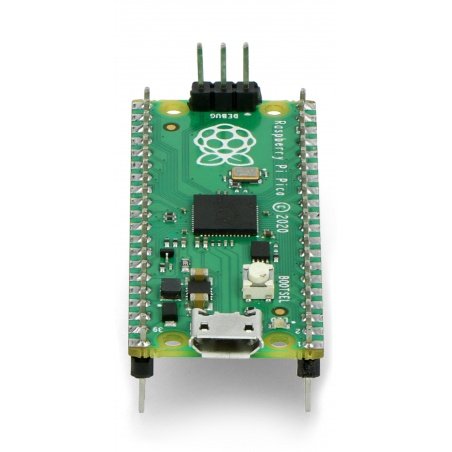

Product description: Raspberry Pi Pico - RP2040 ARM Cortex M0+ - with connectors
The Raspberry Pi Pico is a module featuringRaspberry's ownRP2040microcontroller made in the UK. This version has soldered male connectors. RP2040 is a dual core chip based onARM Cortex M0+clocked at 133 MHz. The Pico is equipped with 264 kB of SRAM and 2 MB of Flash memory. The chip is equipped with26 GPIO pinsthat operate at3.3 Vand a temperature sensor. The Raspberry Pi Pico is programmed in C/C++ and MicroPython via amicroUSBconnector.
Pinouts of Raspberry Pi Pico module
Raspberry Pi Pico has26 GPIO pinswhich include: 2x SPI, 2x I2C, 2x UART, 3x ADC 12-bit, 16x PWM. An additional 8 IO (PIO) pins are provided to support custom peripherals.
Power supply for Raspberry Pi Pico
ThemicroUSBconnector is used to power and communicate the Raspberry Pi Pico board with the computer. A5Vpower supply is required for the module to work properly. The board can also be powered fromVSYSpin with1.8V to 5.5Vusing e.g.3.7V Li-Polbattery or 3x AAbattery.
The logic part of the Raspberry Pi Pico operates at 3.3 V.
Programming the Raspberry Pi Pico
Raspberry Pi Pico is programmed inC/C++ or MicroPython. To upload a program to the board, press and hold the BOOTSEL button and connect the Raspberry Pi Pico to the computer via a microUSB cable. The module will be detected as a USB mass storage device named RPI-RP2, the program file should be dragged and dropped in the RPI-RP2 volume. The manufacturer provides anSDK repositoryfor C/C++ and MicroPython programming languages, which can be found in the useful links below.
First steps with MicroPython
The Raspberry Pi Pico can be programmed by connecting it to a computer via USB cable by dragging and dropping a file. A downloadable UF2 file has been prepared to help you get started with MicroPython.
- Download the MicroPython UF2 file.
- Press and hold the BOOTSEL button and connect the board to the USB port of your Raspberry Pi or computer.
- Release the BOOTSEL button once the Pico is connected to your computer.
- The Raspberry Pi Pico will be mounted as a storage device with the RPI-RP2 volume.
- Drag and drop the MicroPython UF2 file onto the RPI-RP2 volume.
- Pico will restart, now MicroPython will be used.
- You can access the REPL and MicroPython through the serial USB port.
Hello World in C/C++
The first program written by any programmer is "Hello World", in this case via theRaspberry Pi 4B's USB serial port.
- Download the UF2 "Hello World" file.
- Press and hold the BOOTSEL button and connect the Raspberry Pi Pico to the Raspberry Pi USB port.
- The board will be mounted as a storage device with the RPI-RP2 volume.
- Drag and drop the UF2 file into the RPI-RP2 volume.
- Pico will restart.
- Open a terminal on the Raspberry Pi 4B and run the commands:
sudo apt install minicom minicom -b 115200 -o -D /dev/ttyACM0
- You should see "Hello World" written out in the terminal window.
Raspberry Pi Pico specifications
|Chip||Raspberry Pi RP2040|
|Core||ARM Cortex-M0+ Dual-Core 133 MHz|
|Flash memory||2 MB|
|Pinouts||40-pin / 23 GPIO digital + 3 ADC pins|
|Interfaces||2x UART, 2x I2C, 2x SPI, up to 16 PWM channels|
|Supply voltage||5 V (USB)|
|Operating voltage of the logic part||3,3 V|
|Power supply / data transmission connector||microUSB|
|Dimensions||51 x 21 mm|
