Product description: Kit contact plate 830 + cables + power supply module

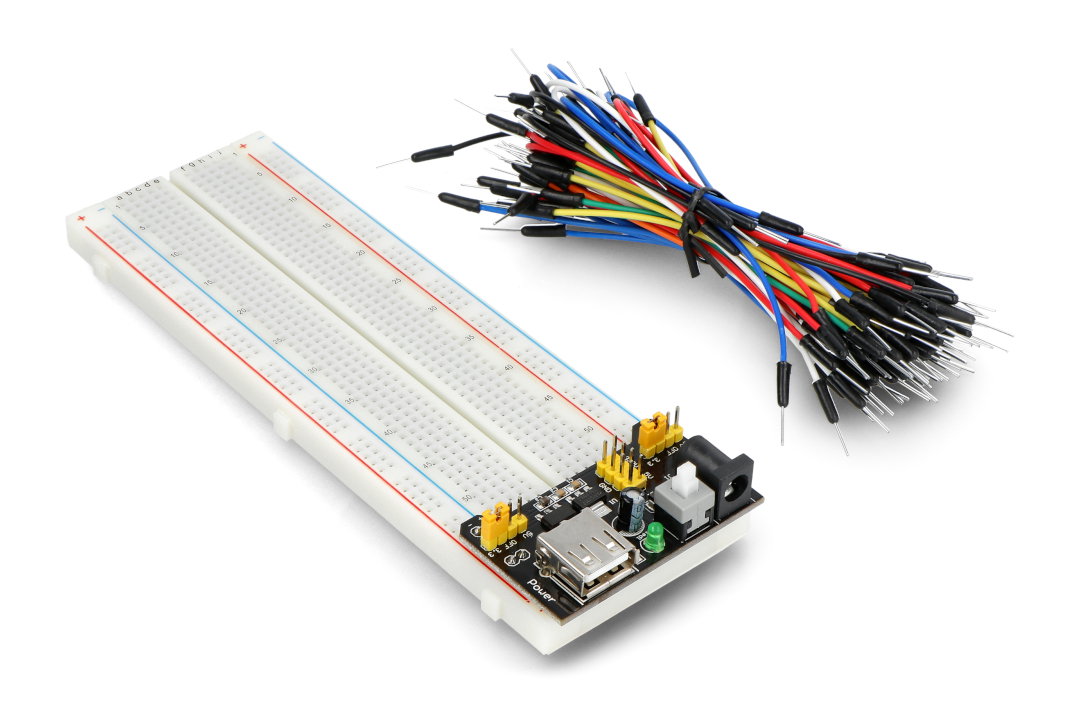

The kit includes a contact plate with 830 holes, a power supply module and male to male connection cables. These elements allow creating connections on the board itself as well as between it and starter kits such as Arduino.
Power supply voltage selection
The power supply module has the ability to select the power supply voltage for each side rail of the contact plate using jumpers. The user can select 3.3 V or 5 V (separately for each line). The power supply can also be connected from the connector in the middle of the board using wires.
Specifications for the contact board kit, cables and power supply module
- Contact plate
- Dimensions: 165 x 53 mm
- Number of holes: 830
- Power supply module:
- Output voltage: 3.3 V or 5 V
- Output current: max. 700 mA
- Installed On-Off switch to disconnect power at any time
- LED to indicate power connection
- USB Type A output for 5 V power supply for other circuits
- DC input 5.5 x 2.1 mm to connect a mains adapter from 6.5 V to 12 V
- Connection wires:
- Number: 65 pieces
- 80 mm - 49 pieces.
- 125 mm - 8 pcs.
- 175 mm - 4 pcs.
- 215 mm - 4 pcs.
|1||Contact plate 830 holes - It is used to create and test electronic circuits without the need for soldering. The design is facilitated by stripes (blue and red) marking the power supply polarization.|
|2||Connecting cables 65 male to male - A set of 65 connection cables for contact plates of different lengths in different colours.|

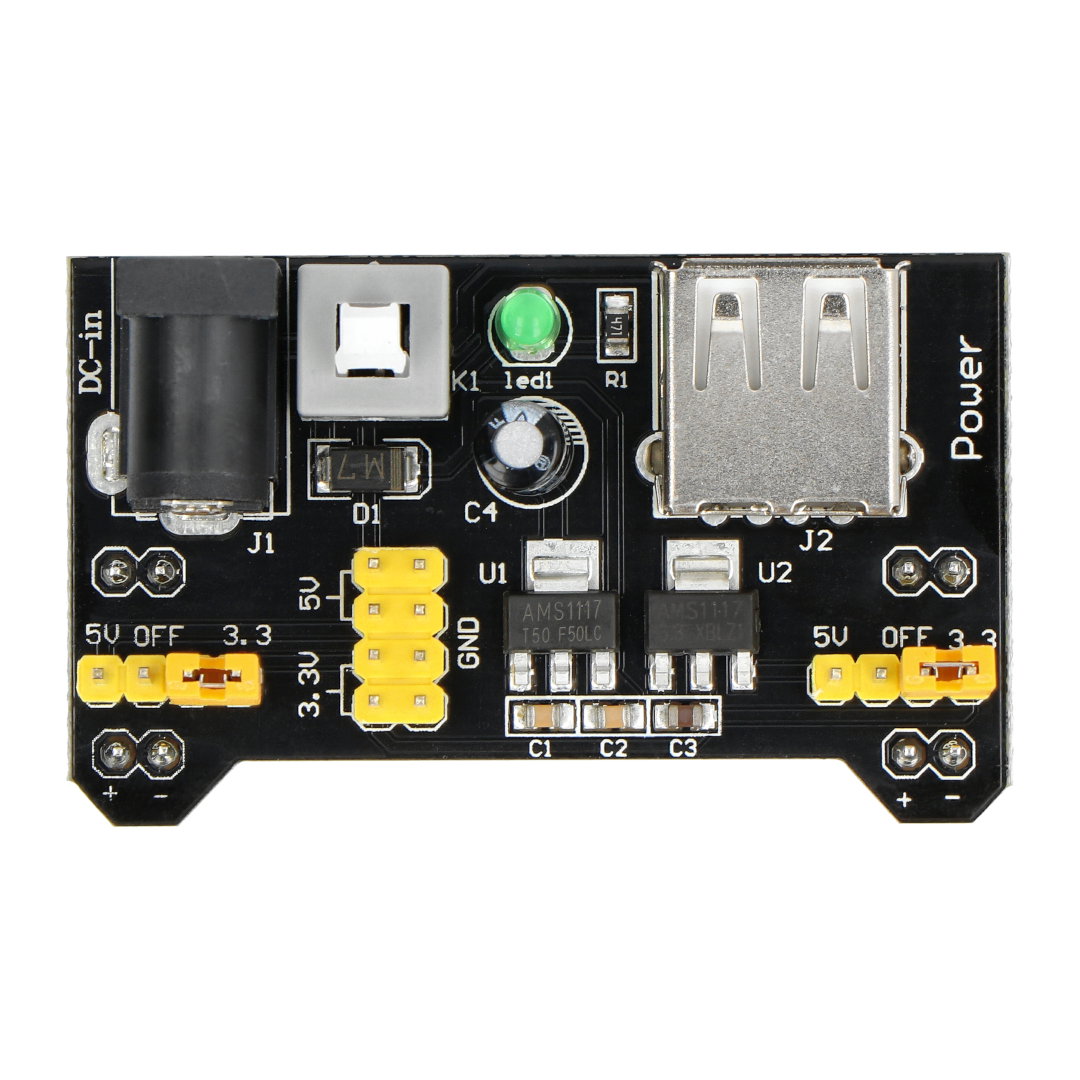

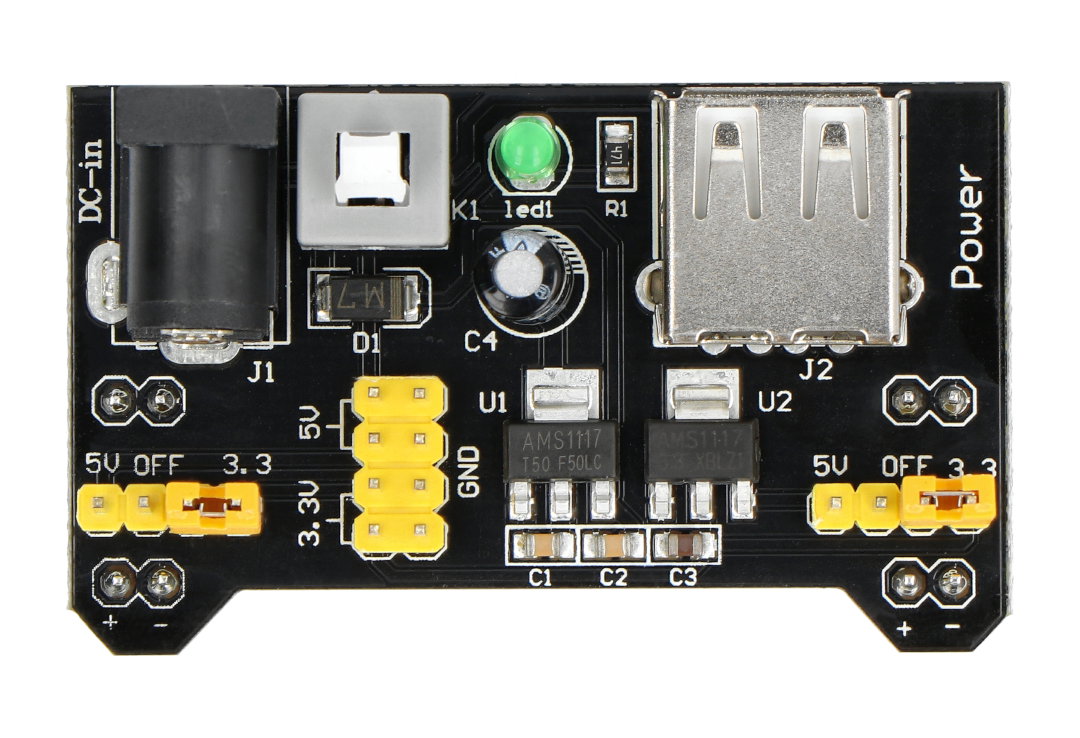

|3||Power supply module for 3.3 V 5 V contact plates - Allows for the connection of 5 V or 3.3 V power supply to the contact board using a mains adapter with a 5.5 / 2.1 mm plug.|
