Product description: Explorer Board - educational and prototyping board for Raspberry Pi Pico / Pico W - Joy-IT RB-P-XPLR

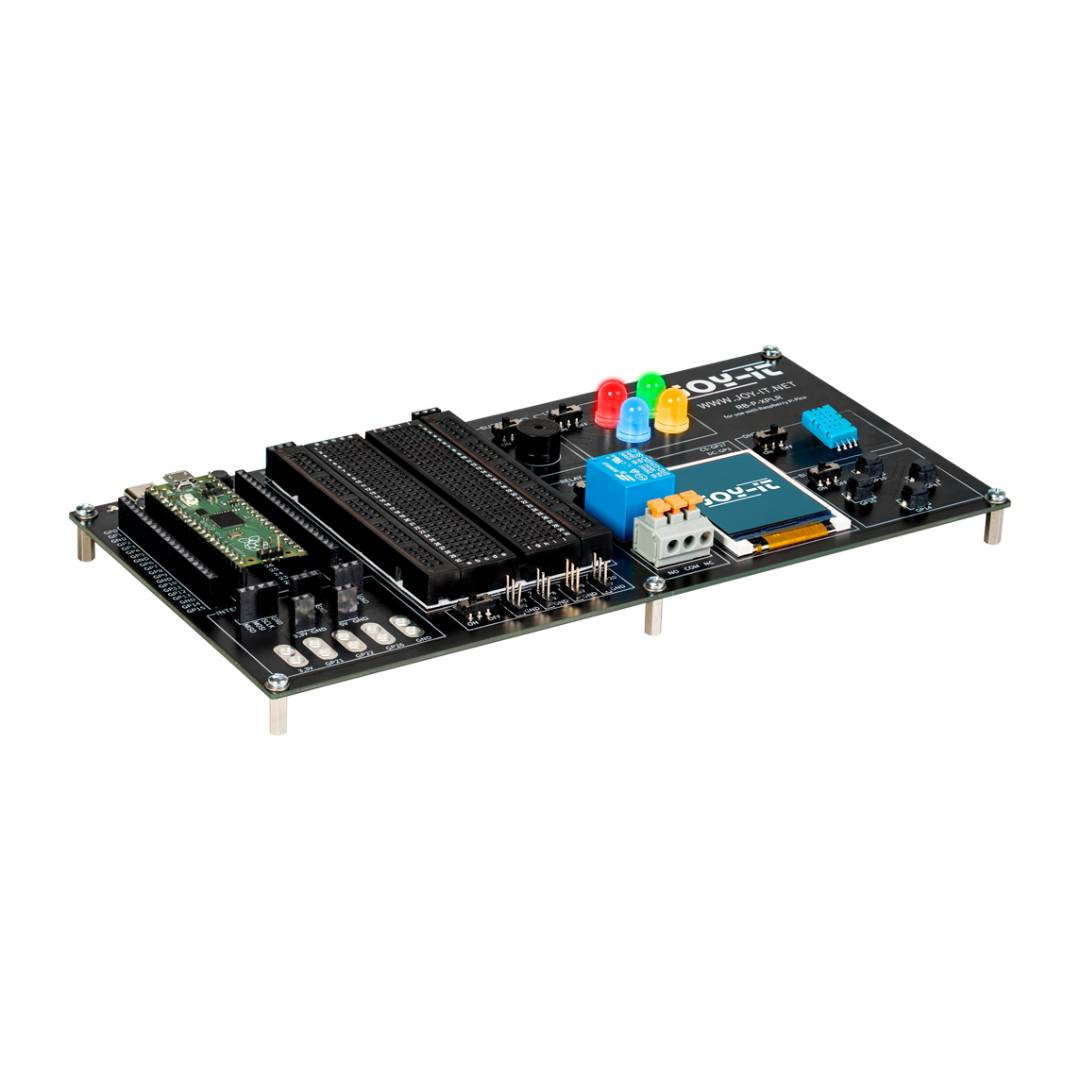

The Explorer Board was designed for convenient and rapid prototyping of projects based on the Raspberry Pi Pico microcontroller. The board allows for direct mounting of the Pico module and provides access to numerous built-in components and communication interfaces. All modules can be individually activated or deactivated using switches , allowing you to freely use the GPIO pins for your own experiments. The board includes four RGB LEDs , a 1.8" TFT display , a DHT11 temperature and humidity sensor , a relay , a buzzer , and four user buttons . Additionally, an integrated breadboard makes it much easier to create and test your own electronics without the need for soldering. The Explorer Board is perfect for learning MicroPython, creating IoT, robotics , and educational projects.

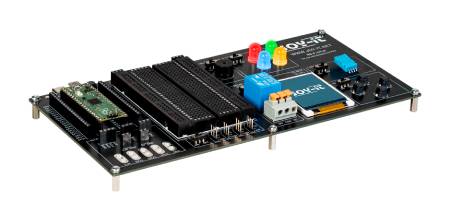

Explorer Board - educational and prototyping board for Raspberry Pi Pico / Pico W - Joy-IT RB-P-XPLR.

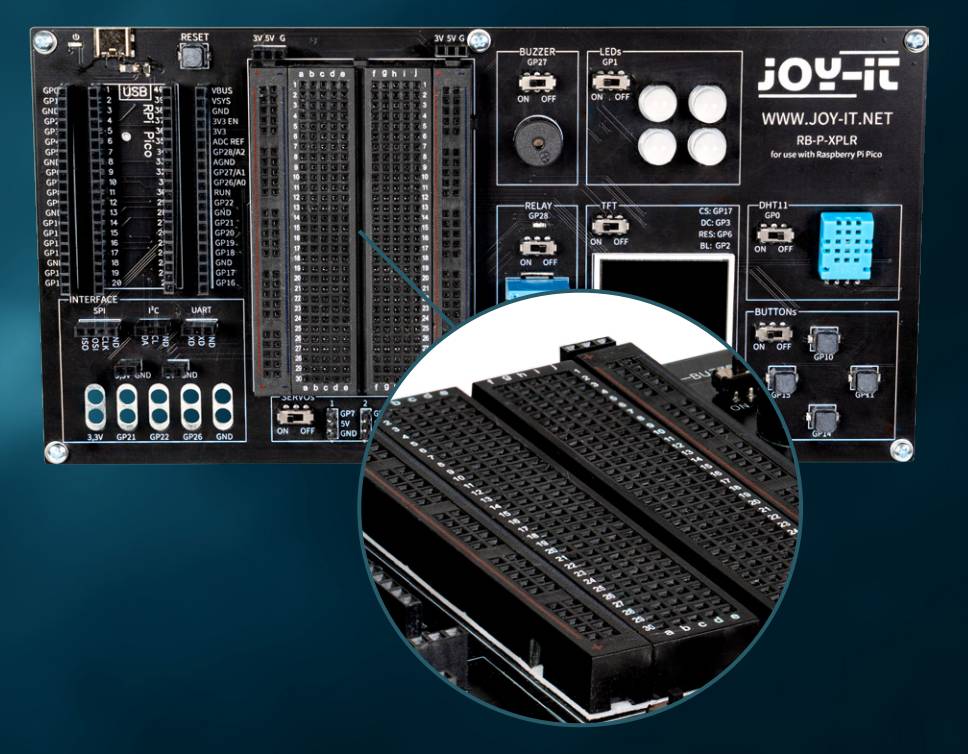

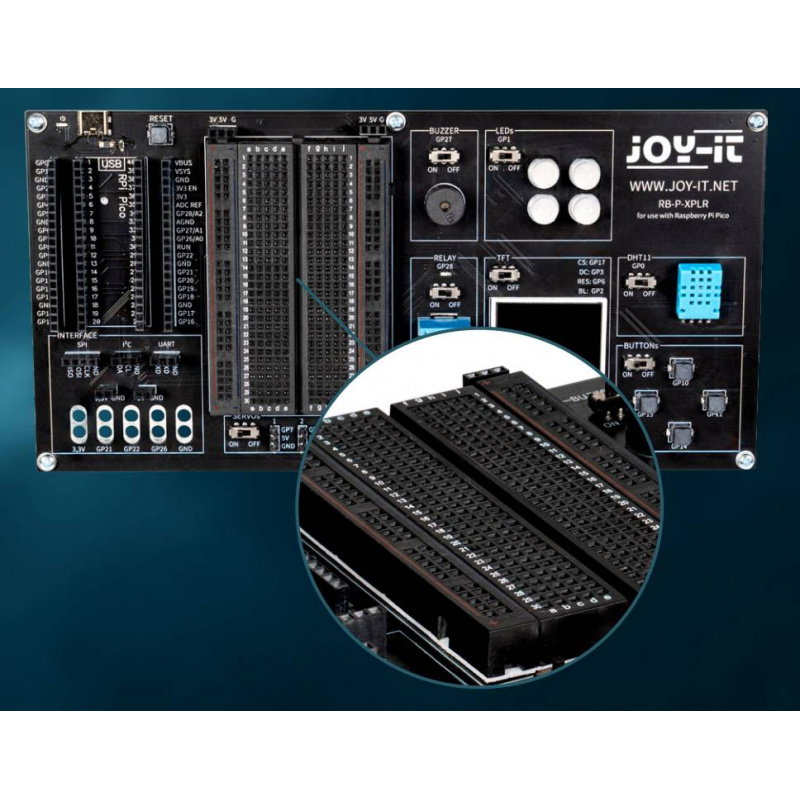

The built-in breadboard allows you to quickly create projects without the need for complicated wiring or soldering.
Key Features of the Explorer Board
- Compatibility with Raspberry Pi Pico and Pico W : direct mounting of popular RP2040 modules possible
- Integrated educational modules : 4 RGB LEDs, buzzer, relay, DHT11, TFT 1.8'' and buttons
- Built-in breadboard : fast prototyping without soldering
- Independent module switches : components can be turned on and off individually
- Support for popular interfaces : SPI, I2C, UART and servo connectors
- Alligator clips : quick connection of cables and test components
- Powered by USB Type-C : convenient and modern 5V power supply
- The perfect learning platform : suitable for learning electronics, programming and embedded systems
Pins and interfaces

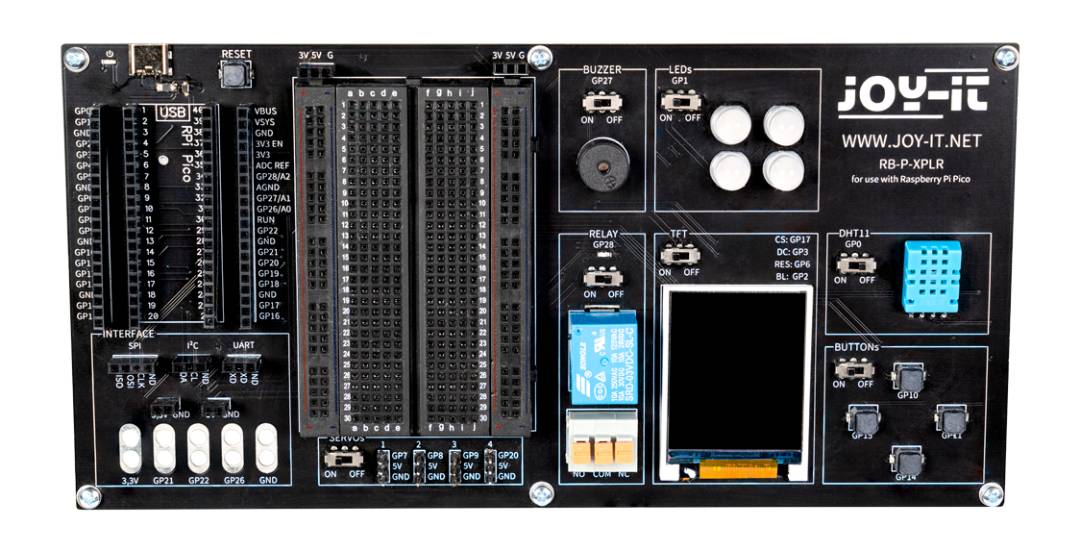

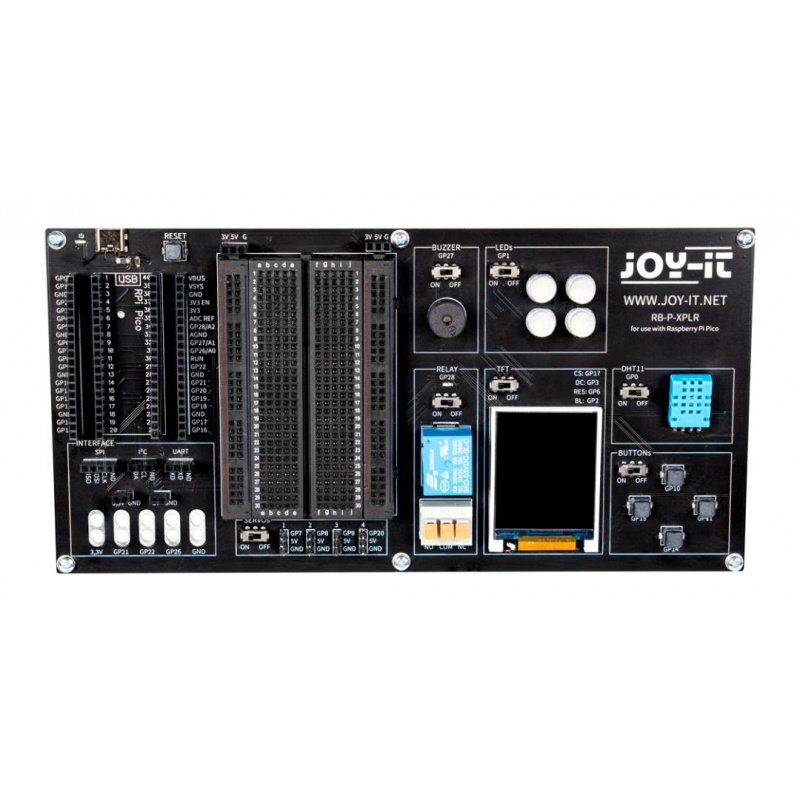

The Explorer Board offers convenient access to the GPIO pins of the Raspberry Pi Pico microcontroller. All key pins are also externally connected, allowing for easy connection of additional modules, sensors, and actuators . The board supports SPI , I2C , and UART interfaces, allowing it to interface with a wide range of electronic components. Four servo connectors and five alligator clip connectors are also available, making it ideal for rapid prototyping and educational experiments. A built-in breadboard allows you to create your own circuits without the need for a soldering iron, significantly speeding up project development.

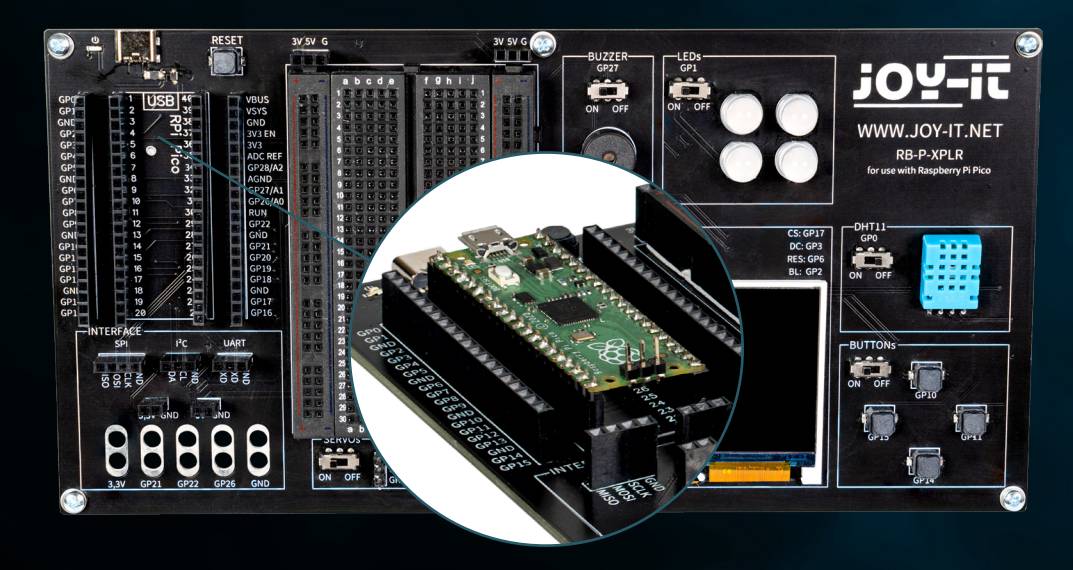

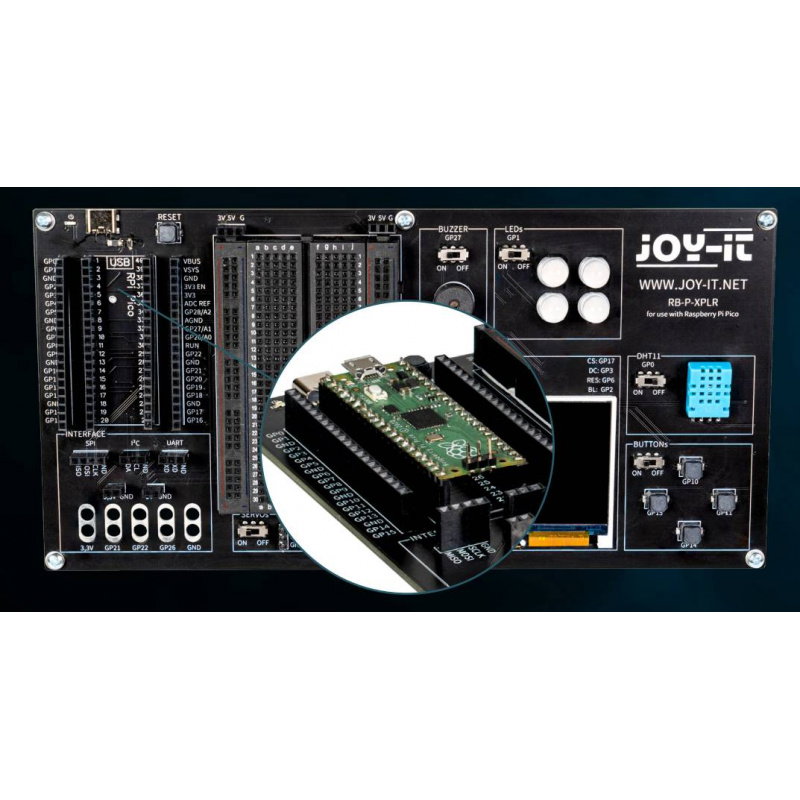

The RB-P-XPLR board is fully compatible with the Raspberry Pi Pico and Raspberry Pi Pico W modules.
Technical specifications of the prototyping board
- Compatibility: Raspberry Pi Pico, Raspberry Pi Pico W
- Power supply: 5V via USB Type-C
- Built-in modules: 4 RGB LEDs, buzzer, relay, 1.8'' TFT display, DHT11 temperature and humidity sensor, 4 buttons, contact board
- Interfaces: SPI, I2C, UART, 4 servo connectors, 5 alligator clips
- Possibility to disable modules individually: yes
- Programming: MicroPython, C/C++
- Dimensions: 219 x 110 x 27 mm
Kit contents
- 1x Explorer Board
