Product description: Set with Raspberry Pi Pico W with connectors

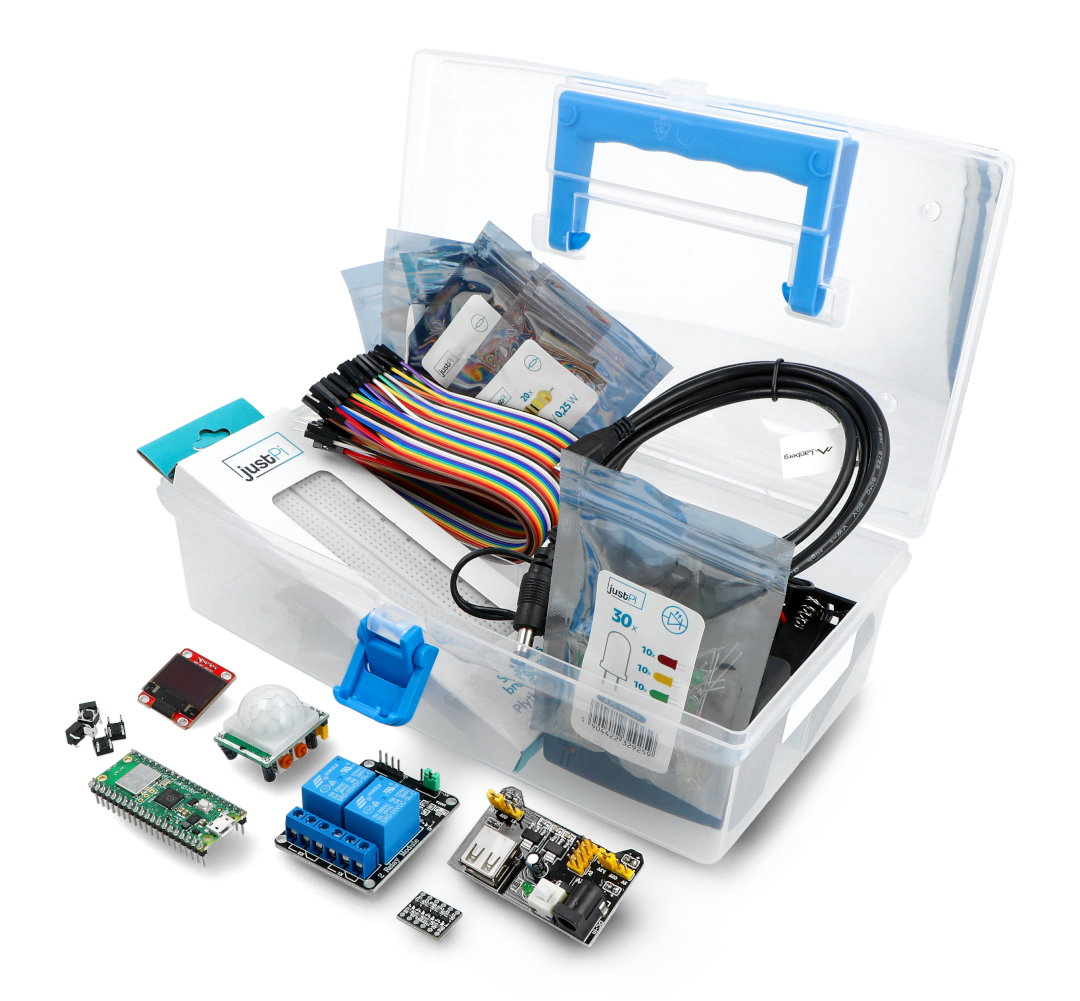

A set of elements to help you get started with the Raspberry Pi Pico W module. In addition to the Raspberry Pi Pico W with soldered male connectors, the set includes such elements as: LEDs, sensors, relay, resistors, OLED display, breadboard and buttons. The set has been closed in a handy organizer , which makes it easy to store and carry.
The kit also includes a large breadboard and connecting cables, with which it is possible to build projects without soldering. Buttons with LEDs and an OLED screen with a diagonal of 0.96 "allow you to create a simple user interface. The sensors included in the set allow the user to read data from the environment and send them to the created network interface, web server. The included relay will allow you to create automation projects and IoT by remotely controlling lighting or other higher voltage devices.
A set of Raspberry Pi Zero W with connectors, closed in a handy case.Raspberry Pi Pico W
Raspberry Pi Pico W is a small module equipped with the proprietary Raspberry RP2040 microcontroller. The RP2040 microcontroller is a dual-core ARM Cortex M0 + chip clocked at 133 MHz, equipped with 264 KB of SRAM and 2 MB of Flash memory. WiFi 2.4 GHz IEE 802.11 b / g / n wireless communication is available thanks to the CYW43439 chip. The Raspberry Pi Pico W board has 26 GPIO pins , which work with a voltage of 3.3 V. On the module you can also find a built-in temperature sensor. The Raspberry Pi Pico is programmed in C / C ++ and MicroPython via the microUSB connector.
The kit includes:
| No. | Picture | Description |
|---|---|---|
| 1 |  |
Raspberry Pi Pico W - module based on the RP2040 system, equipped with 26 I / O pins and a 2.4 GHz WiFi wireless communication system - CYW43439. The module has soldered male goldpin connectors. |
| 2 |  |
Breadboard justPi 830 fields - a large board with separate power lines enabling the creation of electronic circuits. |
| 3 |  |
Set of 5 mm justPi LEDs (30 pcs.) - 10 pcs of red, green and yellow diodes each. |
| 4 |  |
RGB diode common anode - LED with four leads, shining in all colors available to the human eye. |
| 5 |  |
A set of justPi resistors (200 pcs.) - 20 pcs. Of the most popular values, e.g. enabling the connection of LEDs. |
| 6 |  |
JustPi connecting cables set - male-male 20 cm 40 pcs - they can be used to connect peripheral devices with the Raspberry Pi Pico W. |
| 7 |  |
Buzzer with a 5V generator - allows you to generate a continuous tone. |
| 8 |  |
Photoresistor - a sensor that allows you to measure the intensity of the incident light, it will allow, for example, to detect whether the room is dark or light. |
| 9 |  |
Iduino relay module 2 channels with optoisolation - 10 A / 250 V AC contacts - allows you to control devices with higher voltage and current consumption. |
| 10 |  |
OLED blue graphic 0.96 "I2C display - with its help you can create a simple graphical interface. |
| 11 |  |
Temperature sensor DS18B20 - allows you to measure the ambient temperature in the range from -55 ° C to 125 ° C. |
| 12 |  |
Buttons of the tact-switch type - will serve as an element entering data into the module. |
| 13 |  |
10k or 20k potentiometer (5 pcs) - like buttons, connected to analog outputs, they can be used as an element of the user interface - simple knobs. |
|
14 |
 |
1.8 m microUSB cable - used to connect the Raspberry Pi Pico W to a computer. |
| 15 |  |
PIR sensor - enables motion detection. |
| 16 |  |
Basket for 3 AA batteries - the Raspberry Pi Pico W module can be powered by 3 AA batteries. |
| 17 |  |
4-channel logic level converter - Raspberry Pi Pico pins work with a voltage of 3.3 V, using the converter, you can change the voltage of the elements from 5 V to 3.3 V. |
| 18 |  |
AA battery 4 pcs . - they can be used to power the Raspberry Pi Pico. |
| 19 |  |
Power module for contact plates - the board allows you to power elements connected to the contact plate, which require a voltage of 5 V / 3.3 V. |
| twenty |  |
Switching power supply 12 V / 2.5 A - allows you to power the power supply module for contact plates. |
|
21 |
 |
Organizer for carrying the set. |
