Grove - RGB LED Matrix Driver

Index: SEE-13665 EAN: 5903351247054

RGB LED Matrix 8 x 8 with a control unit, designed to display simple images and patterns of 64 pixels LEDs, and 255 colors for each pixel, which gives almost unlimited possibilities. Voltage supply from 3.3 V to 5 V. The kit includes a Grove cable.

Grove - RGB LED Matrix Driver
€20.50
€16.67 tax excl.
Waiting time: 4-6 weeks
Temporarily unavailable
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino

Description of product: Grove RGB LED Matrix driver

RGB LED Matrix 8 x 8 with acontrol unit, designed to display simple images and patterns of64 pixelsLEDs, and255 colorsfor each pixel, which gives almost unlimited possibilities. Voltage supply from 3.3 V to 5 V. The kit includesthe cable Grove.

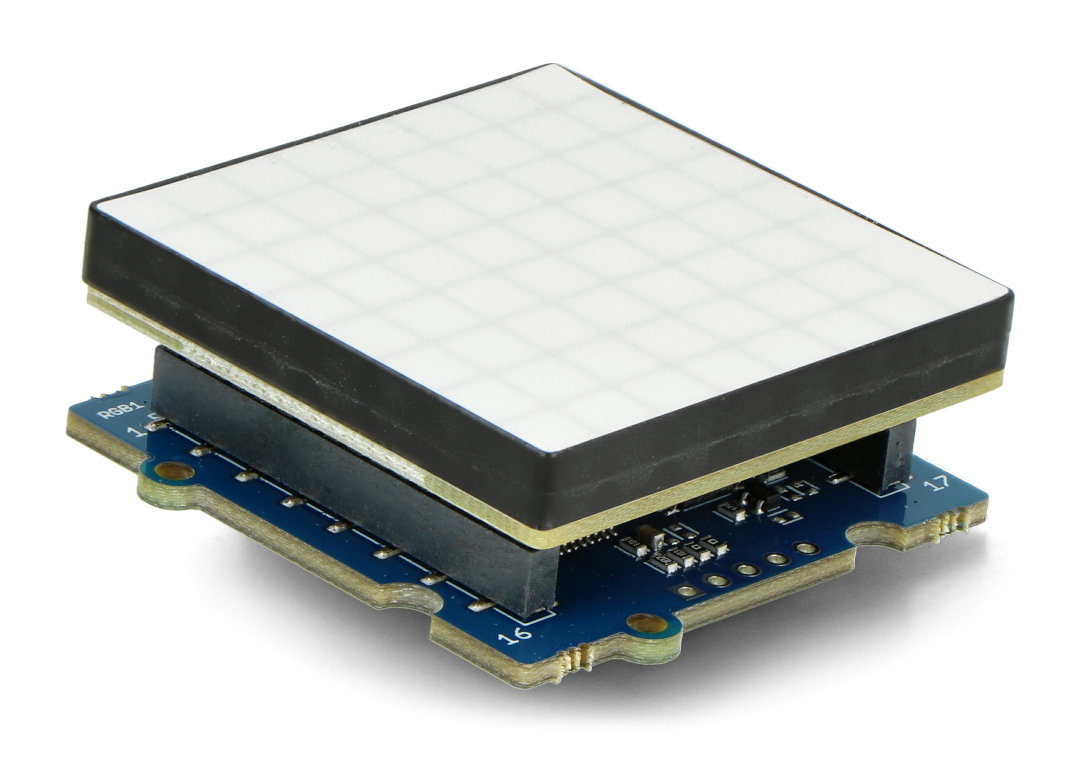

Grove - RGB LED Matrix

Matrix driver MY9221was equipped with a 12-channel (R/G/B x 4)regulator of constant currentAPDM.The Grove module needs twodriversMY9221 to control the LEDs. The matrix is a partof the Grove system, which is very easy to create without soldering skills. It is sufficient to connect the individual modules using a special Grovecable. The manufacturer has prepared aguide on how to plug in the module and program Arduino, as well asa librarywith sample codes.

Grove LED MAtrix

Grove - RGB LED Matrix driver

Characteristics of the Grove matrix

  • 8 x 8 pixels
  • RGB
  • 255 colors
  • Built-in MCU
  • Support for displaying custom images

Grove RGB LED Matrix

Specifications of Grove - RGB LED Matrix driver

Option Range
Voltage from 3.3 V to 5 V
Operating temperature from - 40℃ to + 85
Interface I2C
I2C address 0x65
Dimensions 40 mm x 40 mm x 21 mm
Weight 17.3 g
Package dimensions 120 mm x 100 mm x 33 mm
Gross weight 28 g



    Screen - type Matryca LED
    Screen - touch no
    Screen - resolution 8x8 px
    Length 40 mm
    Width 40 mm
    Height 33 mm
    Cable - type Grove
    Cable - Standard f-f
    Lead 4
    Voltage to 3.3 V
    Voltage from 5.0 V
    LED - color RGB
    LED - type WS2813
    LED - digital yes
    LED - LEDs 64
    LED lens mat
    LED wavelength RGB
    Package width 10 cm
    Package height 3.3 cm
    Package depth 15 cm
    Package weight 0.03 kg
