Lithium Ion Polymer Battery with Short Cable - 3.7V 350mAh

Index: DNG-19457 EAN: 5904422346560
A 5V powered fan with dimensions of 25 x 25 x 7 mm. It is designed to be mounted in MaticBox enclosures together with Raspberry Pi 4B. It has two leads terminated with 2-pin BLS female connector. Length of cable with connector is about 26 cm. Using a fan allows to significantly reduce the temperature of the module inside the enclosure.
€2.18
€1.77 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment

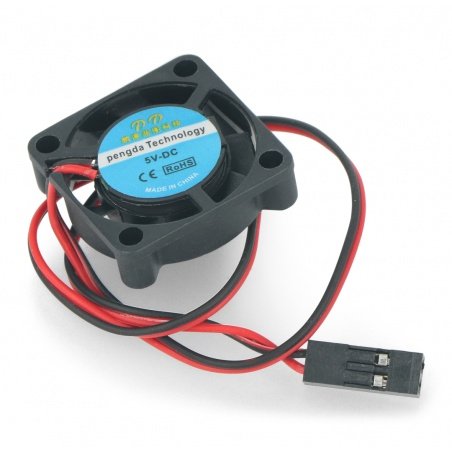

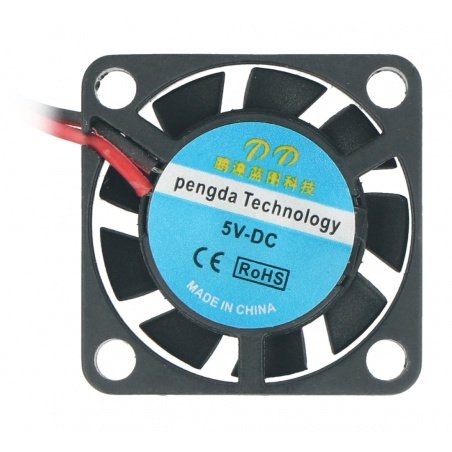

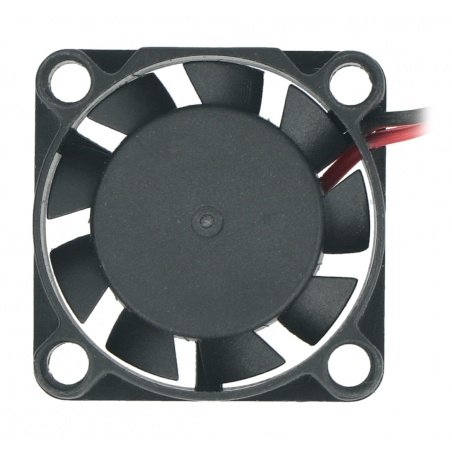

Product description: 5V 25 x 25 x 7mm fan for Raspberry Pi 4B - 2.54mm female connector

Fanpowered by5Vwith dimensions25 x 25 x 7 mm. It is designed to be mounted inMaticBoxenclosures together withRaspberry Pi 4B. It has twoleadsterminated with 2-pin BLS female connector. Length ofcablewith connector is about26 cm. Using fan allows to significantlyreducethe temperature of the module inside the casing. Screws and nuts are not included but can be purchased separately.

Wentylator 25x25x7mm do obudowy Raspberry Pi 4B - złącze żeńskie 2,54 mm

Fan 25 x 25 x 7mm for Raspberry Pi 4B enclosure - 2.54mm female connector.

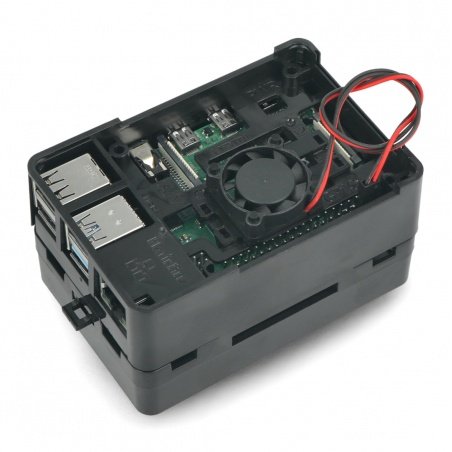

Wentylator 25x25x7mm do obudowy Raspberry Pi 4B - złącze żeńskie 2,54 mmFan connected toMaticBox enclosure. The enclosure andRaspberry Pi 4Bare not included, they can be purchased separately.

How to connect the fan to the MaticBox?

With a special overlay included in the set in housing MaticBox it is possible to mount a fan in a very simple and fast way. The overlay has 4 pins on which 25 x 25 mm fan mounting holes are placed. The MaticBox allows the installation of fans with a height from 5 mm to 10 mm. The overlay is placed in the housing with the help of snaps in the place visible on the attached picture.

How to choose the right fan for your electronics?
Find out more on our blog:

Fan specifications

  • Supply voltage: 5 V
  • Fan housing material: plastic
  • Fan housing color: black
  • Connector: 2-pin 2.54 mm female
  • Cable length: 260 mm (including connector)
  • Number of mounting holes: 4
  • Mounting holes diameter: 3 mm
  • Compatible withRaspberry Pi 4BandMaticBoxenclosures
  • CE certified and RoHS compliant
  • Fan dimensions: 25 x 25 x 7 mm

Wentylator 25x25x7mm do obudowy Raspberry Pi 4B - złącze żeńskie 2,54 mmFan with 2-pin female connector with 2.54 mm pitch.

Length 25 mm
Width 25 mm
Height 7 mm
Voltage to 5.0 V
Voltage from 5.0 V
