Product description: Raspberry Pi Zero W All in One kit
The kit consists of minicomputer Raspberry Pi Zero 2 Was well as enclosure and a suitable power supply 5,1 V / 2,5 A. There are also included miniHDMI-HDMI adapter, microUSB - USB adapter and goldpin strips for soldering into GPIO connector. You can also add a memory card of your choice to the kit.

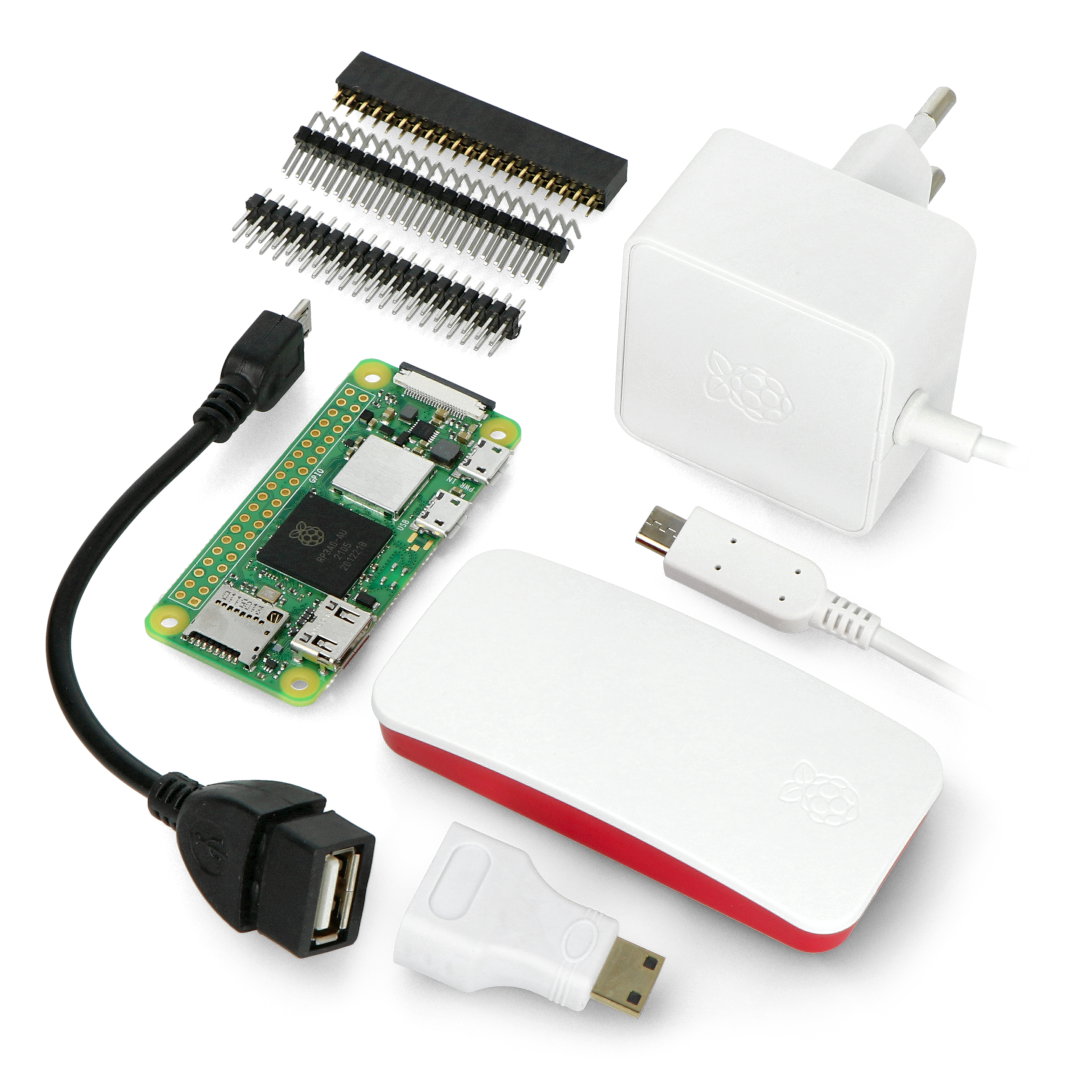

Raspberry Pi Zero All in One kit.
Kit contents
| L.p. | Picture | Name |
|---|---|---|
| 1 |  |
Raspberry Pi Zero 2 W - a miniature version of the popular minicomputer with Broadcom BCM2710A1 1 GHz quad-core processor and 512 MB RAM. The board features: WiFi, Bluetooth, miniHDMI port, microUSB OTG socket, 40 GPIOs and a microSD card slot. |
| 2 |  |
Case for Raspberry Pi Zero - gives access to both audio, video, microSD card power and GPIO connectors. It also comes with a mini adapter for connecting a camera. |
| 3 |  |
Raspberry Pi power supply - 5.1V with 2.5A current capacity with microUSB connector. |
| 4 |  |

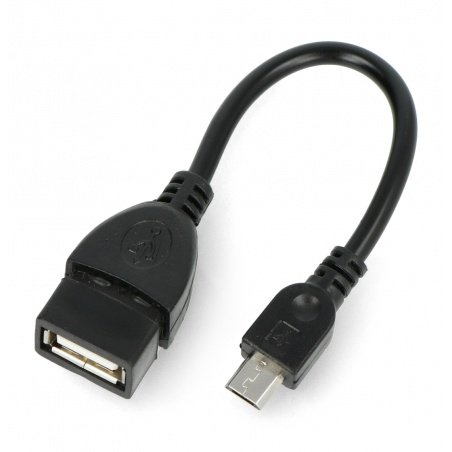

MicroUSB-USB adapter - allows you to connect USB devices to the mini-computer. |
| 5 |
|

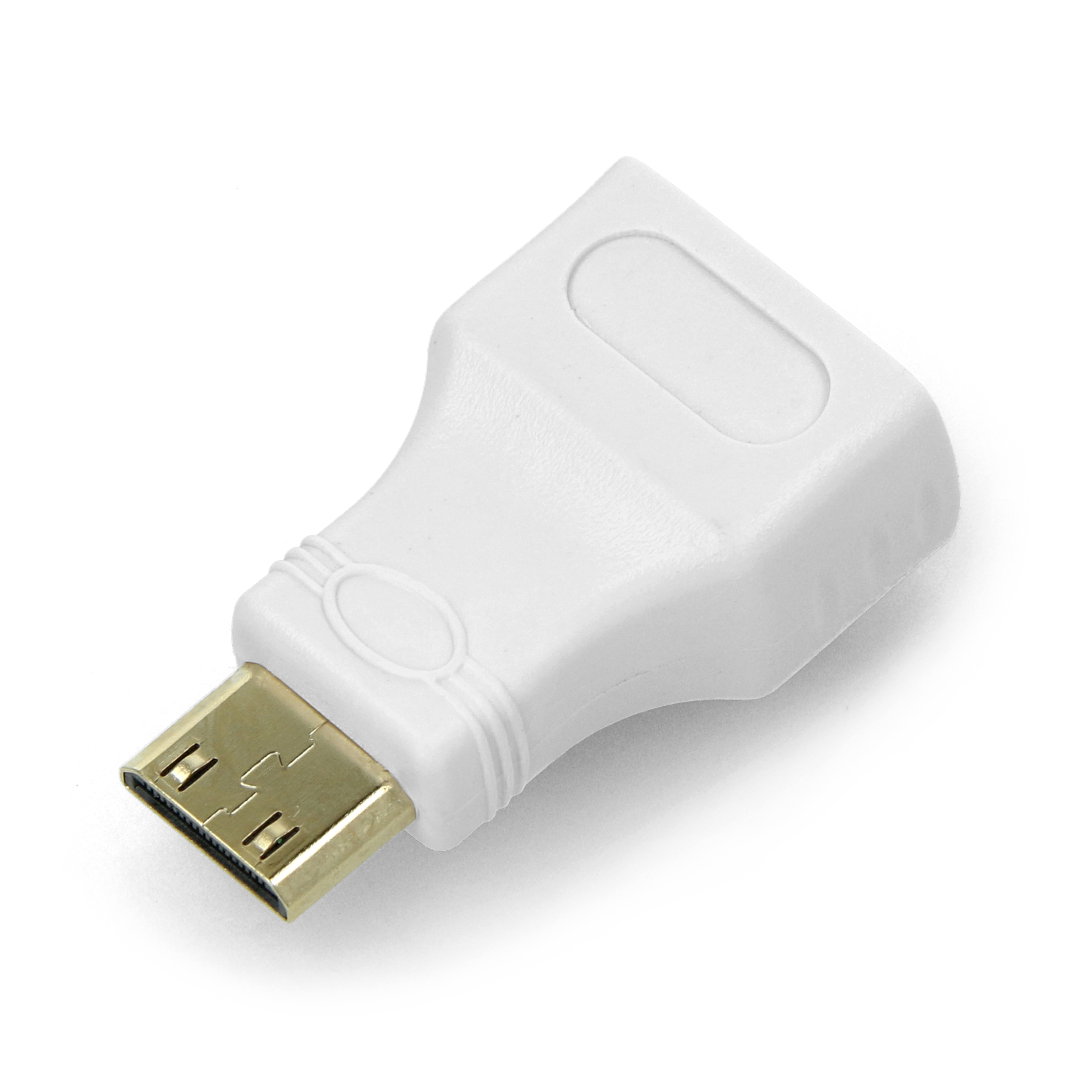

MiniHDMI-HDMI adapter - makes it easy to connect a monitor to the minicomputer. |
| 6 |
|
GPIO pin set - three strips for soldering Raspberry Pi GPIO ports on your own.
|
 |
MicroSD memory card with NOOBs system - additional option, by default kit is sent without card. To add a memory card to the set, please select the appropriate option under the product price. Capacity and class can be selected from the list. |

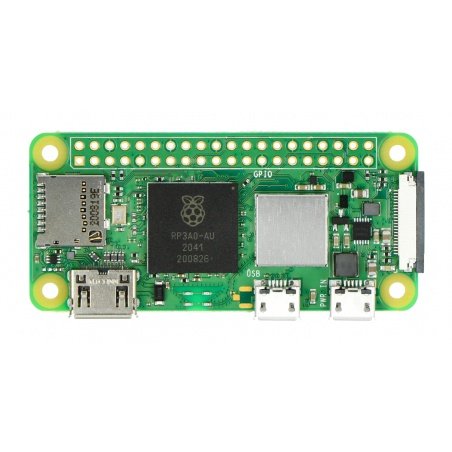

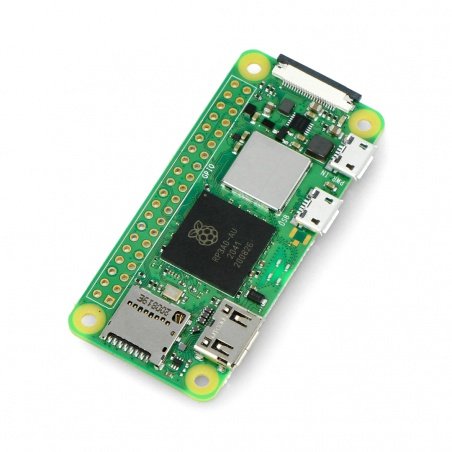

Raspberry Pi Zero 2 W minicomputer.

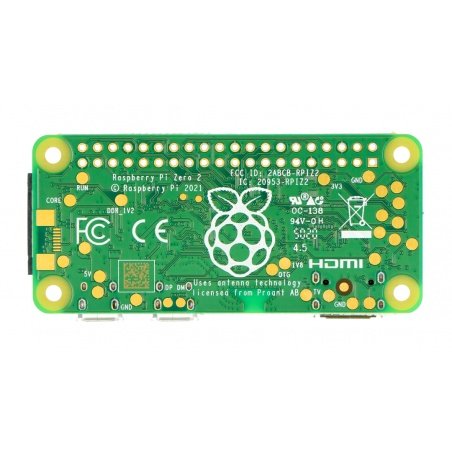

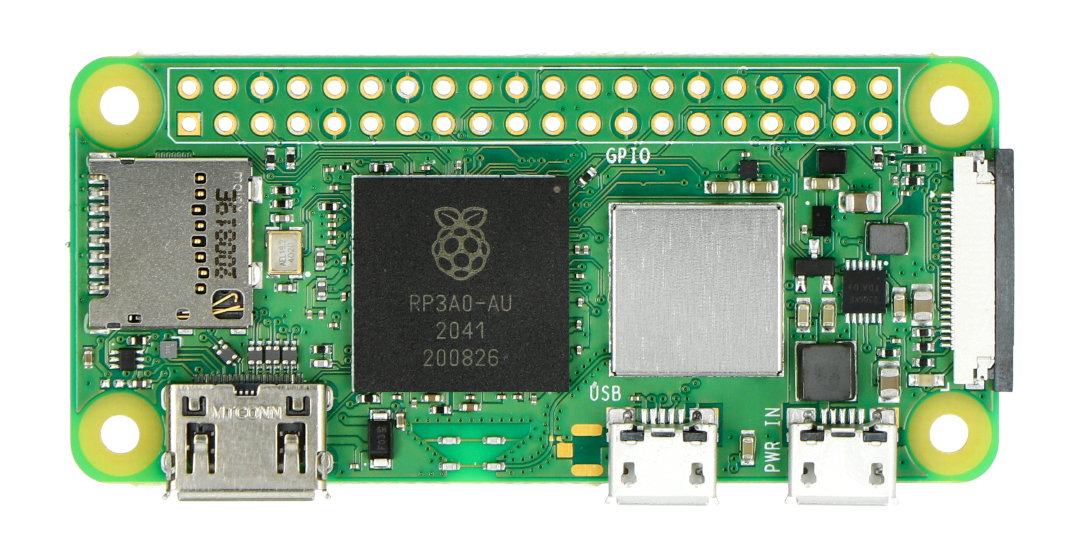

Raspberry Pi Zero 2 W
The popular Raspberry Pi minicomputer in a miniature version. The Zero 2 W is based on a Broadcom BCM2710A1 1 GHz quad-core processor and 512 MB of RAM. The board is equipped with: WiFi, Bluetooth BLE, miniHDMI port, microUSB OTG socket, 40 GPIO, microSD card connectors. The dimensions of the board are: 65 x 30 x 5 mm.
Raspberry Pi Zero 2 W is one of the smallest minicomputers available on the market. This version is equipped with quad-core processor known from 3B version.

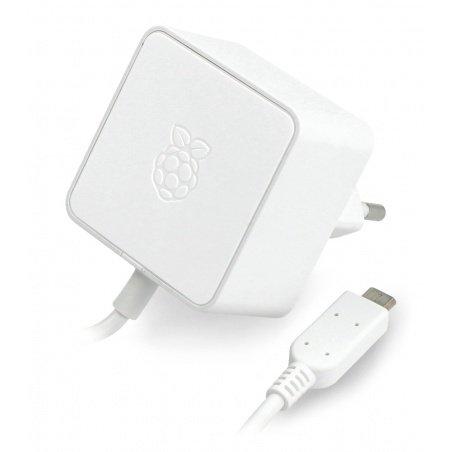

Powerful microUSB power supply
A dedicated 2.5A power supply is included, it guarantees proper operation of Raspberry Pi Zero 2 W minicomputer.
Operating system
Raspberry's drive is a microSD memory card. The operating system can be uploaded using a computer with a reader. The manufacturer has prepared an installer which makes uploading the system to the memory card much easier.
The set does not include a memory card, but you can add one of the fast and proven by us memory cards using the menu above the product description.

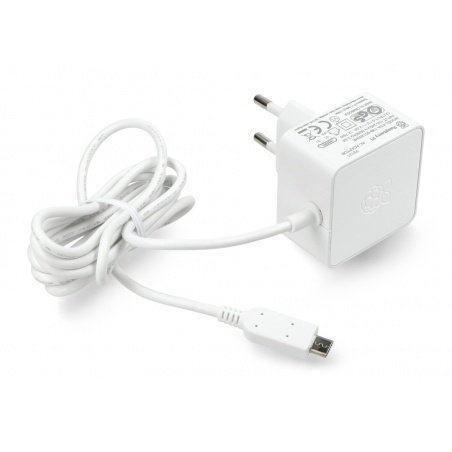

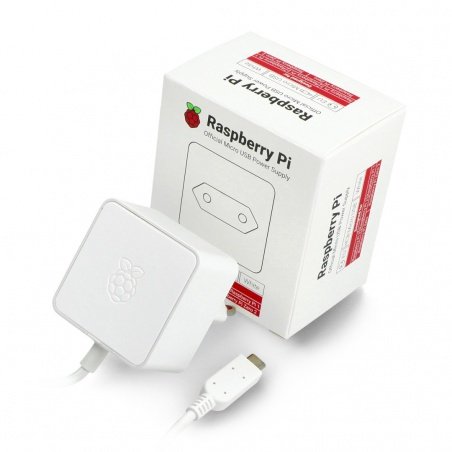

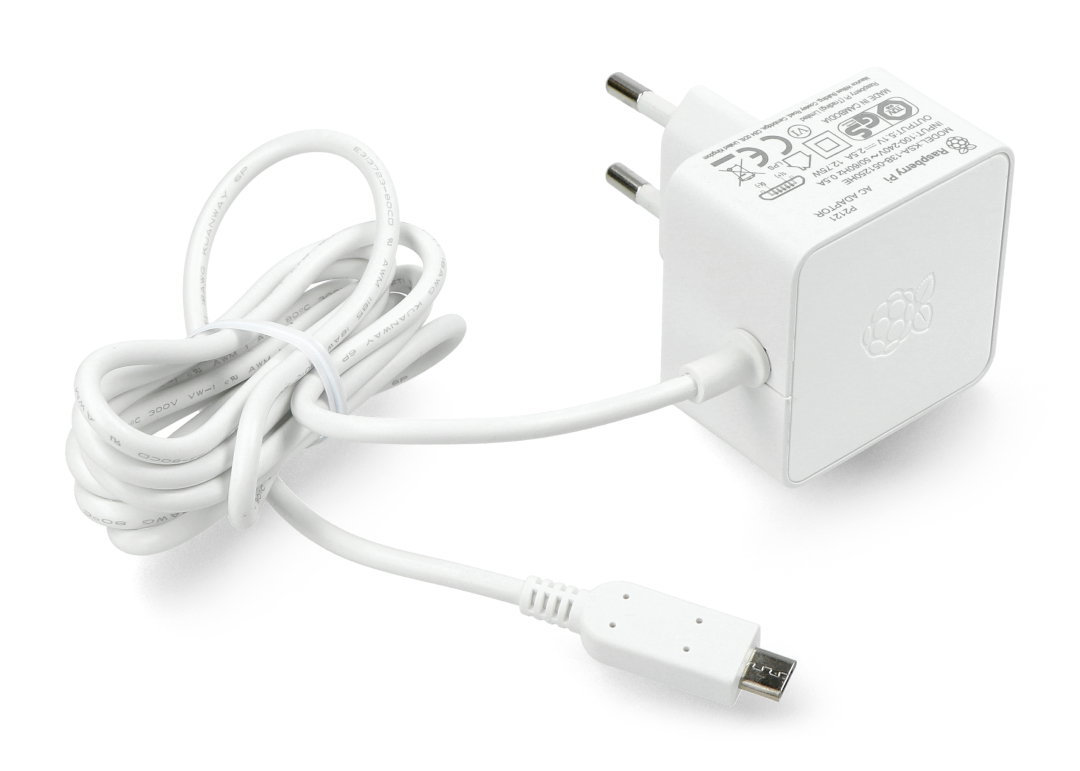

Efficient 5.1 V / 2.5 A power supply is included.
The set includes adapters miniHDMI - HDMI and microUSB - USB.
Adapters
Due to its small size, Raspberry's multimedia connectors had to be miniaturized, too. Taking into account that Raspberry Pi Zero W uses less popular miniHDMI and microUSB OTG connectors we also included appropriate adapters: miniHDMI - HDMI and microUSB - USB.
GPIO connectors
The smallest Raspberry Pi also does not have GPIO connectors soldered on. In our kit we offer three types to solder on yourself:
- 2x40 straight male socket
- 2x40 angled male socket
- straight female socket 2x40

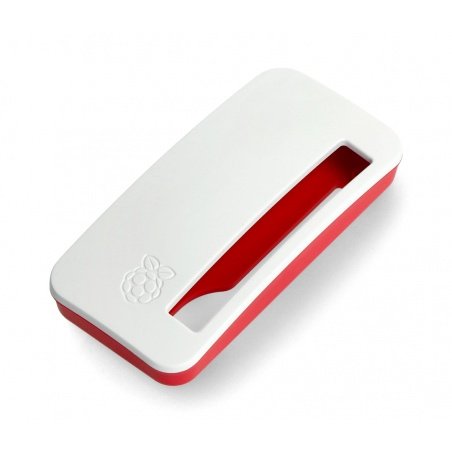

Multifunctional casing for Raspberry Pi Zero
Official case for Raspberry Pi Zero and Zero W version minicomputer with external dimensions 78 x 37 x 15 mm. Features configurable components, also includes anti-slip feet and camera adapter.

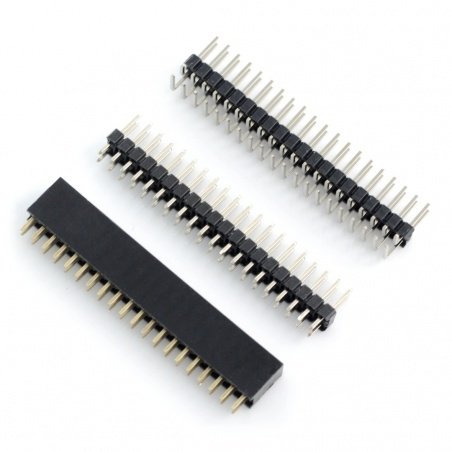

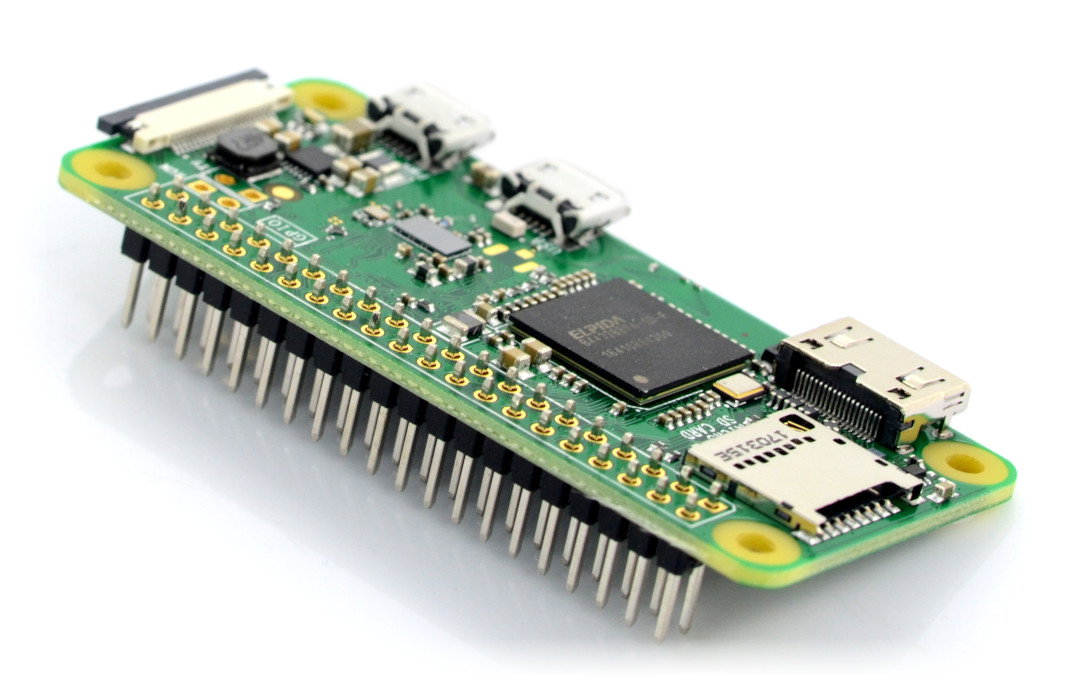

Goldpins for self-soldering. They make it easier to use Raspberry Pi Zero.
Raspberry Pi Zero specification and comparison
| Basic Information | |||
|---|---|---|---|
 |
 |
||
| Model | Raspberry Pi Zero W | Raspberry Pi Zero 2 W | |
| Technical Specification | |||
| Chip | Broadcom BCM2835 | Broadcom BCM2710A1 | |
| Processor | ARM11 Single-Core | ARM Cortex-A53 Quad-Core | |
| Operating Systems | Linux Raspberry Pi OS | ||
| Clocking | 1.0 GHz | 1.0 GHz (can be overclocked to 1.2 GHz) | |
| RAM | 512 MB DDR2 RAM @ 400 MHz PoP | 512 MB DDR2 wire-bond | |
| Memory | microSD card | ||
| GPIO socket | 40-pin connector (2x20 pin) 2.54 mm pitch for self-soldering |
||
| Power supply | 5 V / 1.2 A via microUSB |
5 V / 2,5 A via microUSB |
|
| Board dimensions | 65 x 30 x 5 mm | ||
| Interfaces | |||
| USB interface | microUSB OTG | ||
| Network interface | - | ||
| WiFi interface | 802.11 b/g/n 150 Mbps | ||
| Bluetooth | Low Energy, BLE 4.1 | Low Energy, BLE 4.2 | |
| Camera | CSI slot | ||
| Touch screen display | - | ||
| Video | miniHDMI H.264 1080p30 OpenGLES 1.1, 2.0 |
||
| Communications | UART, SPI, I2C, GPIO | ||
Advantages
- Includes a Raspberry Pi Zero 2 W, a powerful minicomputer with a Broadcom BCM2710A1 quad-core processor and 512 MB RAM.
- Comprehensive kit with essential accessories: case, power supply, miniHDMI
-HDMI adapter, microUSB-USB adapter, and GPIO pin set.
- Optional memory card can be added to the kit according to user preference.
- Compact size of the Raspberry Pi Zero 2 W (65 x 30 x 5 mm) makes it highly portable and versatile.
- Case provides access to all necessary ports and includes anti-slip feet and a camera adapter.
- Powerful dedicated power supply (5.1V / 2.5A) ensures proper operation of the minicomputer.
Disadvantages
- Some users might find the product too weak for high-demand applications.
- Requires additional steps like soldering GPIO connectors for full functionality.
