Product description: 3D printer - Creality Ender-5 Max
Ender-5 Max from Creality is an advanced 3D printer with capabilities similar to industrial devices, designed with demanding users in mind . Thanks to its rigid construction, 64-point automatic leveling, dual Z-axis drive and new epoxy resin platform, it offers the highest quality prints from the first layer . It is an ideal solution for serial production and prototyping large models in a single run. It supports a wide range of filaments , and thanks to WLAN remote management and support for multiple interface languages - it also works perfectly in multi-station environments such as print farms or design studios.

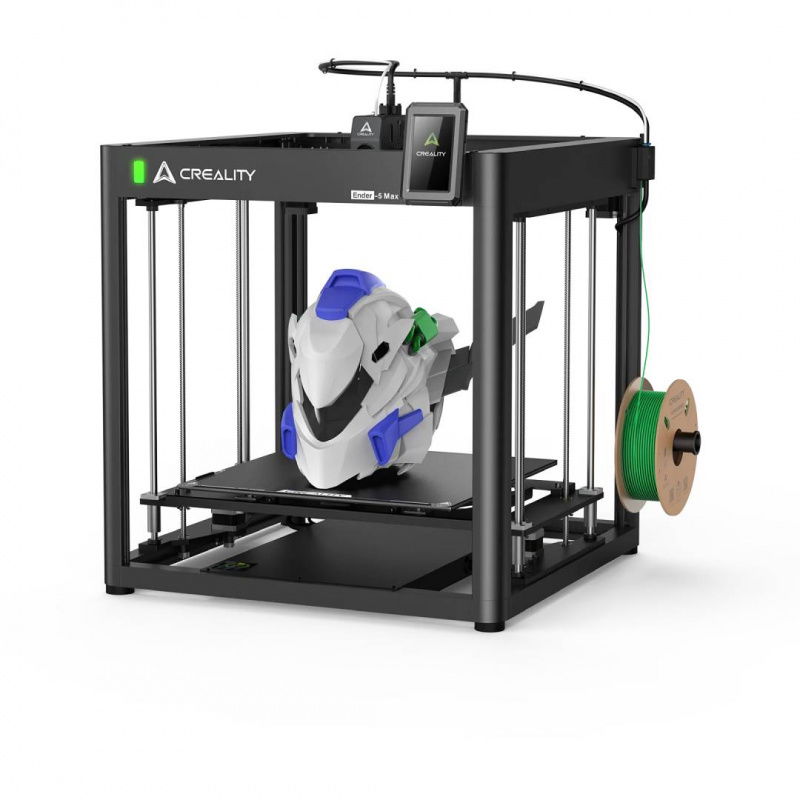

3D Printer - Creality Ender-5 Max.

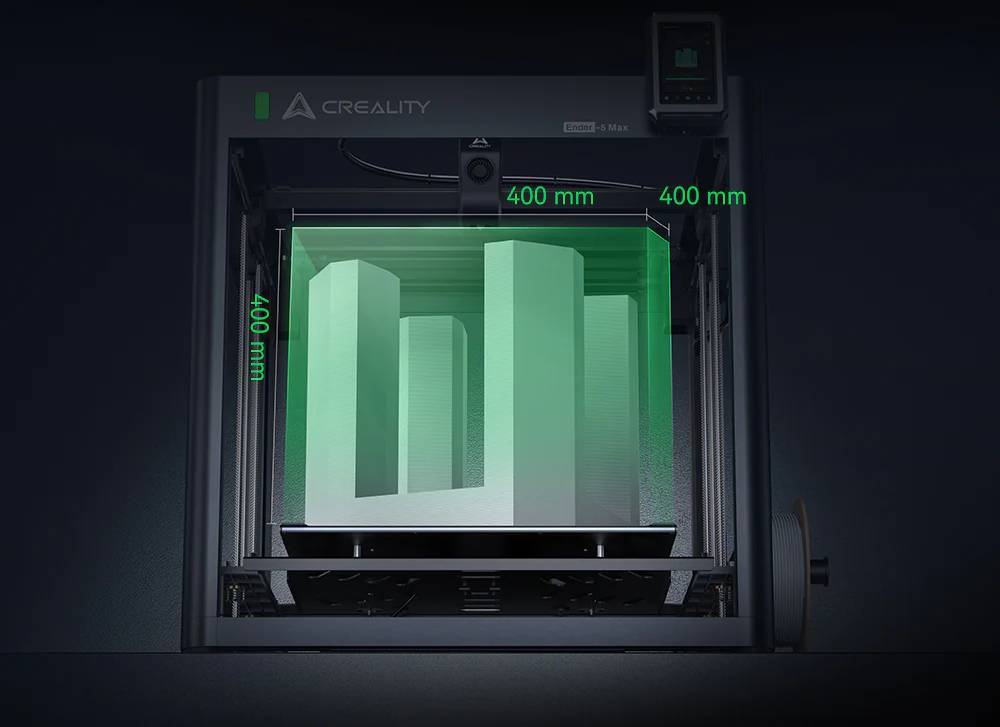

The build volume of the Ender-5 Max is as much as 400 x 400 x 400 mm.
Strong die-cast aluminum construction with linear guides
Ender-5 Max has been designed based on a solid construction of cast aluminum , which effectively dampens vibrations and guarantees the rigidity of the entire frame, even during dynamic work. The X-axis is based on a precise linear guide , ensuring even and smooth movement of the head. Combined with the CoreXY mechanics and efficient 42-76 stepper motors , the whole ensures excellent quality of detail reproduction and operational reliability, even at very high printing speeds.
Printing precision with dual Z-axis
The Ender-5 Max uses two independent Z motors with dual trapezoidal screws and linear guides, which allows it to effortlessly lift models weighing up to 5 kg . This advanced system eliminates the risk of layer shifts and visible defects on the model surface, making the printer an ideal tool for demanding projects.

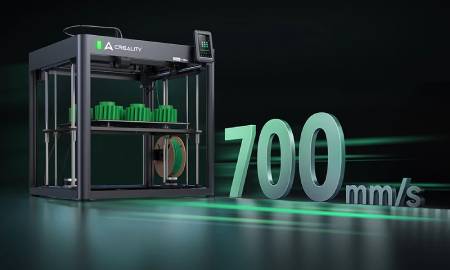

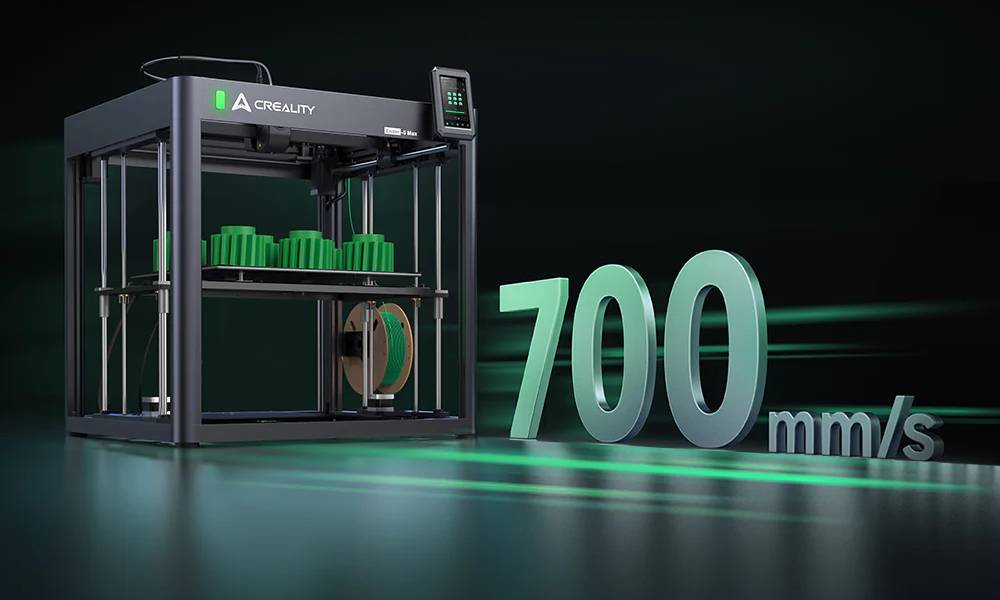

Speed without compromise up to 700 mm/s
The use of efficient engines, active Input Shaping and optimized mechanical design allows to achieve printing speeds of up to 700 mm/s and accelerations of 20,000 mm/s² . Ender-5 Max copes perfectly with rapid prototyping and serial production - without losing quality.
Modern work platform and fast heating
The printer has a flexible epoxy resin build platform that provides excellent adhesion even at lower temperatures - just 45°C for PLA . The aluminum substrate is heated by a 1000-watt heating element that reaches 100°C in just 200 seconds - that's three times faster than in typical FDM printers!
The indicator light next to the Creality logo on the printer frame is visible from up to 10 m away and provides accurate information about the device's status.
Advanced features for 24/7 printing
With an extruder with dual hardened gears , filament run-out detection, power loss recovery, and a quiet mode (below 55 dB), the Ender-5 Max is ready for continuous operation without downtime . All this makes it the ideal printer for print farms, small production companies, and advanced hobbyists.
Intelligent management and integration with the Creality ecosystem
Built-in WiFi, remote management via Creality Print and a three-color status indicator make it incredibly convenient to control your prints - even from a distance. Additionally, there are ready-made material profiles, an optional HD camera for previewing prints and the possibility of expanding with a housing for materials requiring a higher ambient temperature.
Other Features of the Creality Ender-5 Max Printer
- Active Input Shaping System : Reduces vibration and ghosting artifacts, improving print quality at high speeds
- Automatic filament loading and unloading : easy material replacement without the need for manual unloading
- Built-in silent mode : noise level ≤ 55 dB
- Support for over 40 types of filaments : including PLA, PETG, ABS, ASA, TPU95A, PLA-CF, PA, PLA-Silk
- Built-in 8GB ROM : allows you to store more files without having to constantly use external media
- LED backlight: allows you to monitor printing progress even in low light conditions
- Optional HD camera : allows you to monitor prints in real time and create time-lapses
- Three-color status indicator : allows you to quickly assess the device status even from a distance of up to 10 meters
- Dual thermal fuses on the heating table : additional protection for the user and components
- Built-in sleep mode : saves energy when the printer is not in use
Sample prints.
| Creality Ender-5 Max 3D Printer Technical Specifications | |
|---|---|
| Printing technology | Fused Deposition Modeling (FDM) |
| Work area | 400x400x400mm |
| Print speed | Up to 700 mm/s |
| Acceleration | Up to 20000 mm/s² |
| Printing accuracy | ±0.1mm |
| Layer height | From 0.05mm to 0.3mm |
| Filament diameter | 1.75mm |
| Nozzle diameter | 0.4mm (compatible with 0.6mm / 0.8mm) |
| Nozzle temperature | Up to 300°C |
| Table temperature | Up to 100°C |
| Extruder type | Direct Drive |
| Work platform | Epoxy resin, flexible |
| Leveling | Automatic 64 points |
| Screen | 4.3" touchscreen, color |
| Working mode | USB, Wi-Fi |
| File format | STL, OBJ, 3MF |
| File format for printing | G-code |
| Supported materials | Hyper PLA / PLA / PETG / TPU95A / ABS / ASA / PLA-CF / PA / PLA-Silk |
| Software | Creality Print 5.1 and later |
| Cloud Printing App | Creality Cloud |
| User interface languages | English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Japanese, Korean, Chinese |
| Rated power | 1250 W |
| Power supply | from 100 V to 240 V AC, 50 / 60 Hz |
| Rated power | 1250 W |
| Printer dimensions | 649 x 721 x 850mm |
| Mass | ≤ 25.9 kg |
