Product description: 3D printer - Elegoo Centauri Carbon
Centauri Carbon is Elegoo 's flagship 3D printer , designed for advanced users and professional projects. It offers a build volume of 256 x 256 x 256 mm , providing enough space for medium-sized projects. With a steel nozzle with a maximum temperature of 320 ° C and a fully enclosed chamber , it allows printing from carbon or glass reinforced materials. The advanced CoreXY system, high speed up to 500 mm / s and automatic calibration ensure that each layer is printed with maximum precision. The cast aluminum construction ensures stability even at high printing speeds.

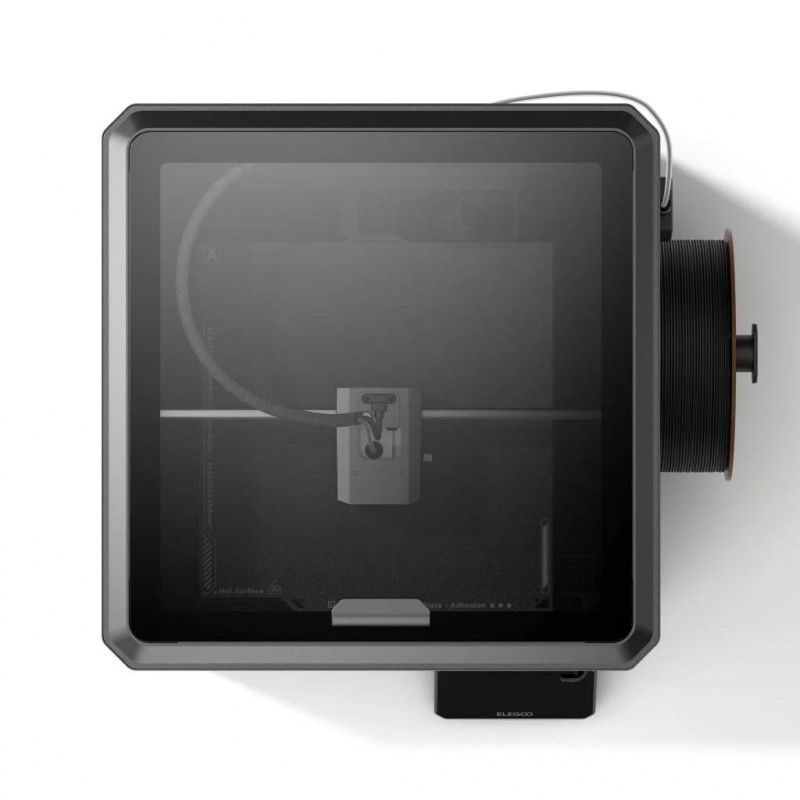

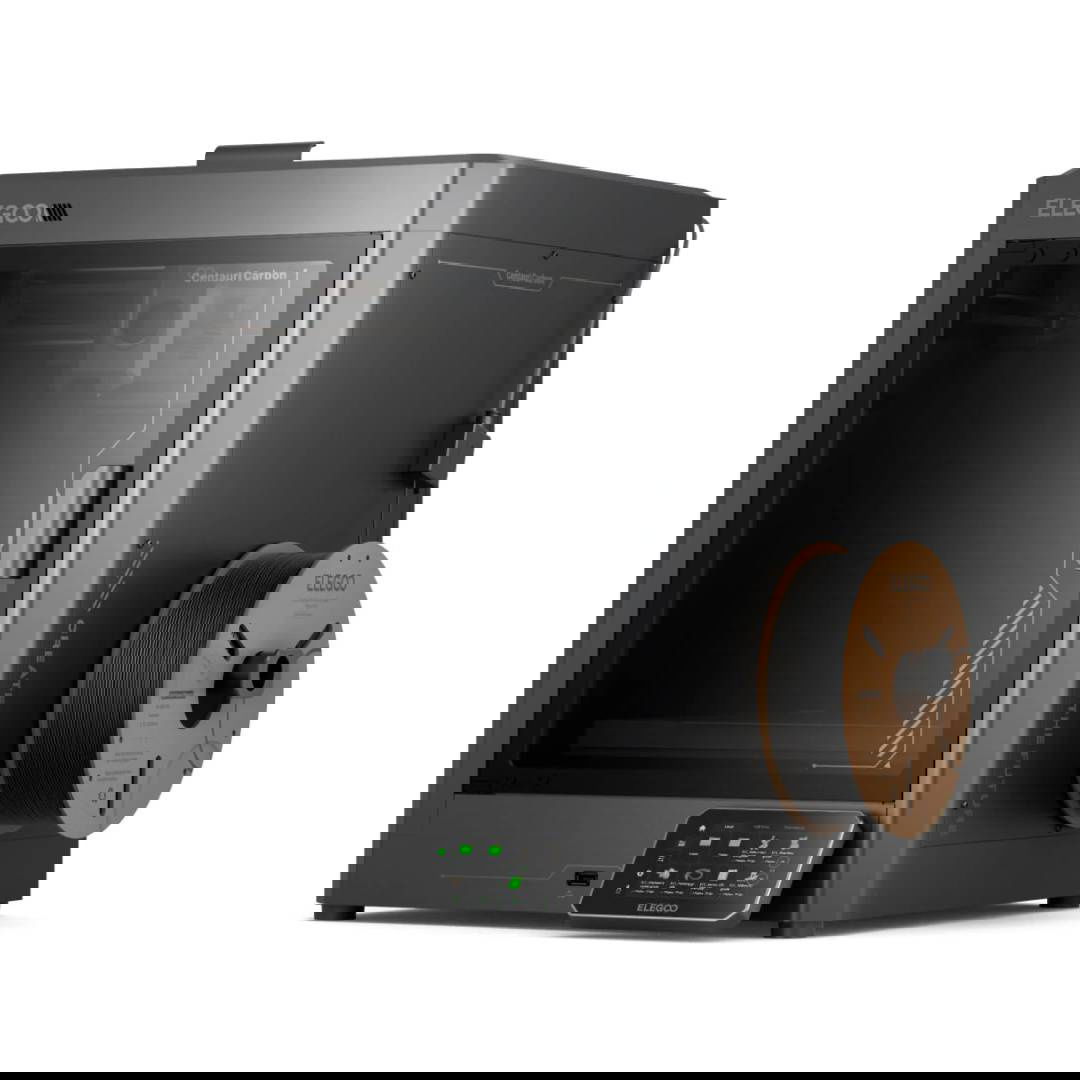

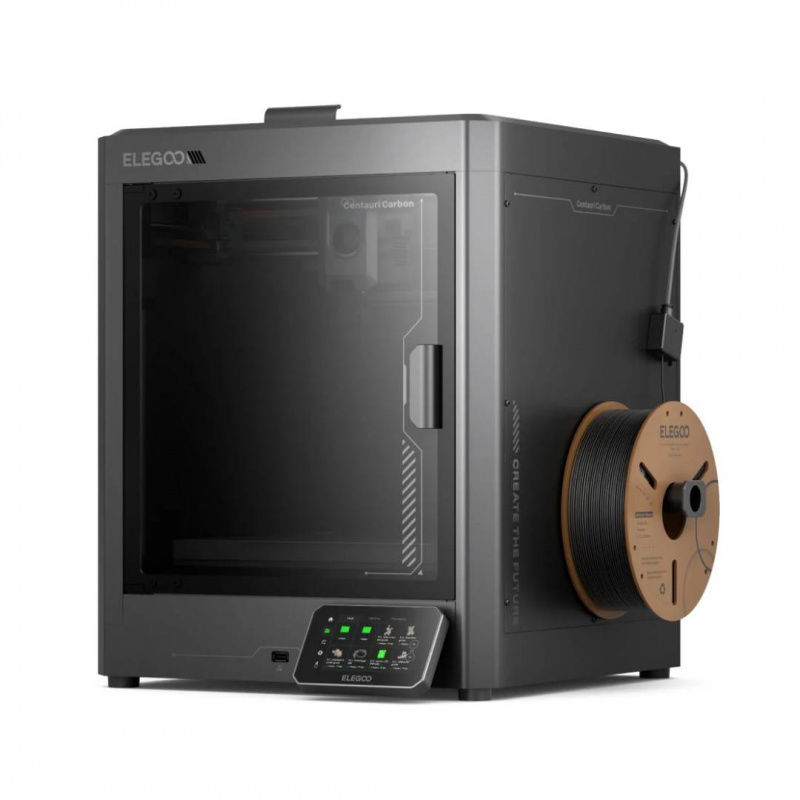

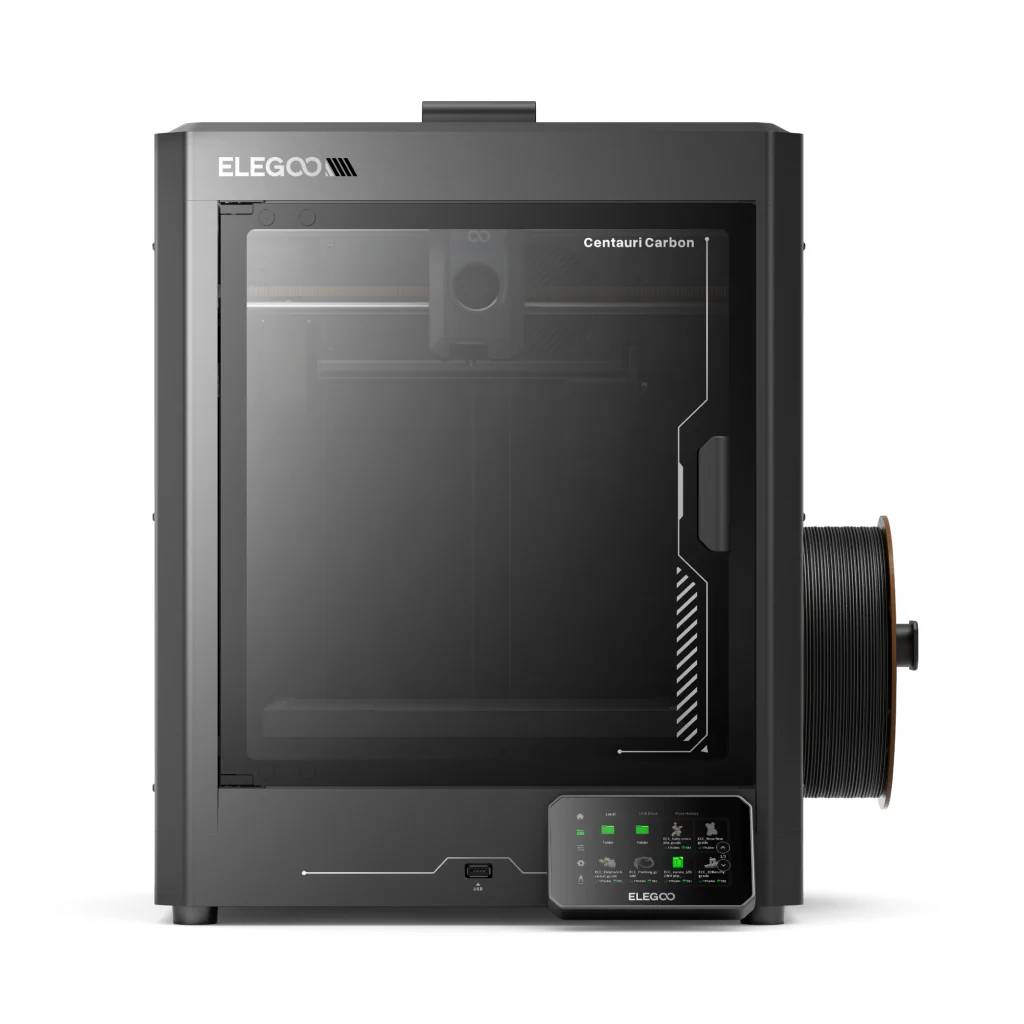

3D Printer - Elegoo Centauri Carbon.

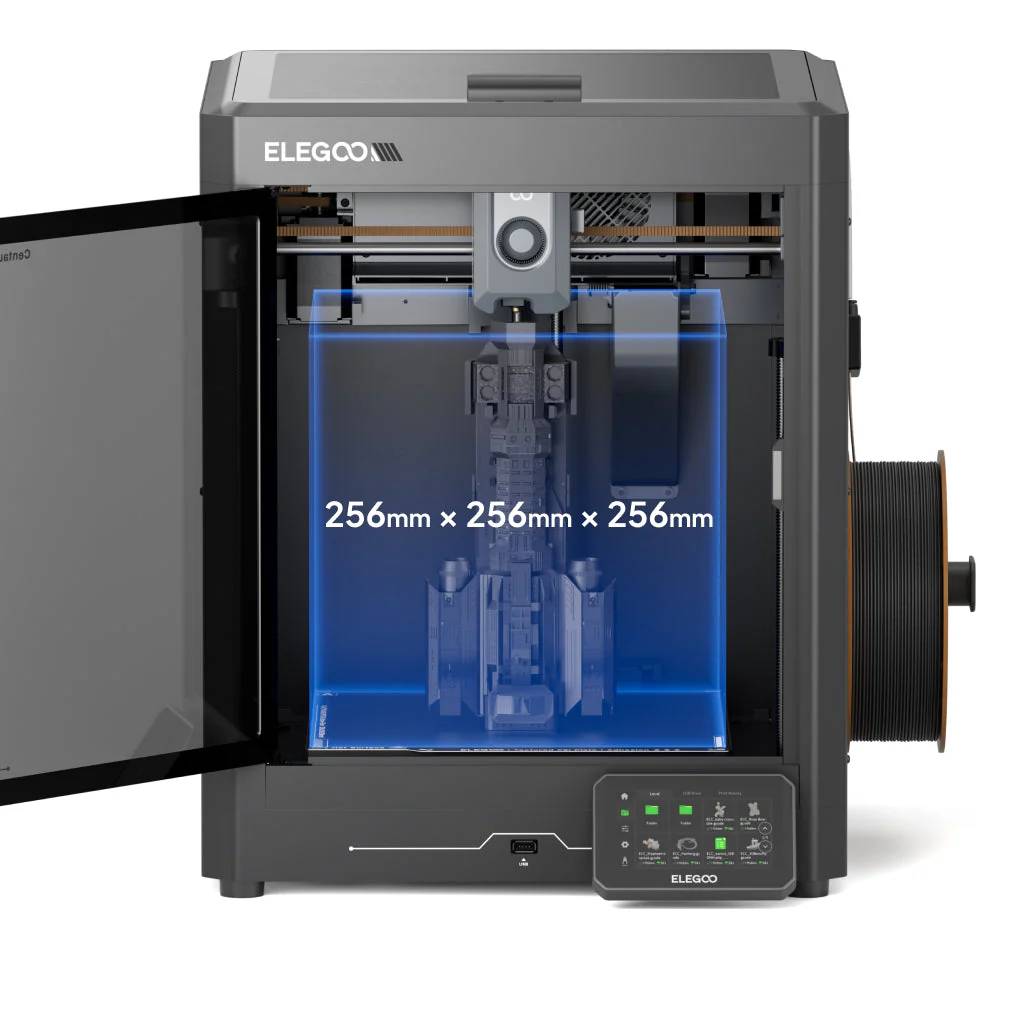

The build volume of 256 x 256 x 256 mm is perfect for small and medium-sized prints.
Speed and precision of printing with the CoreXY system
The Centauri Carbon printer uses the advanced CoreXY motion system, which allows for printing speeds of up to 500 mm/s and accelerations of up to 20,000 mm/s² . This motion system not only provides exceptional speed, but also precision and repeatability in every print. With 32 mm³/s of material flow , the printer is able to create even very complex designs in a short time, making it an ideal tool for both rapid prototypes and large production runs.
Advanced Filament Compatibility
Centauri Carbon is designed for advanced materials, including carbon and glass fiber reinforced filaments . The printer is equipped with a nozzle that can operate at temperatures up to 320°C , allowing you to print with materials such as carbon fiber, PLA , PETG , ABS , ASA , TPU , PC, and PA . The build chamber is fully enclosed , ensuring temperature stability and enabling safe printing with more difficult materials.
Automatic calibration and ease of use
Centauri Carbon is practically ready to work right out of the box thanks to automatic calibration , which ensures perfect leveling of the print bed. This system minimizes the need for manual adjustments, so you can focus on the printing process itself. The 4.3'' touchscreen and intuitive software allow for easy operation of the printer, even for people who who are just starting their adventure with 3D printing.
Real-time control
The built-in camera in the build chamber allows you to monitor the printing process in real time. The camera allows you to quickly adjust settings and minimize material loss. The time-lapse function makes it possible to document the entire printing process and share it with others, which is an attractive feature for both professionals and 3D printing enthusiasts.

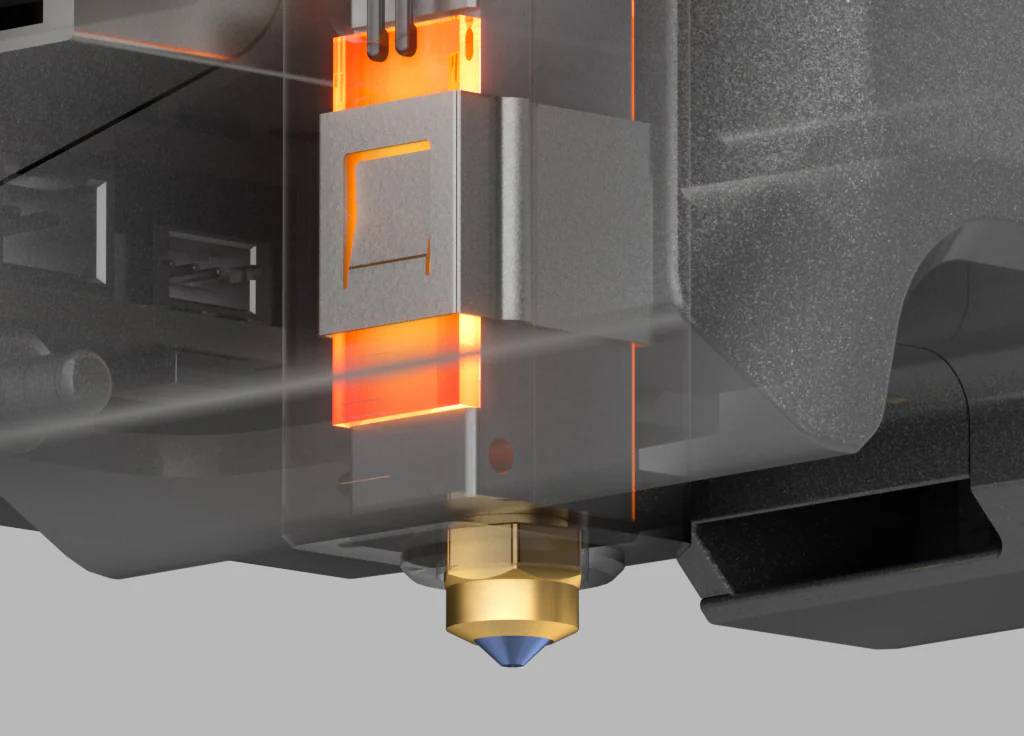

The hardened steel nozzle provides an operating temperature of up to 320°C.

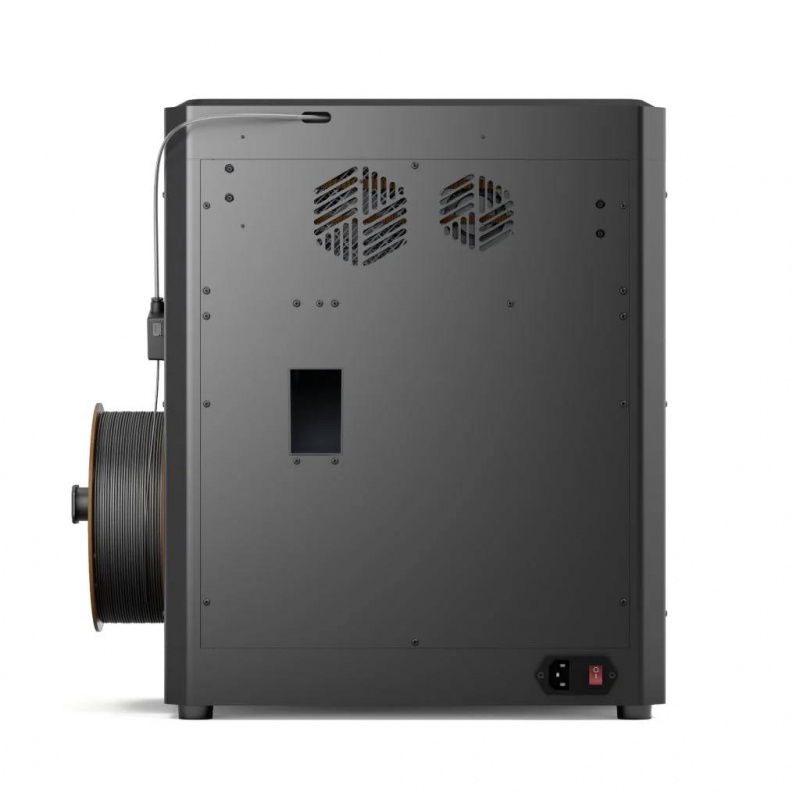

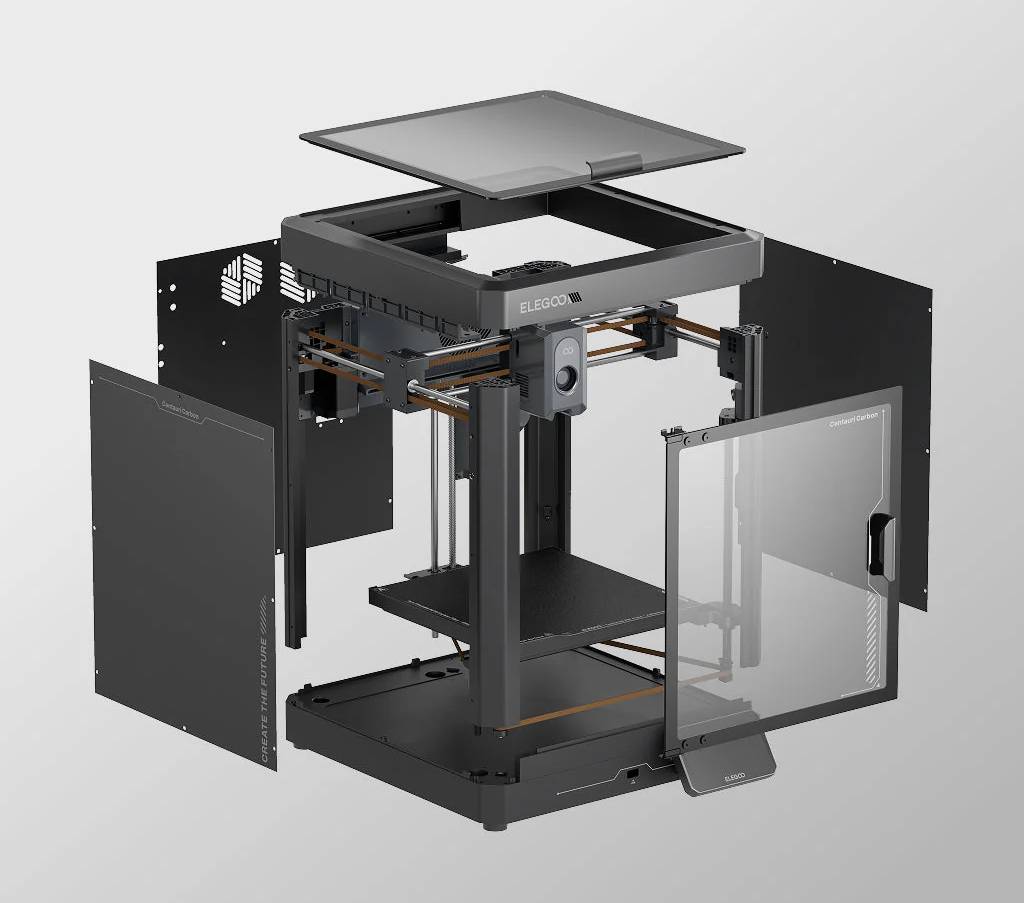

The printer's die-cast aluminum construction provides excellent stability and reduces vibration.
Optimal ventilation and cooling
Centauri Carbon has an advanced cooling system that includes additional fans to cool parts and regulate chamber temperature . This solution allows to maintain optimal working conditions, which translates into excellent print quality. Additionally, the Nano mineral filter effectively neutralizes unpleasant odors and eliminates harmful particles, providing a healthier and safer user environment.
Solid construction and additional features
The printer features a solid die-cast aluminum construction , which provides stability and reduces vibrations, even at high printing speeds. Thanks to the transparent door and chamber cover, you have full control over the printing process. Additionally, features such as a self-cleaning nozzle wiper and a durable filament holder provide convenience and efficiency, eliminating many potential problems during printing.
Other printer features
- Self-checking fans : real-time monitoring of fan operation to ensure proper operation
- Automatic Filament Retraction : Automatic filament retraction function in case of material shortage or printing interruption
- Filament Out Sensor : Detects filament outage to avoid errors in the printing process and allow it to continue
- Semi-automatic belt tension : a feature that allows easy adjustment of belt tension, helping to maintain optimal print quality
- Fast WiFi connection (dual-band) : enables convenient data transfer and remote printer control
- OTA firmware update system : remote printer firmware update function

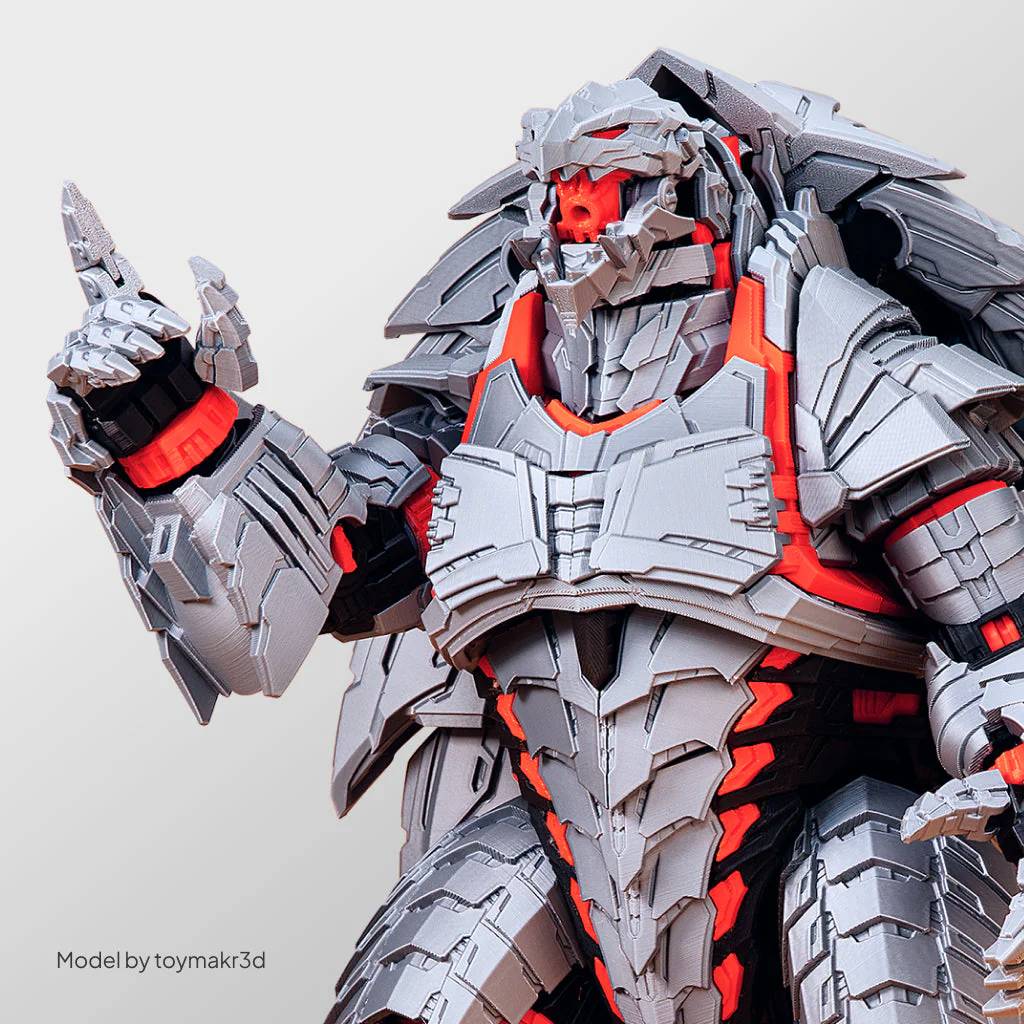

Sample printout.

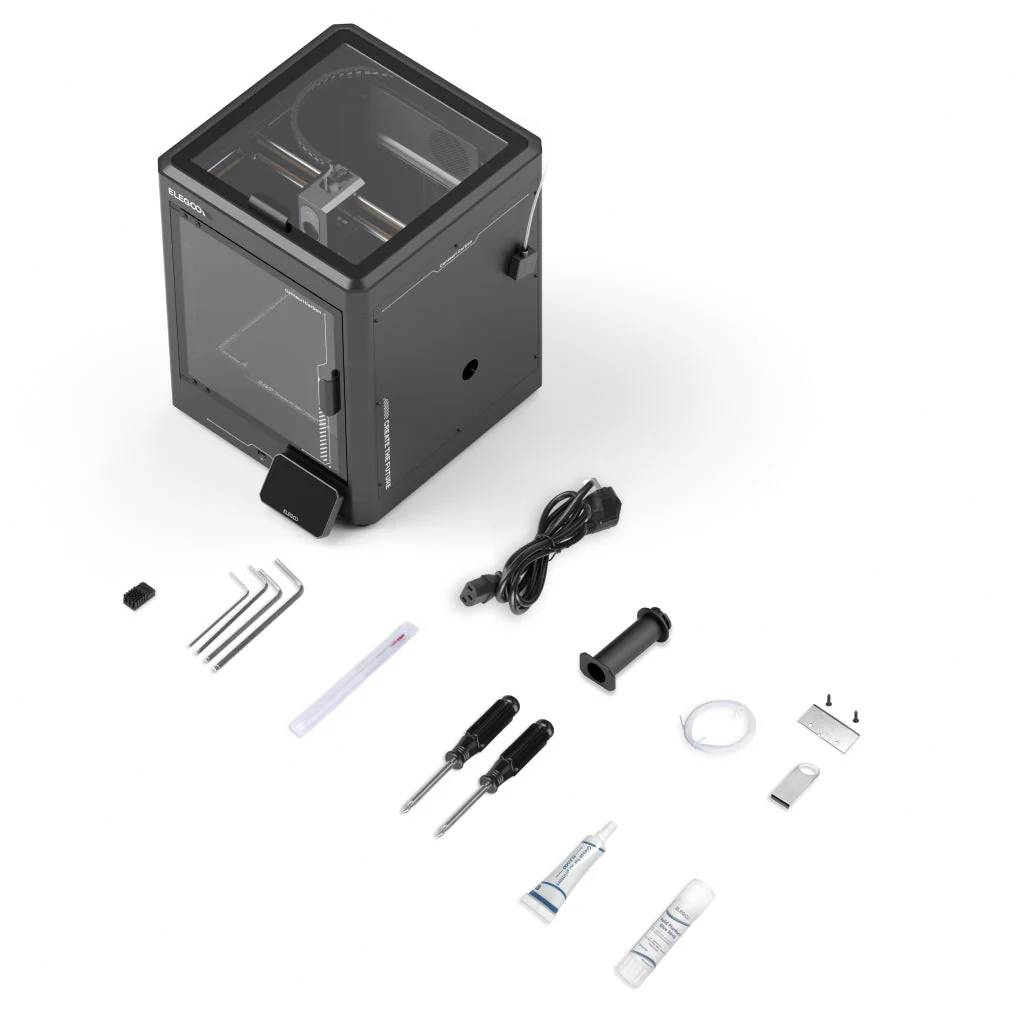

Items included in the set.
Kit Contents
- Elegoo Centauri Carbon Printer
- Filament holder
- Touch screen
- Charger
- Filament sample
- Allen key
- Screwdriver
- Nozzle cleaner
- Nozzle cleaning tool
- Spare nozzle wiper
- Knife
- Mounting screws
- USB flash drive
| Elegoo Centauri 3D Printer Technical Specifications and Comparison | ||
|---|---|---|
| Model | Centauri Carbon | Centauri |
| Printing method | FDM | FDM |
| Print size | 256x256x256mm | 256x256x256mm |
| Nozzle temperature | up to 320°C | up to 320°C |
| Table temperature | up to 110°C | up to 100°C |
| Nozzle diameter | 0.4mm (optional 0.2mm / 0.6mm / 0.8mm / 1mm) | 0.4mm (optional 0.2mm / 0.6mm / 0.8mm / 1mm) |
| Head acceleration | 20,000 mm/s² | 20,000 mm/s² |
| Print speed | up to 500 mm/s | up to 500 mm/s |
| Material flow | 32 mm³/s | 32 mm³/s |
| Printing accuracy | ±0.1mm | ±0.1mm |
| Layer thickness | from 0.1 mm to 0.4 mm (0.2 mm recommended) | from 0.1 mm to 0.4 mm (0.2 mm recommended) |
| Leveling the table | Automatic | Automatic |
| Supported filament | filaments reinforced with carbon/glass fiber, PLA, PETG, ABS, ASA, TPU, PET, PC, PA | PLA, PETG, TPU, ABS, ASA |
| Filament diameter | 1.75mm | 1.75mm |
| Chamber View Camera | Yes | NO |
| Filament Out Sensor | Yes | Yes |
| Resuming printing after a power loss | Yes | Yes |
| Extruder | hardened steel extruder (direct) | hardened steel extruder (direct) |
| Hotend | all metal | all metal |
| Work surface | double sided textured PEI | double sided textured PEI |
| Filament cutter | Yes | Yes |
| Display | 4.3'' color touch screen | 4.3'' color touch screen |
| Case | closed | open |
| Design | aluminum casting | aluminum casting |
| Fans | hotend, part cooling, additional cooling, chamber temperature control fan | hotend, part cooling |
| Air filter | activated carbon (nano-mineral) | lack |
| Software | Elegoo Slicer (recommended), Orca, Cura | Elegoo Slicer (recommended), Orca, Cura |
| Working mode | USB, Wi-Fi | USB, Wi-Fi |
| File format | STL, OBJ, 3MF, STP | STL, OBJ, 3MF, STP |
| Output format | G-code | G-code |
| Supply voltage | from 100 V to 240 V AC, 50/60 Hz | from 100 V to 240 V AC, 50/60 Hz |
| Maximum power | 1100W @ 220V, 350W @ 110V | 1100W @ 220V, 350W @ 110V |
| Interface language | English, French, German, Russian, Italian, Spanish, Japanese, Chinese | English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
| Dimensions | 398 x 404 x 490mm | 398 x 404 x 490mm |
| Mass | 17.5 kg | 14kg |
