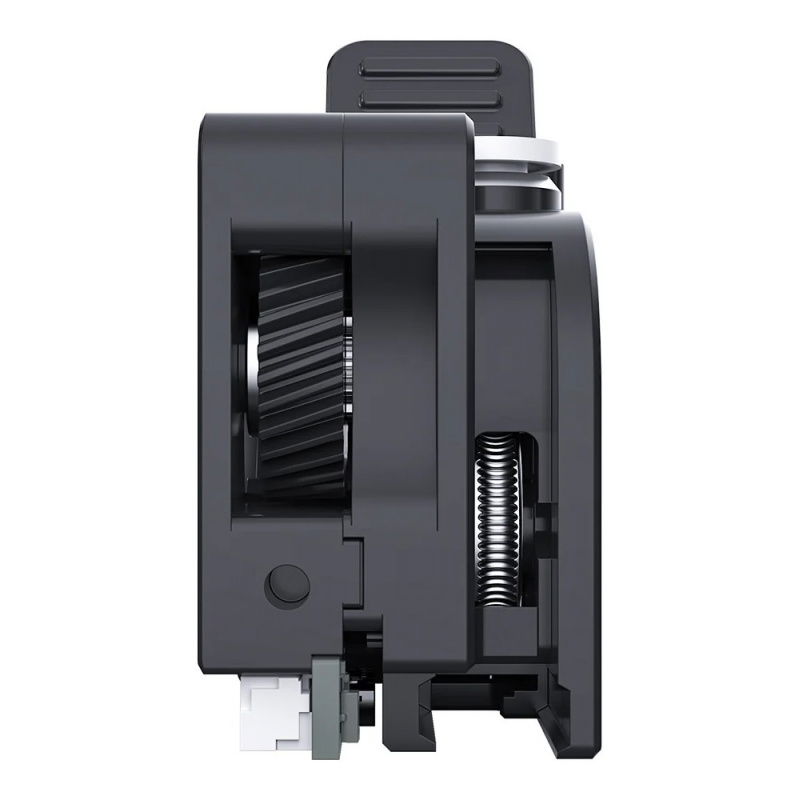

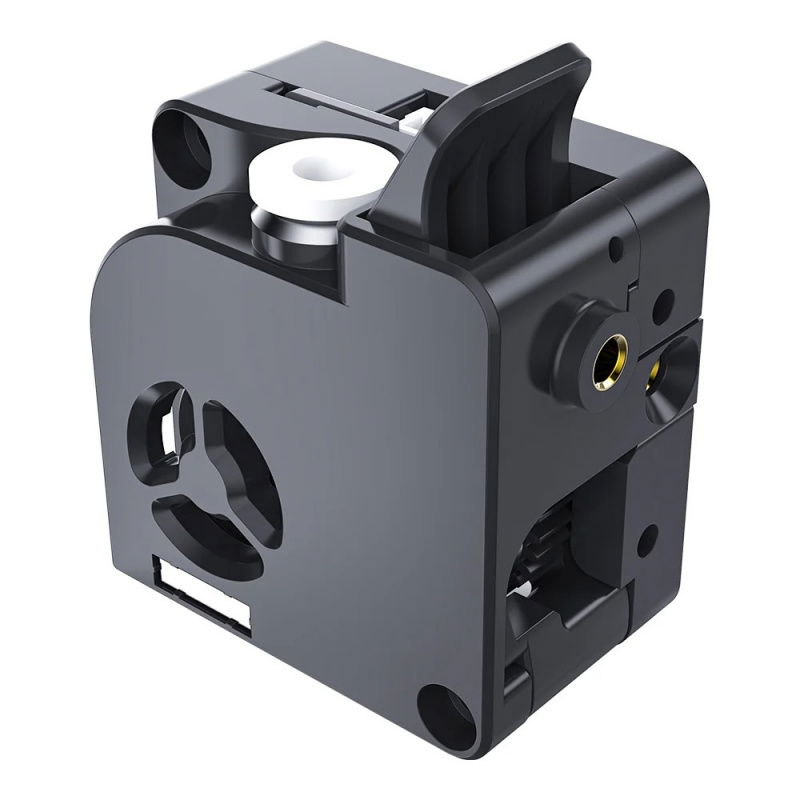

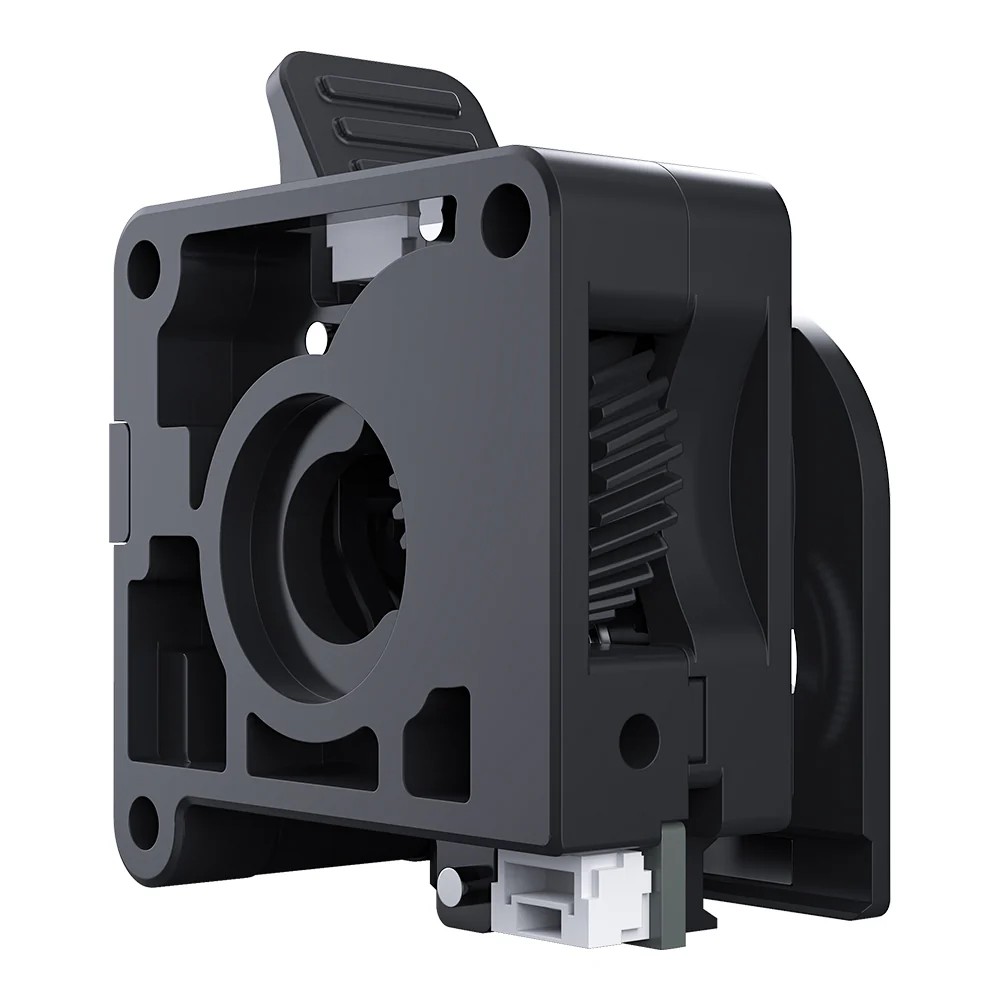

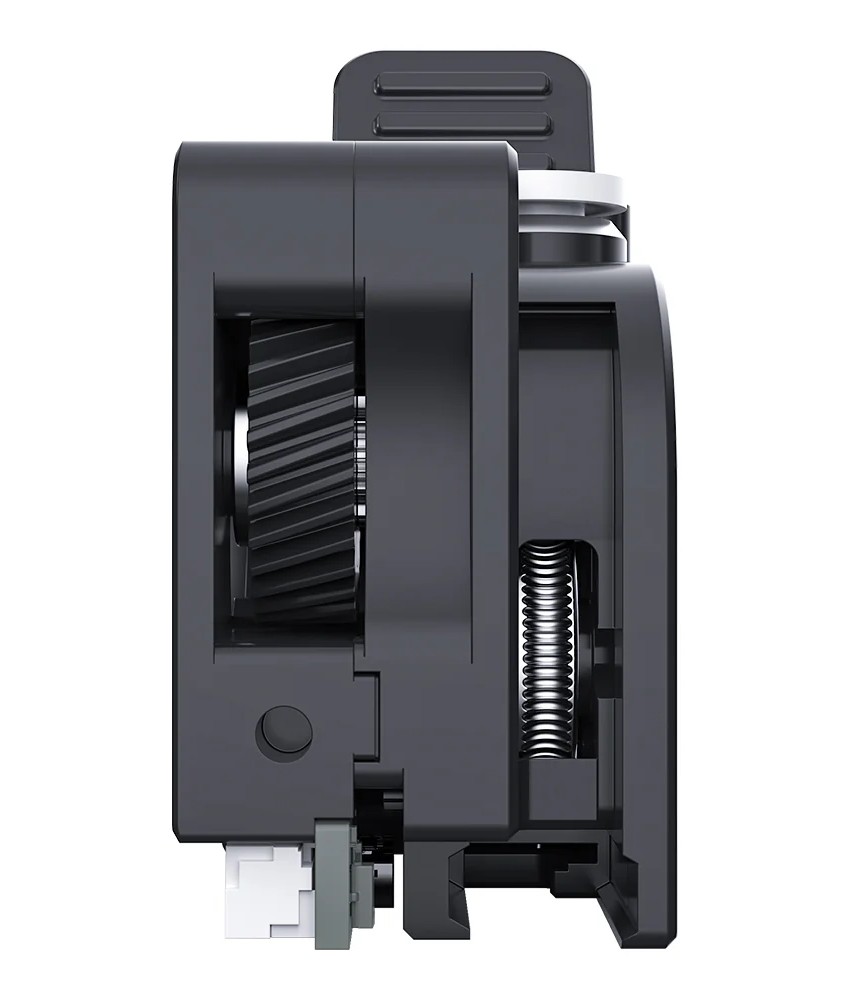

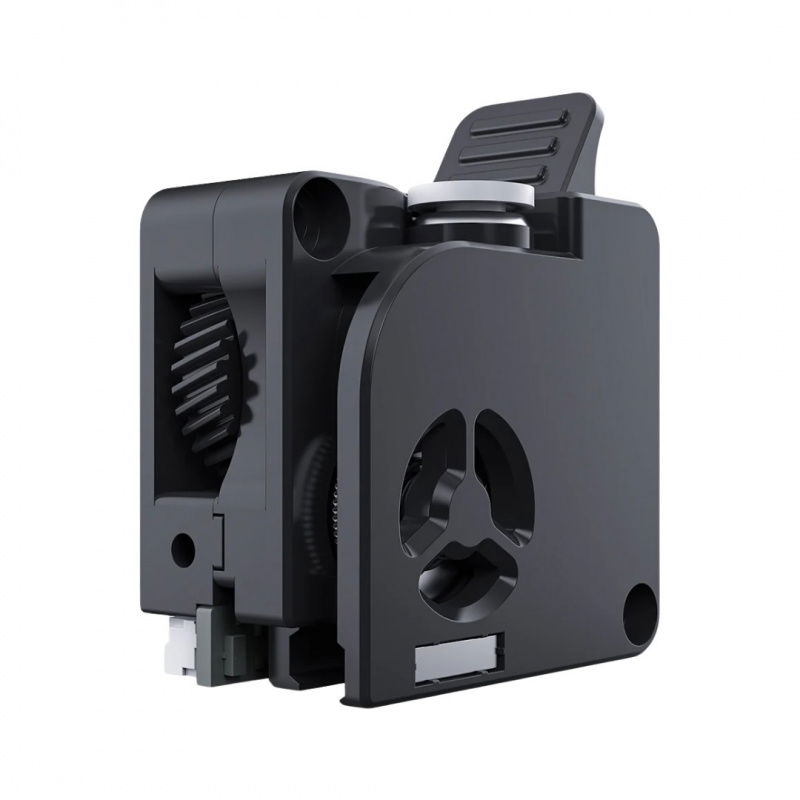

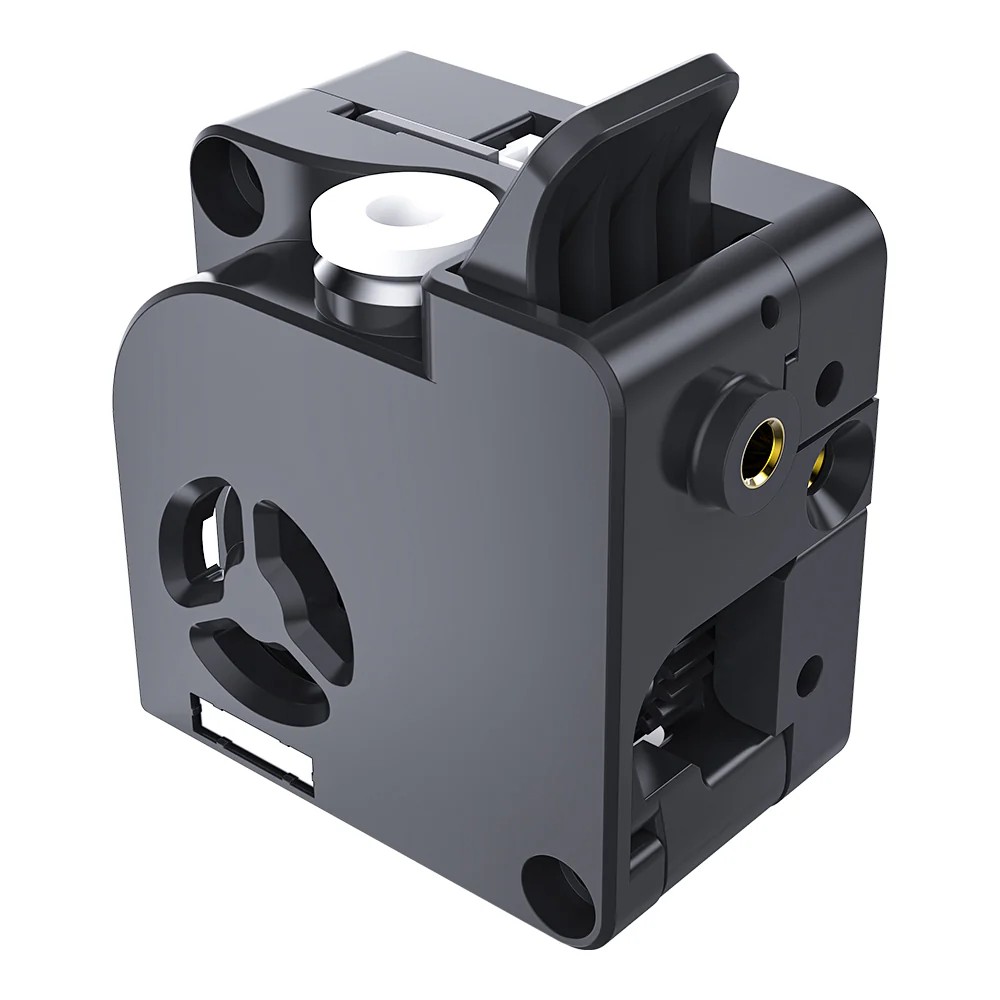

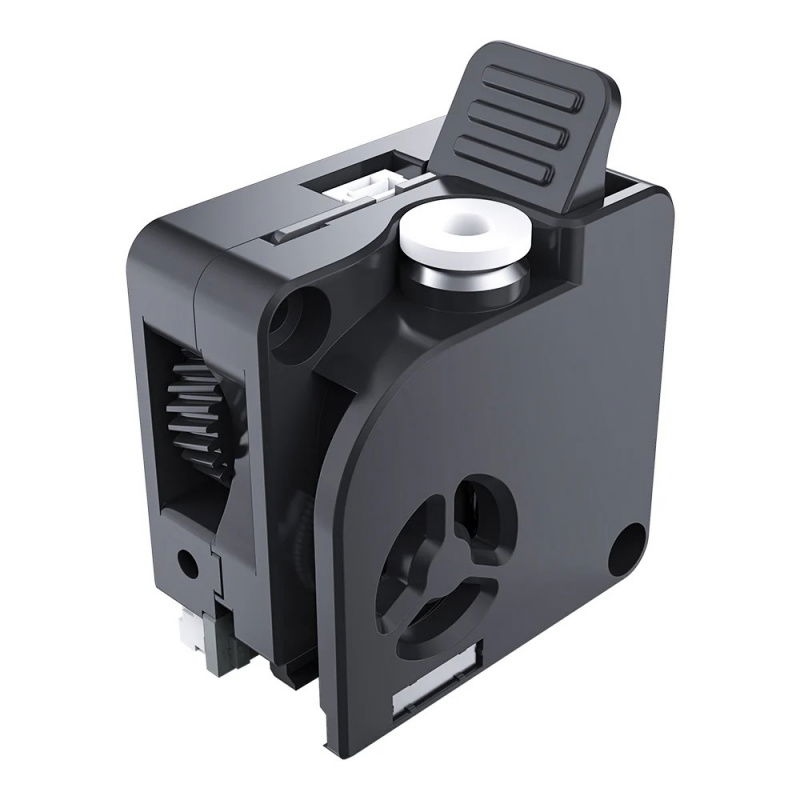

Product description: Direct Drive extruder for Creality K2 Plus, K2, K2 Pro 3D printers
This modern extruder , compatible with Creality K2, K2 Plus, and K2 Pro 3D printers, combines compact design with high power and precision. Thanks to its optimized design and 6.25:1 gear ratio , the extruder offers a filament ejection force of up to 80 N. Dual gears ensure stable material feeding, and a built-in filament end sensor prevents printing errors. This is an excellent choice for anyone who expects the highest level of reliability and quality. This product is a genuine Creality spare part.
We also offer other parts for Creality 3D printers - check them out!
Direct Drive extruder for Creality K2 Plus, K2, K2 Pro 3D printers.
High torque extruder up to 80 N, equipped with a 6.25:1 gearbox, double gears and a built-in filament sensor.
Main features of the extruder
- High ejection force - up to 80 N : ensures effective feeding even of flexible filaments
- 6.25:1 gear ratio : enables precise and smooth control of filament movement
- Double gears : increase traction and eliminate material slippage
- Built-in filament sensor : automatically detects filament breaks or ends
- High compatibility : perfect for Creality K2 / K2 Plus / K2 Pro models
Practical applications
This extruder was designed for Creality K2 series 3D printer users who need a robust and accurate filament feeding system . It works well with both classic materials like PLA and PETG , as well as more demanding materials like TPU and nylon . Thanks to its high feeding force and advanced design , the extruder increases print reliability and enables higher speeds without sacrificing quality.
Technical specifications of the extruder
- Compatibility: Creality K2 / K2 Plus / K2 Pro 3D printers
- Extruder type: direct drive
- Drive system: 6.25:1 gear ratio
- Maximum ejection force: up to 80 N
- Filament feeding system: double gears
- Built-in filament end sensor: yes
- Compatible filament diameter: 1.75 mm
- Dimensions: 47 x 40 x 23.5 mm
Contents of the set
- 1x Extruder for Creality K2 / K2 Plus / K2 Pro printers
The extruder eliminates the problem of jams and guarantees even material flow, even at high printing speeds.
