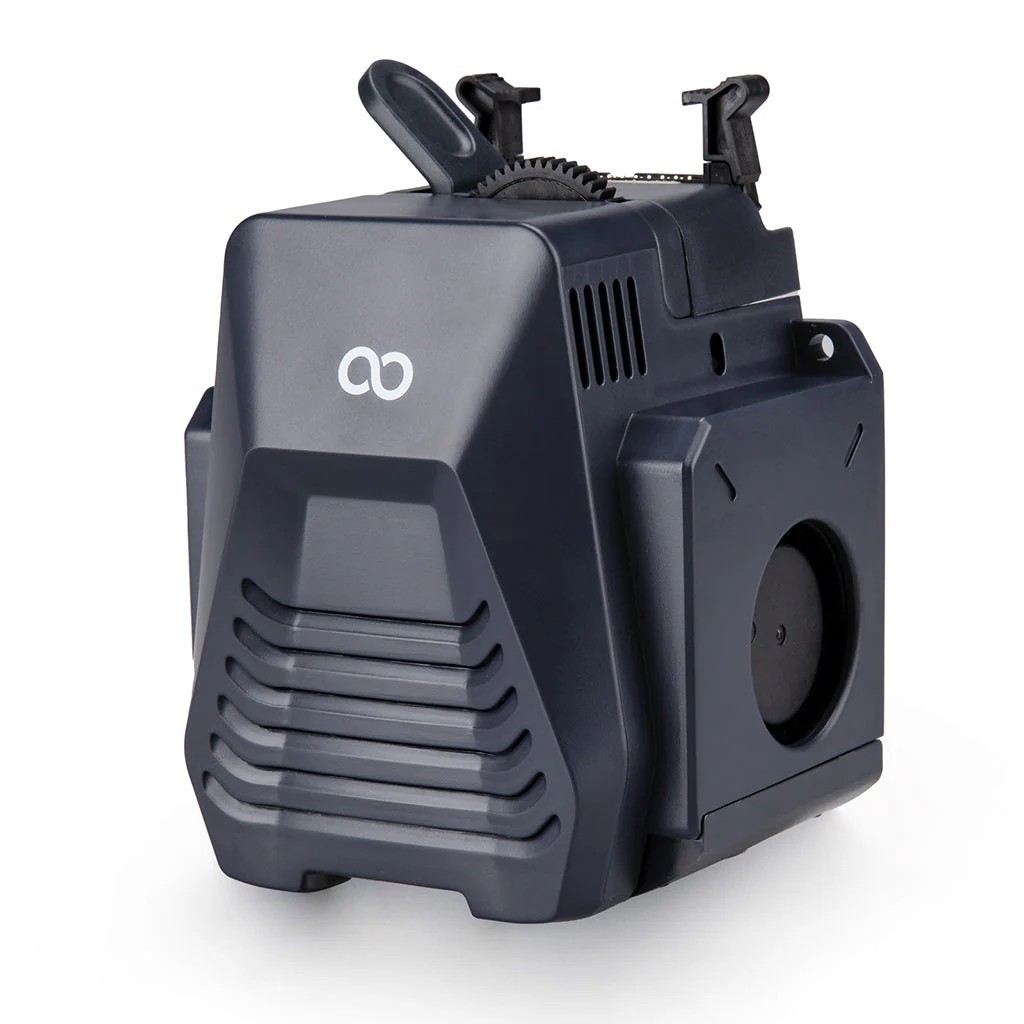

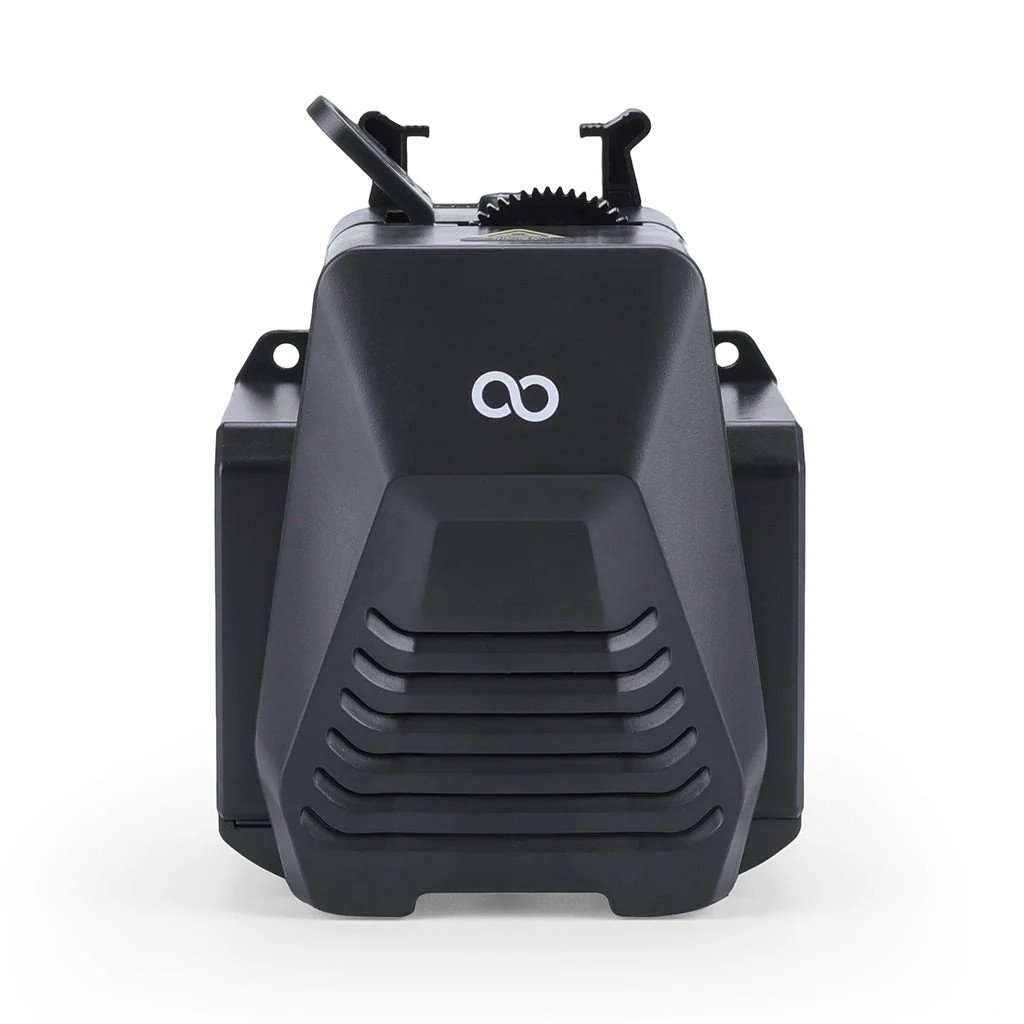

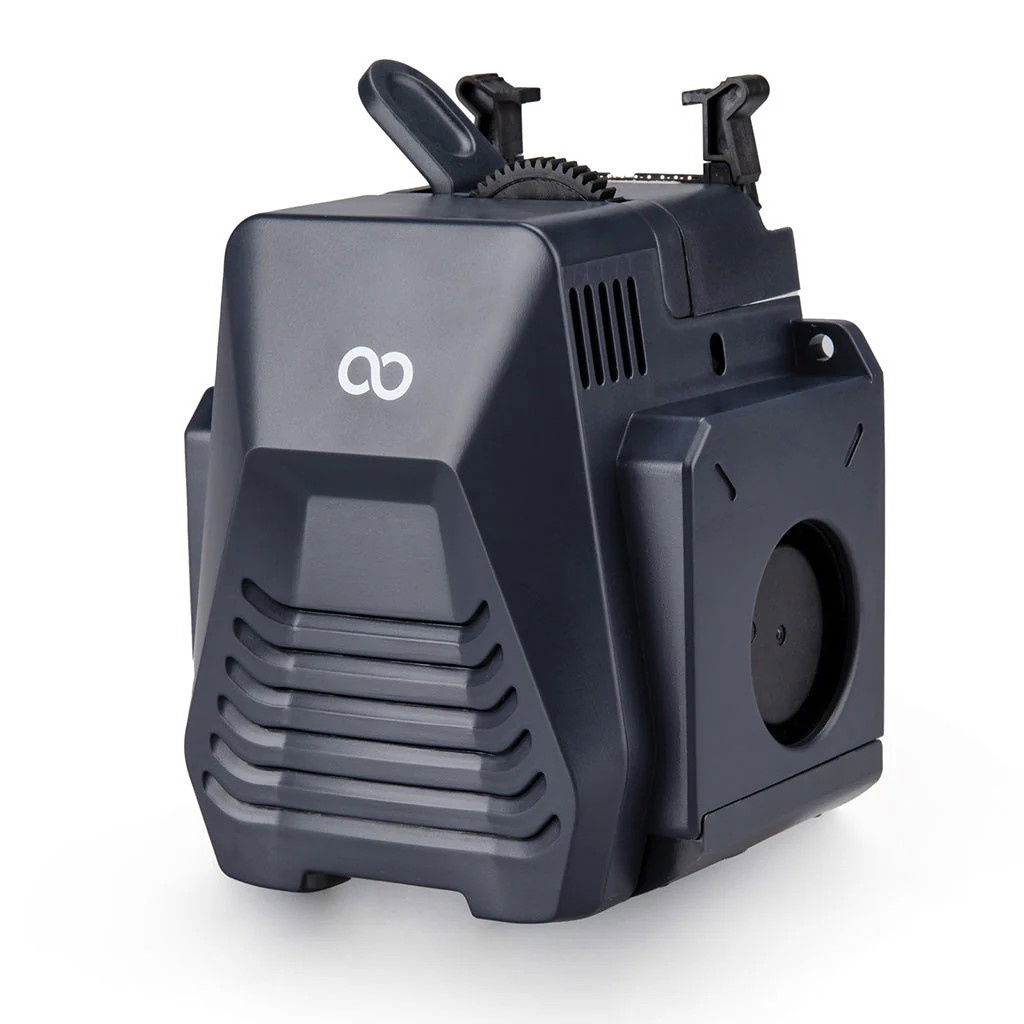

Product description: Extruder for the Elegoo Neptune 4 Plus / 4 Max 3D printer
The Elegoo pre-assembled extruder kit , compatible with the Neptune 4 Plus and Neptune 4 Max 3D printers, is a ready-to-install solution for upgrading your filament feed system. It includes a dual direct drive extruder with a 5.2:1 gear ratio, a 300°C hotend with a titanium alloy heat pipe, and a cooling system with two 4015 ball-bearing fans . Its low weight (290g) and high precision make it suitable for both basic and advanced applications.
Extruder for the Elegoo Neptune 4 Plus / 4 Max 3D printer.
Double gear extruder with direct drive with a 5.2:1 ratio.
Main features of the extruder
- Complete assembled kit: includes extruder, extended hotend, PTFE tube, titanium alloy heat pipe, gear box and cooling fans
- Dual direct drive: 5.2:1 gear ratio and stainless steel gears ensure high power and precise feeding
- Hotend up to 300°C: allows printing with high-temperature materials such as nylon
- Titanium alloy heat pipe: ensures efficient heat dissipation and reduces the risk of nozzle clogging
- 60W ceramic heating element + brass block: guarantees fast and stable filament melting at high printing speeds
- Efficient cooling: Two 4015 ball-bearing fans maintain optimal operating temperatures
- Easy installation: the extruder is ready for assembly, the kit includes a set of screws
- Low weight: only 290 g - less load on the guides and smoother extruder movement
Practical applications
This extruder is suitable for both home and semi-professional use . It allows for printing complex models from materials requiring high temperatures and precise feeding. Efficient cooling and stable extruder operation allow for high-quality prints using PLA , PETG , TPU , ABS , and nylon .

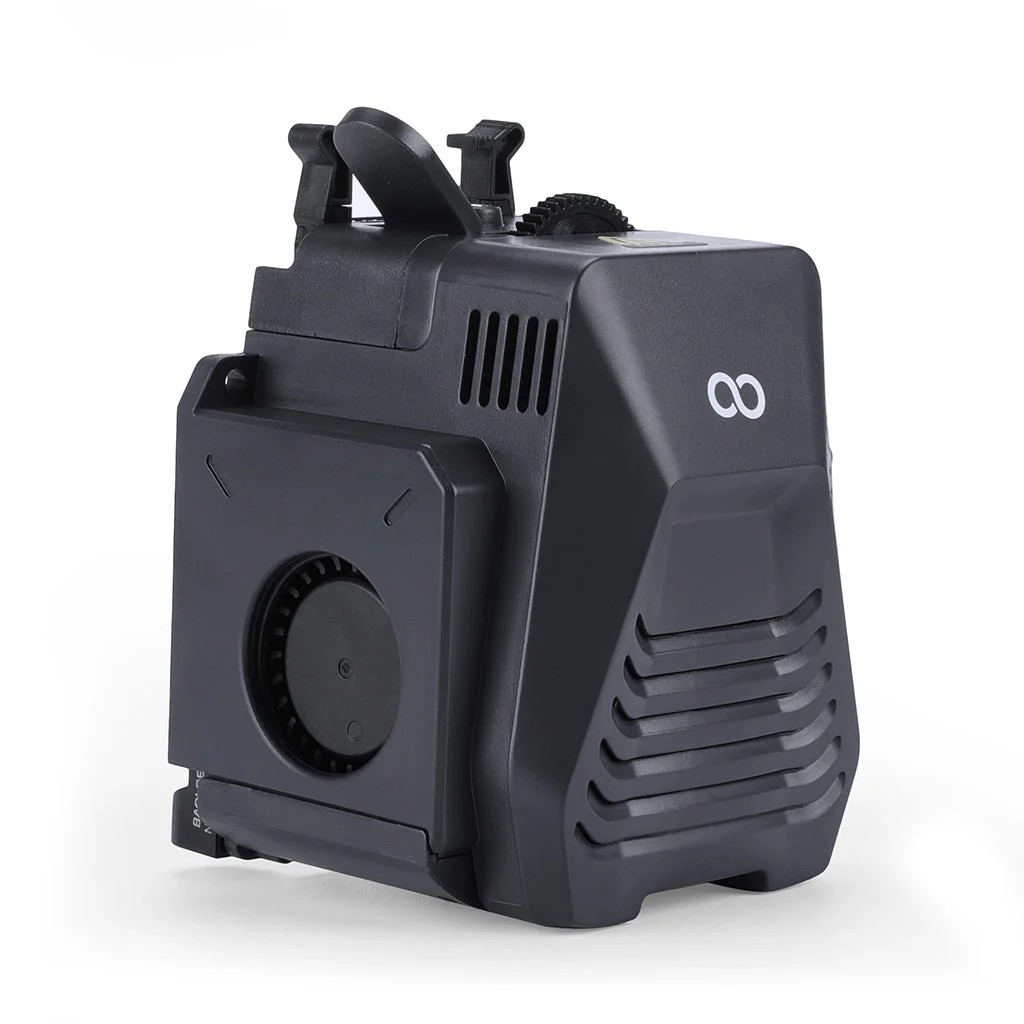

Double-sided cooling fans with 4015 ball bearings ensure efficient hotend cooling.
Technical specifications of the extruder
- Compatibility: Elegoo Neptune 4 Plus, Neptune 4 Max
- Extruder type: Dual direct drive
- Gear ratio: 5.2:1
- Gear material: stainless steel
- Thermal tube: titanium alloy
- Operating temperature: up to 300°C
- Heating element: ceramic, 60 W
- Heating block: brass
- Cooling system: 2x 4015 ball bearing fans
- Extruder weight: 290 g

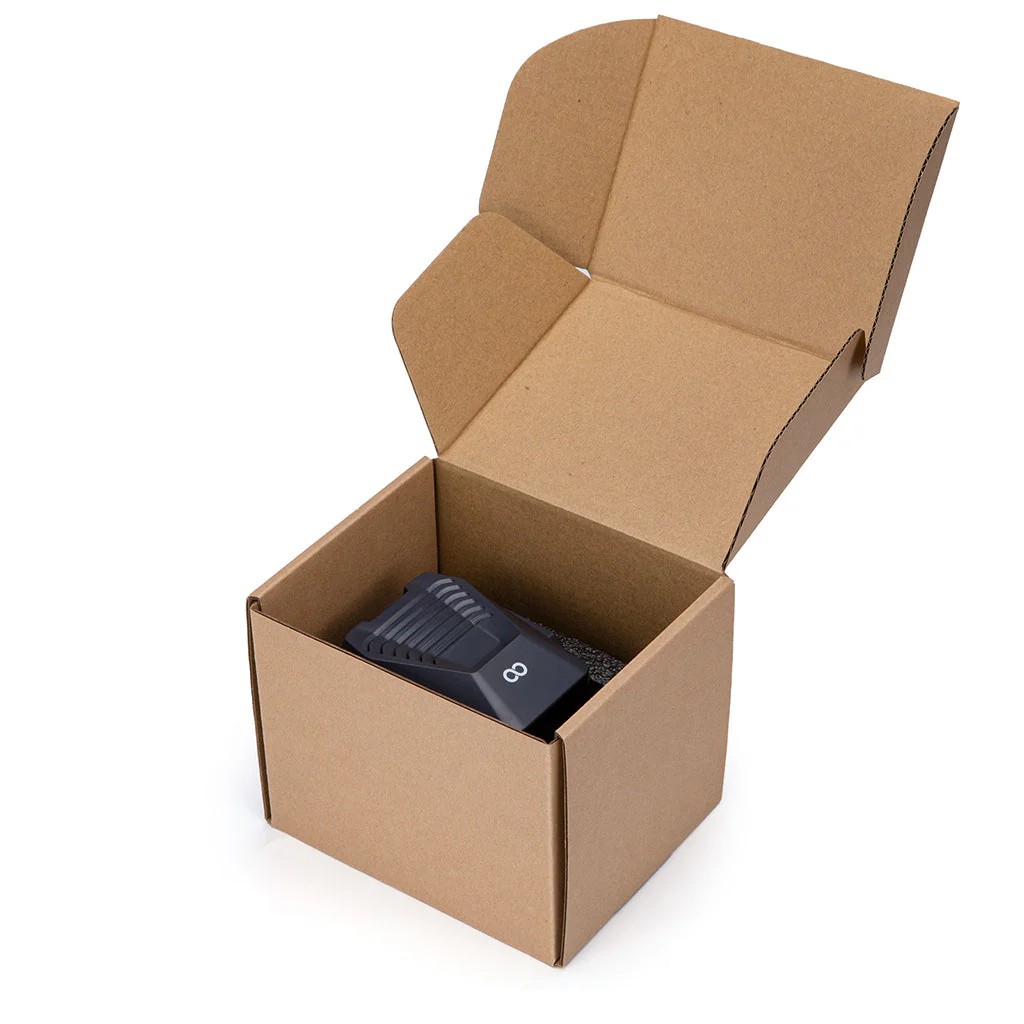

Contents of the set
- 1x Assembled extruder for Elegoo Neptune 4 Plus / 4 Max 3D printers
- 1x Set of mounting screws
