Product description: ACE Pro system for Anycubic Kobra S1 3D printer
Anycubic ACE Pro is an advanced module created specifically for the Kobra S1 printer. It allows for smooth switching between four filament colors in one printing cycle. It is equipped with an active filament drying system with double heaters, which eliminates moisture problems and positively affects the quality of prints. Additionally, ACE Pro has sensors that prevent nozzle blockages and offers RFID synchronization , which improves the selection of material parameters.

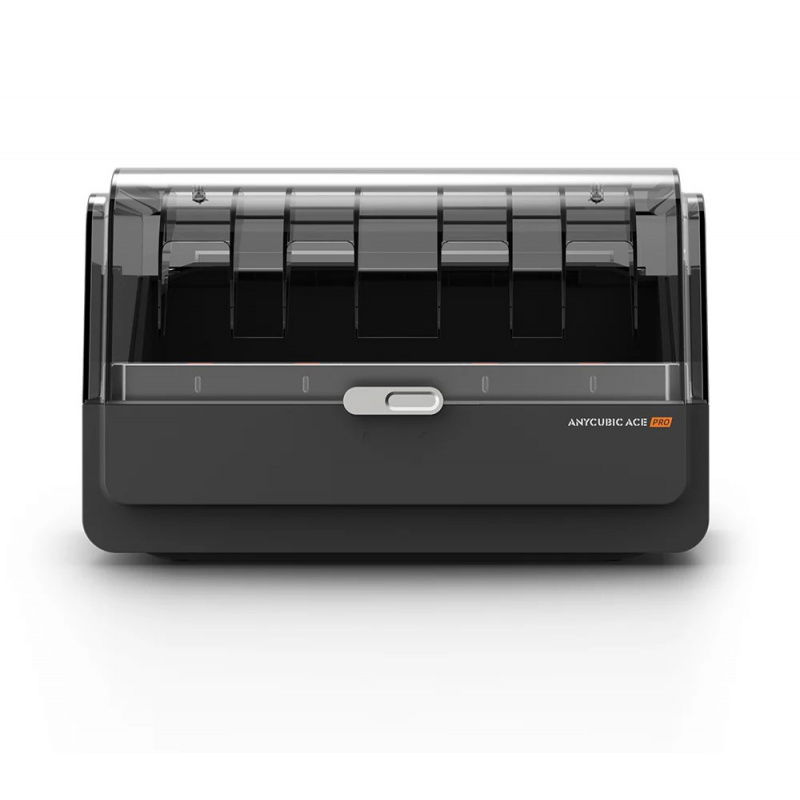

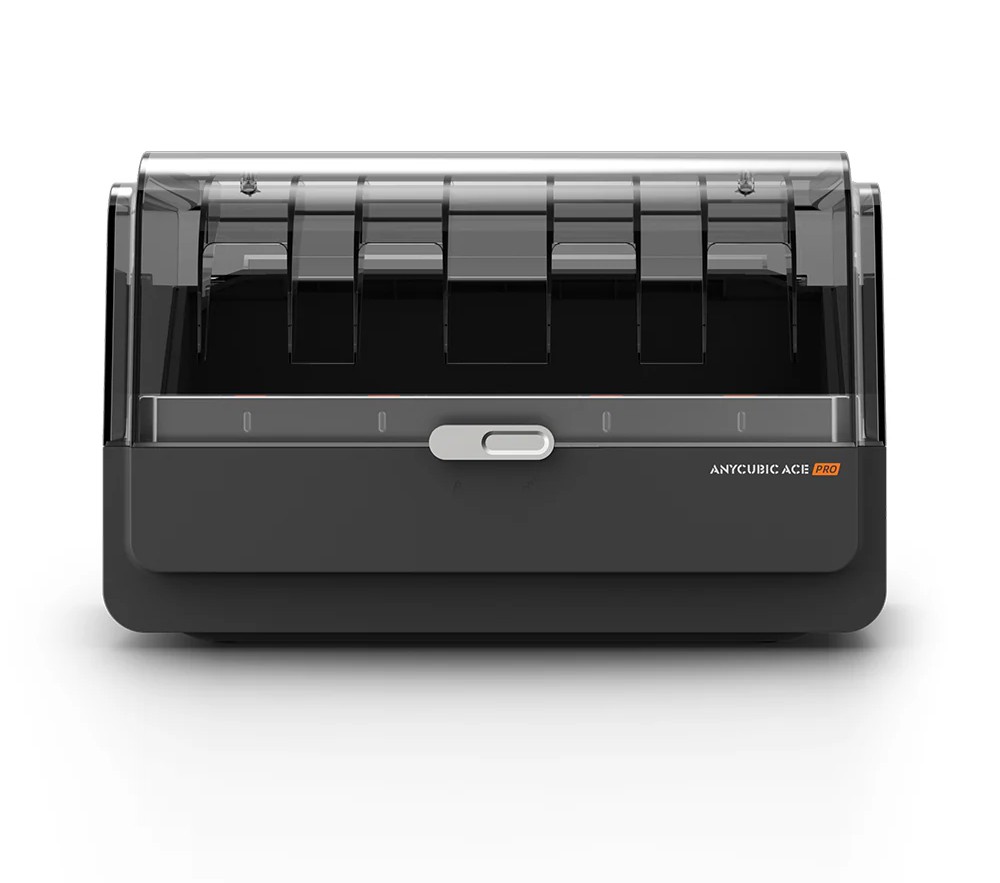

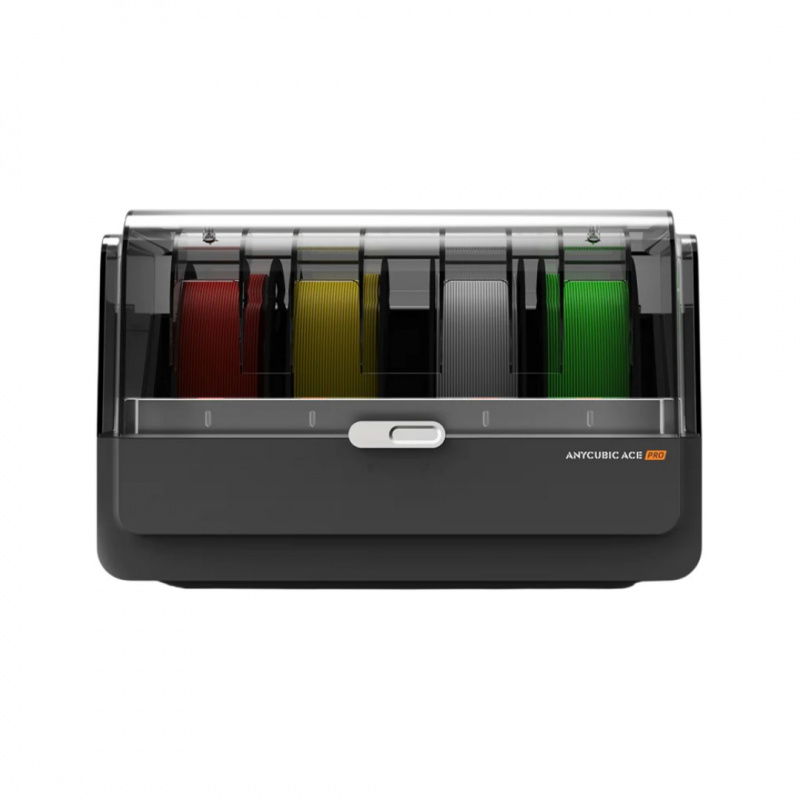

ACE Pro System - dedicated module for Kobra S1.

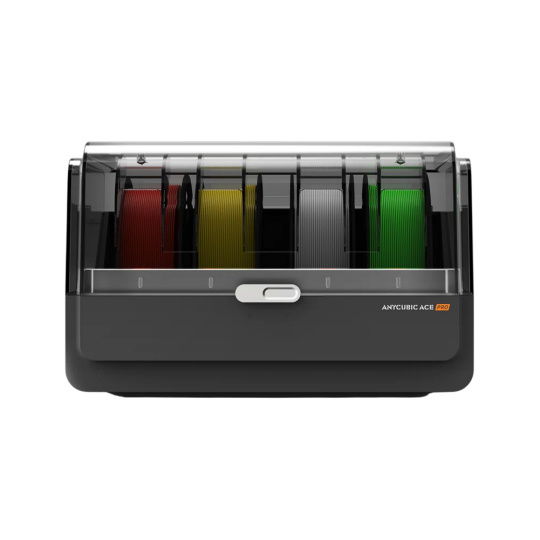

ACE Pro enables multi-color printing.
4-color printing
ACE Pro allows you to print projects in up to four colors in a single print run. Filaments are automatically changed according to the set pattern , which streamlines the process without the need for manual switching. RFID synchronization ensures that the printer always uses the optimal parameters for a given material.

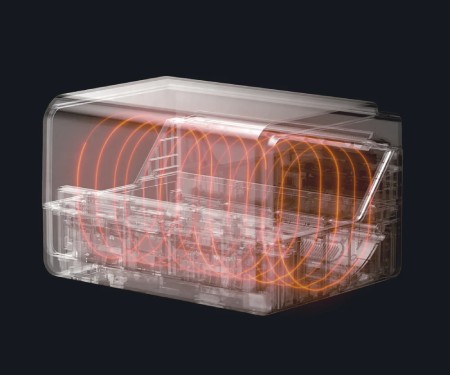

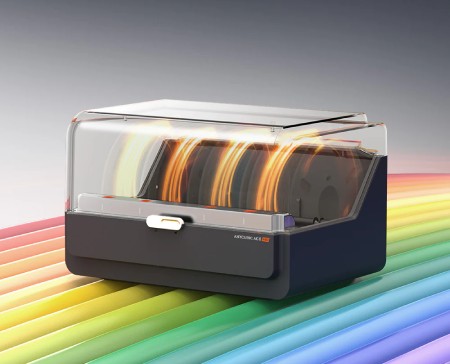

Active drying of filaments for stable quality
The module has a dual PTC heating system with a total power of up to 200 W , which maintains dry conditions inside, heating the filaments up to 55 ° C around the clock. This eliminates the risk of moisture absorption and related defects in printed models. The closed structure of the material protects against external environmental interference.
The system allows for simultaneous printing and drying for up to 24 hours.

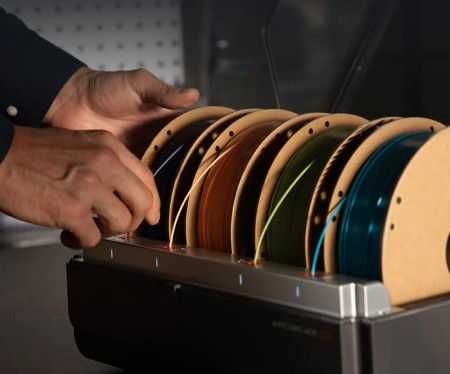

The filament is supplied through four separate tubes.
Protection against filament tangling
Filaments are guided through four separate PTFE tubes , which eliminates the risk of tangling. The automatic loading mechanism ensures smooth operation, and sensors constantly detect potential blockages in the nozzle , pausing the print and protecting the equipment.
ACE Pro Smart Features
- Blockage detection: built-in sensors monitor the nozzle and stop printing if necessary
- Automatic filament switching: when one spool is exhausted, the module switches to the next one of the same color
- Color change optimization: the algorithm minimizes frequent color changes between layers, which speeds up the printing process and reduces filament consumption
- RFID synchronization: automatically adjusts printer parameters to a specific filament

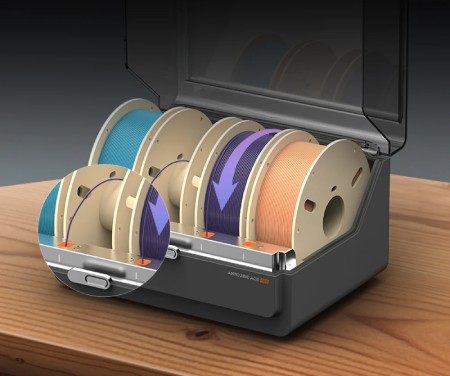

ACE Pro automatically switches to the next spool of the same color filament.

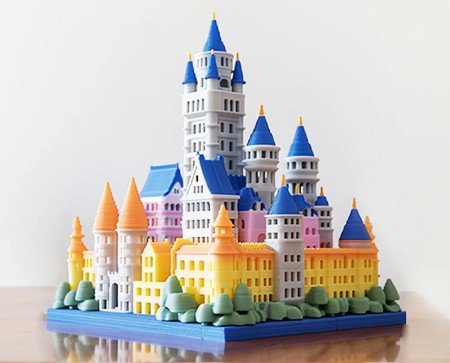

Sample printout.
ACE Pro System Technical Specifications
- Compatibility: Anycubic Kobra S1
- Supported filaments: PLA, PETG, ABS, ASA, PET, PA, PC, PP, HIPS
- Filament diameter: from 1.75 mm
- Dimensions: 365.94 x 282.84 x 234.5 mm
- Weight: 4.6 kg
Kit Contents
- 1x ACE Pro
- 1x Power cord
- 4x Cable organizer
- 1x Signal cable
- 4x PTFE tube
- 1x Anti-blocking module
- 2x Screw M2.5 x 25
