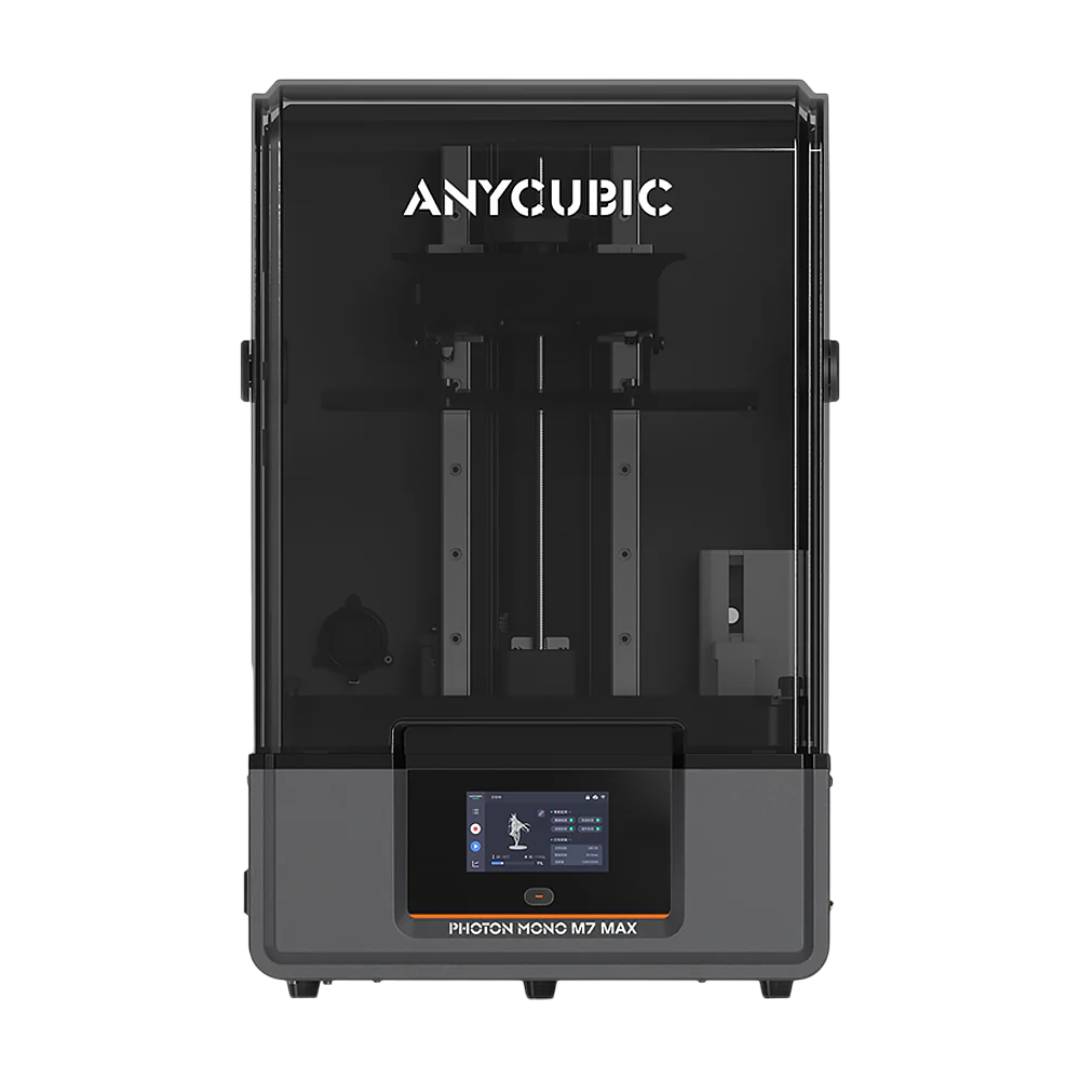

Product description: 3D printer - Anycubic Photon Mono M7 Max - resin
The Anycubic Photon Mono M7 Max is a professional 3D printer built for efficiency and precision. It offers a high print speed of 4 seconds per layer (at 0.05 mm layer height) and a large build volume of 14.7 l (298 x 164 x 300 mm). This allows the M7 Max to print both small and large models with high detail. The unique LightTurbo 3.0 system ensures uniform lighting and precise detail reproduction. The resin temperature management function and automatic refilling enable more efficient use of materials. Additionally, the M7 Max supports a range of different resins , including High Speed and waterproof resins, which increases its versatility.
3D printer - Anycubic Photon Mono M7 Max - resin.
The large workspace allows you to implement creative projects.
Impressive speed and precision
With a maximum print speed of up to 4 seconds per layer (at a layer height of 0.05 mm), the Photon Mono M7 Max is a printer that stands out for its exceptional performance. The combination of high speed and precise detail reproduction makes it an ideal choice for both prototyping and the production of models for cosplay, board games or jewelry. Precision is achieved thanks to a 7K LCD display with a resolution of 6480 x 3600 px and an anti-aliasing system that minimizes the visibility of layers.
Large working volume

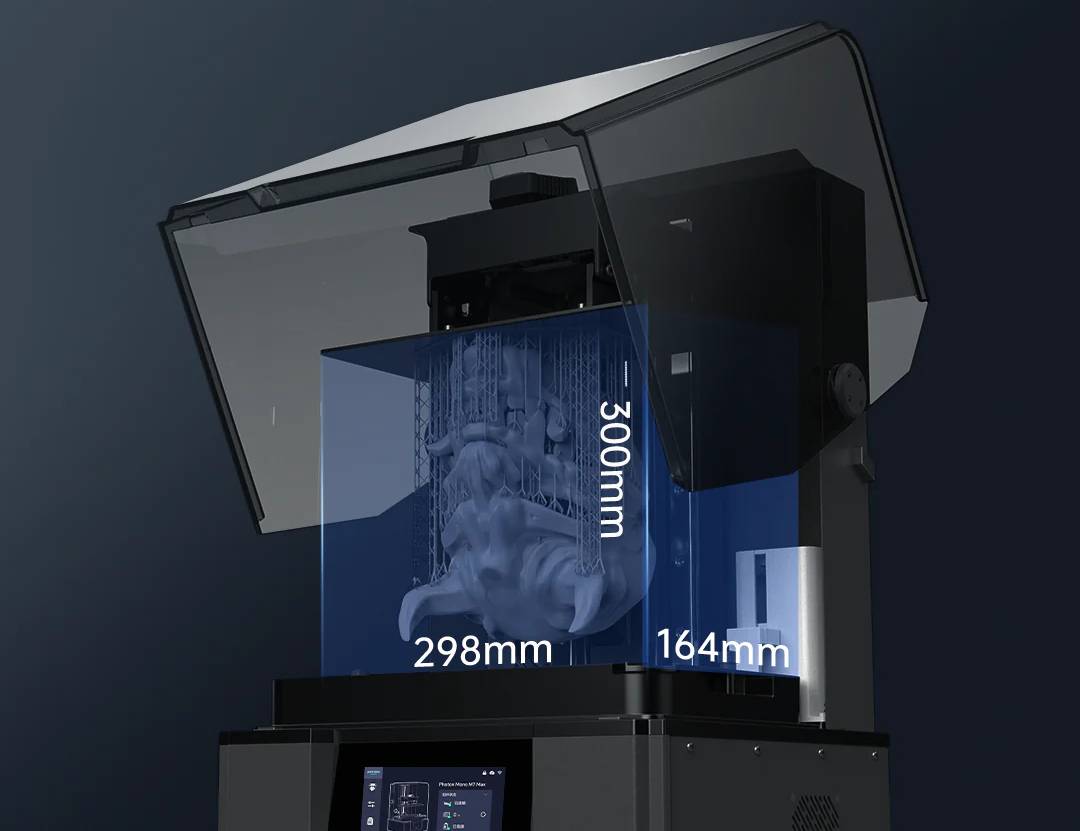

One of the most important features of the M7 Max is its huge build volume - 14.7 l . You can create models up to 298 x 164 x 300 mm in size without having to split them into smaller parts. This makes it the perfect tool for printing larger projects, such as full masks, complex gaming terrains or advanced accessories.
Light Turbo 3.0 System
Thanks to the modern LighTurbo 3.0 system, the printer ensures light uniformity at the level of ≥ 90%, which translates into even exposure and high print quality . This technology significantly improves the efficiency of the printing process, minimizing errors. The COB light source combined with Fresnel lenses and front reflectors, precisely controls each light beam within an angle of 3°.
Intelligent resin management
The M7 Max is equipped with an automatic resin refill system that monitors the material level and prevents printing interruptions. This allows you to focus on creating projects, not manually refilling the resin. The automatic refill system minimizes material waste , which is a significant advantage in professional 3D production.

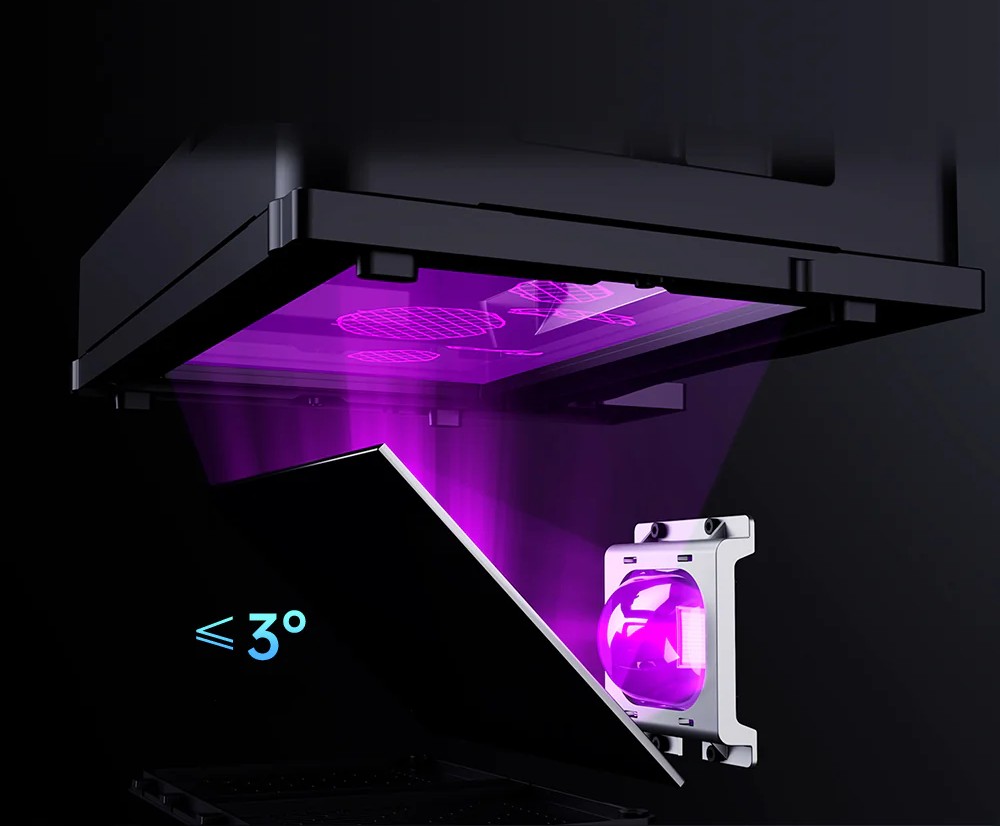

The COB light source system, in combination with Fresnel lenses and reflectors, precisely controls the light emission angle.

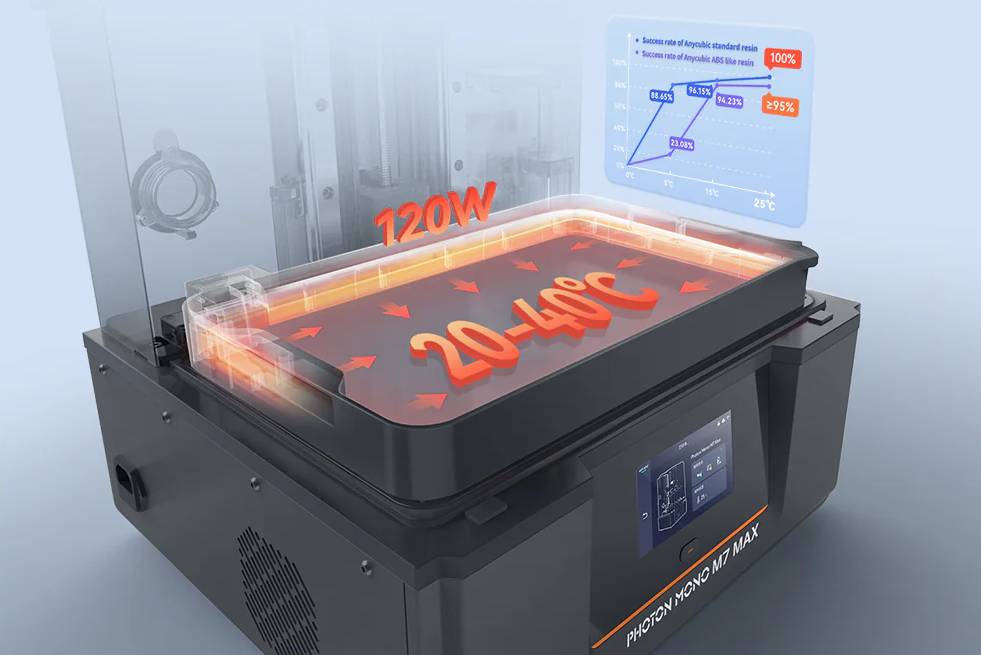

The printer automatically heats the resin to 25°C.
Resin Temperature Management
The M7 Max features innovative resin temperature management that automatically heats the resin to 25°C , and you can also adjust the temperature range from 20°C to 40°C to achieve optimal printing conditions. This solution significantly improves the quality of prints, ensuring uniform layers and minimizing the risk of errors related to resin temperature.
Advanced error detection system
The M7 Max is equipped with an advanced system that detects printing problems , such as resin contamination or incorrect material levels. This provides notifications when intervention is needed , preventing failures and material waste. Automatic error detection is a big advantage for complex projects that require high precision.
Ease of use
Anycubic Photon Mono M7 Max is a printer that focuses on user comfort. Thanks to the intuitive leveling system (four-point leveling) and simple 4.3-inch touch interface , preparing for printing is quick and easy. In addition, thanks to the cover closed with a latch, you get easy access to the interior of the device even with one hand.
Anycubic Software
The software provides full integration and convenience with the Anycubic app , which allows device synchronization and remote printing in the cloud. With the Multi-Device Sync function, you can log in with the same account on the website, slicer and directly on the printer, ensuring a smooth workflow. Photon Workshop , with improved support generation, allows you to create models with optimal support structures and also gives you the possibility to personalize them. The software also supports an interactive 3D printing ecosystem, offering access to thousands of free models , as well as allowing you to earn money on your own projects.
Sample printout.

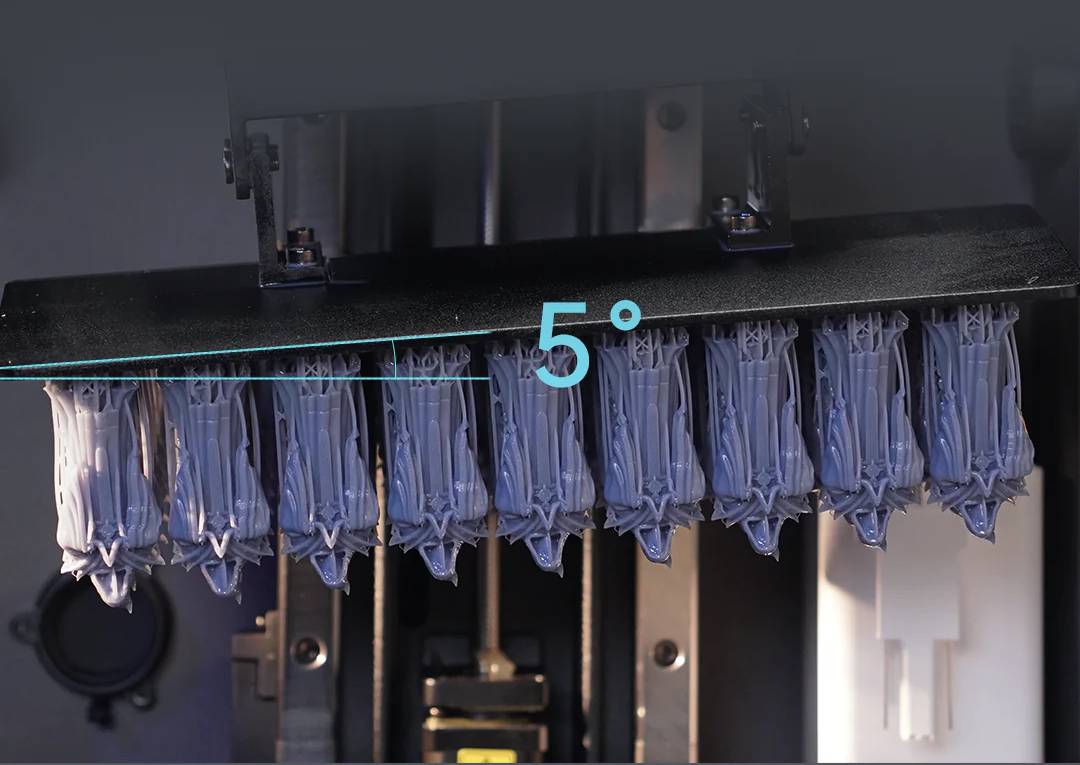

Once the print is complete, models can be hung above the platform at a slight angle, allowing the resin to be poured back into the tank.
Other features of the Anycubic Photon Mono M7 Max printer
- Intelligent Release 2.0 : uses algorithms and mechanical sensors to dynamically adjust the lift height of each layer, significantly improving print efficiency
- Print 88 models in 1 hour : thanks to 72% larger build area (compared to M7 Pro ), the printer allows you to print multiple models at the same time, which increases productivity
- Intelligent life management : the system notifies the user to replace components after reaching 45,000 operating cycles
- Resin residue detection : the printer detects solid resin residue in the tank and reminds the user to clean
- Built-in hook for hanging models : once the print is finished, models can be hung at an angle, allowing you to reuse leftover resin
- Larger resin tank (1300ml) : increased resin tank capacity allows you to print larger models or industrial components
- Ventilation system : possibility of connecting an external air purifier, which reduces the smell of resin and improves the air quality in the room
- High-performance motherboard : Higher computing power enables more advanced projects and faster data processing
| Technical specifications of the Anycubic Photon Mono M7 Max 3D printer | |
|---|---|
| Print size: | 298 x 164 x 300 mm (14.7 l) |
| Print resolution: | 6480x3600px (7K) |
| LCD screen type: | monochrome, 13.6'' |
| Print speed: |
≤ 31 mm/h, 0.05 mm layer with standard resin ≤ 63 mm/h, 0.1 mm layer with standard resin ≤ 86 mm/h, 0.1 mm High Speed resin layer |
| Layer height: | ≥ 0.01mm |
| XY resolution: | 46 x 46 μm |
| Software: | Anycubic Photon Workshop |
| Light source: | COB + Headlights + Fresnel Lens |
| Uploading files: | USB, WiFi, LAN |
| Control panel: | 4.3'' touch screen |
| Illumination uniformity: | ≥ 90% |
| Illuminance: | 4500µW/cm³ ± 500µW/cm² |
| Printer dimensions: | 425 x 362 x 652 mm |
| Mass: | 24kg |
