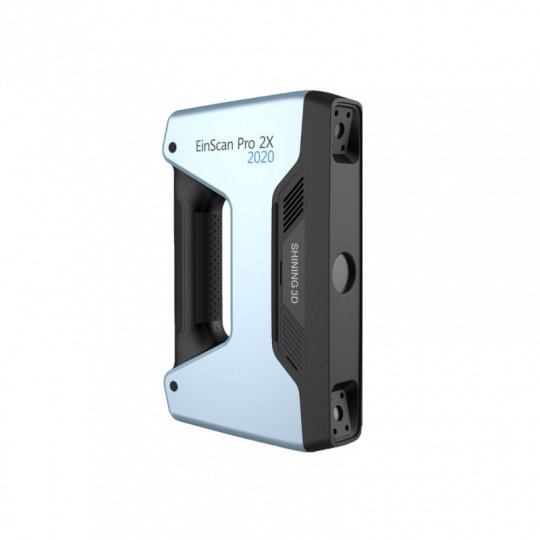

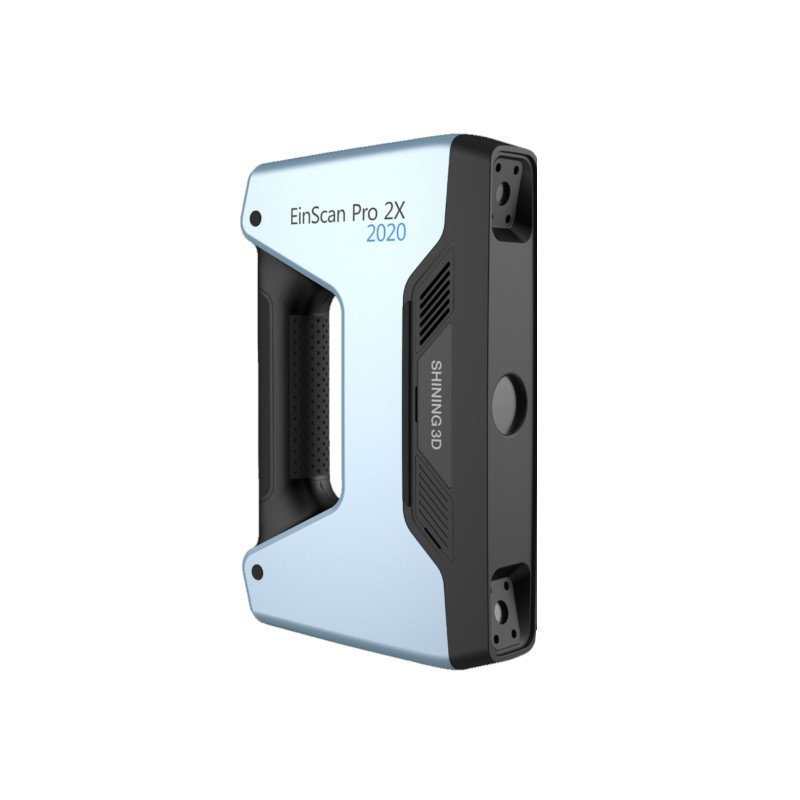

Product description: 3D Scanner - Shining 3D EinScan Pro 2X 2020
The EinScan Pro 2X 2020 is the latest version of the Shining 3Dscanner. The device has three modes of operation. It allows manual scanning in fast or HD mode and a Fixed Scan solution that can be combined with an optional rotary table. The EinScan Pro 2X 2020 processes up to1500000 points per second (30 fps)in manual high-speed scanning mode. Solid EdgeSHINING 3D Edition software is included.
Versatile 3D Scanner
The scanner is an excellent tool fordigitizing small objectsinto digital 3D models. The device can be used in many industrial fields. It allows you to create a starting point for CAD modeling, which significantly simplifies the prototyping procedure.
The EinScan Pro 2X 2020 allows for simple plug and play installation. It uses a USB 3 port for even faster scanning: it processes up to 1,500,000 points per second (30 fps) in manual high-speed scanning mode. Single-scan accuracy in Fixed Scan mode without turntable is up to 0.04 mm. When using markers the volumetric accuracy in manual scan modes is up to 0.045 mm + 0.3 mm/m.
Scanning and alignment modes
The EinScan Pro 2X 2020 allows scanning in the following modes (with or without optional turntable):
- Manual Fast Scan
- Manual HD Scan
- Fixed Scan
It also hasseveral alignment modes: feature, marker, texture, coded rotary targets, and manual alignment. The scanner has a modular structure that allows the product to be retrofitted with optional Color Pack and Industrial Pack add-ons.
The minimum point-to-point distance is up to 0.2 mm in manual high-speed scan mode. Scan modes and HD manual scan mode, generate a 3D model in high resolution.
Free choice of tracking mode
EinScan Pro 2X 2020 allows you to choose from the following tracking modes:
- By markers
- By features
- By textures
The device hasenhanced performance for combining individual scansand allows for grid editing, cleaning, hole filling, data simplification, smoothing, sharpening, etc.
Shining 3D EinScan Pro 2X 2020 is compatible with the most popular file formats: STL, OBJ, PLY, ASC, 3MF and P3 (global markup file)
The scanner isintegrated with Solid Edge SHINING 3D Edition software, which includes reverse engineering, generative design and simulation along with CAD tools.
Shining 3D EinScan Pro 2X 2020 Specifications
|Supported file types:||OBJ, STL, ASC, PLY, 3MF, P3|
|Compatible Operating Systems:||Windows 7, 8, 10, (64 bits)|
|Outdoor operation:||Possible, avoid direct sunlight|
|Texture Scanning:||Yes (with Color Pack texture camera)|
|Special Scanning Object:||For transparent, reflective or dark object, spray with powder before scanning|
|Depth of view:||± 100 mm|
|Single scan range:||
|Working distance||up to 400 mm|
