Product description: 3D scanner - Shining3D EinScan H2
The Shining3D EinScan H2 is a modern 3D scanner that combines a hybrid light source (LED and VCSEL), ensuring fast, accurate, and versatile scanning. With a 5 MP camera resolution and scanning precision down to 0.05 mm , it enables the creation of high-quality 3D models. The scanner reaches a speed of 1,200,000 points per second , making it ideal for processing both small and large objects. An adjustable working distance (from 200 mm to 1,500 mm) and a wide field of view (780 x 900 mm) make the device ideal for a variety of conditions. With marker-free scanning and precise detail tracking, the EinScan H2 handles challenging surfaces, including dark materials and human skin . Its versatility and high precision make it ideal for medicine, education, digital art, and many other fields.

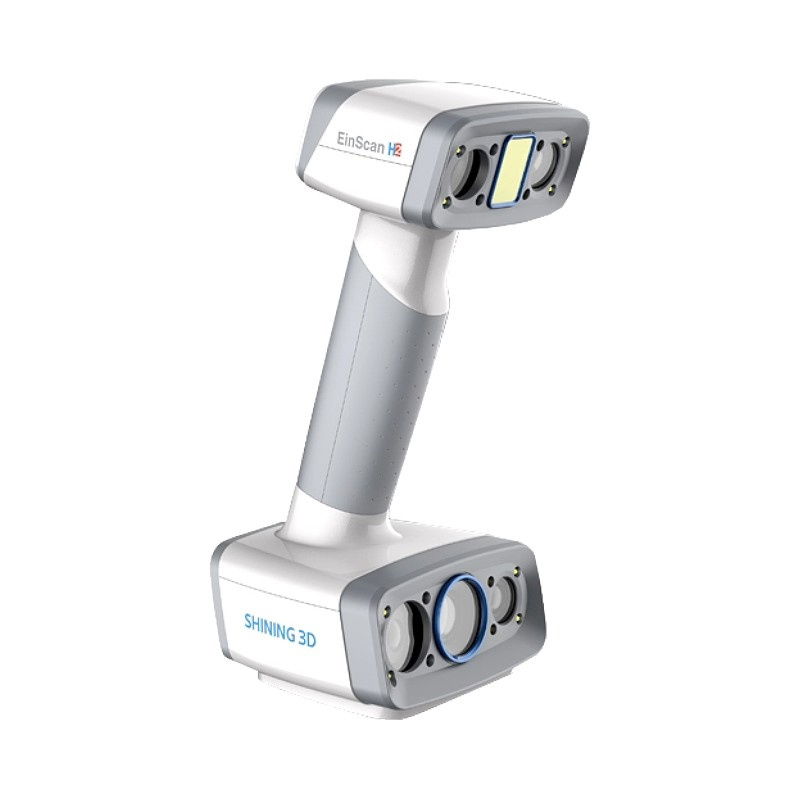

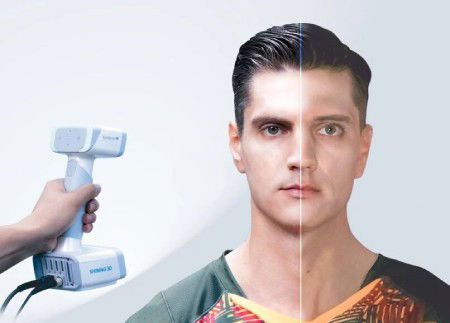

3D scanner - Shining3D EinScan H2.

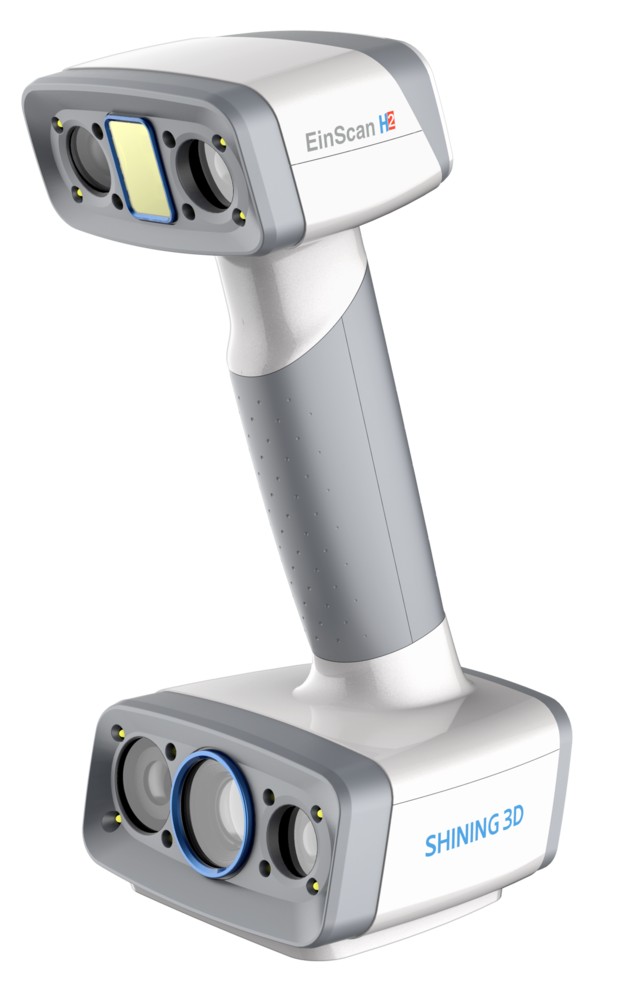

The EinScan H2 uses an advanced light source - white LED and infrared VCSEL.
EinScan H2 - a new generation professional 3D scanner
The EinScan H2 is a handheld hybrid 3D scanner that combines white LED and infrared VCSEL light , offering exceptional versatility and data quality. Thanks to an improved 5MP texture camera , the device produces photorealistic 3D models with high color fidelity and detail. It is ideal for engineers, designers, and professionals in the medical, educational, and museum industries.
Hybrid technology for scanning in all conditions
The EinScan H2 scanner utilizes three infrared VCSEL diodes and a visible LED light source, enabling the scanning of objects with varying colors, textures, and reflectivity —even in challenging lighting conditions. By eliminating the need for markers , scanning becomes faster, more intuitive, and more convenient. The advanced IR mode allows for precise scanning of dark surfaces and the human body , even with subtle movements.
Face and body scanning with unprecedented accuracy
The EinScan H2 is optimized for human scanning —both the full body and face. Thanks to a hair enhancement algorithm and a flexible IR mode, the device effectively captures facial features and hair structure, regardless of color . Furthermore, non-contact technology ensures user comfort and safety, making this scanner an excellent solution for medicine, prosthetics, and digital anthropometry.
High precision and scanning speed
The EinScan H2 achieves an impressive accuracy of up to 0.05 mm in white light mode and up to 0.15 mm in IR mode , ensuring full geometric fidelity of scanned objects. Scanning speeds of up to 1,200,000 points/sec enable rapid model creation without quality loss. The device also offers adjustable point resolution (from 0.2 mm to 3 mm) to suit various design and production needs.
The 5MPx camera captures rich, bright colors and clean textures.

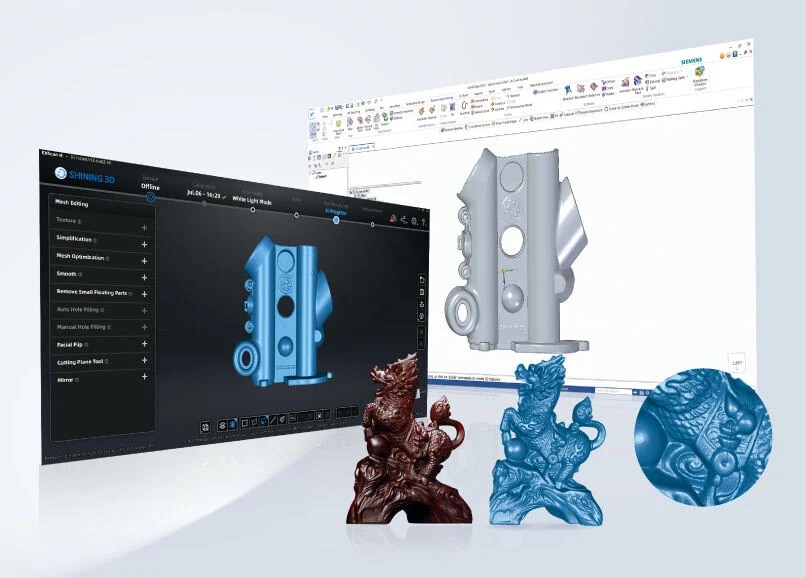

EinScan H2 offers professional software with an easy-to-use interface.
Large working range and ultra-wide field of view
The EinScan H2 offers an adjustable working distance from 200 mm to 1500 mm , making it easy to navigate both narrow spaces and large objects. Its ultra-wide field of view of up to 780 x 900 mm allows for rapid capture of large areas, significantly increasing workflow efficiency. This makes the EinScan H2 ideal for applications in architecture, automotive, art, and heritage conservation.
Professional software and easy to use
The EinScan H2 works seamlessly with EXScan H and EXScan O&P software, offering a wide range of features—from calibration and scanning to editing and exporting models. Its intuitive interface, scan quality indicators, and multiple modes (white light, IR Portrait, IR Object) ensure comfort for both beginners and advanced users. This comprehensive tool supports the entire workflow—from scan to finished 3D model.
Contents of the set
- 1x EinScan H2 3D Scanner
- 1x Set of markers
- 1x Power Supply
- 1x Calibration table
- 1x Positioning Paper
- 1x Connection cable (USB, DC IN)
- 1x Flash drive
EinScan H2 has an ultra-wide field of view (FOV) measuring up to 780 x 900 mm.
| Technical specifications of the Shining3D EinScan H2 3D scanner | |
|---|---|
| Light source | Visible white light | Infrared light |
| Scanning accuracy | White light: up to 0.05 mm | Infrared light: up to 0.15 mm |
| Volumetric accuracy | White light: 0.05 mm + 0.1 mm/m | Infrared light: 0.15 mm + 0.3 mm/m |
| Resolution | From 0.2 mm to 3 mm (adjustable) |
| Scanning speed | White light: 1,200,000 points/s, 20 frames/s | Infrared light: 1,060,000 points/s, 20 frames/s |
| Max scanning area | White light: 420 x 440 mm | Infrared light: 780 x 900 mm |
| Reference working distance | 470 mm |
| Working distance | White light: 200mm to 700mm | Infrared light: 200mm to 1500mm |
| Light source category | Eye-safe white LED light source (visible light) | Class I infrared VCSEL laser light source (invisible light) (safe for the human eye) |
| Matching modes | Markers, texture, geometry, hybrid |
| Connection standard | USB 3.0 |
| Color scanning | Yes |
| Camera resolution | 5 MPx |
| Output formats | STL, OBJ, ASC, PLY, P3, 3MF |
| Optimal working humidity | From 10% to 90% |
| Recommended hardware specifications | System: Win10/Win11, 64-bit; Graphics card: Nvidia GTX/RTX series, RTX 2060 and above; Video memory: ≥6GB; CPU: Intel I7-11700 and above; Memory: ≥64GB |
| Dimensions | 108 x 110 x 237 mm |
| Mass | 731 g |
