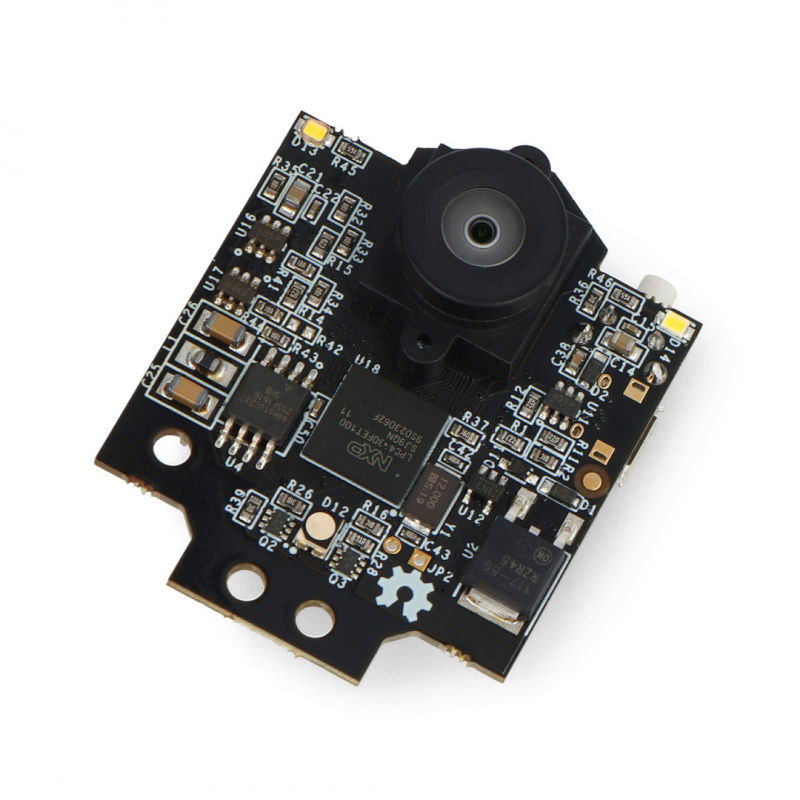

Product description: PixyCam ver. 2.1 CMUcam5 camera - intelligent image sensor - SparkFun SEN-14678
An intelligent image sensor that allows the robot to find objects. Pixy has support for various devices, such as Arduino , Raspberry Pi or BeagleBone . The software and hardware are fully OpenSource compliant, so they can be freely modified.
Pixy2 is smaller, faster and more efficient than its predecessor. Like its predecessor, it can learn to detect objects , and it also has new algorithms that detect and track lines. These algorithms can also detect intersections and "road signs" that tell the robot what to do, e.g. turn left, slow down, etc. Pixy2 has a speed of 60 fps.
Main Features Image Sensor
- Multiple communication interfaces including UART, SPI, I2C and USB.
- Ability to communicate with popular platforms including: Raspberry Pi, Banana Pi and Arduino.
- Working speed 60 frames per second.
- The module is small in size and easy to connect.
- PixyCam has built-in image processing systems, so the motherboard's microcontroller is not burdened with a large amount of calculations.
Examples of module applications
- Mobile robots - the device allows, among other things, to track lines and detect colors. Special algorithms also allow to determine the position, orientation and size of objects.
- Alarms - the camera can notify the user about an object approaching it.
- Automation - With the ability to distinguish the color, size and location of an object, PixyCam is suitable for use in automation devices. The built-in memory allows you to save up to 7 objects.

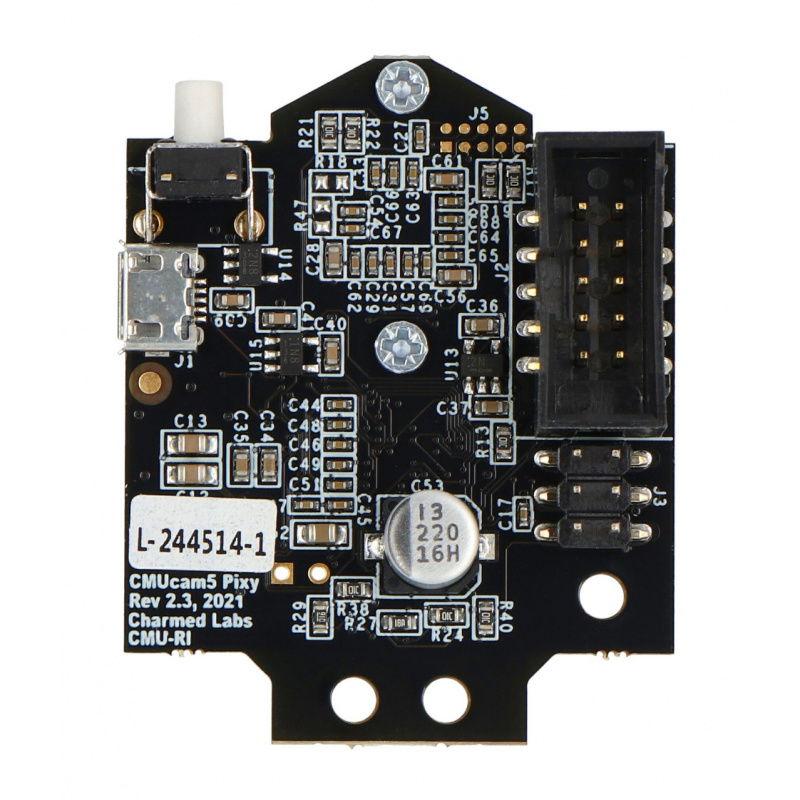

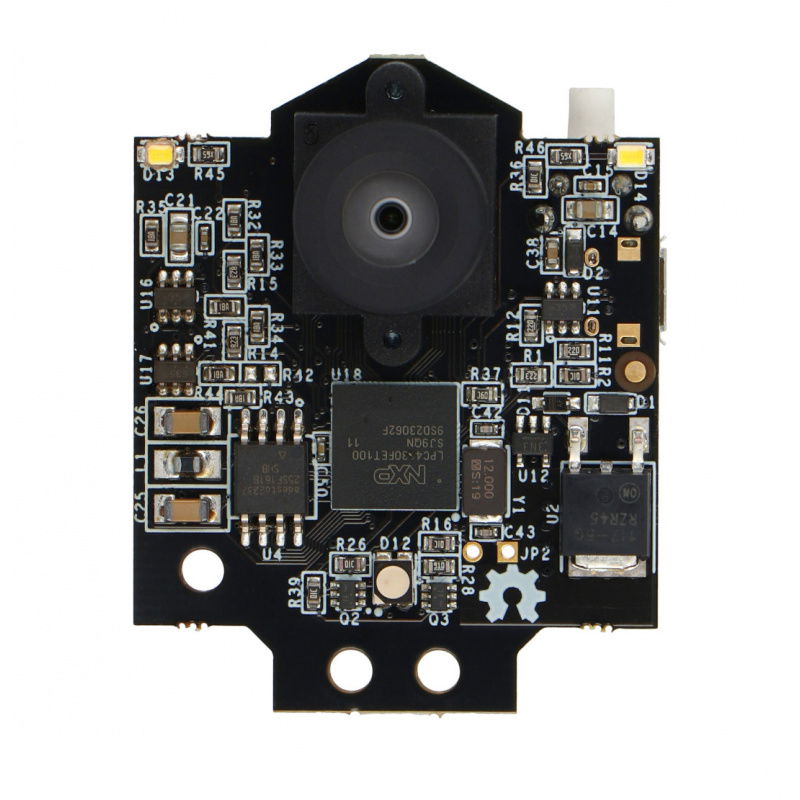

PixyCam camera - front view (left) and bottom view (right).
First start-up
To run the camera in Windows, simply:
- download and install the latest software from the manufacturer's website,
- connect the camera via a microUSB cable (included),
- run the PixyMon program.
The device can also be connected to any microcontroller (including Arduino and Raspberry Pi ) via available communication interfaces, e.g. UART, I2C, SPI. A detailed description can be found in the user guide . |
Intelligent Image Sensor Technical Specifications
- Processor: Dual-core NXP LPC4330, 204 MHz
- Image sensor: Aptina MT9M114 , 1296 x 976 px
- Viewing angles:
- Horizontal: 60 °
- Vertical: 40 °
- Current consumption: approx. 140 mA
- Supply voltage:
- USB: 5V
- Unregulated input: 6V to 10V
- RAM: 264 KB
- Flash Memory: 2MB
- Communication interfaces:
- UART
- SPI
- I2C
- USB
- Digital
- Analog
- Integrated light source: approx. 20 lumens
- Dimensions: 42 x 38 x 15 mm
- Weight: 10 g

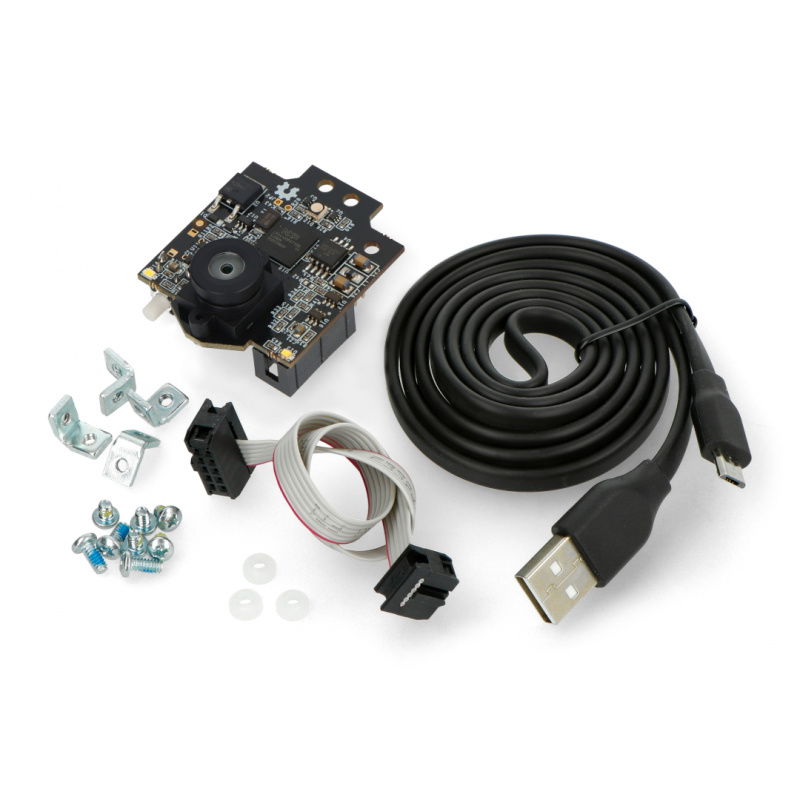

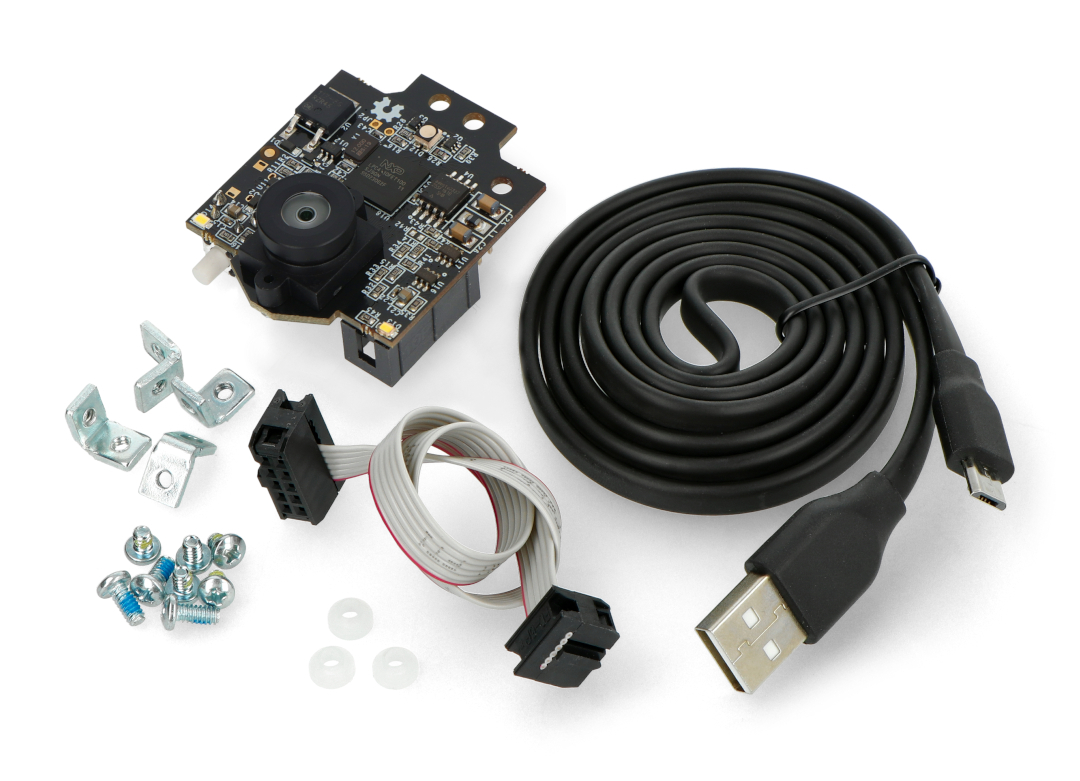

The set includes
- PixyCam ver. 2.1 CMUcam5
- ISP Arduino Cable
- MicroUSB cable
PixyCam ver. 2.1 CMUcam5 camera - intelligent image sensor - SparkFun SEN-14678
We offer a unique component - this is the PixyCam version 2 CMUcam5 camera - the device works as an intelligent image sensor. The manufacturer is the popular SparkFun brand, so you can be sure that the product is high-class equipment.
The camera is capable of recording and analyzing images at 60 frames per second. A specially designed processor is responsible for the analysis, so the logic circuit of the board is not additionally burdened with such a task.
Cameras for Arduino and Raspberry Pi
Thanks to the manufacturer, which focuses on development and a friendly approach to the customer, the purchased equipment and software can be freely modified - there is a so-called OpenSource license for everything. The camera is perfectly adapted to work with such minicomputers as Arduino and Raspberry Pi.
In our offer you will find many more smart cameras, distance sensors and other similar modules ready for installation in the target equipment. The entire Botland assortment is products from the field of electronics, robotics and automation.
