Product description: Miniature module ATmega8 - microBOARD-M8

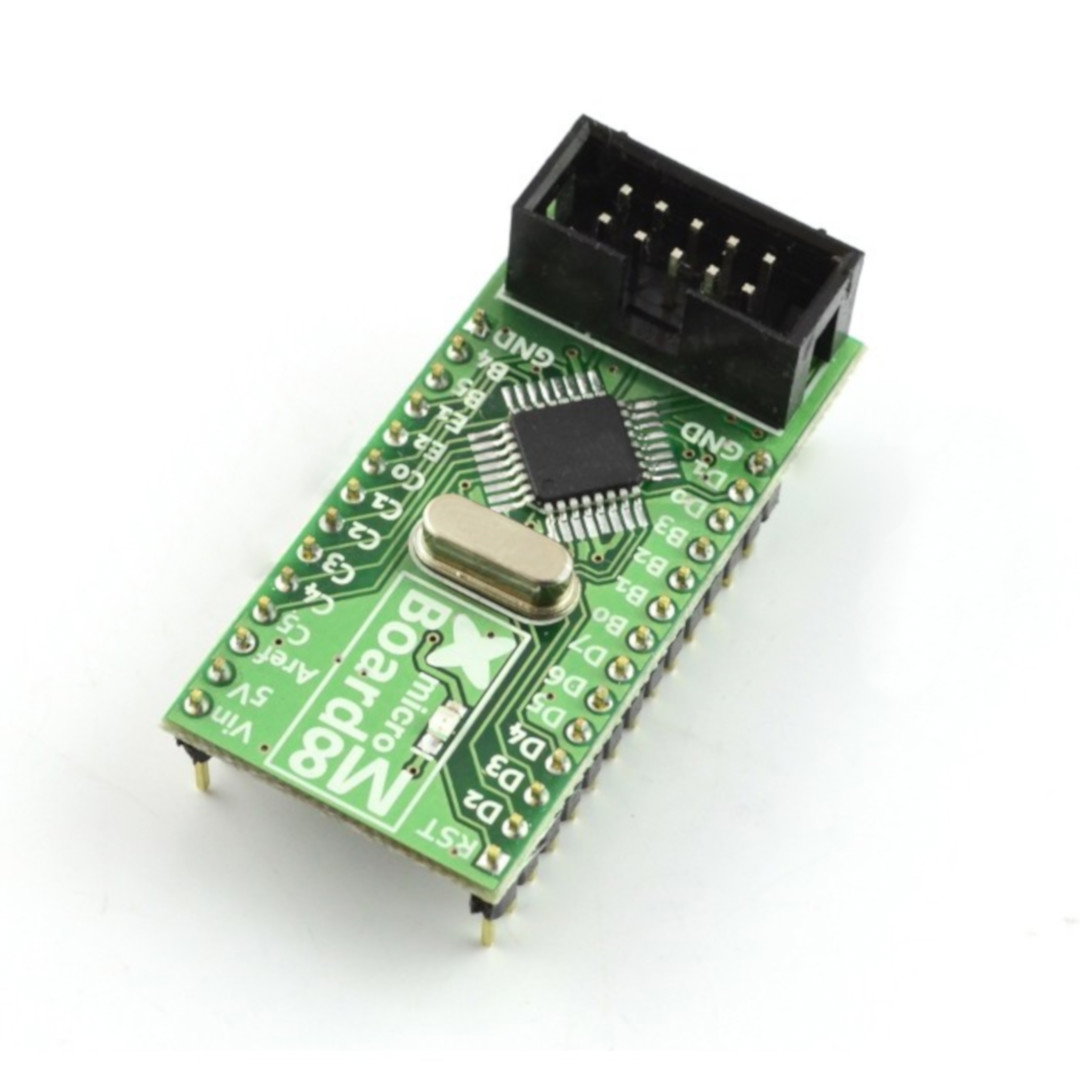

Module microBOARD-M8-miniature set of run with the host microcontroller ATmega8a on Board. On Board there is also a voltage regulator 5V, quartz resonator 12 MHz and socket programming IDC-10 (kanda). The module can be programmed in the language C and BASCOM AVR.
In our offer alsoprogramming AVRandtile connector(seen in photo).
Key features of ATmega8 microcontroller
- 8 KB Flash memory (program memory)
- 512 bytes EEPROM
- 1 KB of SRAM (Static RAM)
- 2 counters / timers 8-bit
- 1 counter / timers 16-bit
- 1 analog-to-digital Converter (8 channels 10-bit accuracy)
- Network interfaces: SPI, UART, TWI (I2C)
- Built-in analog comparator
- 3-channel PWM
Specification
- MCU: ATmega8A-AU
- Connector for ISP programming
- Voltage regulator 5 V (78M05)
- Maximum current: 0.5 A
- The supply voltage of the microcontroller is filtered using capacitors
- Supply voltage analog part, optionally filtered using the balls ferrytowego
- Power supply by continuous voltage in the range 7 - 12 V
- The led, indicating the connection of the supply voltage
- The pins of the microcontroller are on 2 connection pins (goldpin) – with the exception of the conclusions is connected to the quartz resonator
- Resistor podciągający RESET supply voltage (5 V)
